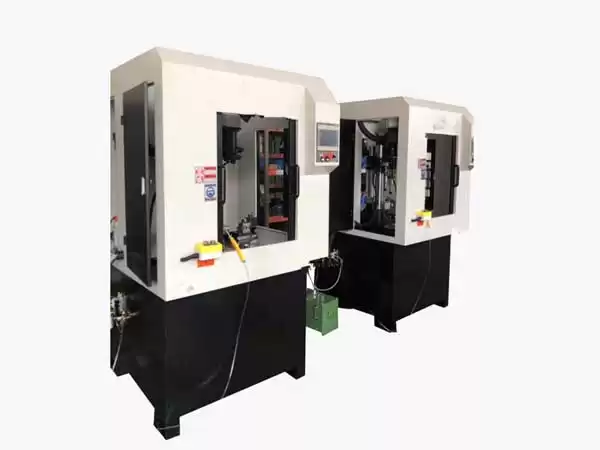

Horizontal drilling,tapping,milling compound machine
1.Single spindle unit on one side and one single spindle unit on the other, HIWIN boxway rall slide table, complete drilling and milling process.
2.One-time clamping, can place 2 workpiece, complete drilling, milling process, heavy-duty Cutting
Main technical parameters
|
NO.
|
Item name
|
Specifications
|
|
1
|
Electrical system
|
CNC system(optional)
|
|
2
|
Maximum travel of spindle
|
150mm
|
|
3
|
Precision milling spindle unit
|
YLX60
|
|
4
|
The spindle taper
|
BT40
|
|
5
|
Maximum milling plane diameter
|
φ60mm
|
|
6
|
Minimum working width
|
30
|
|
7
|
Table travel
|
400
|
|
8
|
Spindle speed
|
0-960rmp
|
|
9
|
Spindle motor power
|
3kw/6P 2set
|
|
10
|
Spindle feed servo motor
|
1.8KW 2set
|
|
11
|
Table feed servo motor
|
2.3KW 1 set
|
|
12
|
Machine power
|
about 16KW
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintenance and repairment service.
FAQ:
Q: Are we a Horizontal compound machine trading firm or a manufacturer?
A: We are a Horizontal compound machine MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
