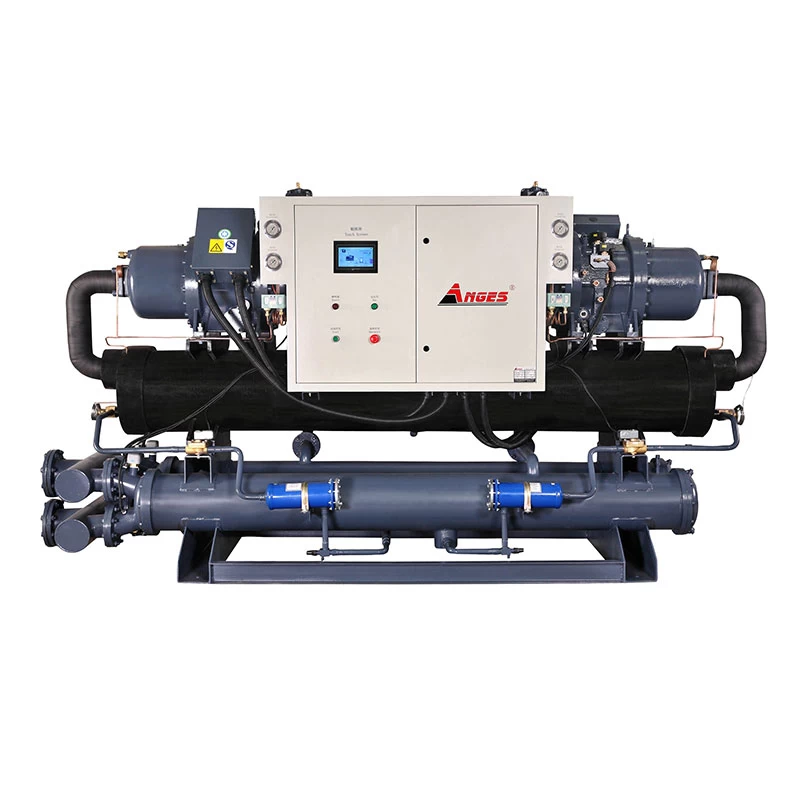

China Industrial Water Chiller Machine Unit AGS-200WDH
Specification
|
Model Item
|
AGS-200WDH
|
|
nominal cooling capacity
|
kcal/h
|
550400
|
|
kw
|
747.8
|
|
input power
|
kw
|
178
|
|
max.runing current
|
A
|
388
|
|
power supply
|
3PH 380V 50HZ
|
|
refrigerant
|
type
|
R22/R407c/R410a/R134a
|
|
kg
|
140
|
|
type of control
|
expansion valve
|
|
compressor
|
type
|
sewi-hermetic screw
|
|
power(kw)
|
74*2
|
|
start-up mode
|
Y-△
|
|
capacity control(%)
|
0-25-50-75-100
|
|
evaporator
|
type
|
Shell and tube
|
|
chilled water flow(m3/h)
|
110
|
|
inlet and outlet pipe caliber(inch)
|
6
|
|
condenser
|
type
|
shell and tube
|
|
cooling water flow(m3/h)
|
159
|
|
inlet and outlet pipe caliber(inch)
|
4*2
|
|
safety protection
|
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
|
|
weight
|
kg
|
3460
|
|
dimension
|
mm
|
4050*875*3460
|
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃
Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The temperature range of cooling water is from 18℃ to 37℃;
Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.
We reserve the right to modify the above dimensions or parameters without further notice.
