Infrared Heat Process in the Glass Industry
Drying screen print on car windows, cutting laminated glass or coating mirrors - many glass processing activities require heat.Infrared preheating lamp provides excellent conditions to deliver efficient solutions for these processes.The advantages with infrared heat:
1.Medium-wave infrared radiation is optimal for the absorption of glass.
2.Gold/White reflector on the emitters directs the heat precisely to that part of the product which is to be heated.
3.Infrared emitters are precisely adjusted to the material and process.
4.This saves time, energy and costs.
| Glass tube |
99.9% pure fused silica quartz sealed |
| Filament material |
Ni-Cr or Fe-Cr-A1 |
| Filament temperature |
800 – 950°C |
| Response time |
> 1 min |
| Peak wavelength wide |
2.2-3.5um |
| Average working life |
20000 hours |
| Cross section |
10, 11, 12, 13, 14, 15, 18, 20, 23*11, 33*15 mm |
| Available length |
100-6000mm |
Max unit power
|
25w/cm |
Basic Description

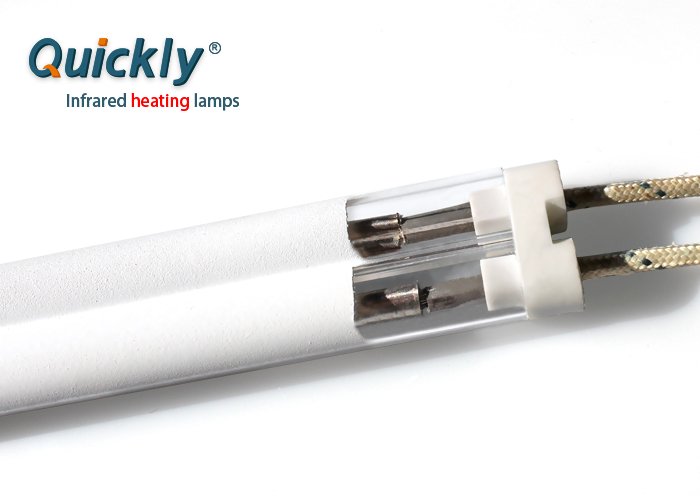

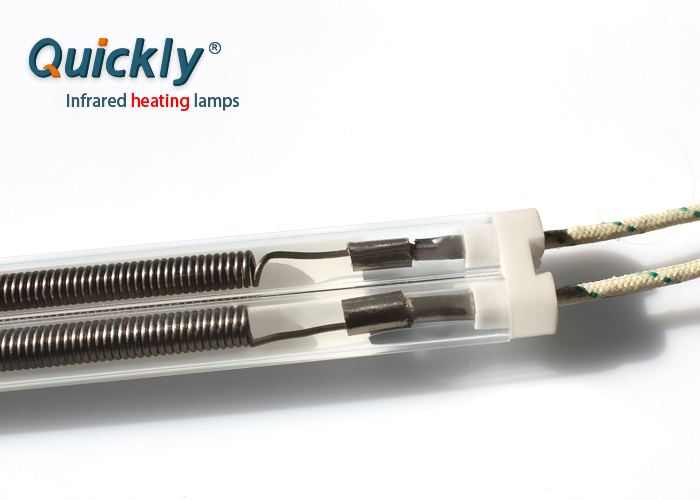

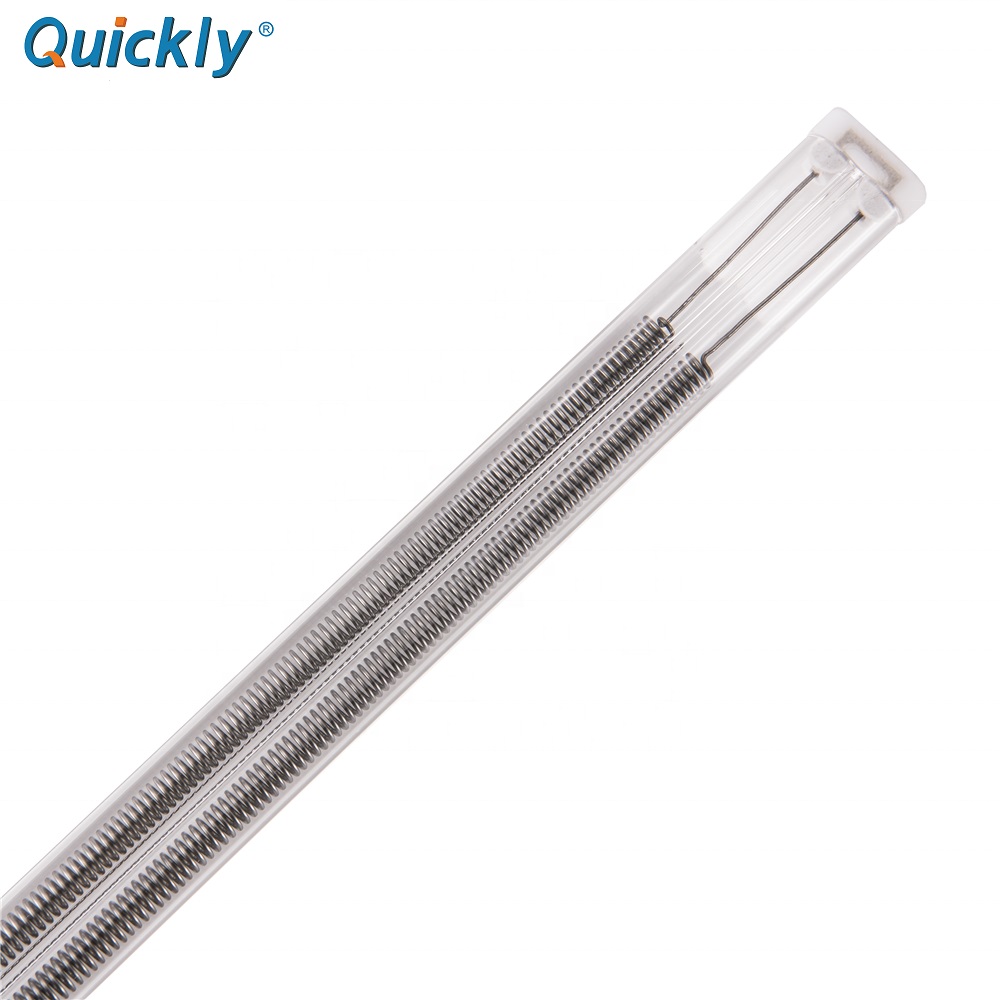

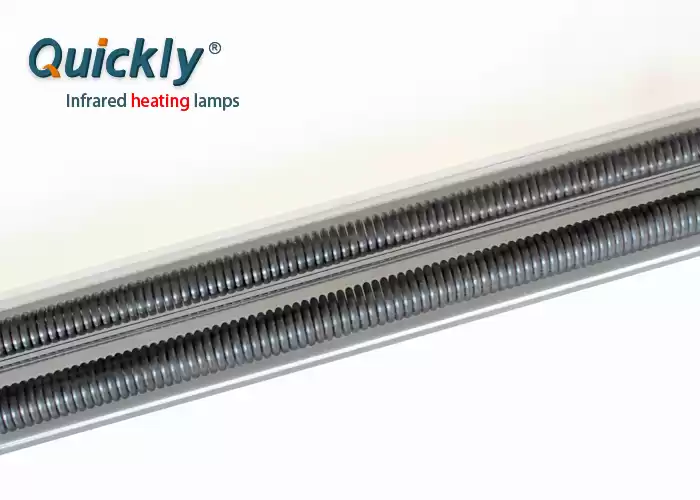

Medium Wave Infrared Heaters consist of a quartz tube with a nickel or Iron chromium alloy coiled filament. QUICKLY’s MW IR lamps are typically come in diameters of 10 mm,11mm,12 mm,13mm,13.5mm,15 mm,18mm,20mm for Single Tube or with 11 x 23 mm & 15 x 33 mm for Twin Tube. The Lengths of our Quartz Infrared Heaters can vary from 100 mm to 6000 mm as per customers design and specifications. They are available in clear or opaque quartz tube with gold or ceramic reflective coatings that focus the emitted energy onto the substrate. Standard medium wave IR Dryer Emitters are not filled with any gases and are not sealed.

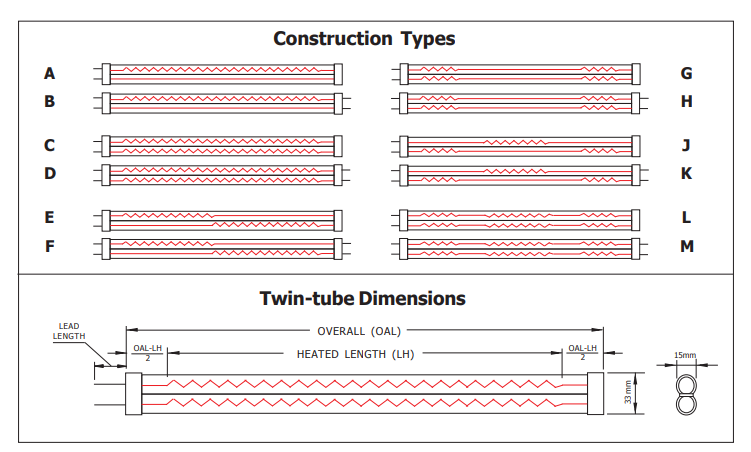

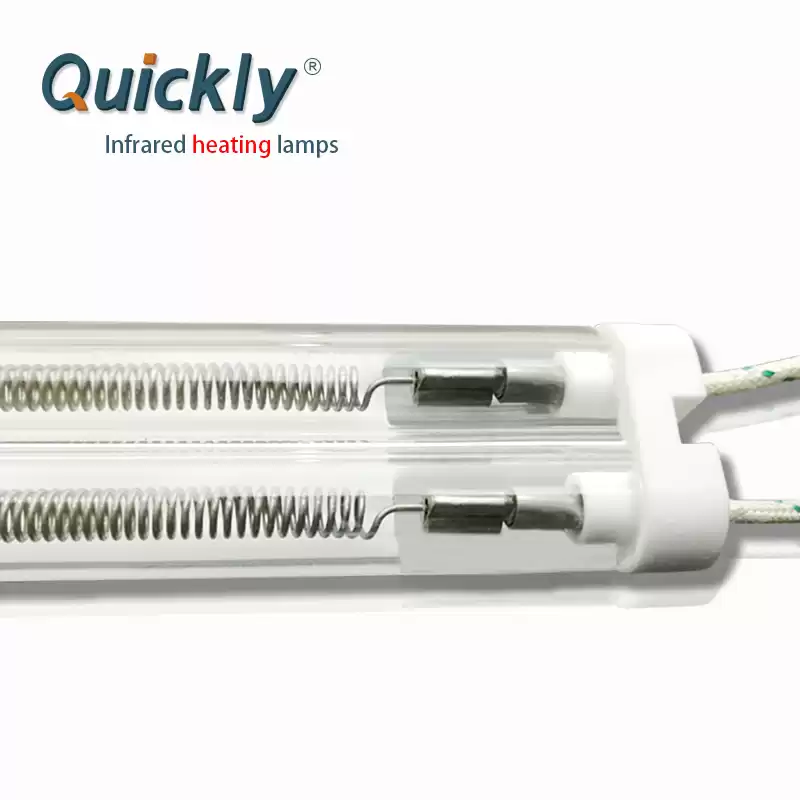

Different construction type for twin tube medium wave IR heaters
Twin Tube Infrared Curing Element with different filament configuration it can be made single side or two sides cable connection, and different heating channel. this allows an extraordinary flexibility both in term of heated area modularity and cables position. In the picture below there are represented some of the most common filament configuration.
Products Details

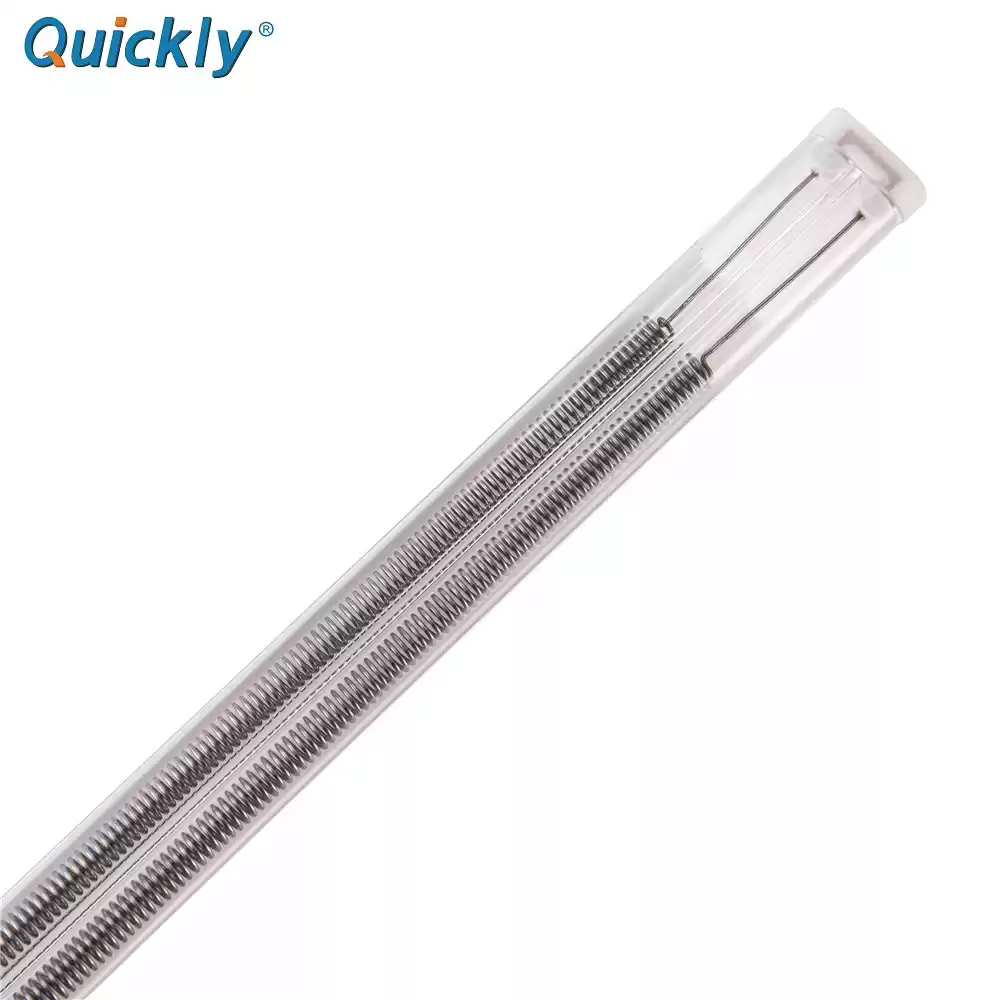

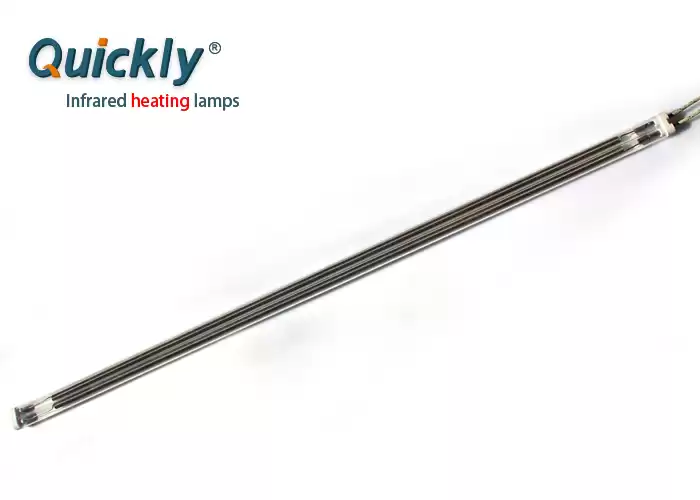

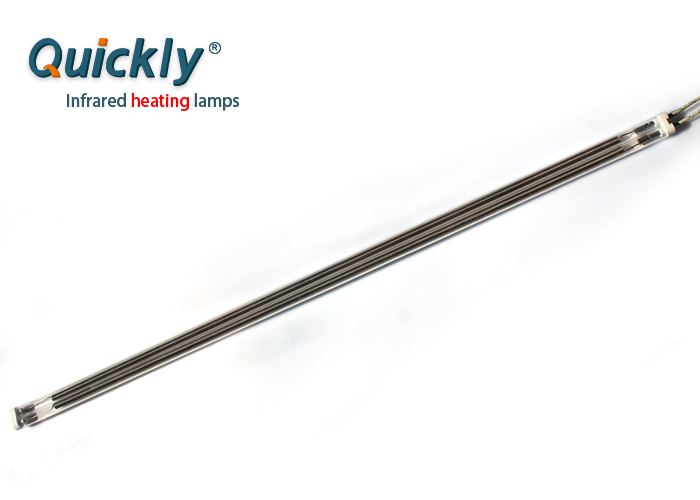

China Infrared Heater Quartz Tubular IR Heating Lamp for Drying/Curing of Glass Coating Film

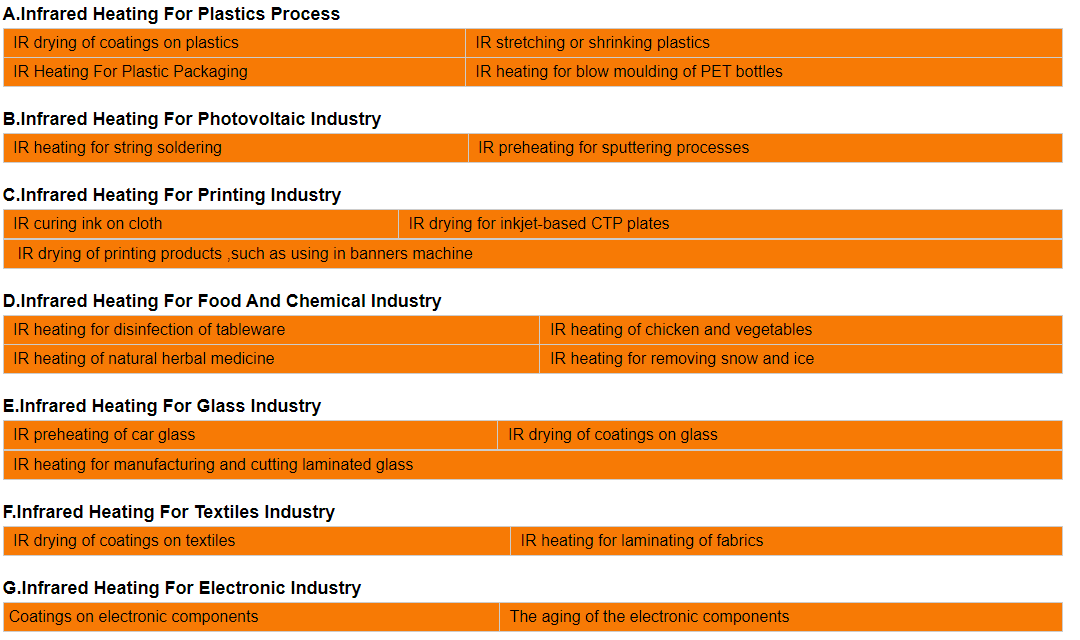

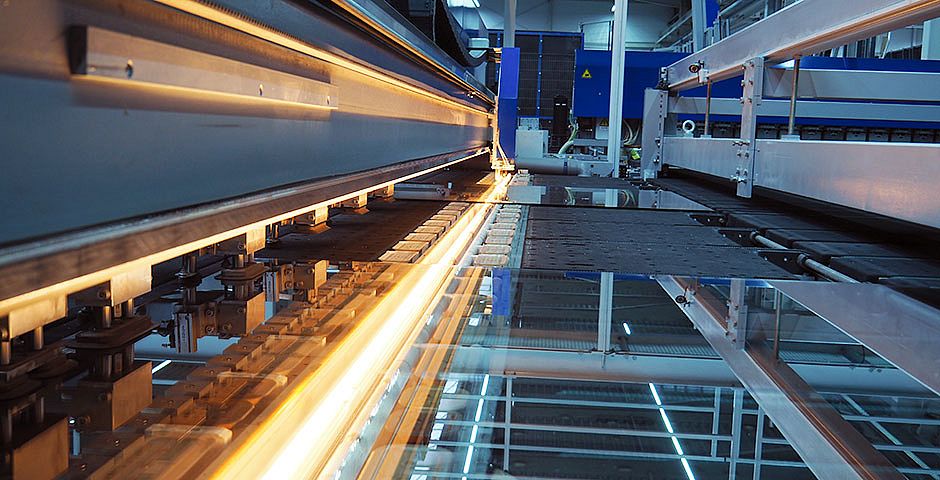

Industrial Applications

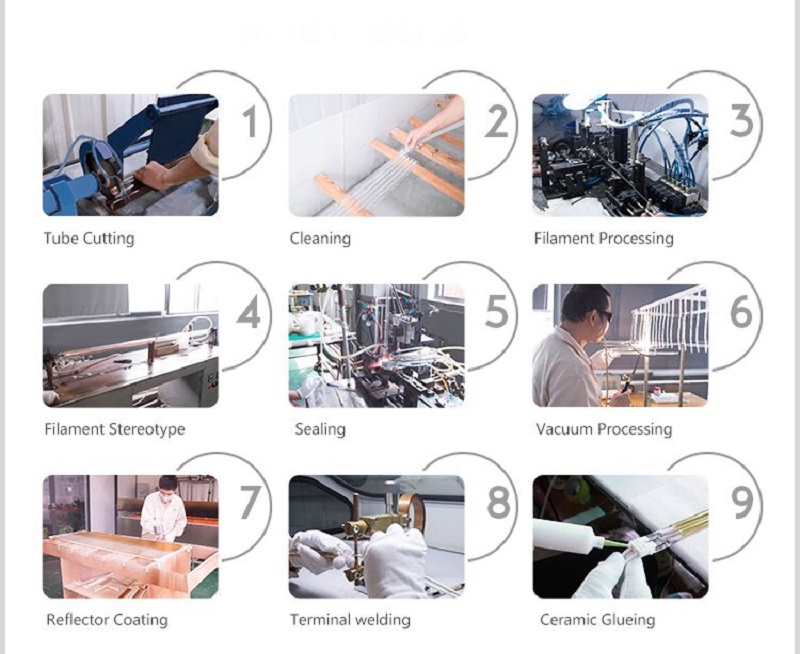

Production Process

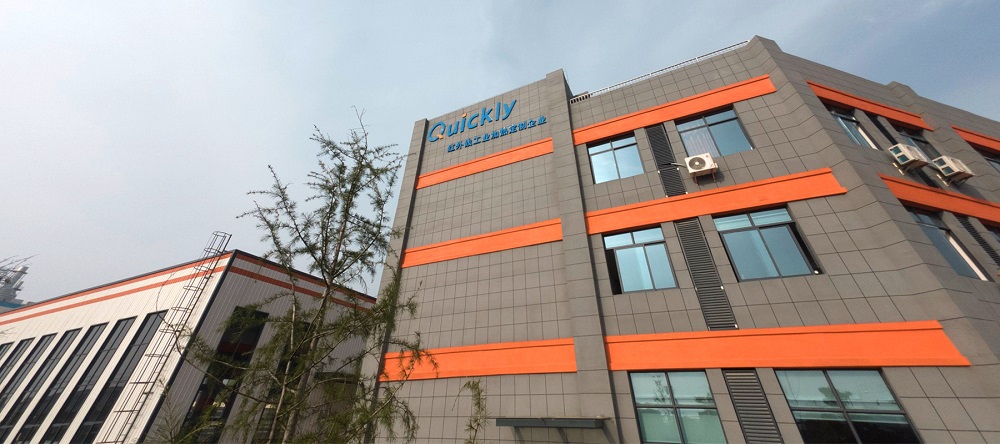

About QUICKLY
Anhui Quickly Industrial Heating Technology Co., ltd is a family of privately-owned companies focused on the development of infrared heating technology which dramatically reduces the time and space required for industrial heating and drying processes and provides quantum leaps forward in efficiencies for our global customers.QUICKLY has experience in meeting the needs of a broad range of industries. Applications include paper, printing, textiles, non-woven products, liquid coating, powder coating, adhesives, laminating, welding, thermoforming, and annealing. We will continue to provide excellent process heating solutions for today's industrial needs, and for the challenges of tomorrow.QUICKLY locates in Hefei, Anhui, China,with more than 70 Skilled workers with over 5 years of working experience on average. Dozens of our production employees have been in QUICKLY since the company was first established until today.
Why Choose Quickly
Our Infrared Heating Lamps are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!By the way,we support the best service for you:
A:Sample Service
Some samples are free of charge, buyer shoulder the fright cost.
B:Customized Service
1. All of our Infrared Heater Elements are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc Infrared Heater for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
C:After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours
Warranty Time of Medium wave Infrared heat lamp: 20,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
FAQ
1. Are you a factory or trading company?
Quickly is a factory, we are professional manufacturer of infrared heater for more than 10 years.
2. Where is your factory? Can I visit your factory?
We're in Hefei city,Anhui Province of China. You are warmly welcome to our factory, we will be happy to show you our production, QC, warehouse, etc.
3. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will
confirm with you whether it's free sample or not.
4. What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
5. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally speaking, the lead time of MOQ is about
7-15 days. We suggest that you start inquiry at least two months before the date you would like to get the products at your country.
6. Do you offer guarantee for the products?
Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for infraraed heater.
7. What type of payment do you accept?
T/T.WEST UNION.PAYPAL.CREDIT CARD.
8. Is it OK to print my logo on product?
Yes, it's possible. But please kindly note we have MOQ request for different products.
9. Can you do the design for us?
Yes. We have a professional team having good experience in box design and manufacturing. Just tell us your idea and
we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete
files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you
finished files for confirmation.
