China Manufacture Beiben tipper truck,6x4 dump truck for sale , 8*4 dump truck for sale, we can supply the best quality beiben 10 wheeler dump truck and 12 wheeler dump trucks. Original beiben dump truck spare parts for beiben 2529 dump truck, beiben 2534 dump truck and beiben 2538,2542 dump trucks.
1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service

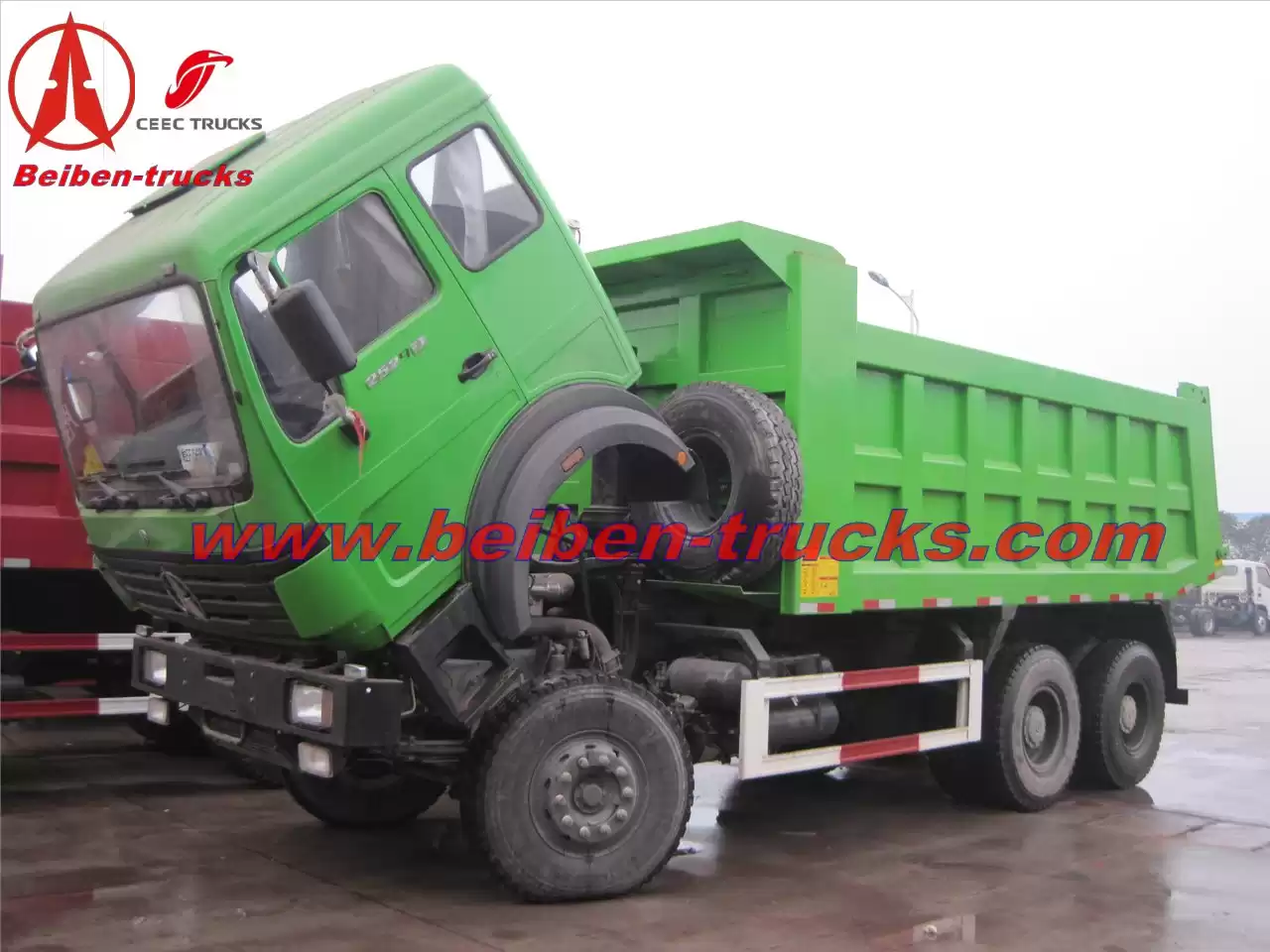

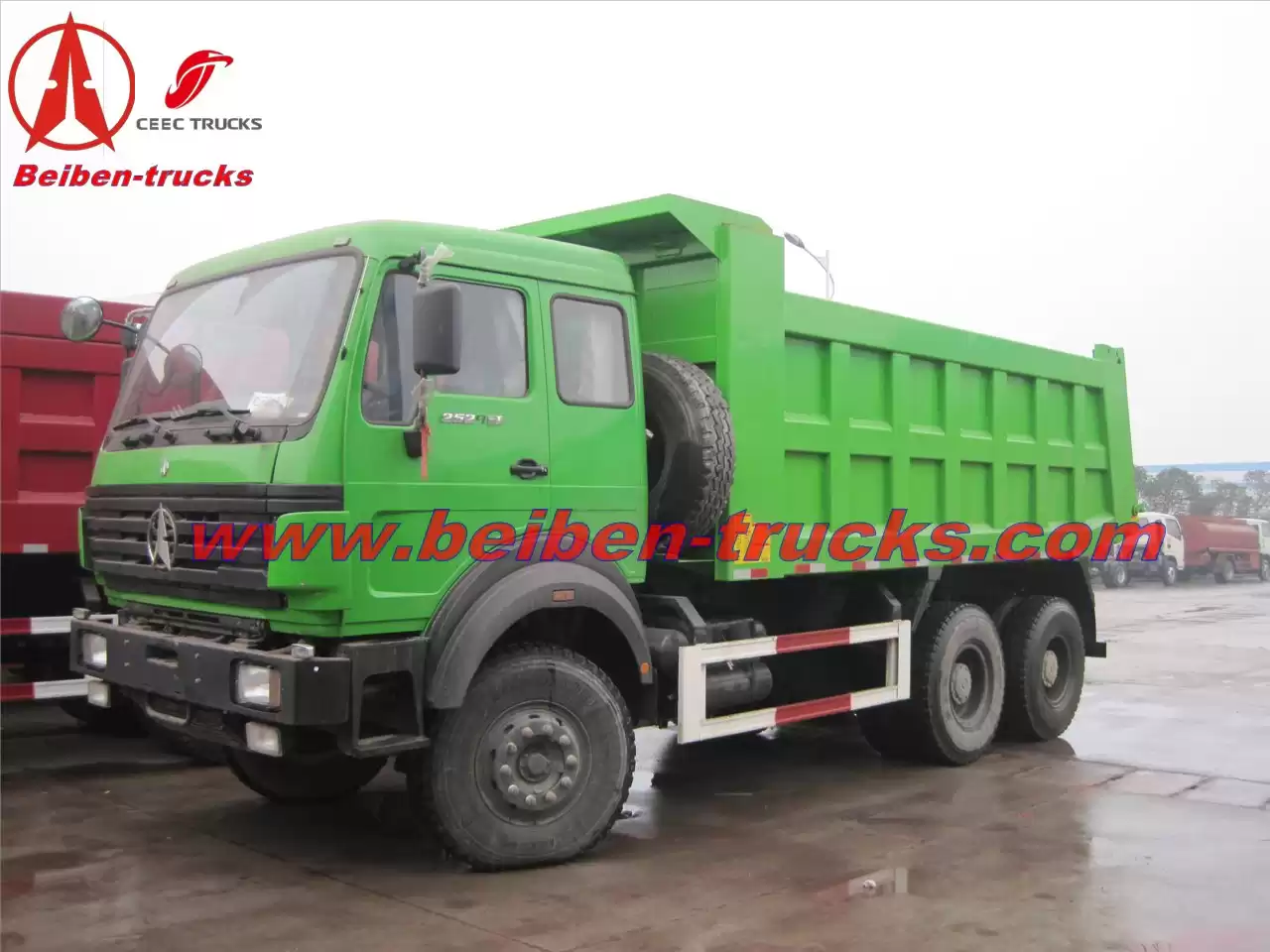

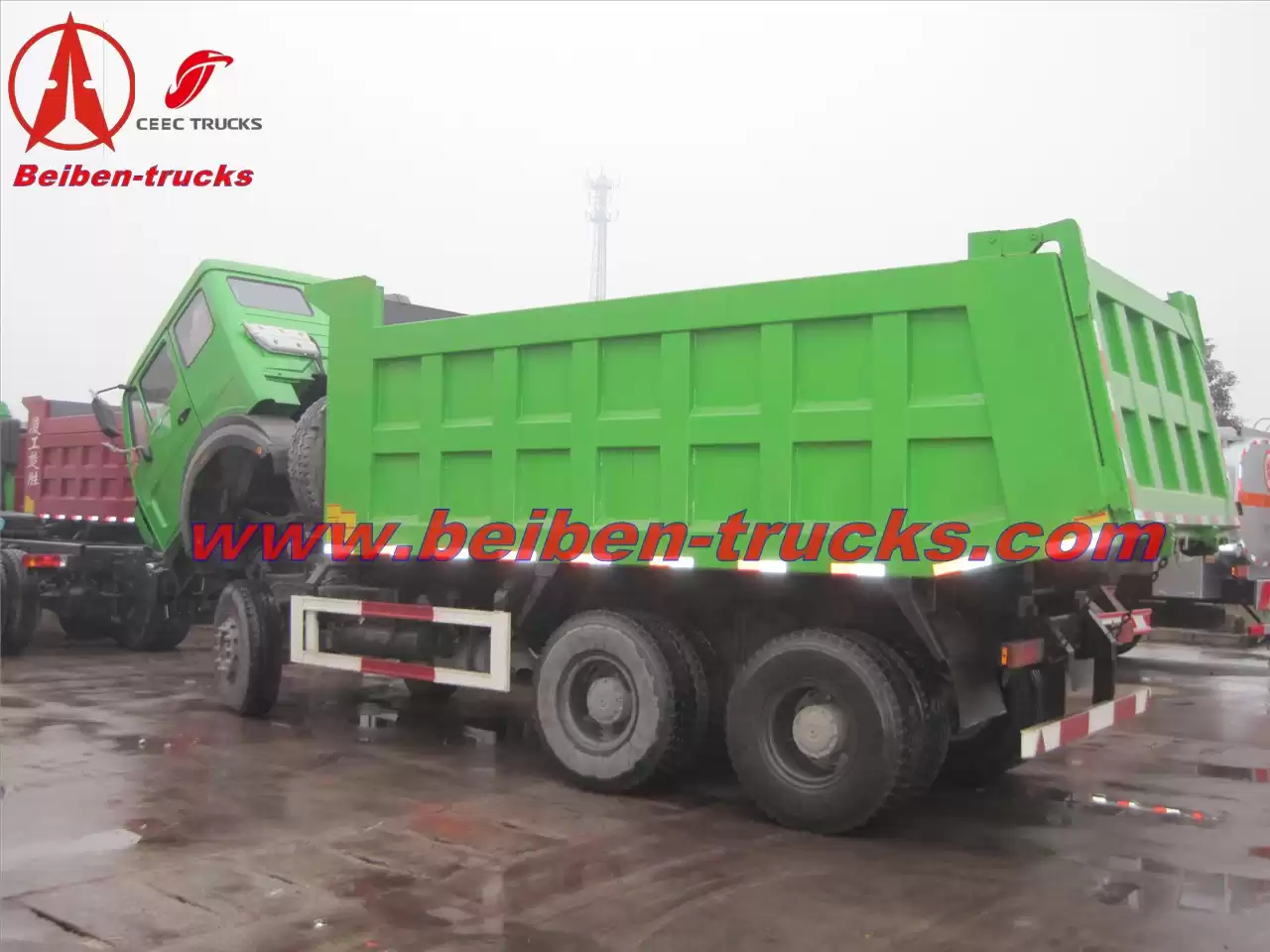

Beiben dump truck Product Description
Vehicle model
|
ND3254B34
|
Chassis model
|
ND1250B34
|
Overall dimensions (mm)
|
8000×2500×3430 |
GVW (Kg)
|
25000
|
Box dimensions (mm)
|
5400×2300×1200 |
Rated loading capacity (Kg)
|
12670
|
Approach/departure angle
|
26/18 |
Mass in working order (Kg)
|
12200
|
F/R overhang (mm)
|
1410/1690 |
Max speed (km/h)
|
85
|
Engine type
|
WP10.270
|
Displacement
|
9726
|
Fuel
|
Diesel
|
Power
|
199
|
Number of axles
|
3
|
Effluent standard
|
GB3847-2005,GB17691-2005
|
Wheel base
|
3450+1450 |
Tires number
|
10
|
Shaft jose
|
7000/18000 |
Tire specification
|
12.00-20,12.00R20,11.00-20,11.00R20
|
&leaf spring piece count
|
10/13 |
F/R track base
|
1995/1800
|
