Chinese Manufacturer self-aligning spherical roller bearing

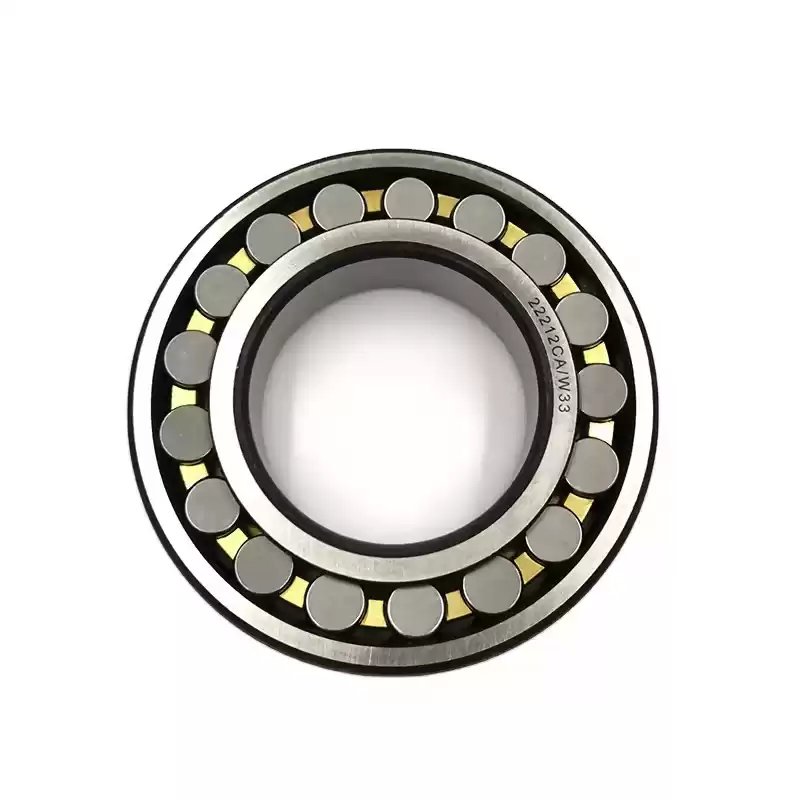

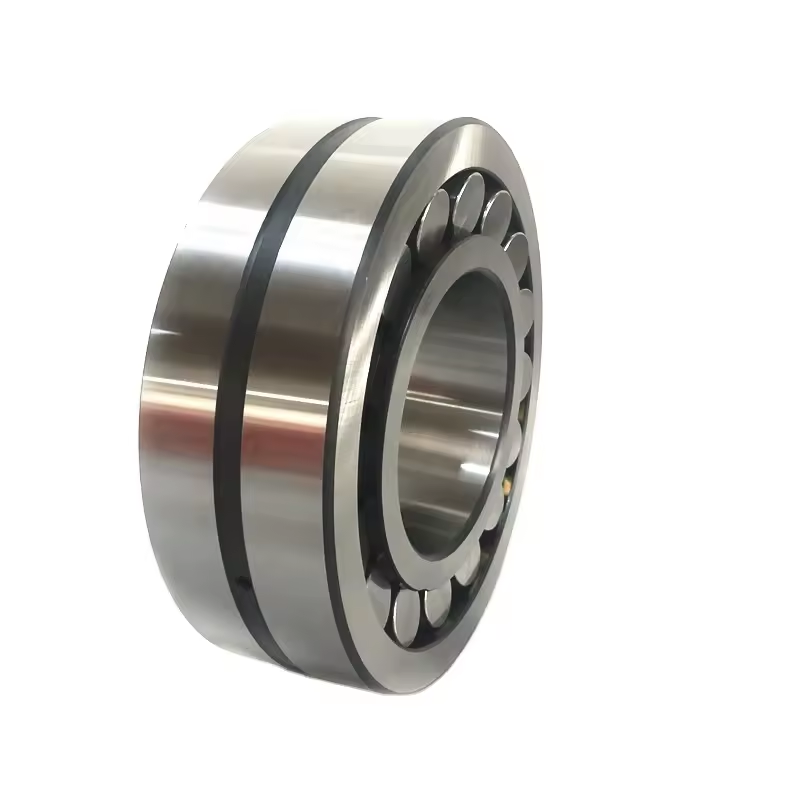

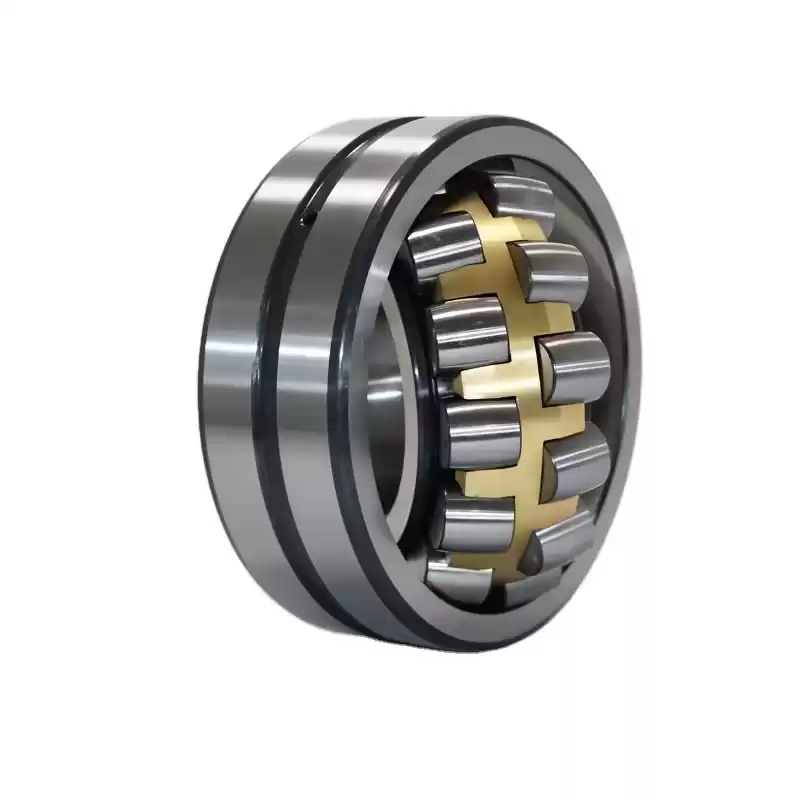

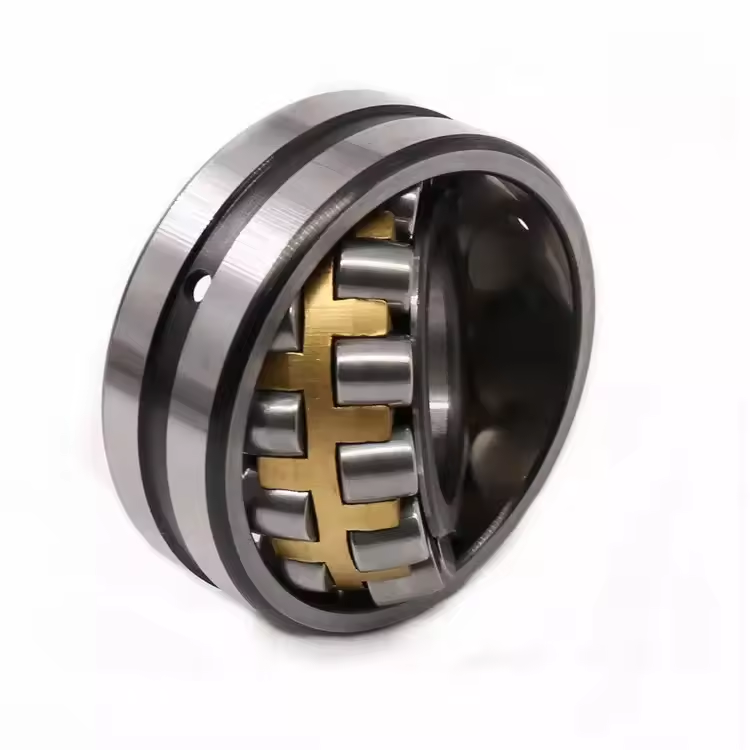

The self-aligning spherical roller bearing has two rows of rollers, one shared spherical raceway in the outer ring and two raceways in the inner ring and is inclined to an Angle relative to the bearing axis. This clever structure makes it with automatic aligning performance, so it is not easy to be affected by the Angle of shaft and bearing box seat on the error or shaft bending, suitable for installation error or shaft deflection caused by Angle error occasions. The bearing can bear not only radial load, but also two-way axial load. The inner hole of the self-aligning roller bearing has two kinds: cylindrical and conical, and the taper of the conical cone hole is 1:30 and 1:12. This kind of conical inner hole bearing is equipped with a tight sleeve or a disconnecting sleeve, so that the self-aligning ball bearing with the conical inner hole can be conveniently and quickly assembled on the optical shaft or the stepped machine shaft. Aligning roller bearing models are: aligning roller bearing (20000CC type); Taper hole aligning roller bearing (20000CCK type); Aligning roller bearing (20000CC/W33 type); Tapered hole aligning roller bearing (20000CCK/W33 type); Aligning roller bearing (20000CCK+H type) mounted on the tight sleeve; There are 6 kinds of aligning roller bearings (20000CCK/W33+H type) mounted on the tight sleeve
WISON self-aligning spherical roller bearing Features :
- Using excellent high-purity bearing steel, the bearing life is up to about 80%.
- Low friction coefficient faster rotational speed, lower sound, not easy to burn.
- Quenching process, bearing inner and outer ring hardness is more stable, longer service time.
- Various models,long life with high quality,support OEM service.
Application :
It is widely use for
Automobiles
agricultural machine
rolling mills
mining industry
Plastic machinery
Trailers and caravans
Display:
self-aligning spherical roller bearing Size Chart
|
d
|
D
|
B
|
C
|
Co
|
r/min
|
L/P
|
Type
|
|
115
|
230
|
64
|
758
|
930
|
2600
|
3600
|
22226 EK + H 3126 *
|
|
115
|
230
|
80
|
826
|
1060
|
1900
|
2600
|
23226 CCK/W33 + H 2326
|
|
115
|
280
|
93
|
1176
|
1320
|
1800
|
2400
|
22326 CCK/W33 + H 2326 *
|
|
125
|
210
|
53
|
485
|
680
|
2600
|
3400
|
23028 CCK/W33 + H 3028 *
|
|
125
|
225
|
68
|
659
|
900
|
2200
|
2800
|
23128 CCK/W33 + H 3128
|
|
125
|
250
|
68
|
743
|
900
|
2400
|
3200
|
22228 CCK/W33 + H 3128 *
|
|
125
|
250
|
88
|
962
|
1250
|
1700
|
2400
|
23228 CCK/W33 + H 2328 *
|
|
125
|
300
|
102
|
1357
|
1560
|
1700
|
2200
|
22328 CCK/W33 + H 2328 *
|
|
135
|
225
|
56
|
531
|
750
|
2400
|
3200
|
23030 CCK/W33 + H 3030 *
|
|
135
|
250
|
80
|
883
|
1200
|
2000
|
2600
|
23130 CCK/W33 + H 3130
|
|
135
|
270
|
73
|
898
|
1080
|
2200
|
3000
|
22230 CCK/W33 + H 3130 *
|
|
135
|
270
|
96
|
1129
|
1460
|
1600
|
2200
|
23230 CCK/W33 + H 2330 *
|
|
135
|
320
|
108
|
1539
|
1760
|
1600
|
2000
|
22330 CCK/W33 + H 2330 *
|
|
140
|
240
|
60
|
614
|
880
|
2400
|
3000
|
23032CCK/W33 + H 3032 *
|
|
140
|
270
|
86
|
1029
|
1370
|
1900
|
2400
|
23132CCK/W33 + H 3132 *
|
|
140
|
290
|
80
|
1043
|
1290
|
2000
|
2800
|
22232CCK/W33 + H 3132 *
|
|
140
|
290
|
104
|
1281
|
1660
|
1500
|
2200
|
23232CCK/W33 + H 2332 *
|
|
140
|
340
|
114
|
1680
|
1960
|
1500
|
1900
|
22332CCK/W33 + H 2332 *
|
|
150
|
260
|
67
|
745
|
1060
|
2200
|
2800
|
23034 CCK/W33 + H 3034 *
|
|
150
|
280
|
88
|
1086
|
1500
|
1800
|
2400
|
23134 CCK/W33 + H 3134 *
|
|
150
|
310
|
86
|
1183
|
1460
|
1900
|
2600
|
22234 CCK/W33 + H 3134 *
|
|
150
|
310
|
110
|
1472
|
1930
|
1400
|
2000
|
23234 CCK/W33 + H 2334 *
|
|
150
|
360
|
120
|
1863
|
2160
|
1400
|
1800
|
22334 CCK/W33 + H 2334 *
|
|
160
|
250
|
52
|
519
|
830
|
2600
|
2800
|
23936 CCK/W33 + H 3936
|
|
160
|
280
|
74
|
883
|
1250
|
2000
|
2600
|
23036 CCK/W33 + H 3036 *
|
|
160
|
300
|
96
|
1263
|
1760
|
1700
|
2200
|
23136 CCK/W33 + H 3136 *
|
|
160
|
320
|
86
|
1237
|
1560
|
1800
|
2600
|
22236 CCK/W33 + H 3136 *
|
|
160
|
320
|
112
|
1557
|
2120
|
1300
|
1900
|
23236 CCK/W33 + H 2336 *
|
|
160
|
380
|
126
|
2077
|
2450
|
1300
|
1700
|
22336 CCK/W33 + H 2336 *
|
|
170
|
260
|
52
|
499
|
800
|
2400
|
2600
|
23938 CCK/W33 + H 3938
|
|
170
|
290
|
75
|
916
|
1340
|
1900
|
2400
|
23038 CCK/W33 + H 3038 *
|
|
170
|
320
|
104
|
1456
|
2080
|
1500
|
2000
|
23138 CCK/W33 + H 3138 *
|
|
170
|
340
|
92
|
1342
|
1700
|
1700
|
2400
|
22238 CCK/W33 + H 3138 *
|
|
170
|
340
|
120
|
1759
|
2400
|
1300
|
1800
|
23238 CCK/W33 + H 2338 *
|
|
170
|
400
|
132
|
2232
|
2650
|
1200
|
1600
|
22338 CCK/W33 + H 2338 *
|
|
180
|
280
|
60
|
651
|
1040
|
2200
|
2400
|
23940 CCK/W33 + H 3940
|
|
180
|
310
|
82
|
1058
|
1530
|
1800
|
2200
|
23040 CCK/W33 + H 3040 *
|
|
180
|
340
|
112
|
1665
|
2360
|
1500
|
1900
|
23140 CCK/W33 + H 3140 *
|
|
180
|
360
|
98
|
1526
|
1930
|
1600
|
2200
|
22240 CCK/W33 + H 3140 *
|
|
180
|
360
|
128
|
1947
|
2700
|
1200
|
1700
|
23240 CCK/W33 + H 2340 *
|
|
180
|
420
|
138
|
2439
|
2900
|
1200
|
1500
|
22340 CCK/W33 + H 2340 *
|
|
200
|
300
|
60
|
661
|
1080
|
2000
|
2200
|
23944 CCK/W33 + OH 3944 H
|
|
200
|
340
|
90
|
1261
|
1860
|
1600
|
2000
|
23044 CCK/W33 + OH 3044 H *
|
|
200
|
370
|
120
|
1888
|
2750
|
1300
|
1700
|
23144 CCK/W33 + OH 3144 H *
|
|
200
|
400
|
108
|
1835
|
2360
|
1500
|
2000
|
22244 CCK/W33 + OH 3144 H *
|
|
200
|
400
|
144
|
2485
|
3450
|
1100
|
1500
|
23244 CCK/W33 + OH 2344 H *
|
|
200
|
460
|
145
|
2839
|
3450
|
1000
|
1400
|
22344 CCK/W33 + OH 2344 H *
|
|
220
|
320
|
60
|
685
|
1160
|
1900
|
2000
|
23948 CCK/W33 + OH 3948 H
|
|
220
|
360
|
92
|
1340
|
2080
|
1500
|
1900
|
23048 CCK/W33 + OH 3048 H *
|
|
220
|
400
|
128
|
2187
|
3200
|
1200
|
1600
|
23148 CCK/W33 + OH 3148 H *
|
|
220
|
440
|
120
|
2258
|
3000
|
1300
|
1800
|
22248 CCK/W33 + OH 3148 H *
|
|
220
|
440
|
160
|
3042
|
4300
|
950
|
1300
|
23248 CCK/W33 + OH 2348 H *
|
|
220
|
500
|
155
|
3229
|
4000
|
950
|
1300
|
22348 CCK/W33 + OH 2348 H *
|
|
240
|
360
|
75
|
1055
|
1800
|
1700
|
1900
|
23952CCK/W33 + OH 3952 H
|
|
240
|
400
|
104
|
1675
|
2550
|
1300
|
1700
|
23052CCK/W33 + OH 3052 H *
|
|
240
|
440
|
144
|
2664
|
3900
|
1100
|
1400
|
23152CCK/W33 + OH 3152 H *
|
|
240
|
480
|
130
|
2722
|
3550
|
1200
|
1600
|
22252CCK/W33 + OH 3152 H *
|
|
240
|
480
|
174
|
3395
|
4750
|
850
|
1200
|
23252CCK/W33 + OH 2352 H *
|
|
240
|
540
|
165
|
3680
|
4550
|
850
|
1100
|
22352CCK/W33 + OH 2352 H *
|
|
260
|
380
|
75
|
1016
|
1760
|
1600
|
1700
|
23956 CCK/W33 + OH 3956 H *
|
Advantage of WISON Bearing:

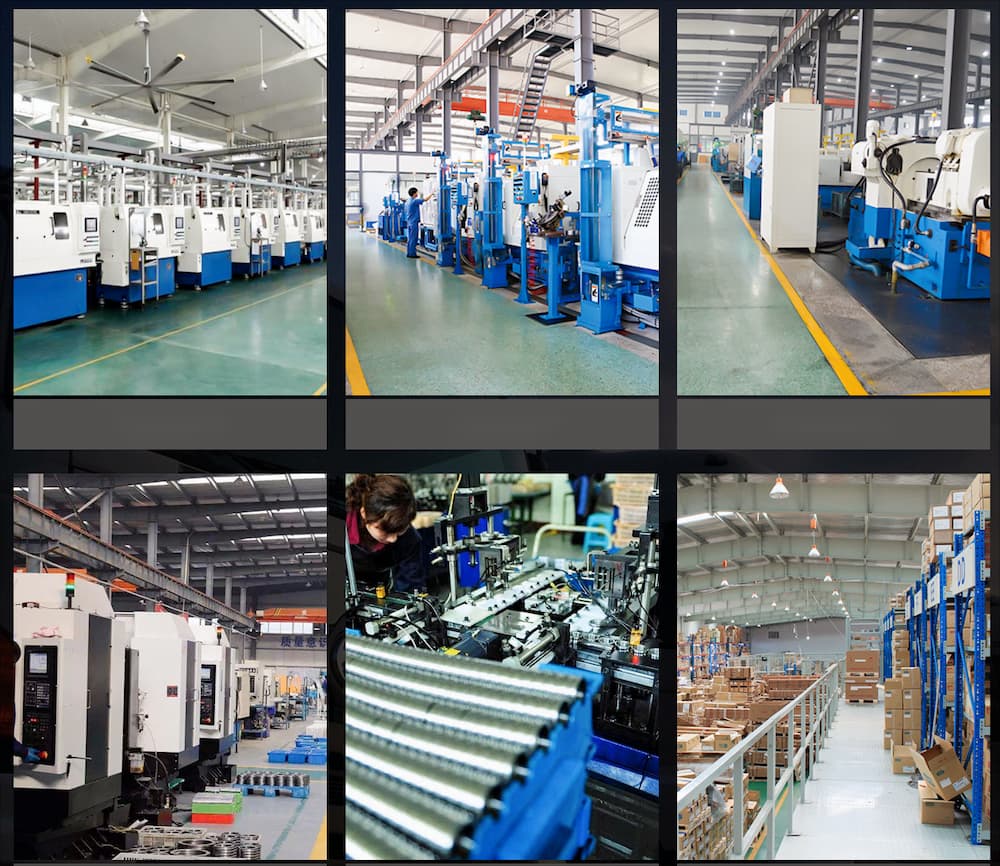

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
- Competitive price and small MOQ
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
