115*90*40mm Custom injection molded plastic abs box
din pcb enclosure Widely used in all kinds of PLC module circuit, controller, distributor, fast and simple installation on the rail.Ergonomic enclosures from strong plastic, designed for the manufacturing of the electronic equipment.
Features:
1. din electronics enclosure plastic enclosure has a strong resistance to abrasion, weathering, corrosion.
2. Can be formed on the surface of different colors, to meet your requirements as well as possible.
3. Have a strong hardness, can protect your electronics well.
Details:
|
Model Number
|
LK-PLC01a
|
|
Material
|
ABS plastic
|
|
Color
|
black and light gray or customized
|
Operating Temperature
|
-20℃ to 80 ℃
|
Protection Level
|
IP54
|
|
customize
|
cut-out/silkscreen/laser engraving/sticker/Tapping/Laser cutting and so on
|
|

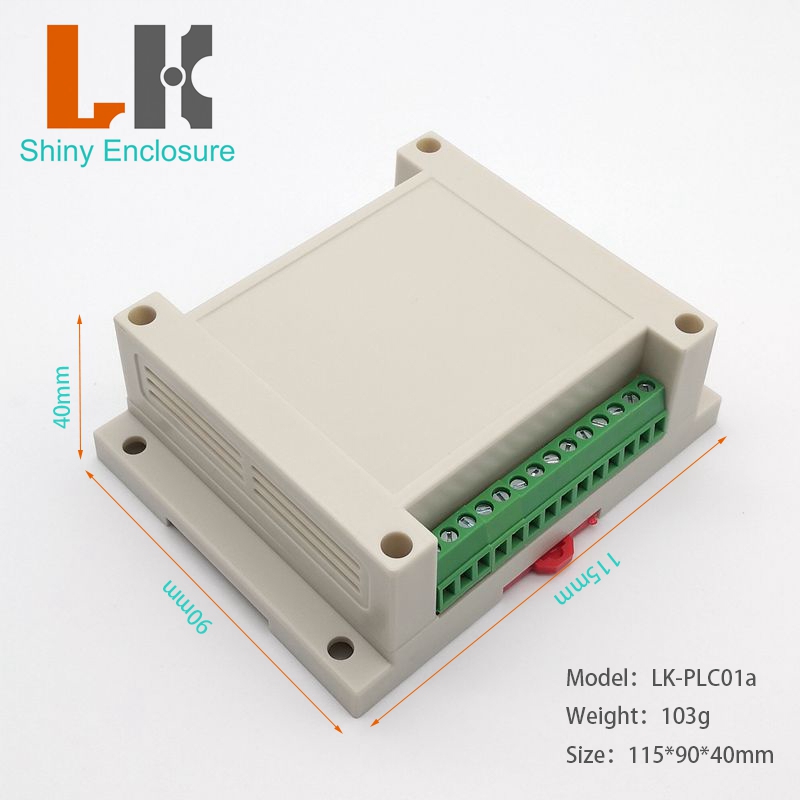

Size
|
115*90*40mm
|
weight
|
105g
|
|

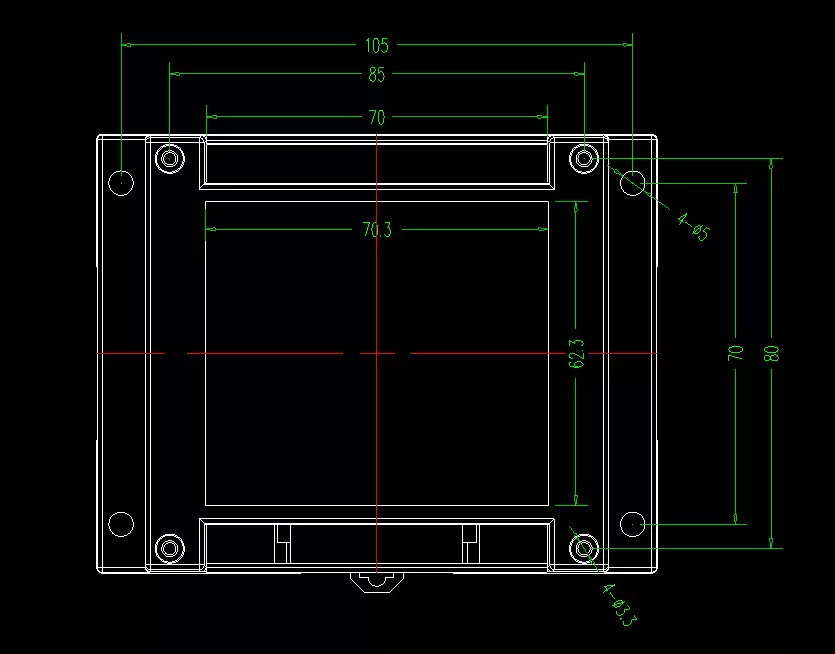

Drawing
|
PDF/CAD/3D
|
Main usage:
din abs enclosure because and focalization geographic disparities to the scope of different names different also used for industrial main junction box , instrument box , electronic housings , etc mainly for indoor and outdoor electric , communication , fire fighting facilities , steel puddling , electronic , power , railway , construction site , stopcocks , airport , guesthouses , large factory , environmental pollution.
What we can do

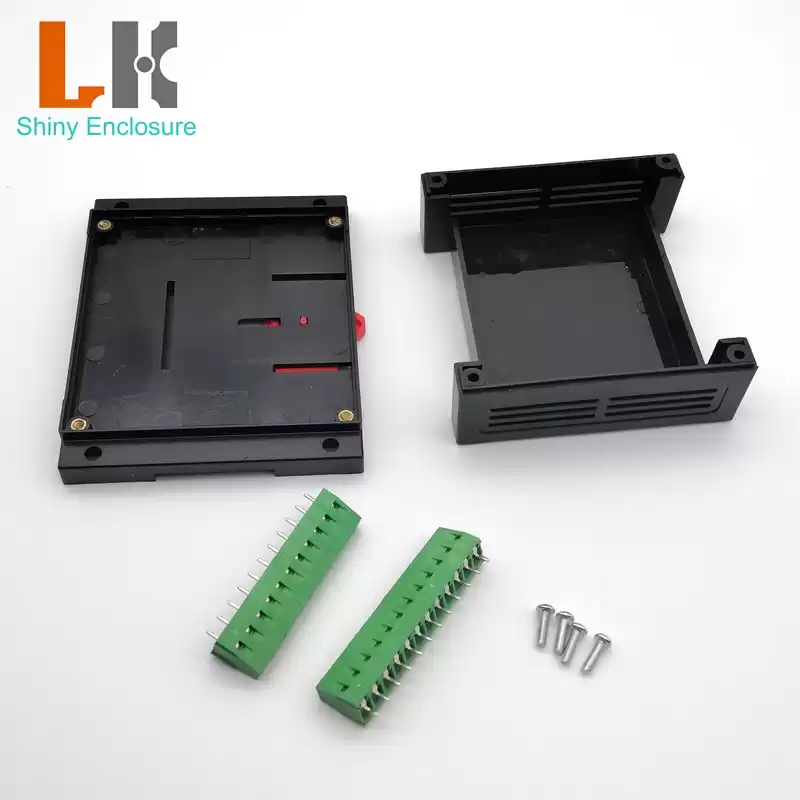

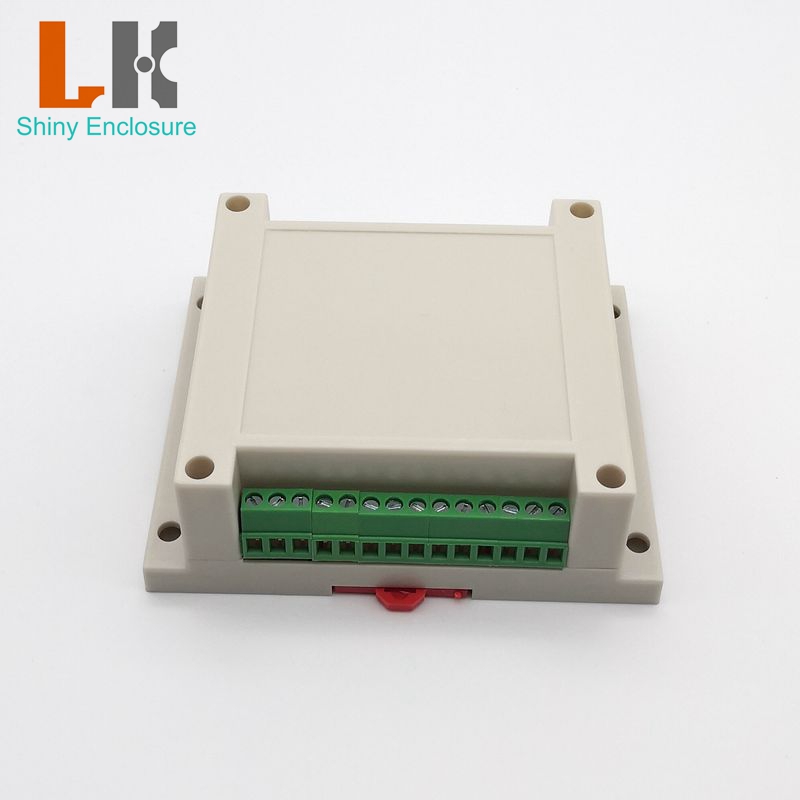

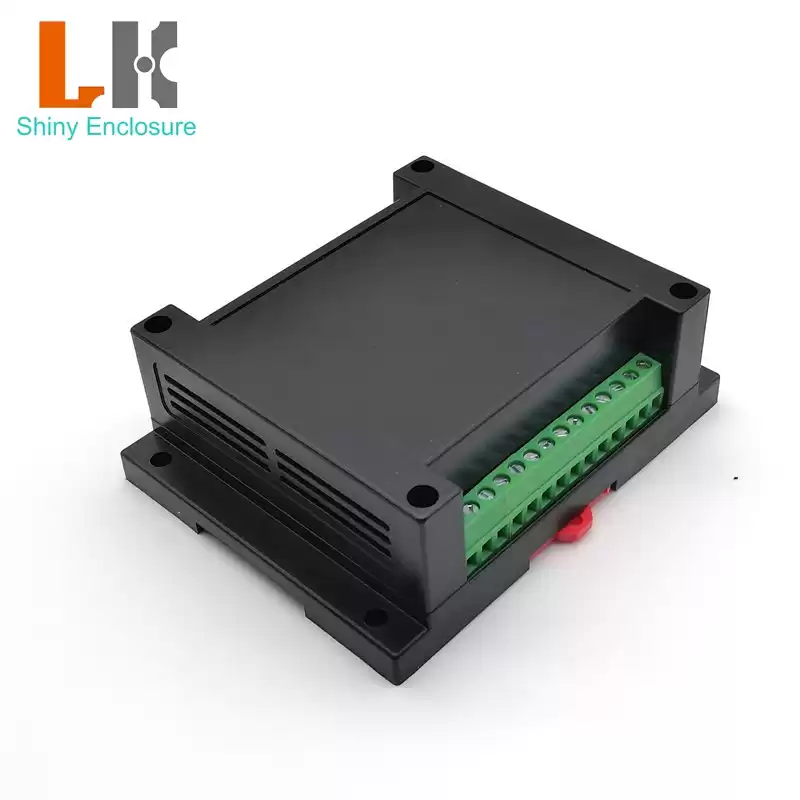

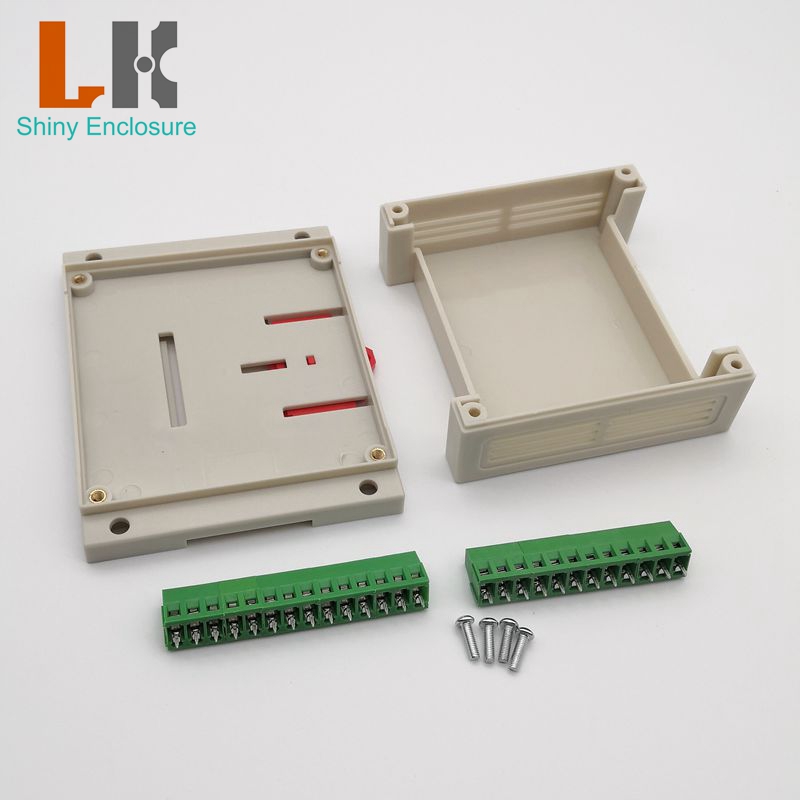

Detail picture
