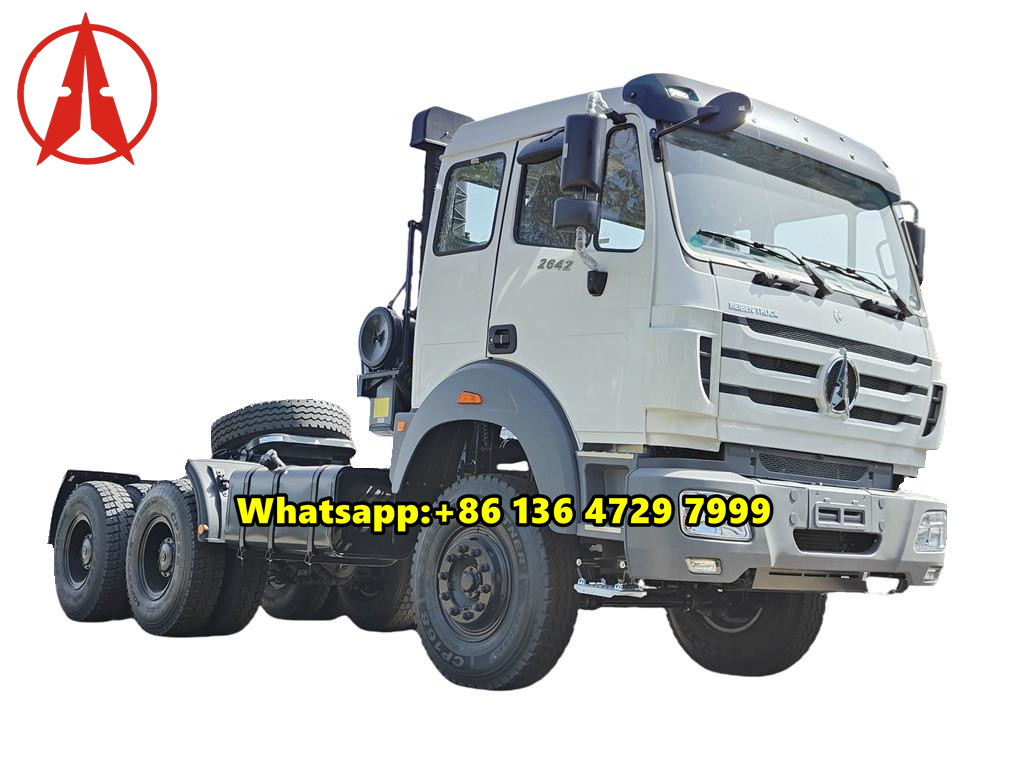

China North Benz 2642 prime mover head

BEIBEN 6x4 tractor truck 2642SZ 420HP diesel engine prime mover has a metal frame + skin structure, which has the same level of safety as a European car, and meets the European ECR29 safety regulations. The frame is stamped and formed at one time to ensure the strength of the girder. The axle is selected as Beiben axle. Mercedes-Benz's unique axle technology improves the reliability of the vehicle, fuel-saving, and high attendance rate. Reinforced structure, suitable for transporting all kinds of heavy goods. After recent years of construction and development capacity,the company currently has 100,000 vehicle supporting ability. China north beiben 2642 tractor head is durable and powerful with WEICHAI WP12.420E32 diesel engine, 420HP and emission 11596cc, very idea truck for DR Congo market.




  • Working Capcity40-45 tons
  • Payment termsTT
  • Production time30-35days
  • Engine power420HP
  • Drive system6x4

BEIBEN 2642 tractor truck is a heavy-duty tractor, which also cal be called Beiben 2642 prime mover, Beiben 2642 tractor head, Beiben 6x4 tractor truck. This tractor usually has strong power and carrying capacity, suitable for long-distance transportation, logistics transportation and other scenarios. BEIBEN 2642 NG80 tractor truck is popular in the Congo market due to its strong adaptability, high cost performance, perfect service network, strong brand influence and strong market demand.

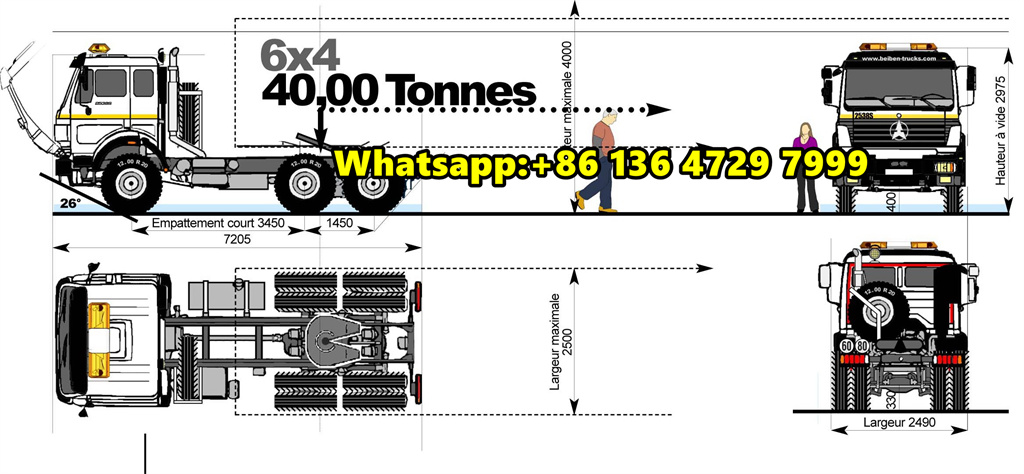

China beiben NG80 tractor truck 2642SZ mounted with WEICHAI WP12.420E32 diesel engine, 420HP and displacement can be 11596cc, EURO3 standard very suitable for Africa market. Transmission gearbox is FAST brand 12JS200T model with 12 forward and 2 reverse, ZF8098 hydraulic steering with power assistance, very suitable and convenient for daily driving. Clutch is GFX430 type, single dry frictional disc, hydraulic boosting type. The North Benz 2642 prime mover kurb weight can be 8800kg, maximum towing weight can be 40000kg, maximum speed 110km. As for truck loading axle, which all based on Germany Mercedes Benz unique technology, front axle 7tons double-shoe pneumatic brake, non-driving steering axle, rear double axle 18tons, double-shoe pneumatic brake, ductile casting casing, with hub redactor. Original Beiben NG80B cabin, inner equipped with AM/FM radio, MP3 player, AC for hot and cold wind, also customzied single or double sleeper based on requirement. Standard 12.00R20 radial tire, 11 pieces including one full size spare tire. The Beiben NG80 tractor head with wheelbase 3450+1450mm, and whole tractor head dimension 7205x2500x3150mm, Optional 400L fuel tanker or 800L fuel tanker for longer endurance.



Beiben tractor truck, best supplier of baotou beiben heavy duty trucks, more than 15 years experience on beiben tractor trucks exporting. Below showing advanced features for Beiben 2642 tractor truck:



Powerful engine: Equipped with a high-performance diesel engine, WEICHAI brand WP12.420E32 model with 308KW / 420HP, which provides sufficient power support to ensure stable driving under various road conditions.
Strong carrying capacity: The body and chassis are sturdy in design based on Mercedes Benz technology, with strong carrying capacity, and can carry large tonnage of goods.
Convenient operation: The north benz NG80B cab design is reasonable, the field of vision is wide, and the operation control system is humanized, which improves the convenience and comfort of driving.
High safety performance: Equipped with a variety of safety systems, such as ABS anti-lock braking system, brake assist system, etc., to ensure safety during driving.



The reasons for Beiben 2642 420HP 6x4 NG80 tractor head popularity in the Democratic Republic of Congo may include the following aspects:

Strong adaptability: The China North Benz 2642 prime mover head has strong off-road capabilities and can adapt to the complex and changeable road conditions in the Democratic Republic of Congo. Whether it is urban roads or rural roads, it can maintain good passability and stability.

High cost performance: Compared with other imported brands of tractors, the BEIBEN 2642 tractors may be more competitive in price, and its performance and quality can also meet the needs of the local market, so it has a high cost performance.

Perfect service network: Beiben Heavy Duty Tractor Head Truck may have established a relatively complete service network in the Democratic Republic of Congo, including sales, maintenance, and parts supply, etc., to provide convenient service support for local users.

Brand influence: As a well-known heavy-duty vehicle manufacturer in China, Beiben Heavy Duty Truck's brand enjoys a certain degree of popularity and reputation at home and abroad. In the Democratic Republic of Congo market, the BEIBEN brand may have become one of the brands trusted by users.

Market demand: With the development of the economy of the Democratic Republic of Congo and the increase in logistics and transportation needs, the market demand for heavy vehicles such as tractors is also expanding. The BEIBEN 2642 tractor has successfully met the needs of the local market with its excellent performance and price advantage.





No

Specification

Data

1

Model

2642SZ

2

Wheel base

3450+1450

3

Dimension

7160*2500*3260

4

Curb weight

10500

5

Cross towing trailer weight

140000

6

Max speed

75

7

8

Engine

Model

WP12.420E32

Emission

EURO 3

9

kW/rpm

309/2200

10

Hp/rpm

420

11

Fuel system type

Mechanical pump

12

Air filter type

Sand filter

13

No. of cylinders

6

14

Displacement

11.596L

15

Stroke

4

16

Bore

126*155

17

Compression ratio

171

18

Economy revs

1300-1400

19

Exhaust brake

YES

20

Oil change volume

17L

21

Oil change interval

10000km

22

Fuel prerequisites

EURO 2

23

Fuel consume g/kWh

192

24

Fuel tank capacity

400L

25

Fuel tank type

Iron

27

Clutch

Model / mm

430

28

Number

1

29

Clutch system type

Single dry frictional disc, Hydraulic boosting

30

Transmission

Model

12JS200T

31

Max torque Nm/rpm

2000/2600

32

GCW approval (ton)

——

33

1# gear ratio

15.53

34

2# gear ratio

12.08

35

3# gear ratio

9.39

36

4# gear ratio

7.33

37

5# gear ratio

5.73

38

6# gear ratio

4.46

39

7# gear ratio

3.48

40

8# gear ratio

2.71

41

9# gear ratio

2.10

42

10# gear ratio

1.64

43

11# gear ratio

1.28

44

12# gear ratio

1.00

45

13# gear ratio

14.86

46

14# gear ratio

3.33

47

48

Brake system

Service brake

double circulation air brake system

Assistant brake

Potential springs pressing on middle and rear wheels

49

ABS

WITHOUT/

50

Steering system

ZF8098

51

Front axle model / ton

VL4/15D/7.5, Benz Technology

52

Raer axle model / type

HL7/015DS/13, Benz Technology

53

Hub reduction type

Double reduction

54

Finel end drive Nm

55000

55

Gear ratio

5.921

56

Tyre size

12.00R20

57

Spare tyre Qty

1

58

59

60

Electrical system

Battery

180AH/2*12V

Generator ampere (A)

28V/70A

Starter kW

24V/5.58KW

61

Cab

Model

NG80B Long cab

62

Interior

Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), Air seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C

63

Accessory

Metal bumper, three steps, new mirror, sun visor

65

Model

#90

66

Series

Strengthen model

72

Overall height

1426mm

73

Overall weight

——

74

Frame

Main frame height

317

75

Main frame thickness

12

76

Inner frame thickness

8.5+7



Advanced features for Beiben 6x4 LHD RHD 2642 420HP tractor truck to DR Congo
