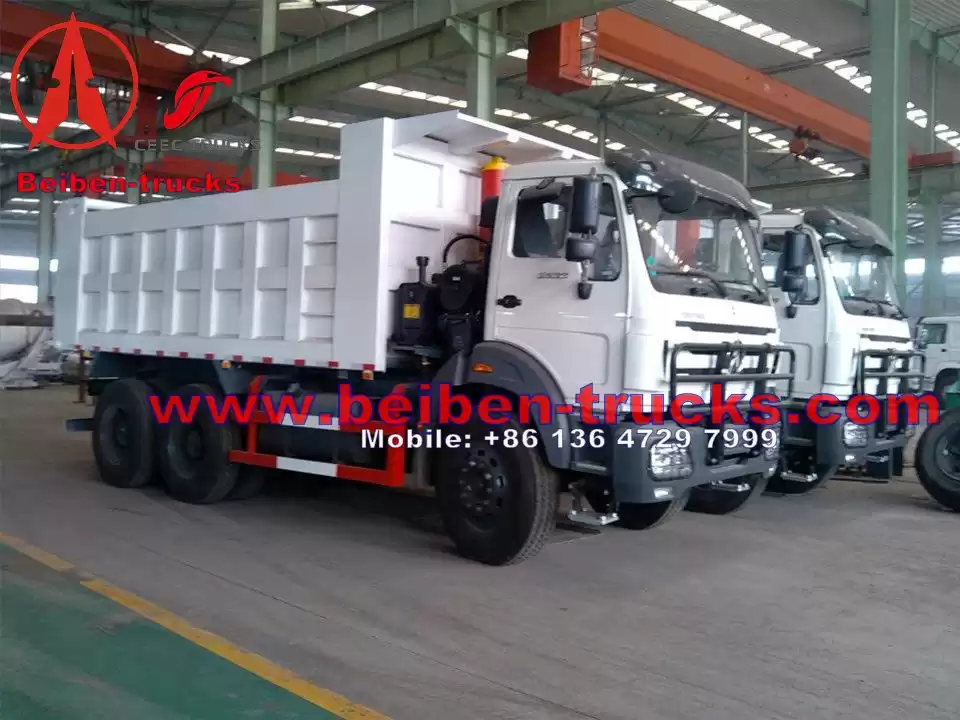

China north benz dump truck Beiben 10 wheel dumper truck

Beiben 10 wheel dumper truck
340/380hp weichai engine
manual transmission
radial tires
Professional service



Beiben/North Benz dumper truck for sale best price





Cubic volume (m3)

25

Body length (mm)

6000

Body width (mm)

2300

Body height (mm)

1500

Body type

All steel body with drop sides,Auto release body lockdown hook

Side plate material

8MM Q235A carbon steel by WISCO

Front plate material

8MM Q235A carbon steel by WISCO

Deck plate material

10MM Q235A carbon steel by WISCO

Tipping type

Middle tipping type



Engine



Model

WP10.290

Type

Diesel ,4-cycle, 6 cylinder in line, Electronic unit pump injection, Turbocharger, Water cooled

Max output power (kw/rpm)

213 / 2200

Max torque (N.m/rpm)

1200

Displacement (ml)

9726

Emission standard

Euro 3

Transmission& Clutch



Model

9JS135

Type

9 Forward and 1 Reverse Speed

Gearshift

Manual (Mechanical)

Clutch

Dry and Double Plate Clutch

Front /Rear Axle



Front

BENZ

Rear

BENZ reinforced, hub reducing axle

Capacity (kg)

7000 / 18000x2

Rear axle ratio

5.92

Main Technical Specification



Drive type

6 x 4

Wheel base (mm)

3800+1450

Overall Length (mm)

8500

Overall Width (mm)

2500

Overall Height (mm)

3450

N.V.W (kg)

12400

Max. traveling speed (km/h)

80

Front track

2040

Rear track

1850/1850
