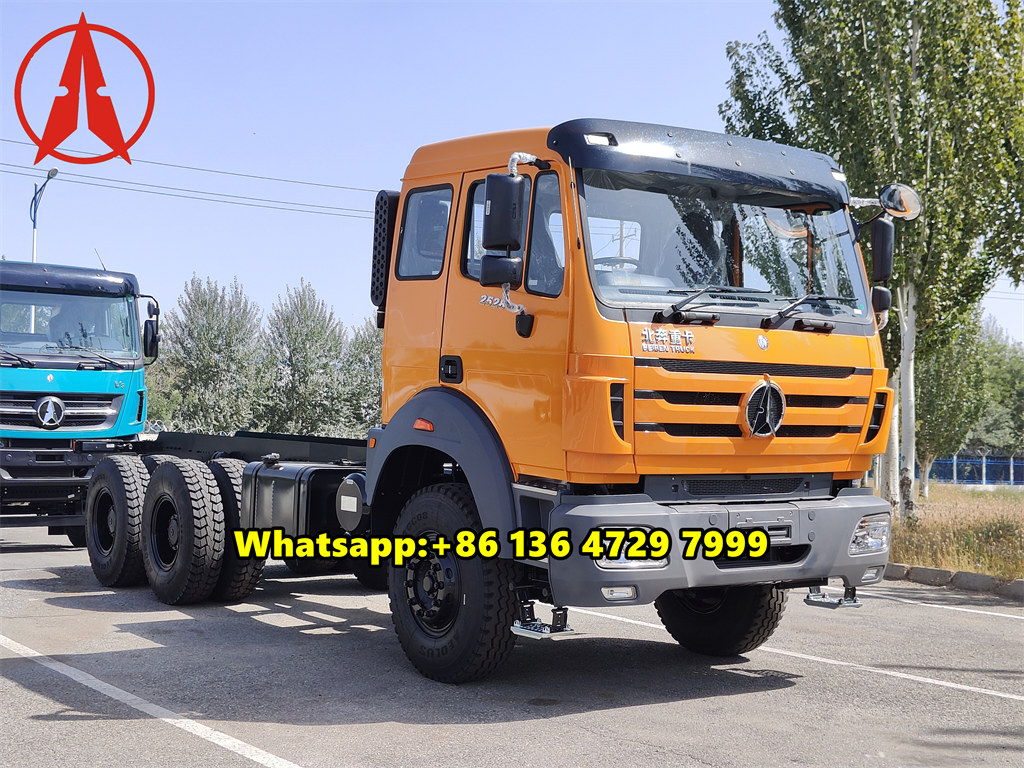

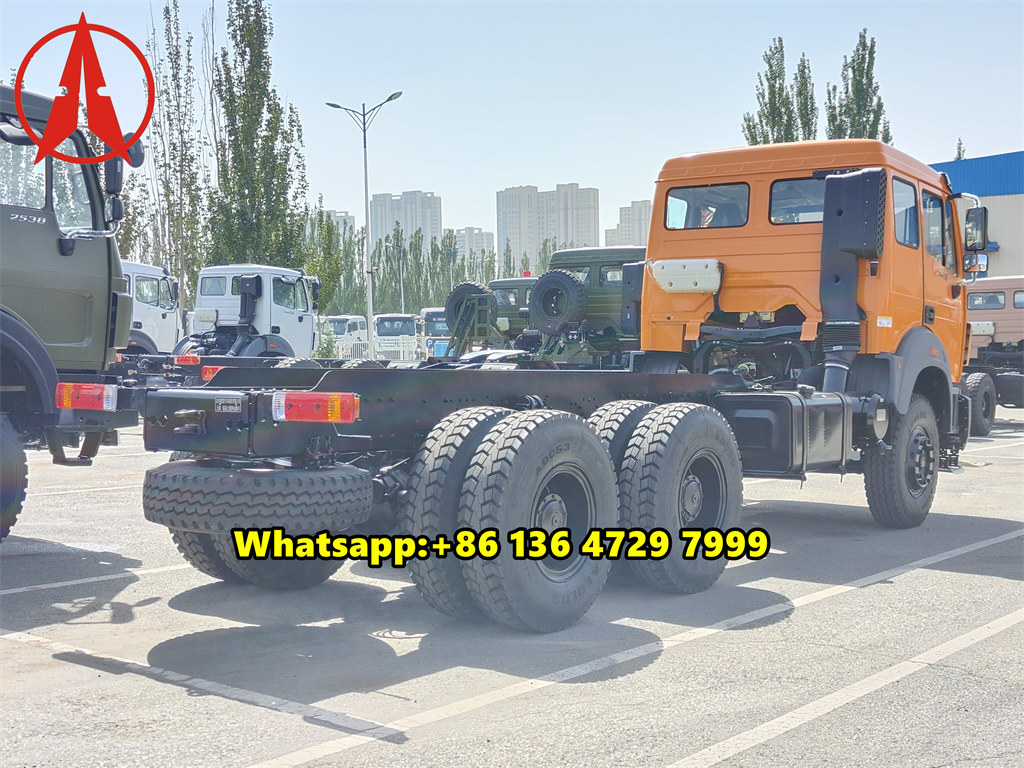

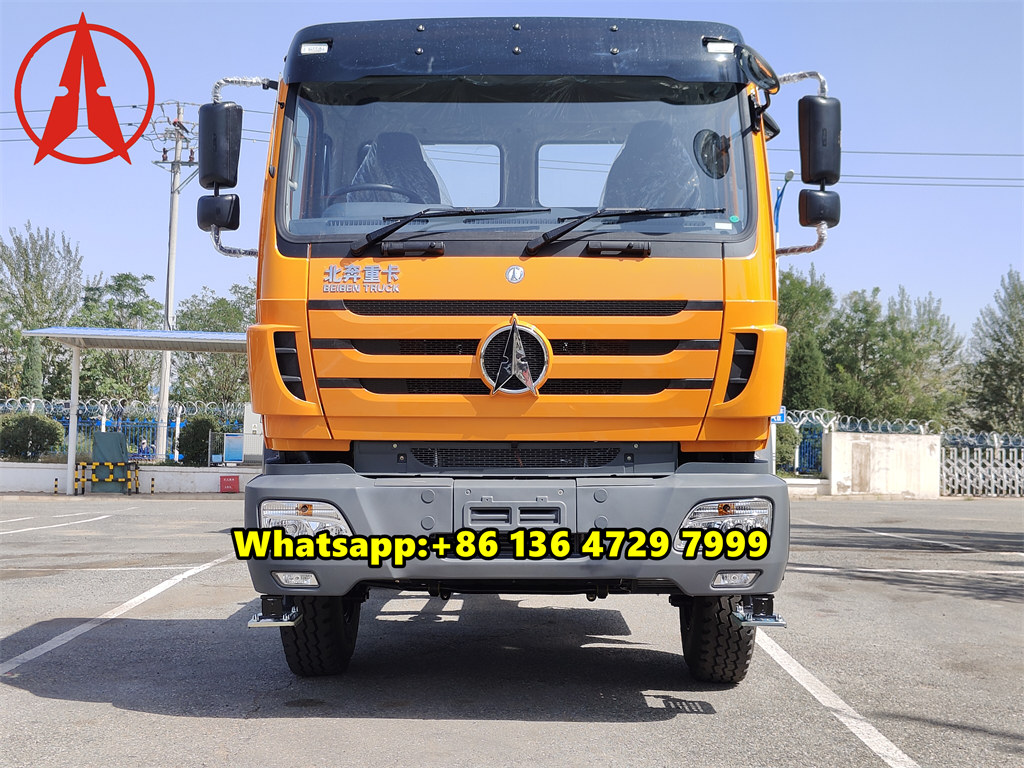

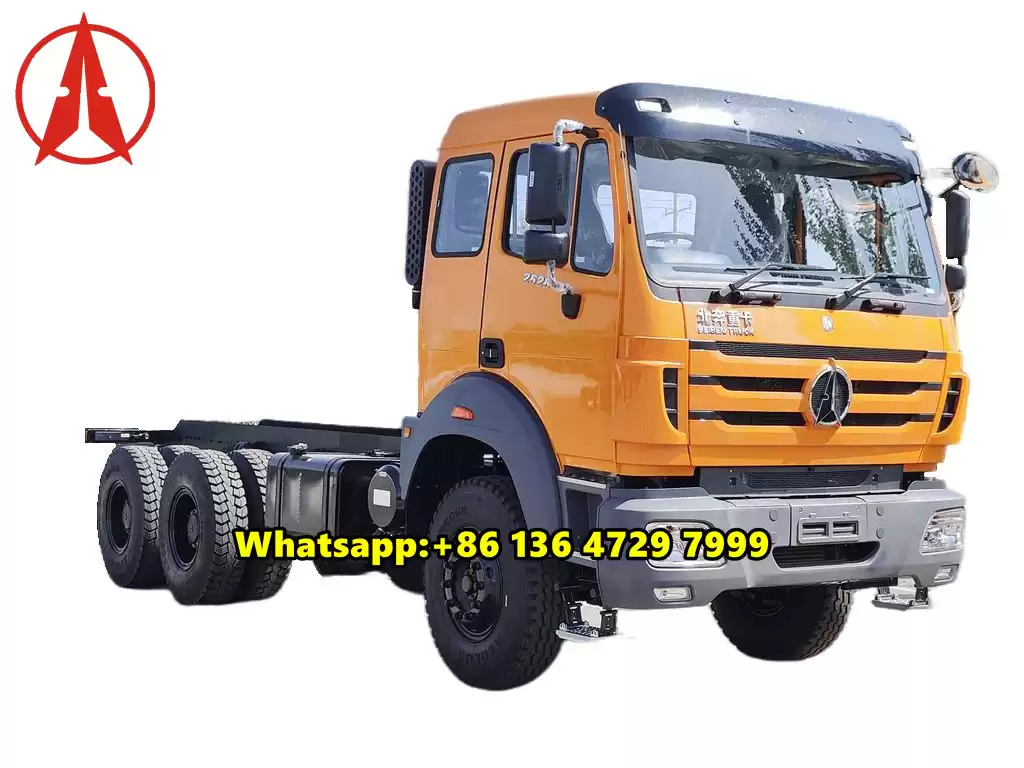

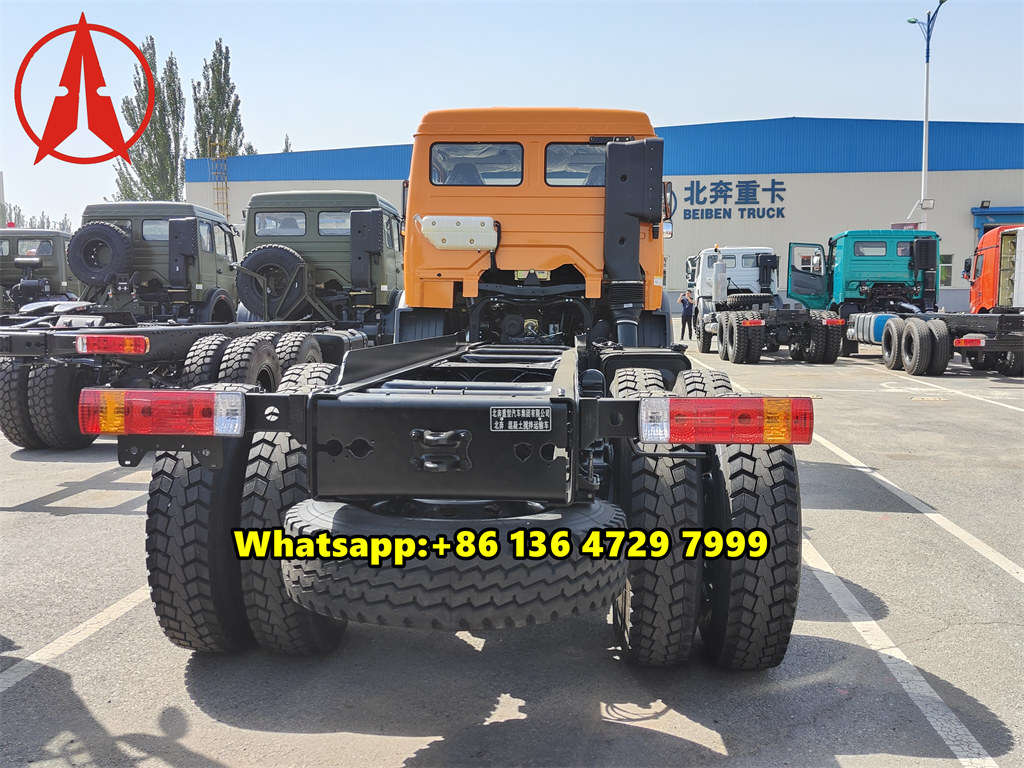

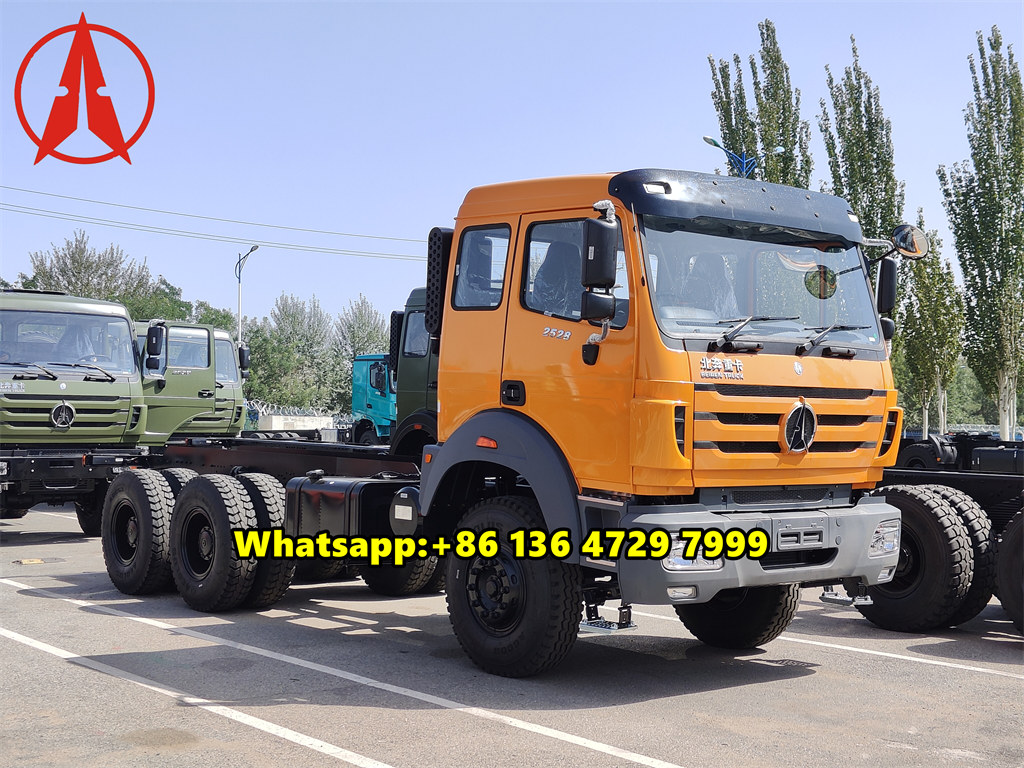

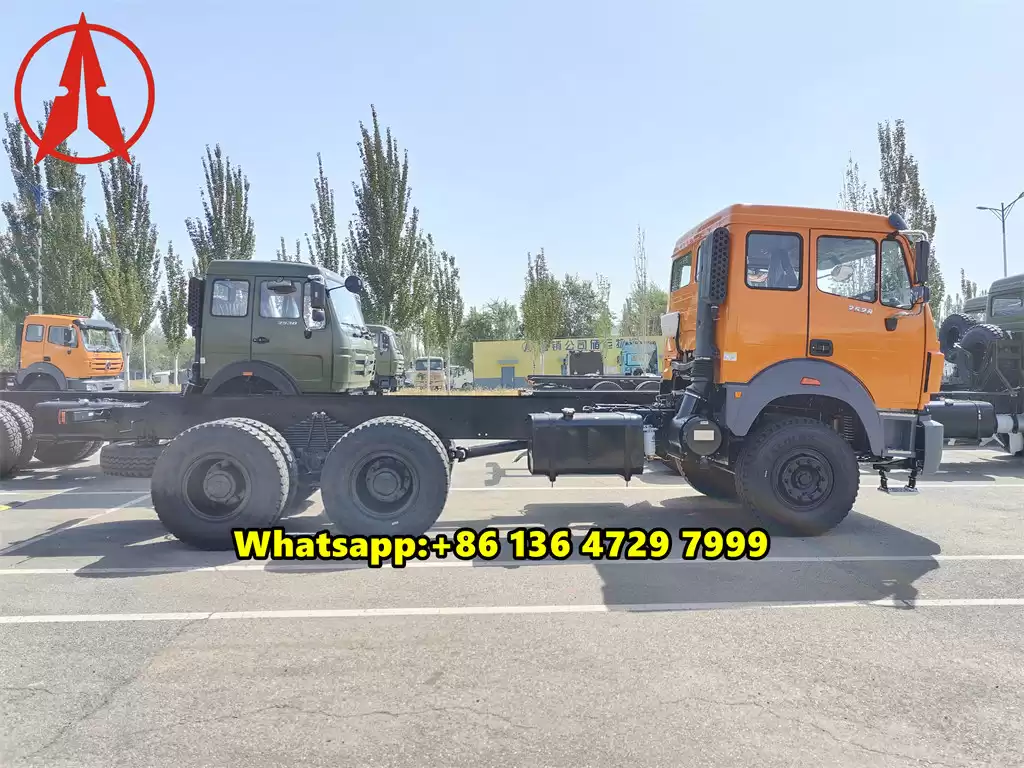

China North Benz NG80B 2528 cargo truck

The series products of Beiben trucks are ideal transport with outstanding performance and high quality, Beiben 2638 2642 cargo trucks are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x4 6x6 cargo trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth. Beiben heavy-truck originate from Mercedes-Benz,Gremany,The Chinese local manufacturers, technical performance properties index and conform to the state and military standard.


  • Engine power280HP
  • Working Capcity30-40 tons
  • Payment termsTT
  • Production time30-35days
  • Drive system6x4

Beiben 6x4 cargo truck also called Beiben 2528 truck chassis, China benz 6x4 cargo truck, which is a heavy truck chassis produced by Beiben Motor. As a large heavy duty cargo truck chassis, it plays an important role in the overall structure of the vehicle. It is usually composed of Mercedes Benz technology frame, a suspension system and benz axles, providing sufficient support and stability for the vehicle during travel. The design and manufacturing process of the Beiben 2528 cargo truck chassis affect the overall performance of the vehicle, especially its high strength, stability and carrying capacity, which can meet the needs of large trucks or trailers for heavy loads and long-distance transportation.

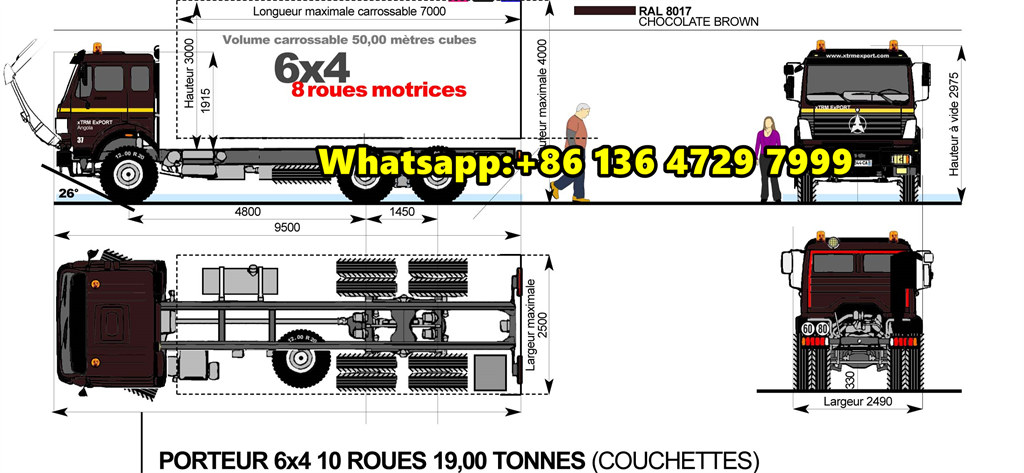

Beiben 6x4 LHD RHD 2528 Cargo Truck, equipped with classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model 280hp diesel engine. Gear box is FAST brand with 9 speeds (9JS150). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.



Beiben 2528 cargo truck chassis is widely used in the field of heavy trucks and special vehicles due to its high strength, stability and carrying capacity. Whether it is a sanitation vehicle, engineering vehicle or logistics vehicle, Beiben 2528 lorry truck chassis can provide stable support and efficient transportation capacity, and is an ideal choice for modifying various special vehicles.

Sanitation vehicles: Due to its high load-bearing capacity and stability, the Beiben 2528 truck NG80 chassis is suitable for modification into sanitation vehicles, such as beiben garbage compactors, Beiben watering trucks, Beiben hook loader, Beiben garabbge truck, Beiben skip lifting garbage truck, etc. These vehicles need to carry a large amount of equipment and water sources, and often need to travel under complex road conditions. The China benz 2528 chassis can provide stable support and efficient transportation capacity.
Engineering vehicles: For engineering vehicles that require heavy loads and off-road capabilities, such as beiben 6x6 excavator self loader truck, Beiben 6x6 concrete mixer trucks, Beiben 6x6 dumper truck, etc., the Beiben 2528 chassis is also an excellent choice. Its powerful power and stable suspension system can ensure the efficiency and safety of the vehicle in complex construction site environments.
Logistics vehicles: In the logistics industry, fast, efficient and reliable transportation vehicles are required. The large load capacity and excellent fuel economy of the Beiben 2528 cargo truck can meet the needs of the logistics industry, and it is particularly suitable for modification into various types of logistics vehicles, such as vans, refrigerated trucks, etc.




Required Technical Specification

Basic parameter

Model

2528PZ/6×4

Length×width×height(mm)

9526×2500×3385

Wheel-base(mm)

4450+1450

Curb weight(kg)

11400

Engine parameter

Model (six cylinder in line)

WP10.280E32

Max. Power (HP/rpm)

280

Max. Torque(Nm/rpm)

1600/14001600

Displacement(lit)

9.726 L

Fuel tank capacity

400L Iron oil tanker  400L

Transmission system

Clutch

430 Single disc, dry type, friction clutch

Gearbox

Mechanical, 9JS150A

Steering system

Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system

Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake



Chassis parameter

Frame

Variable width and section  317×70×8.5+7+8.5 mm

Front axle

7.5 T, no-driving steering axle, drum brake

Middle & Rear axle

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

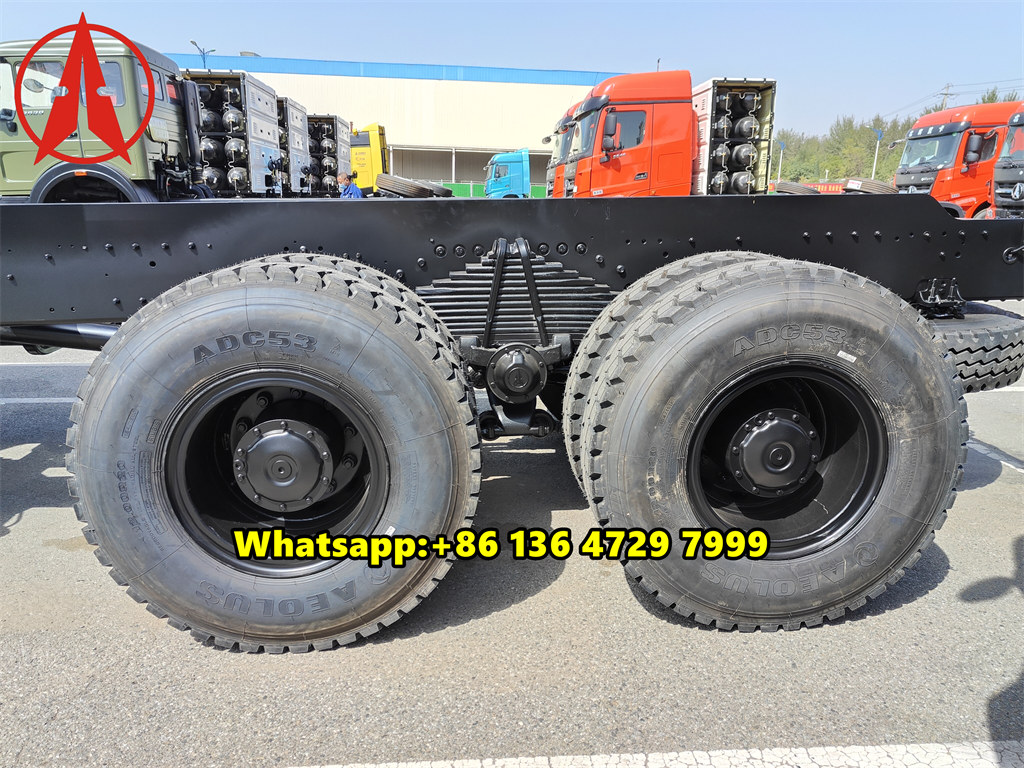

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces

Tire

12.00R20

Cab

NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument
