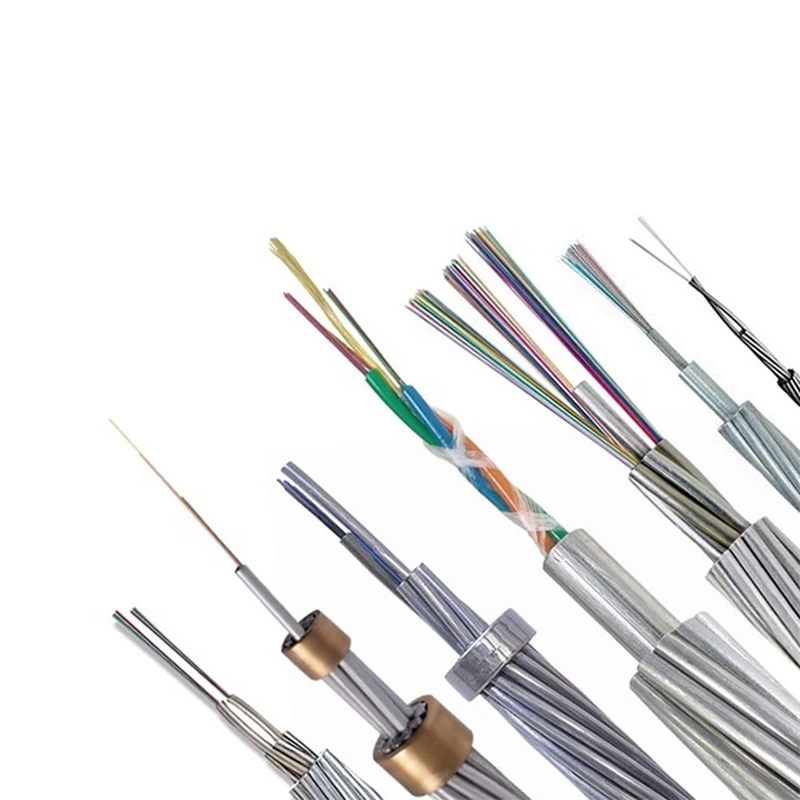

China Professional OPGW Aerial Fiber Optic Cable

Material and structure are uniform, good resistance to vibration fatigue.

Short circuit current has small effect on the optical fiber transmission properties,Good anti-lightning performance.



Introduction

OPGW is a type of cable structure with composite of optical transmission and overhead ground

wire for power transmission. Its working in power transmission line both as optical fiber cable

and overhead ground wire which can provide protection of lightning strike and conducting short

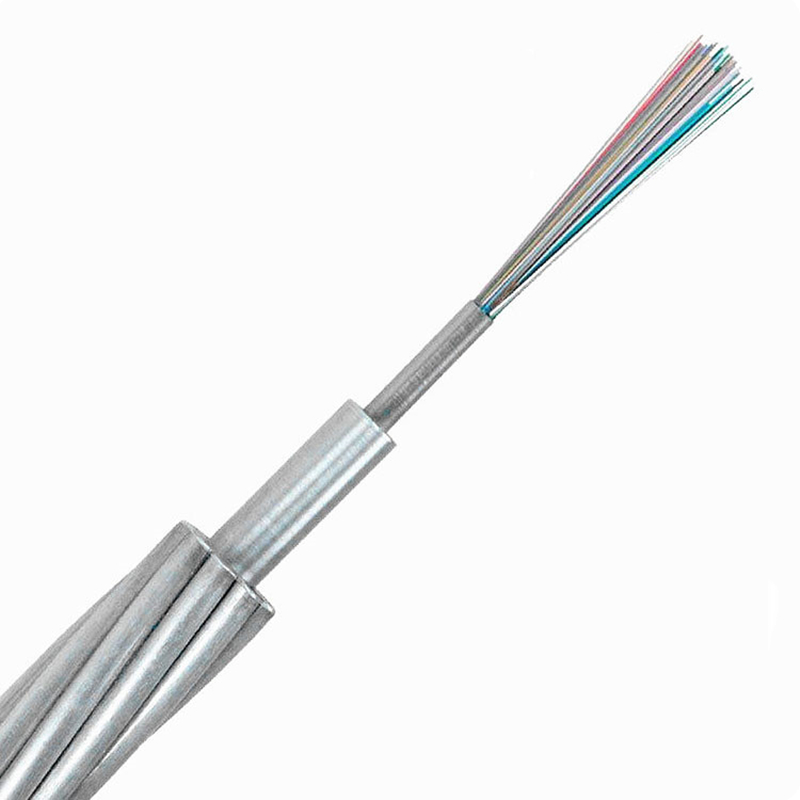

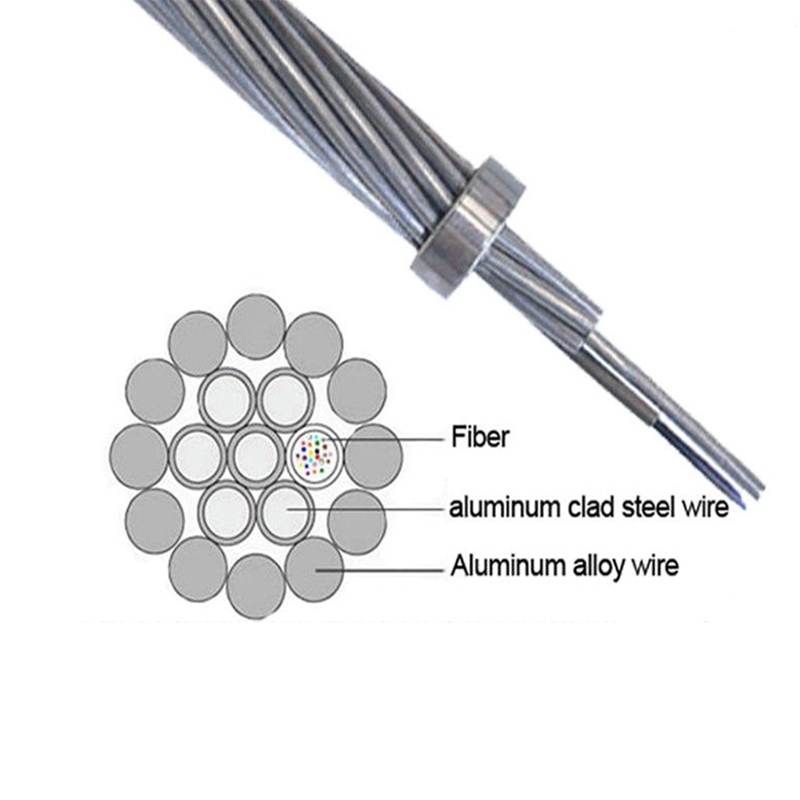

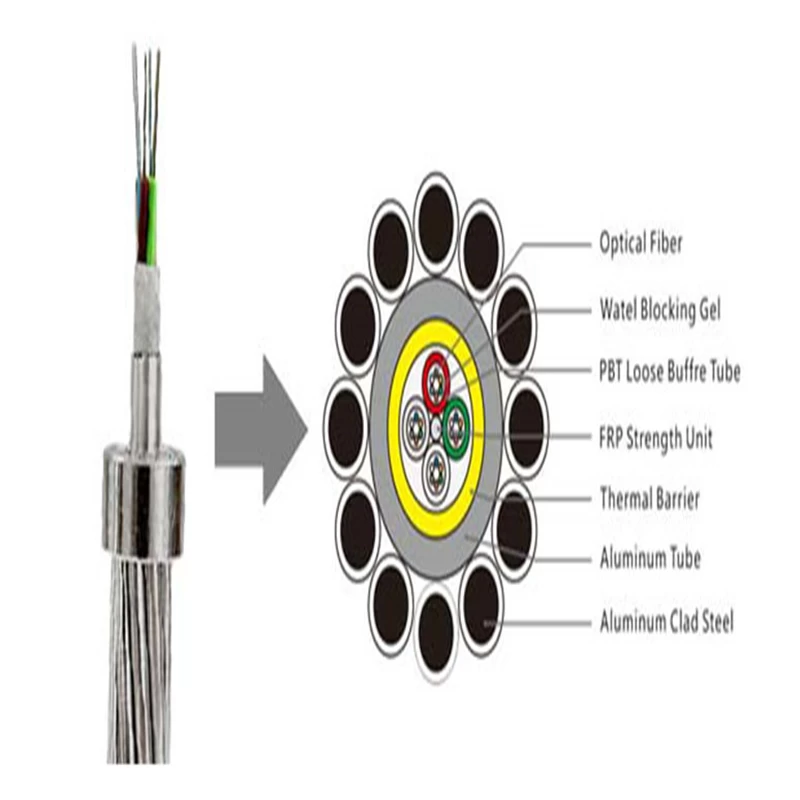

circuit currency. The OPGW consist of stainless steel tube optical unit, aluminum cladding steel

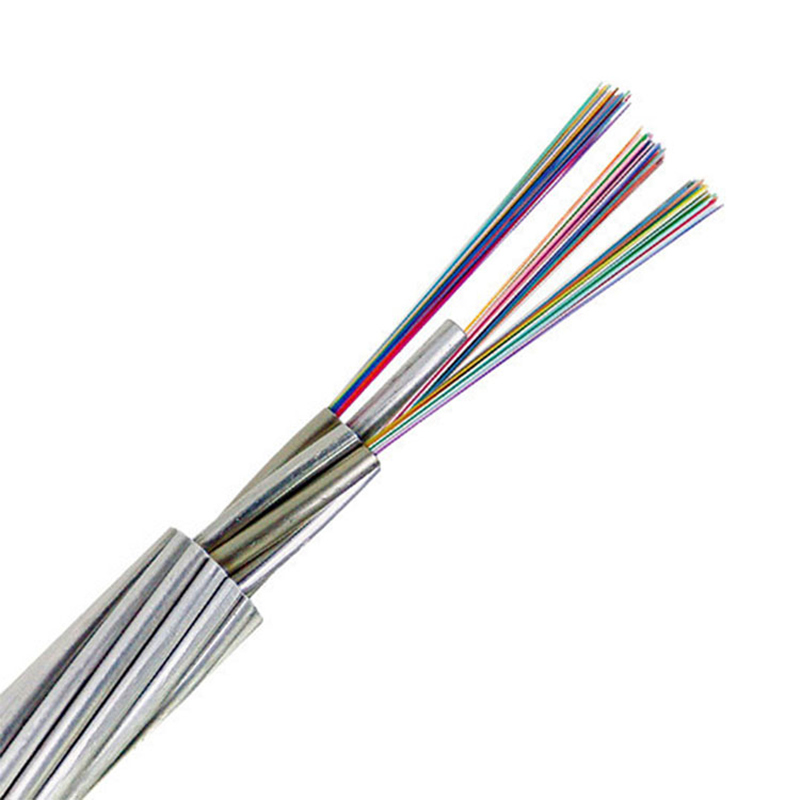

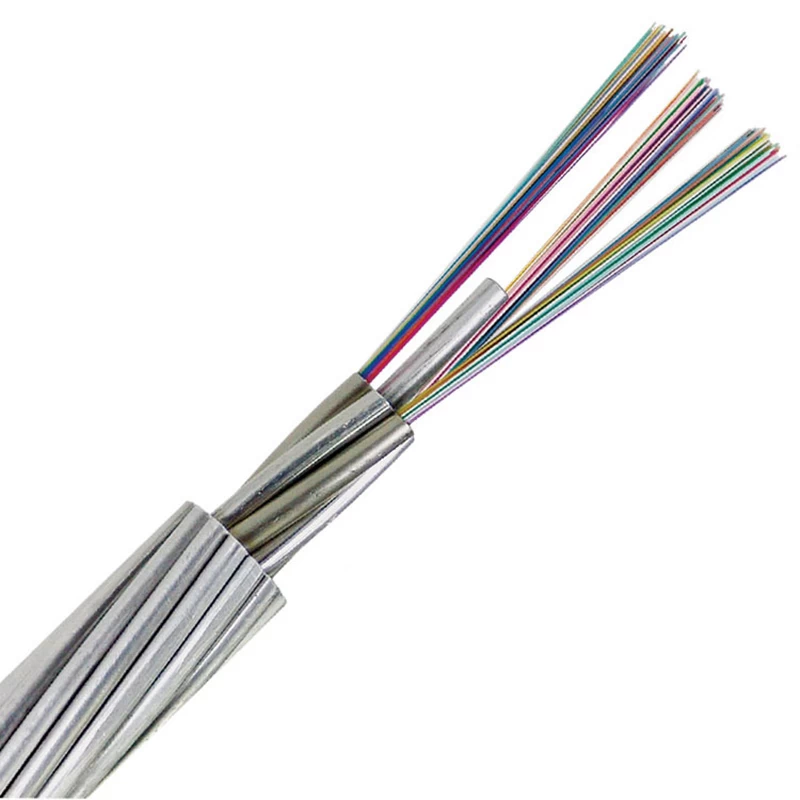

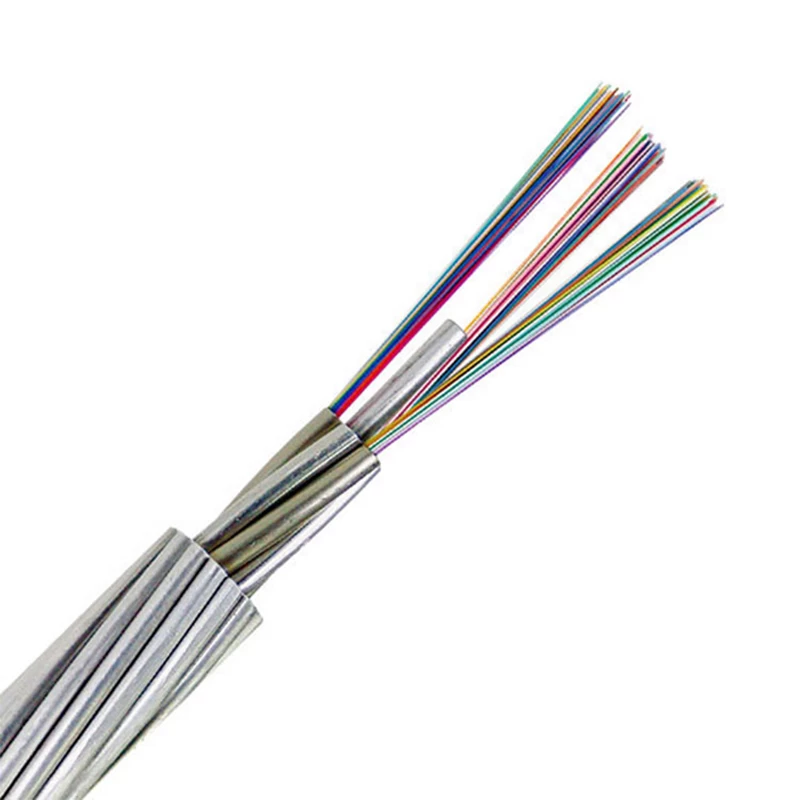

wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.


Applications

  • Adapt to replace the aged ground wire and new structure of high voltage ground wire
  • lighting protection and conduct the short circuit current
  • Optical fiber communication ability

Structural parameters

Cable model

OPGW-60

OPGW-70

OPGW-90

OPGW-110

OPGW-130

Number /diameter(mm) of stainless steel tube

1/3.5

2/2.4

2/2.6

2/2.8

1/3.0

Number /diameter of AL wire(mm)

0/3.5

12/2.4

12/2.6

12/2.8

12/3.0

Number /diameter of ACS wire(mm)

6/3.5

5/2.4

5/2.6

5/2.8

6/3.0

Diameter of Cable (mm)

10.5

12.0

13.0

14.0

15.0

RTS(KN)

75

45

53

64

80

Cable weight (kg/km)

415

320

374

432

527

DC resistance(200C W/km)

1.36

0.524

0.448

0.386

0.327

Modulus of elasticity(Gpa)

162.0

96.1

95.9

95.6

97.8

coefficient of Linear thermal expansion

(1/×10-6)

12.6

17.8

17.8

17.8

17.2

Short circuit capacity (kA²s)

24.0

57.3

78.9

105.8

150.4

Max. operation temperature (C)

200

200

200

200

200
