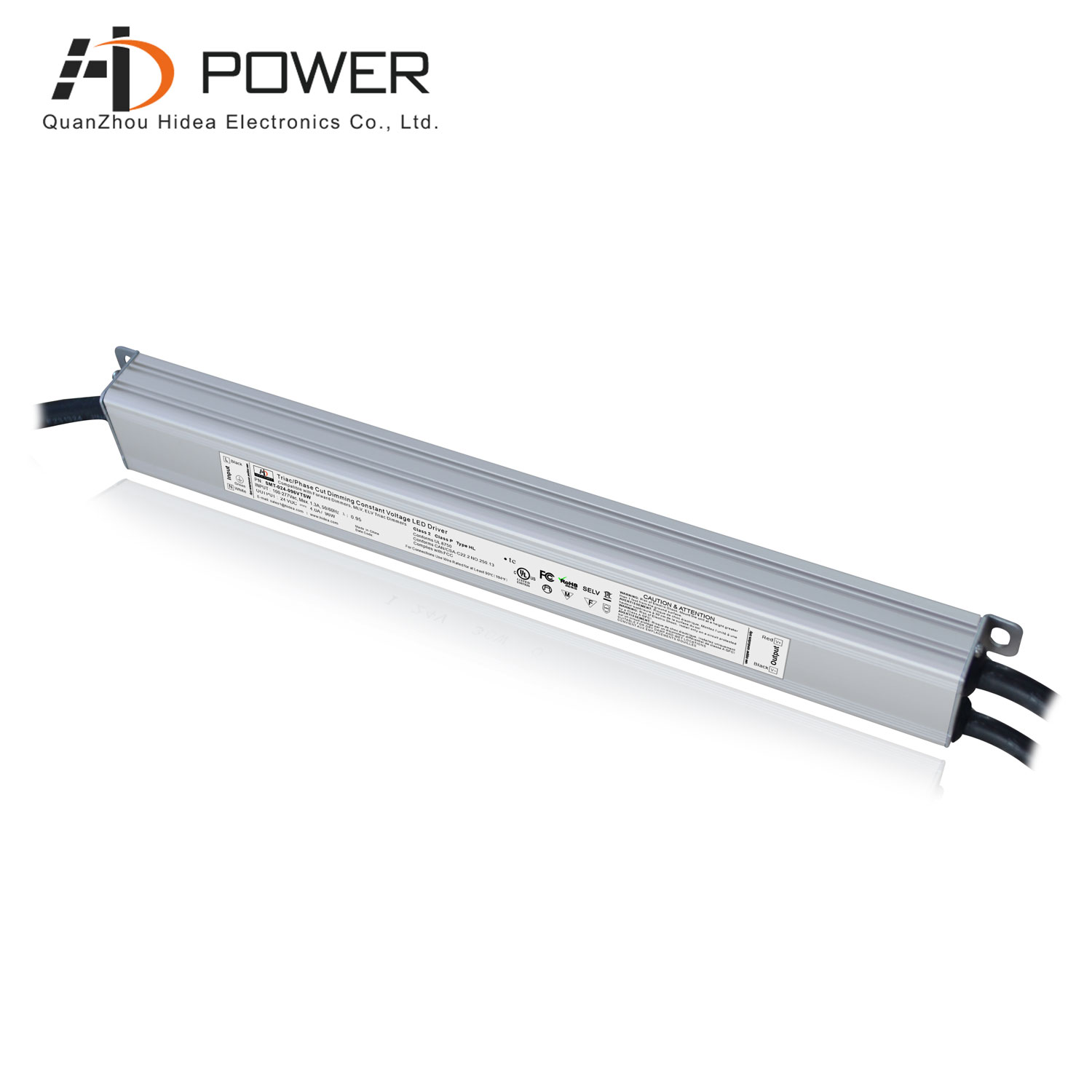

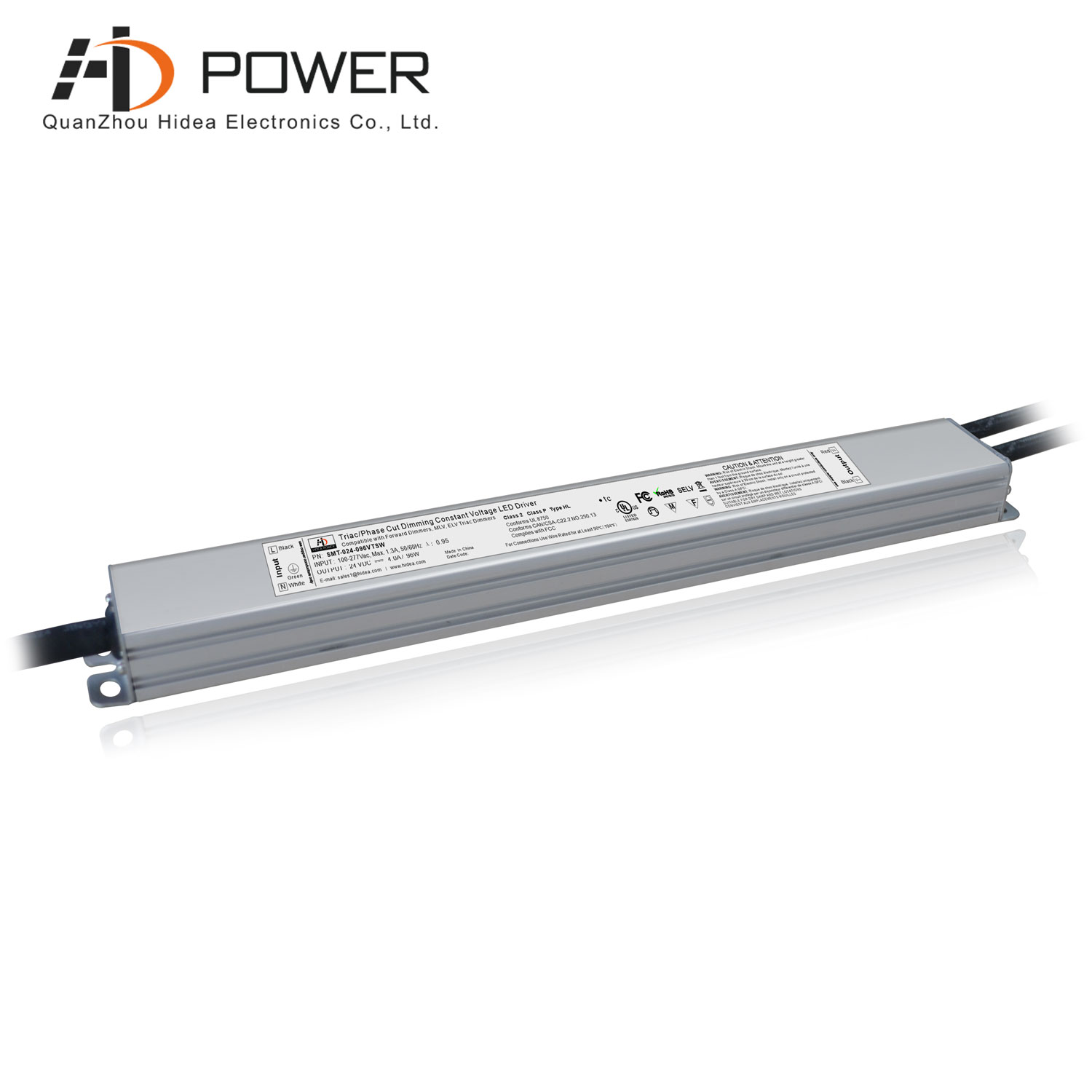

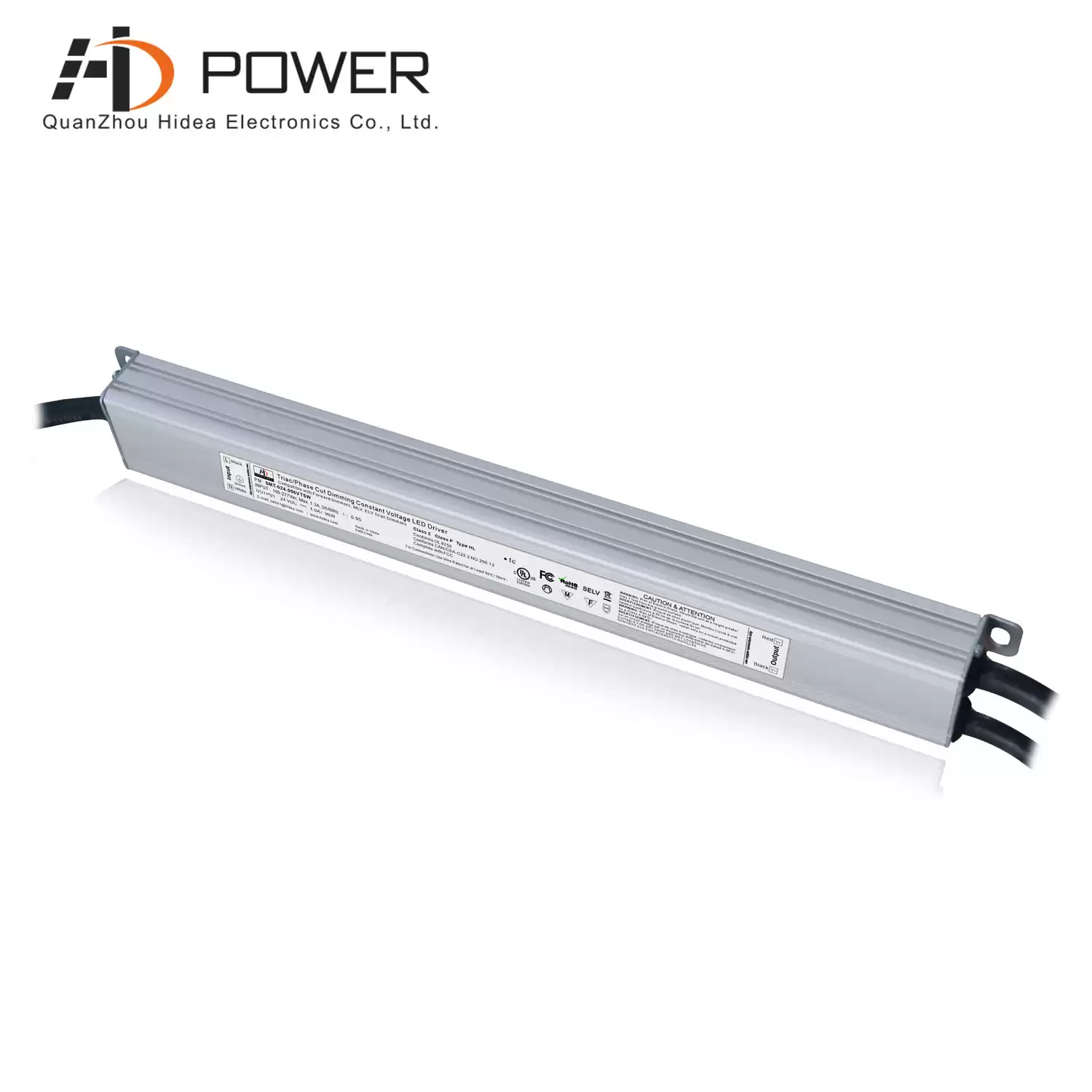

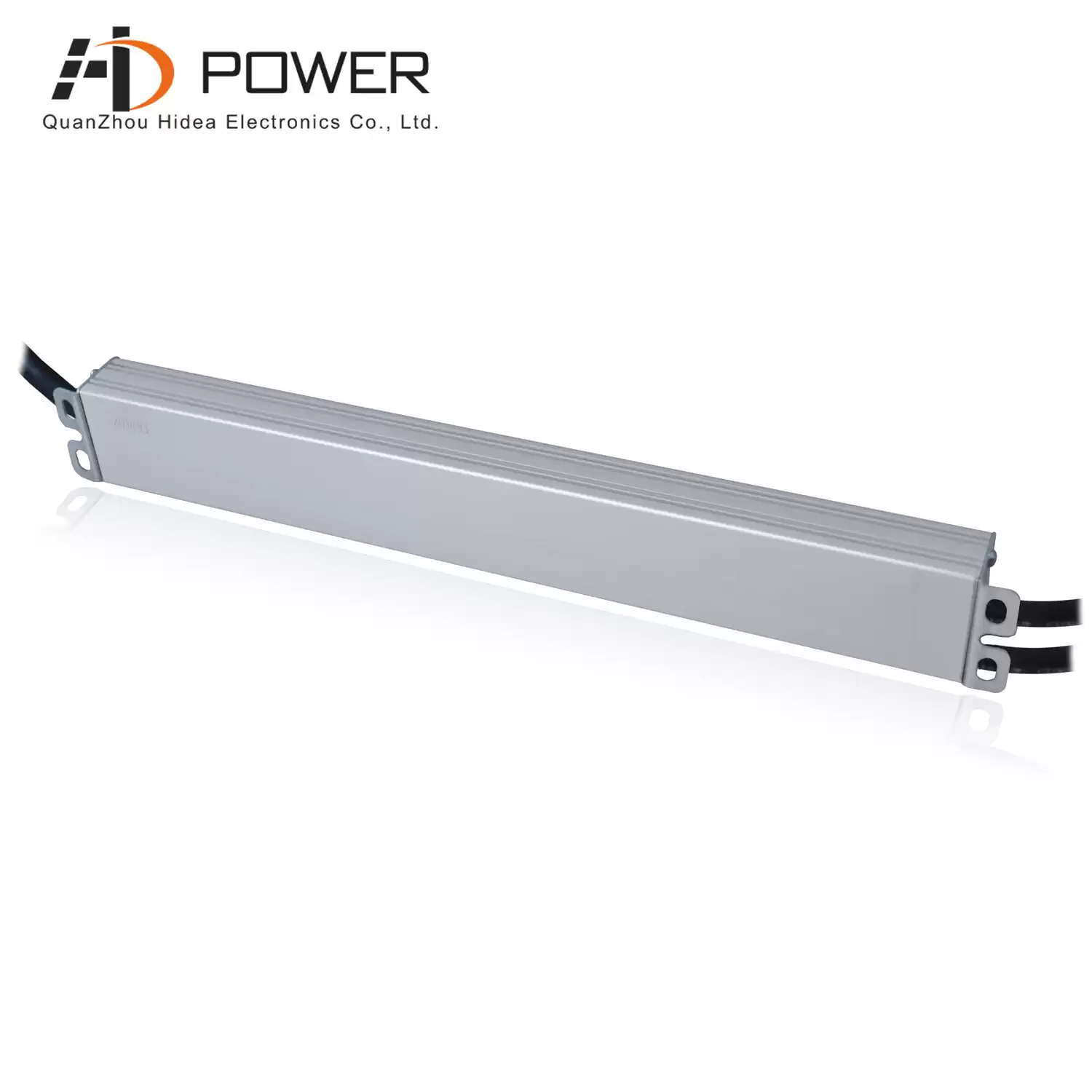

china slim size triac dimmable waterproof LED power supply 100W waterproof led driver 12v 24V

100-277VAC triac dimmable LED power supply 100W Full protection aluminum housing, for dry, damp, wet location


  • Dimming ModeTriac Dimming
  • Working ModeConstnat Voltage LED Driver
  • Input Voltage100-277Vac
  • Output Power(Watt)100W
  • Output Voltage12/24Vdc
  • Shape & SizeSlim Size
  • Output Current
  • Size330*32*23MM
  • Weight550g
  • CertificationUL/CUL
  • Warranty7 Years
Facebook Twitter Pinterest LinkedIn 分享

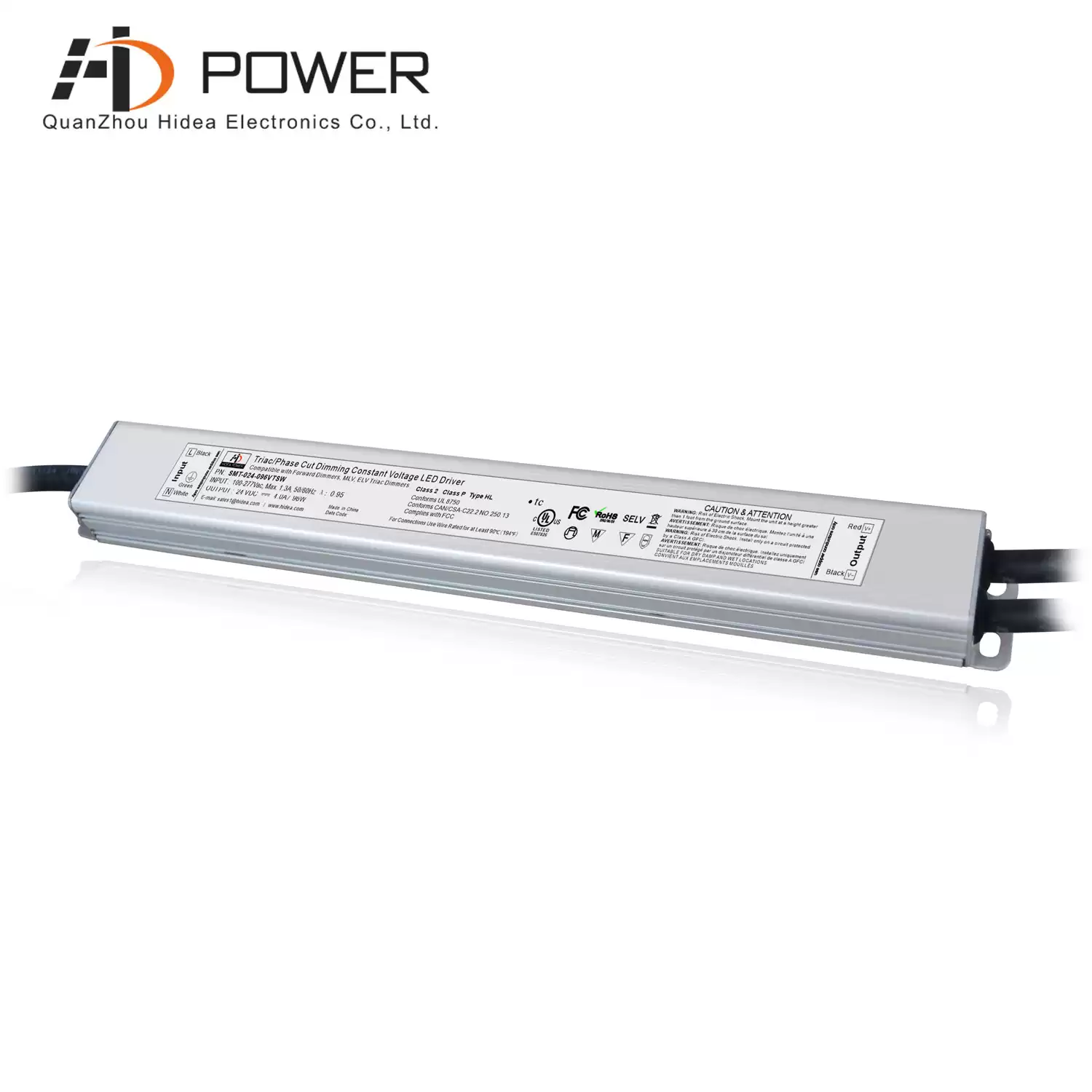

SMT-024-100VTSW waterproof led driver 24v 100W IP67 Design for indoor dry or damp or wet environment installations


  Specification

Model SMT-012-100VTSW SMT-024-096VTSW
Output DC Voltage 12VDC 24VDC
Voltage Accuracy ±5% ±5%
Rated current 8.33Amp 4Amp
Rated power 100W 96W (class 2)
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277 VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.99/110V ;  PF≧0.98/277V
Full Load Efficiency(Typ.) >83% >84%
AC Current(Typ.) 1.10A/100VAC  /  0.43A/277VAC
Inrush Current(Typ.) 9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC
Leakage current <0.50mA/110VAC; ﹤0.13mA/277VAC
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading ≤120% shut down o/p voltage, re-power on to recover
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P: 2KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,,11,Alight industry level
Others Weight 0.55Kg
Size 330*32*23mm (L*W*H)
packing 50PCS/CTN
Notes 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
2.  Tolerance:includes set us tolerance,line regulation and load regulation .

led driver 12V
 dimmable led driver
 constant voltage led driver
SMARTS led power supply


  Related Products

100w dimmable driver

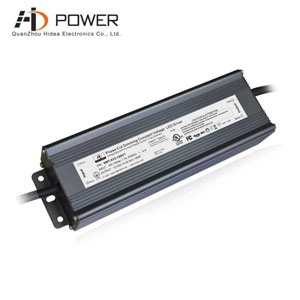

UL triac dimmable power supply 100W aluminum shell design IP67 Strong compatibility Use with Lutron dimmers for smooth dimming


Mode：SMT-012-100VDHW

Dimming Mode : Triac Dimming

Output Power : 100W

intput voltage：100~277V AC

Size：230*68*45MM   （L*W*H）
