China Top 6 Feet Steward Robot supply standard with 1 Ton above payload free-degre

From 500kg, 1Ton to 40 Ton Payload 6 feet steward Robots are available !




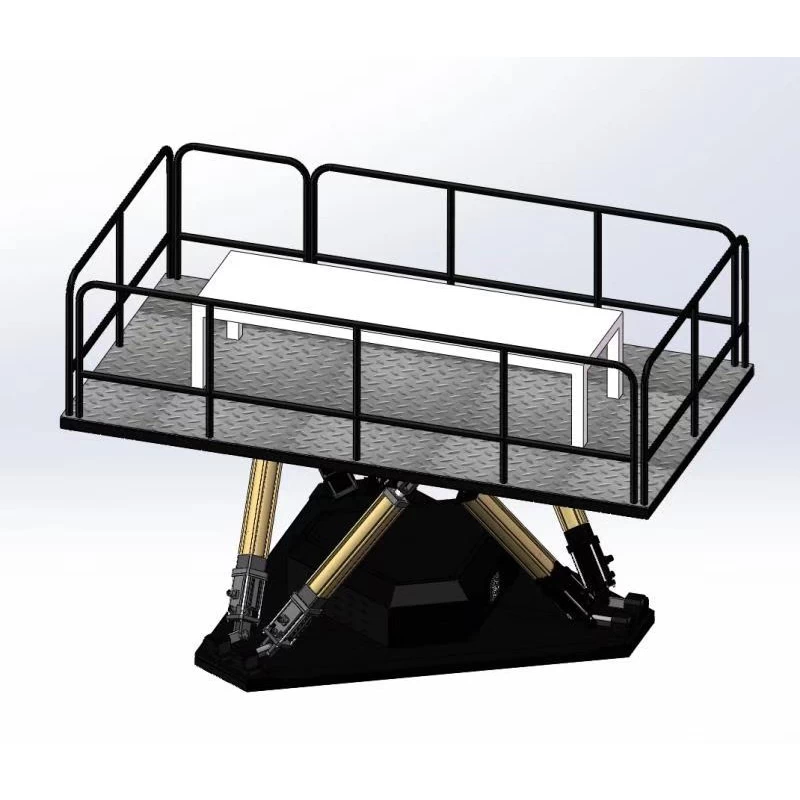

TRSTEW-1000 Stewart Specification

Portrait Tx (Single || Max.)

Lateral Ty (Single || Max.)

Vertical Tz (Single || Max.)

Rolling Angle Rz (Single || Max.)

Pitch Rx (Single || Max.)

Yaw R y (Single || Max.)

± 0.25 m || ± 0.27 m

± 0.25 m || ± 0.26 m

± 0.18 m || ± 0.18 m

± 21.0° || ± 22.0 °

± 22.0 ° || -23.0 °/ + 25.0 °

± 22.0 ° || ± 23.0 °

DOF Max. Velocity

Tx Surge

Ty Sway

Tz Heave

Rz Roll

Rx Pitch

Ry Yaw


± 0.50 m/s

± 0.50 m/s

± 0.30 m/s

± 30.0 °/s

± 30.0 °/s

± 40.0 °/s

DOF Max. Acceleration

Tx Surge

Ty Sway

Tz Heave

Rz Roll

Rx Pitch

Ry Yaw


± 6.0 m/s 2

± 6.0 m/s 2

± 5.0 m/s 2

± 500 °/s 2

± 500 °/s 2

± 400 °/s

Platform maximum payload

1160kg

Motion platform X-axis inertia

650 kg.m 2

Motion platform Y-axis inertia

650 kg.m 2

Motion platform Z-axis inertia

650 kg.m 2

Height of center of gravity of motion platform

≤ 0.80 m

Total Height of Motion Platform

1m

Platform installation space diameter

Approximately 2.6 m

Electric Cylinder Range

0.3 m

Platform Power Requirements

220 VAC,

50/60 Hz

System Average Power

4 KVA

Peak rate of power system

20 KVA

System software and data

Control system, software, Ethernet data transmission

Typical Application of Motion System

Car, truck simulation driving

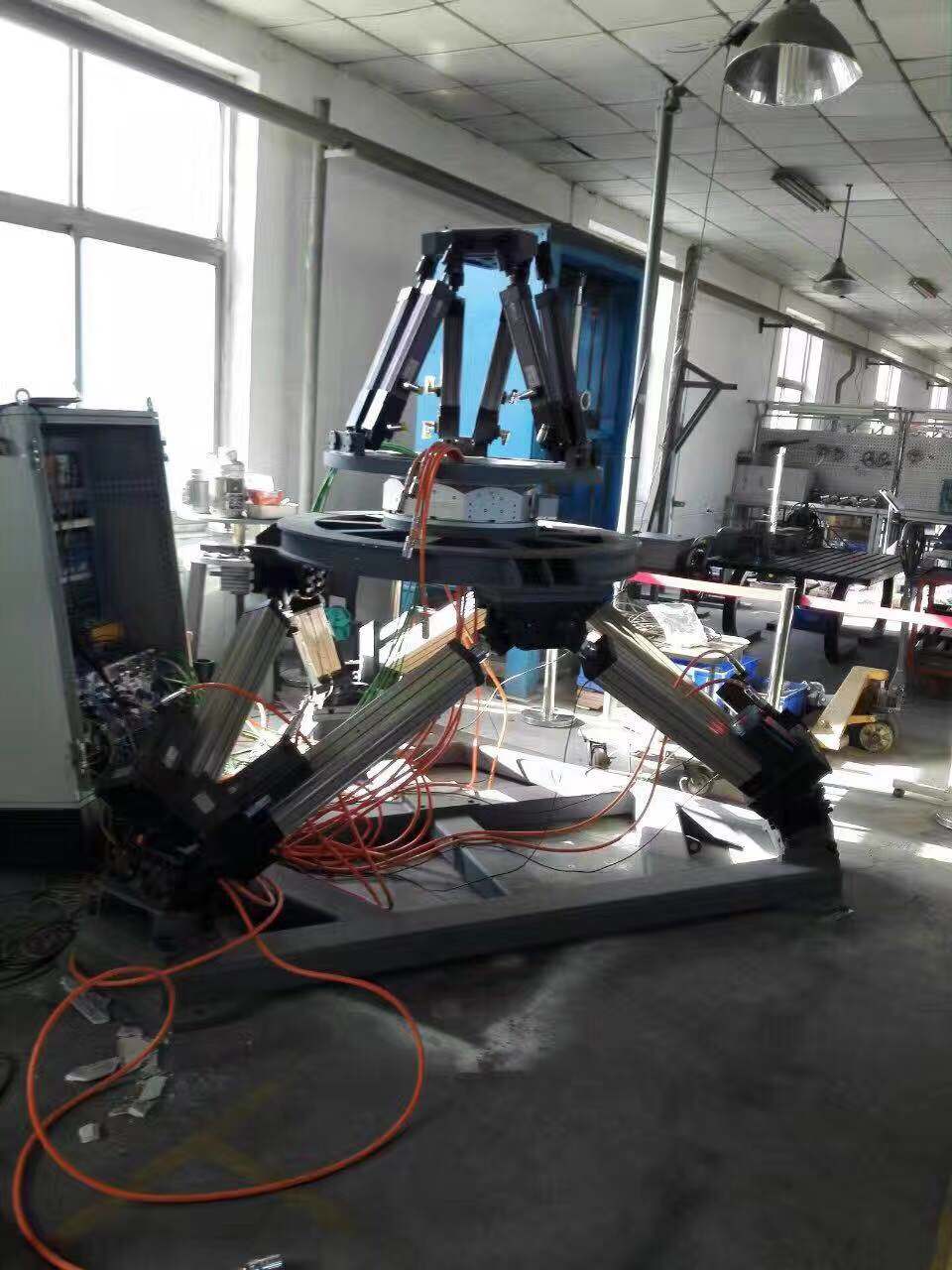

TIM20190228160032

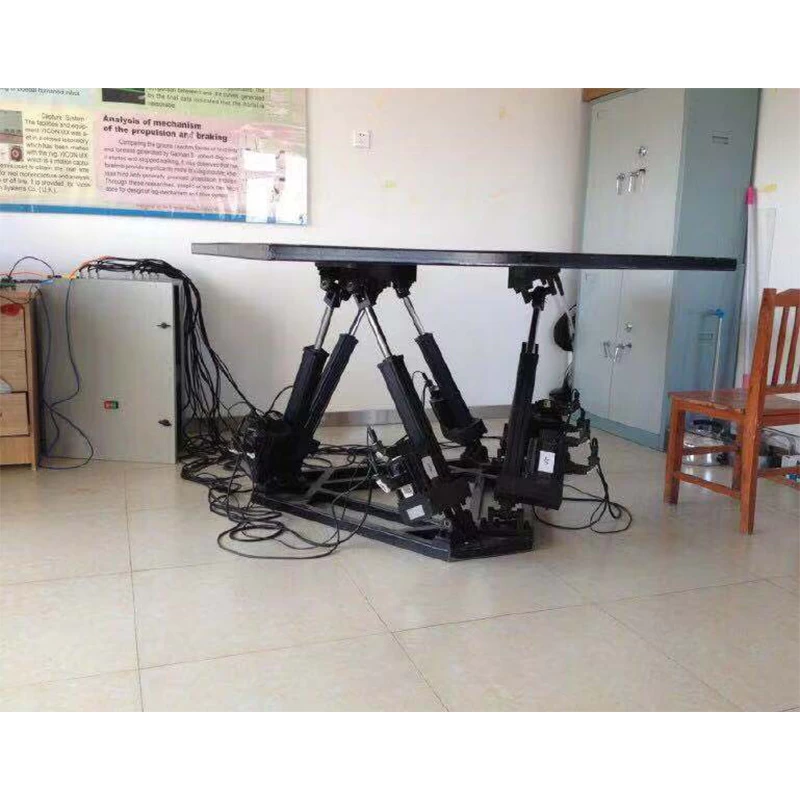

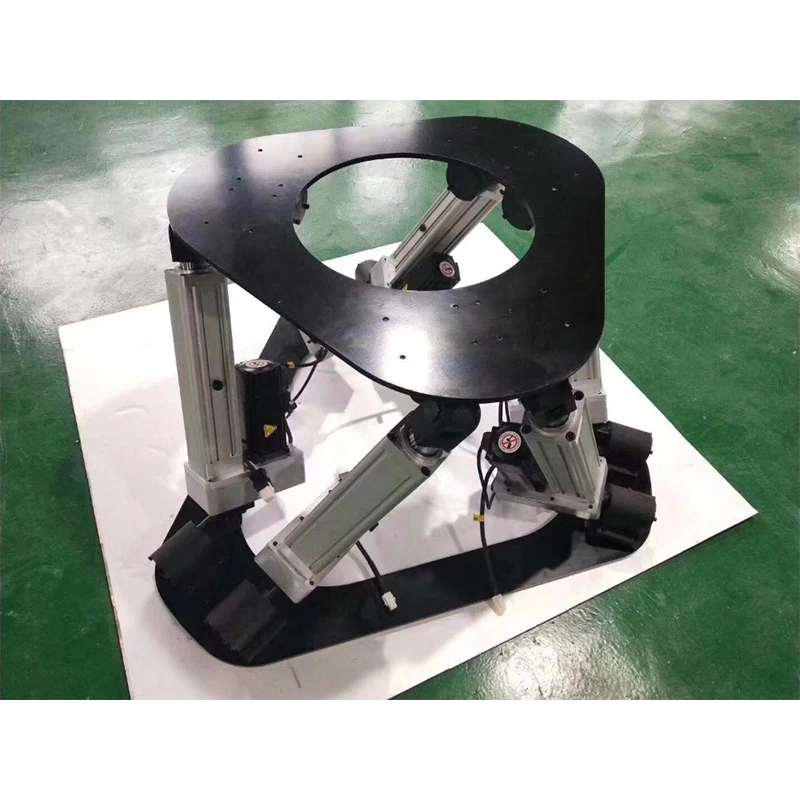

6 DOF motion simulation platform features:

1. High-performance dynamic prompt performance for enhancing the realism of simulation;
2. Fully digital closed-loop servo control and professional motion control card ensure smooth transition of motion and high simulation, reducing dynamic drift and distortion.
3. New modular combination and free and flexible system integration to meet different needs of customers
4. High precision transmission system and optimized combination to ensure the high efficiency of the system reaches 85%
5, easy to install, simple to maintain multiple mechanical and electrical safety protection, to ensure the absolute safety equipment
6.High system response time, high acceleration and low noise
7.Visibility friendly man-machine interface, easy to operate
8. Configure uninterruptible power supply to ensure equipment power-off safety


The main application directions of 6 DOF motion simulation platform:

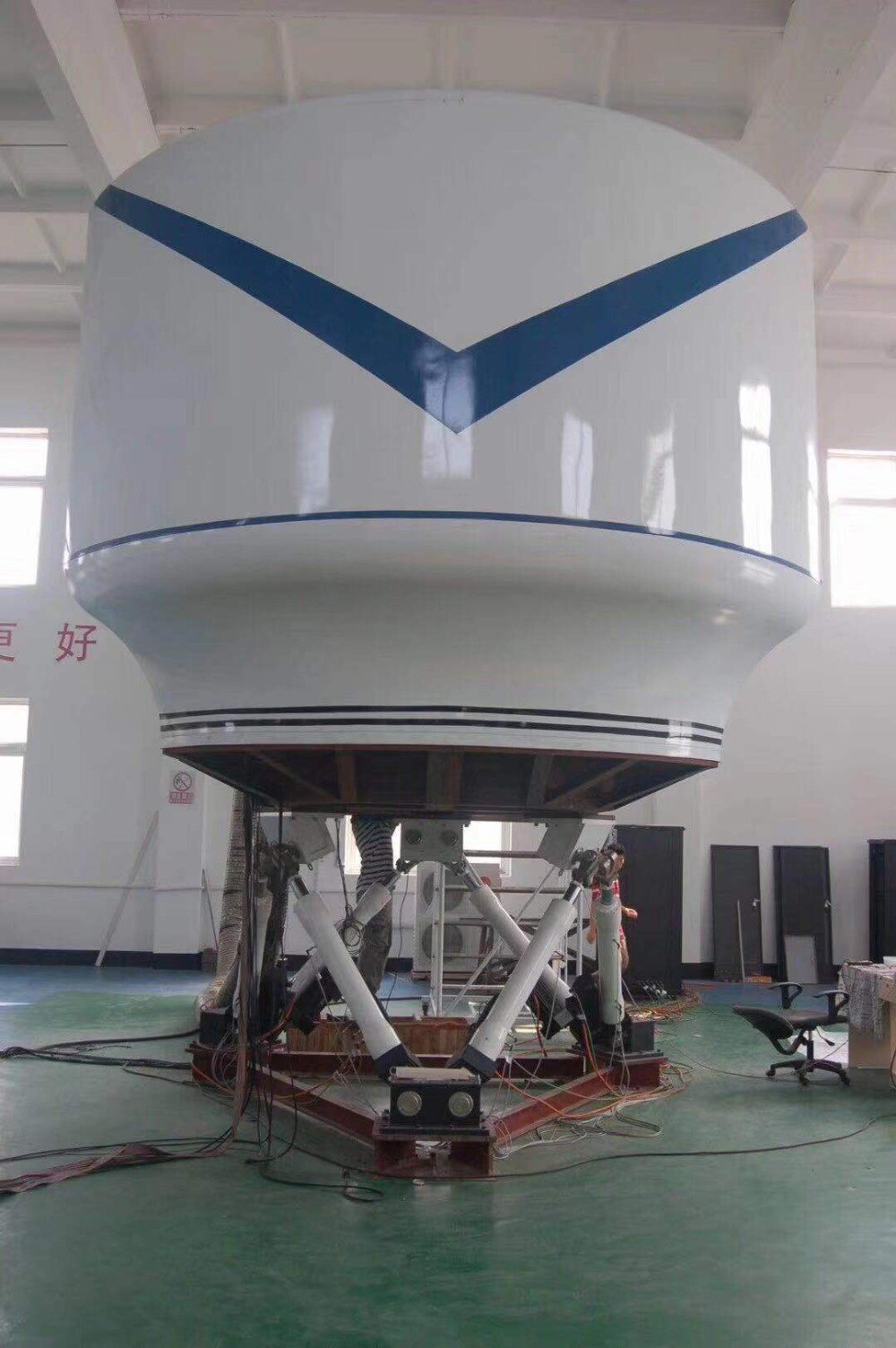

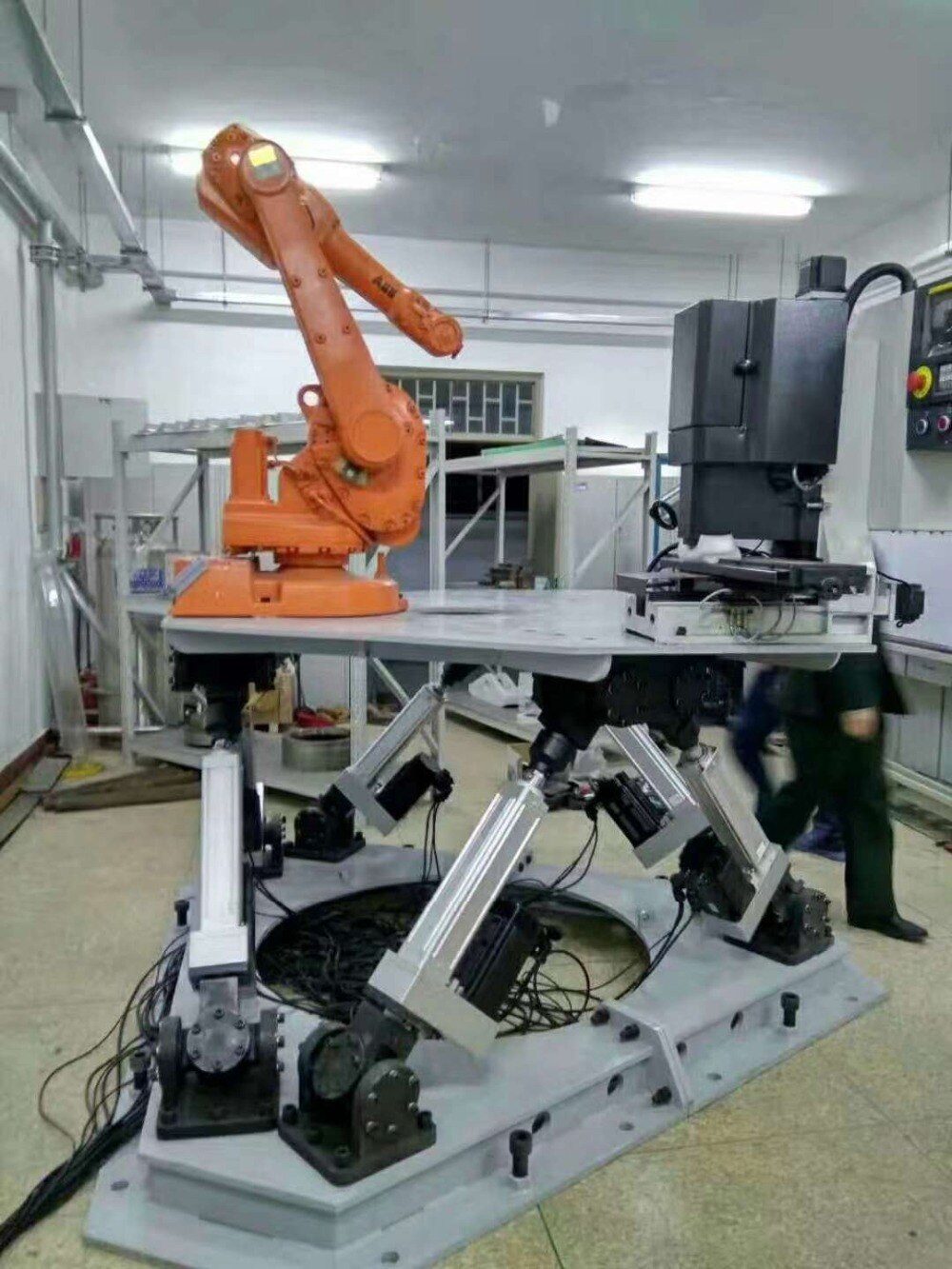

1. Motion simulation (flight simulation, driving simulation, road simulation, ocean wave simulation, space-to-ground contact surface test)
2.Parallel machine tools
3. Precision positioning devices for parallel robots (micro-motion mechanism, large-scale integrated circuit processing, parallel excavation machinery, space assembly robots, large-scale
Telescope, camera focus, etc.)
4.Six-dimensional force / torque sensor
5. Vibration isolation platform (using its fast response capability)
