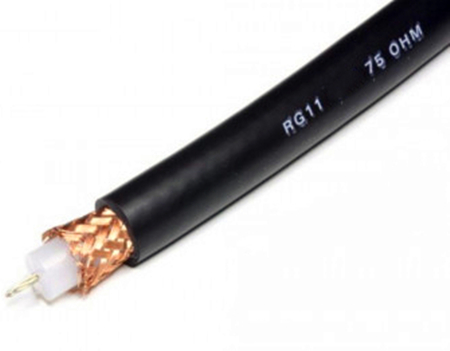

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable
PRODUCTS NAME
Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable.
PRODUCTS KEYWORDS
Coaxial Cable, SYWV75-5, RG 6, RG 11, RG 59, CCTV cable, CATV cable, CT coaxial cable, Cable Television Connect Cable, factory cheap.
PRODUCTS APPLICATION
Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable. Coaxial cable can be used for the transmission of analog and digital signals and is suitable for a variety of applications, among which the most important ones are television transmission, long-distance telephone transmission, short-distance connection between computer systems and local area networks. As a means of transmitting TV signals to thousands of households, coaxial cable has developed rapidly, which is cable TV. A cable TV system can load dozens or even hundreds of TV channels, and its transmission range can reach tens of kilometers. Coaxial cable has long been an important part of long-distance telephone network. Today, it faces increasingly fierce competition from optical fiber, ground microwave and satellite.
PRODUCTS FEATURES
Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable, can be divided into 2 kind of types, baseband coaxial cable and broadband coaxial cable. The coaxial cable has the follow features:
1. Excellent conductor medium, low attenuation and high signal transmission.
2. High performance physical foam insulation, low dielectric constant, small attenuation loss, and stable long-distance transmission.
3. The product has passed the UL 444 certification and has excellent quality.
PRODUCTS RELATIVE-MERITS
Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable, advantages of coaxial cable: it can support high bandwidth communication on a relatively long line without repeater. However, their disadvantages are also obvious: first, they are large in size, and the diameter of the thin cable is 1.02mm, which requires a lot of space in the cable duct; Second, it can not bear entanglement, pressure and severe bending, which will damage the cable structure and prevent signal transmission; Finally, the cost is high, and all these disadvantages can be overcome by conventional network lines. Therefore, in the current LAN environment, many places can use network cable instead of coaxial cable.

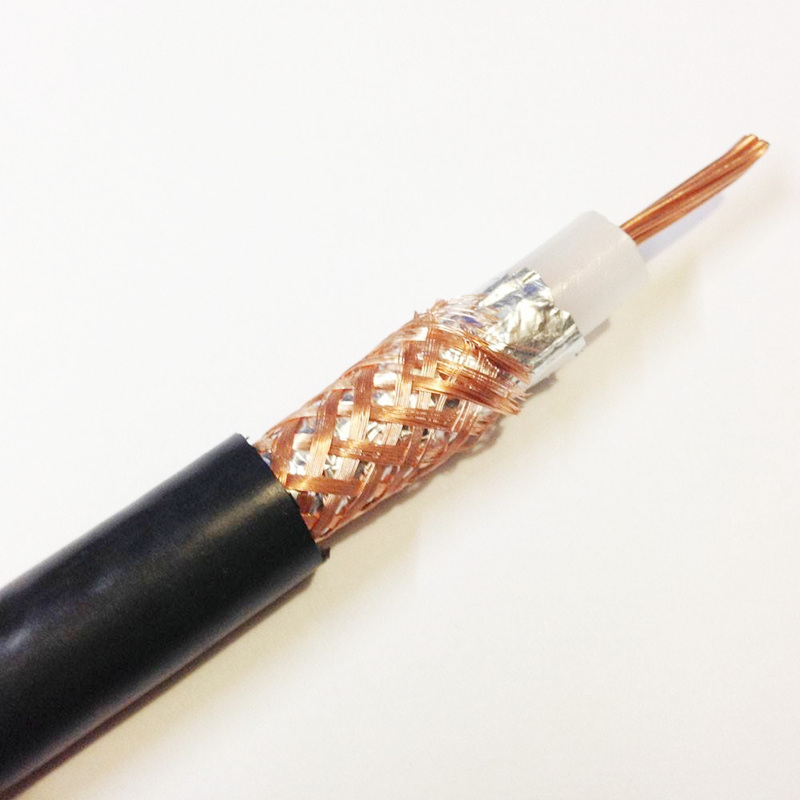

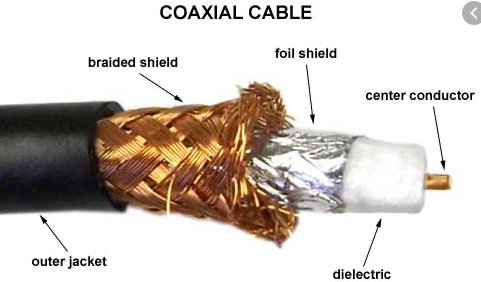

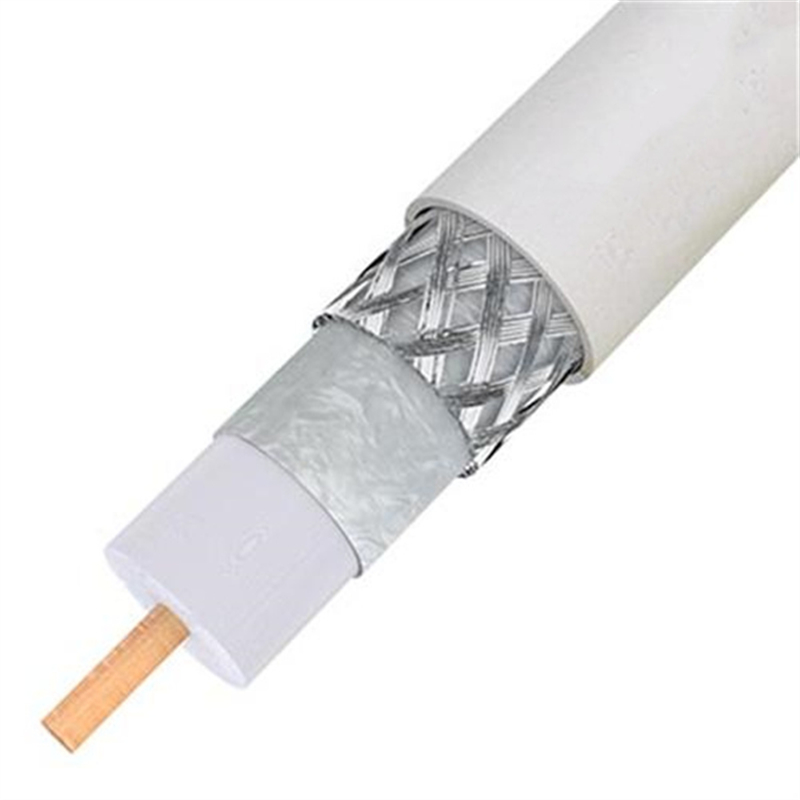

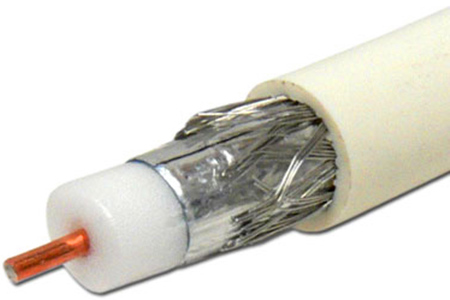

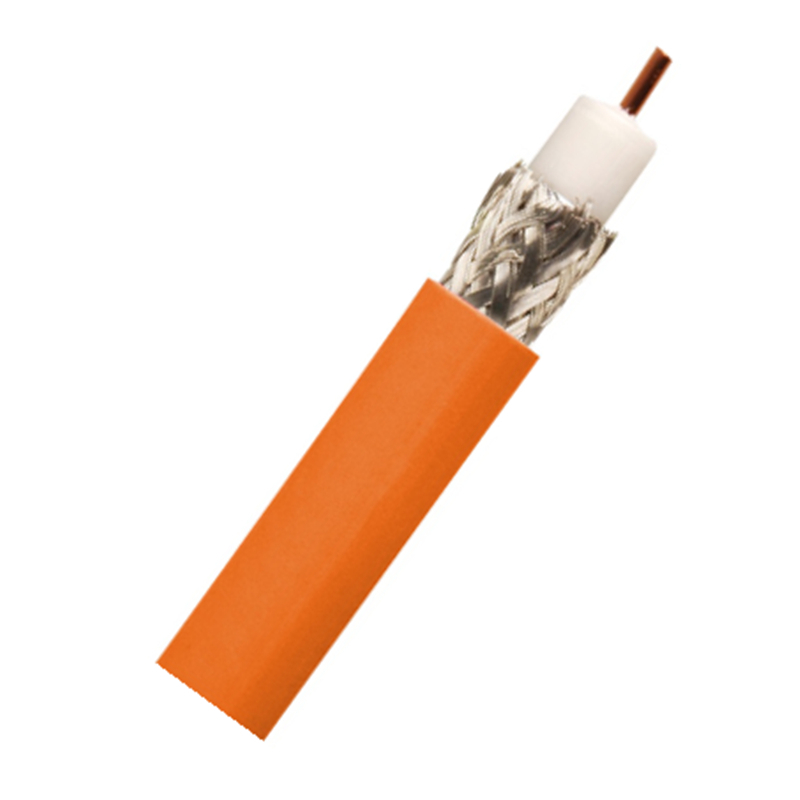

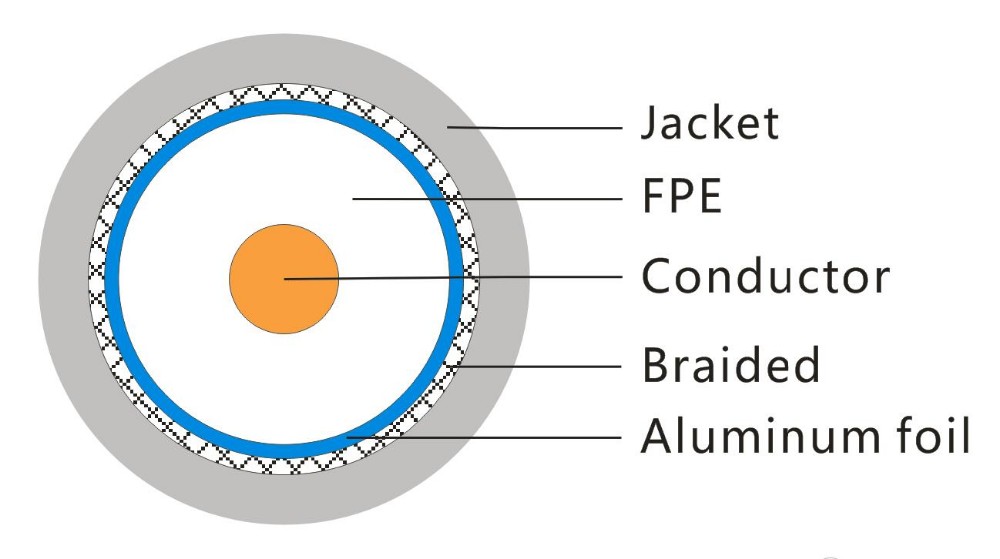

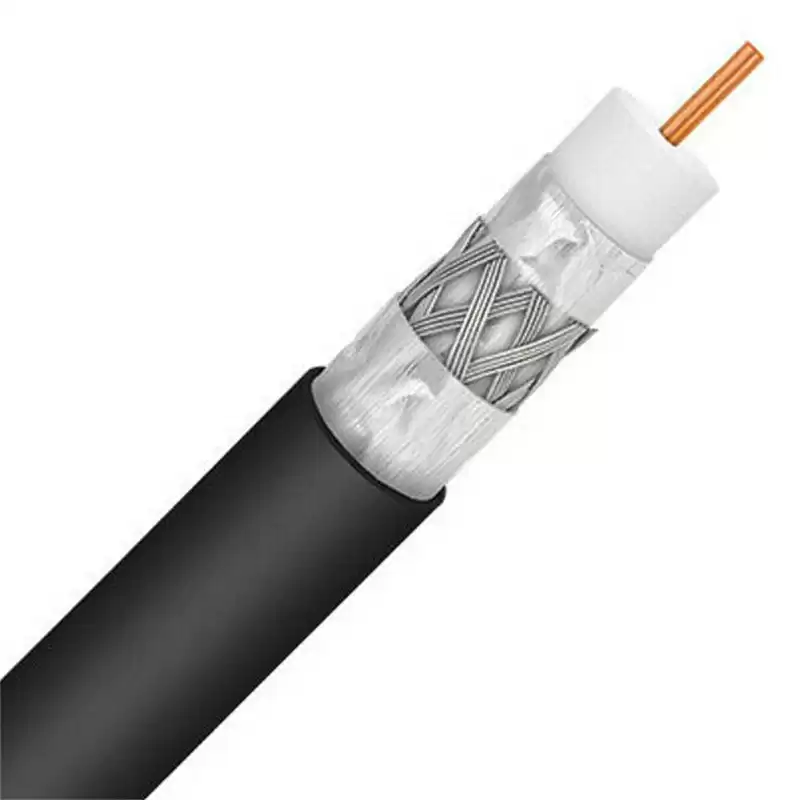

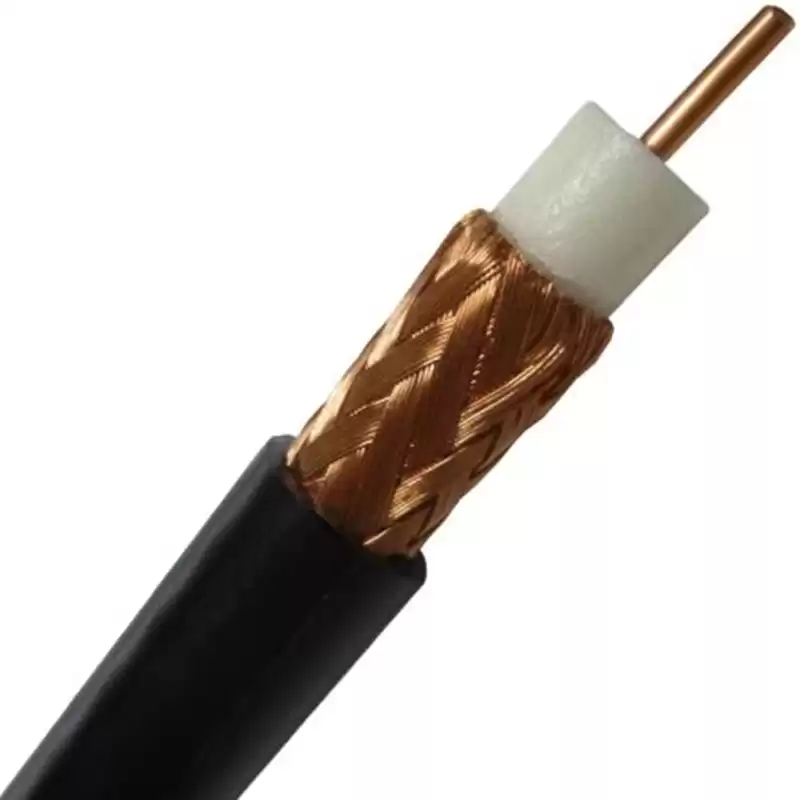

PRODUCTS STRUCTURER
Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable
1. Conductor Material: Plain annealed copper wire, solid Class 1, 18AWG.
2. Insulated Material: Foam HDPE (polyethylene).
3. Shielded Material: Aluminum Foil Tape
4. Braided Material: Bare copper wire, or tinned copper wire.
5. Sheath Material: PVC or LSZH.
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable.
|
|
Conductor Material
|
Plain annealed copper wires, Class 1.
|
|
Conductor Structure
|
1C x 1/1.63 mm, 14AWG, 0.064".
|
|
Insulation Material
|
Foam PE (Polyethylene).
|
|
Insulation Thickness
|
2.74 mm, 0.108".
|
|
Insulation Colour
|
white.
|
|
Shielded Material
|
Aluminum Foil Tape, 100% coverage, overlap >2mm.
|
|
Braided Material
|
Bare or Tinned Copper Wire; coverage: >60%; 64x0.1mm.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
0.76 mm, 0.03".
|
|
Sheath Colour
|
White, or black.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
10.0 mm, 0.395".
|
|
About Net Weight
|
118 kg/box.
|
|
Production Standard
|
GY/T 135-1998, IEC 60096-0-1-2012, EN 50117-1, ANSI/SCTE 74.
|
|
Packing Type
|

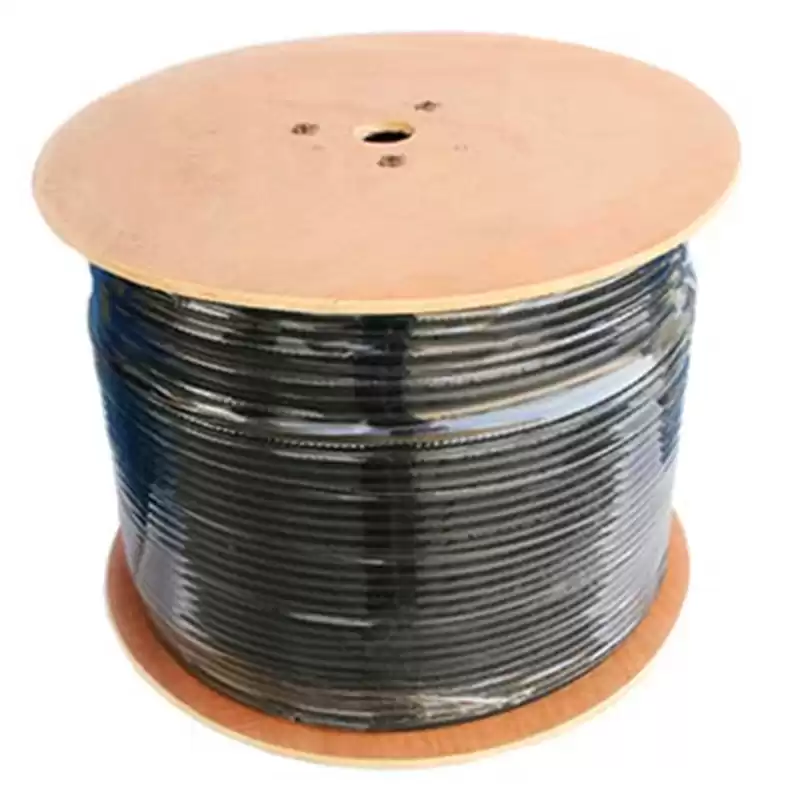

100 Meters per roll, the rolls will be loaded on Wooden Pallet;
the wooden pallet must be showed the IPPC logo.
|
COMPANY PROFILE
Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. It has 2 industrial parks, a total area of 100,000 square meters. The company is one of the largest manufacturers specializing in research, development, production, and sales of wires and cables in East China.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.

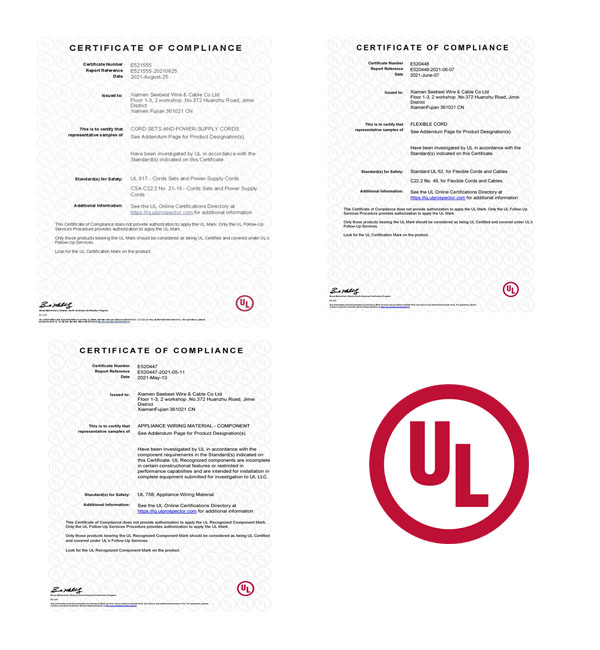

---ISO9001, CCC, CE, SAA, VDE, DEKRA, UL, RoHS, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.
---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS

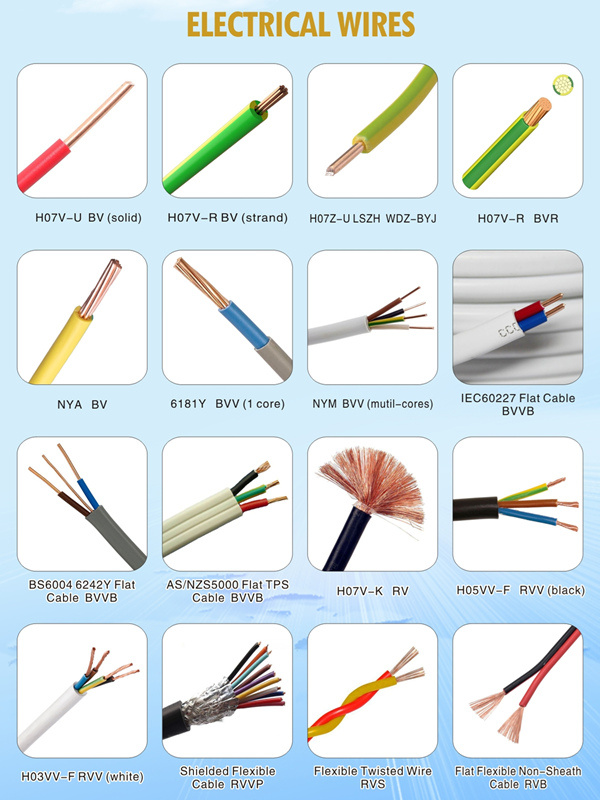

---Electrical Wires: PVC or LSZH Insulated Electrical Wires.

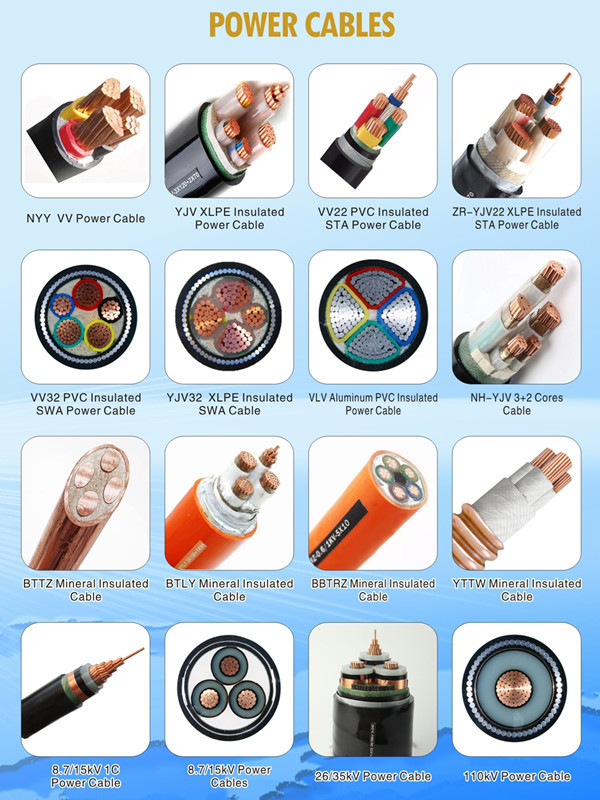

---Power Cables: 0.6/1kV PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282, VDE 0250, and other Electronic Wires.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
---Customized Wire and Cables: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Fire Resistant Cable, RoHs Cables, and Environmental Protection Cables.

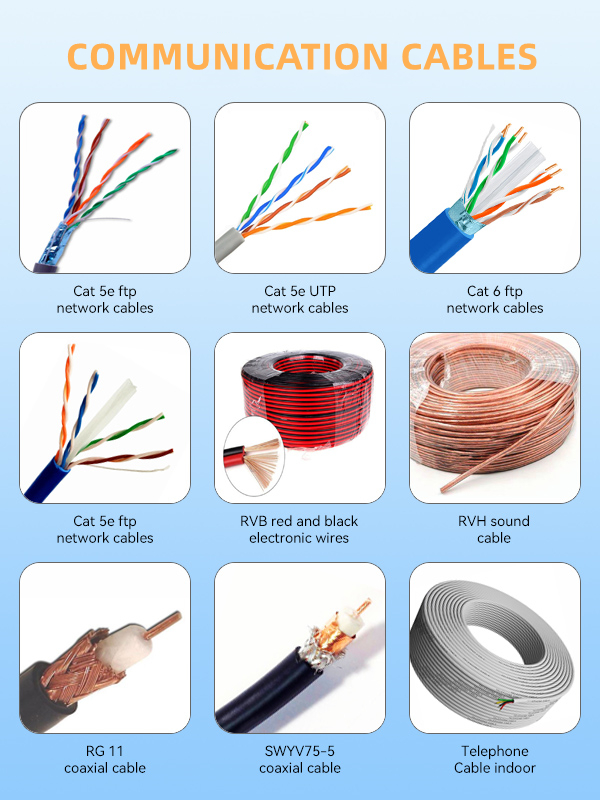

---Communication Cables: Network Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
COMPANY SLOGAN
Seebest Cable: Become the most trusted cable company in China.
Seebest Cable: Focus on Quality, Foremost Service.
Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant, Technology Supporter, and Sales Assistant in Wire and Cables Industry.

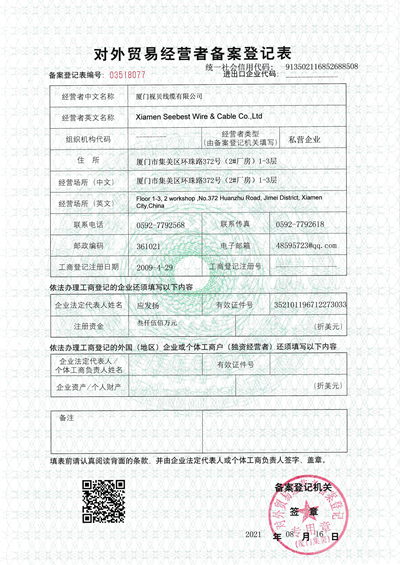

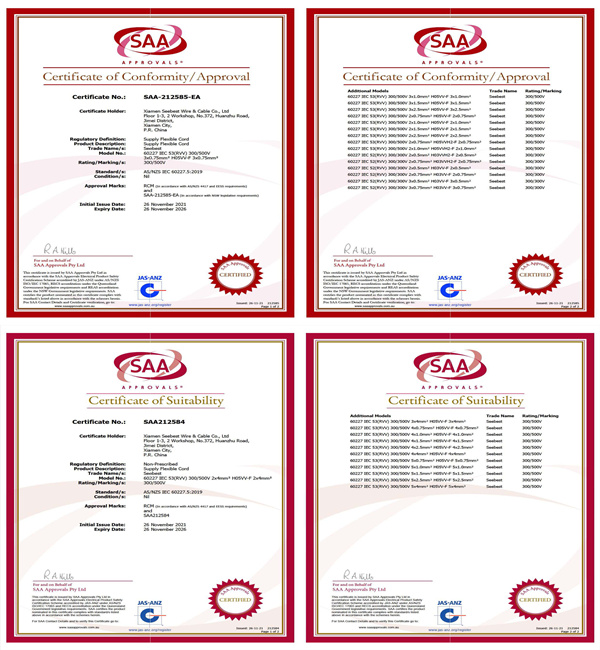

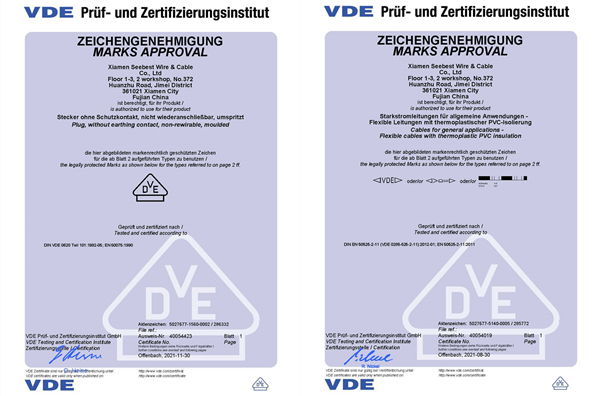

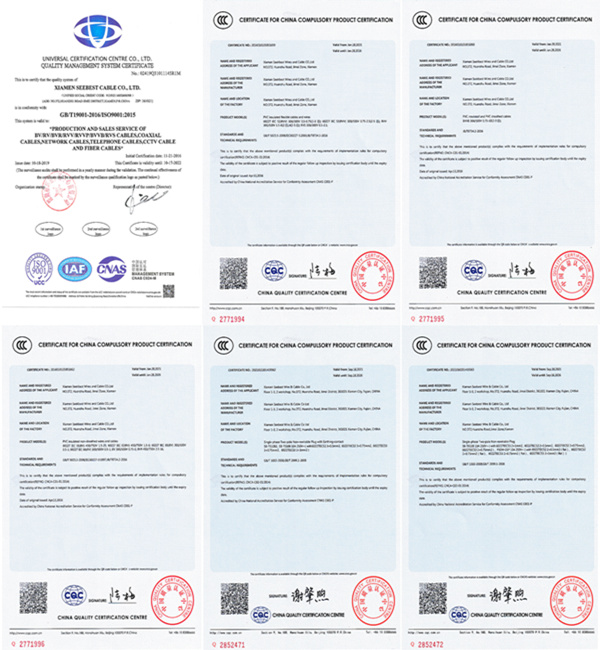

COMPANY CERTIFICATES

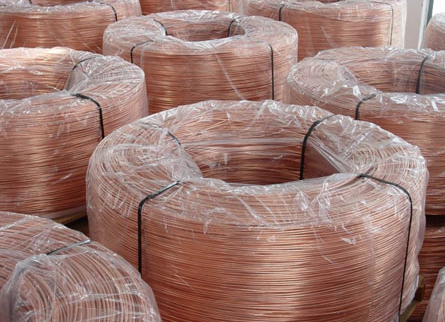

RAW MATERIAL

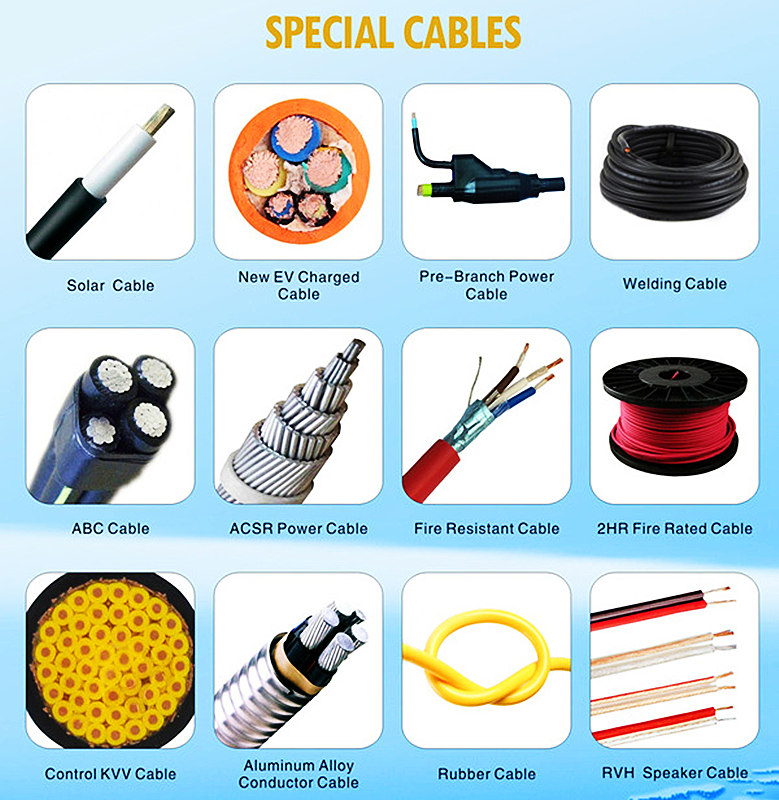

MAIN PRODUCTS

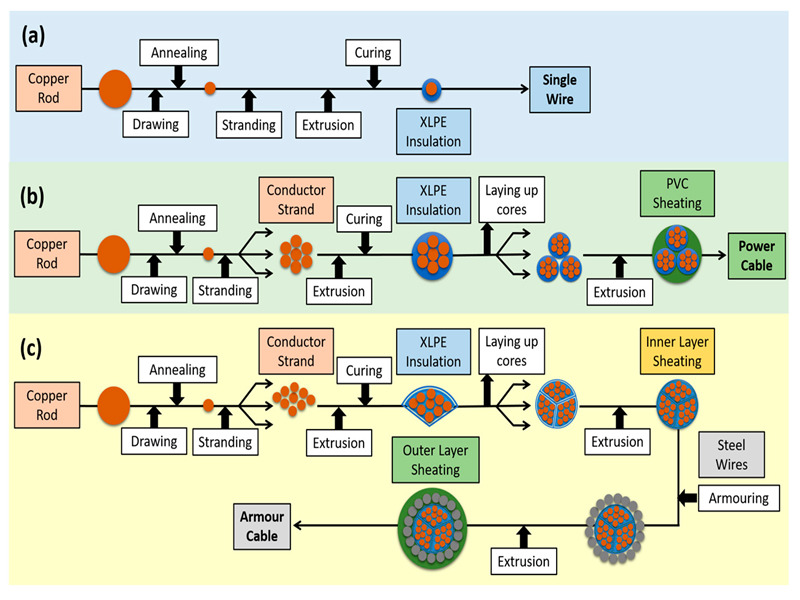

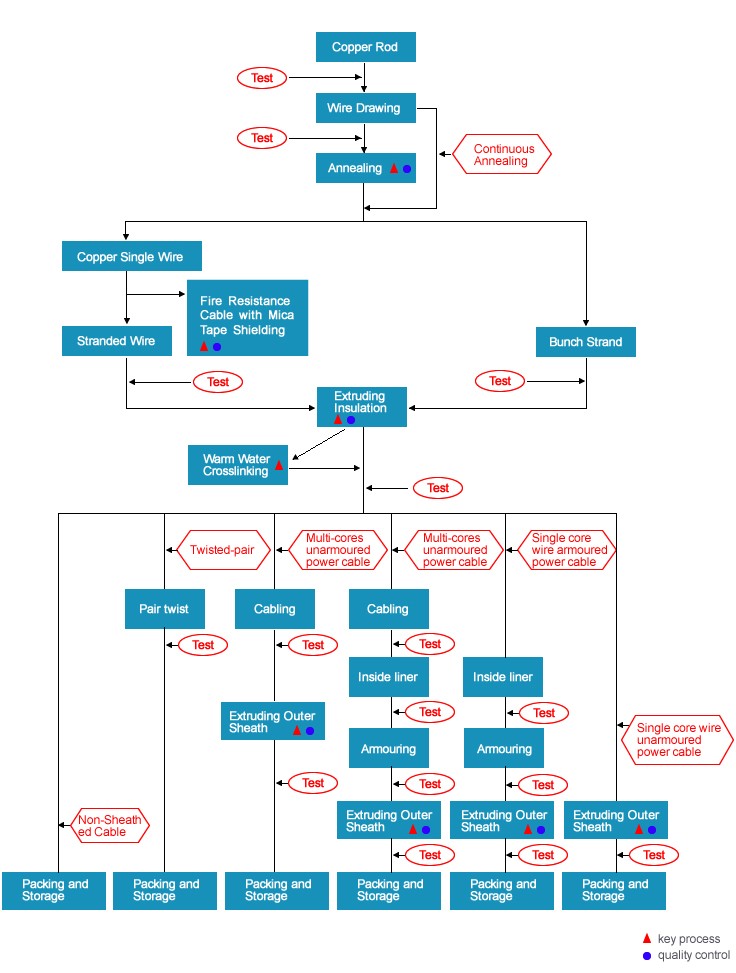

PRODUCTION PROCESS
TESTING PROCESS

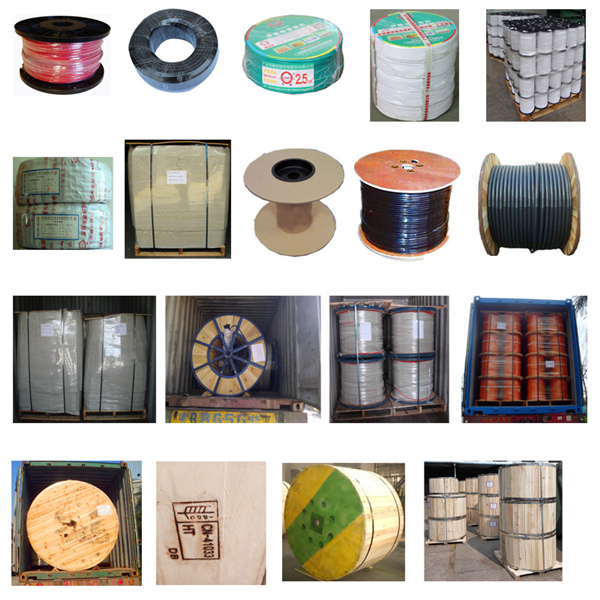

PACKING TYPES
PRODUCTS SHIPMENT
FOREMOST SERVICES
FREQUENTLY ASKED QUESTIONS
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first beginning to the last. Welcome to visit us, we'll pick you up in Xiamen City, China.
2. How can I get a sample to test your quality?
The samples are free for you, new clients are expected to pay for the courier costs.
3. What’s your Minimum Order Quantity?
Normally 100 meters. However, the cable is very heavy, you'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
