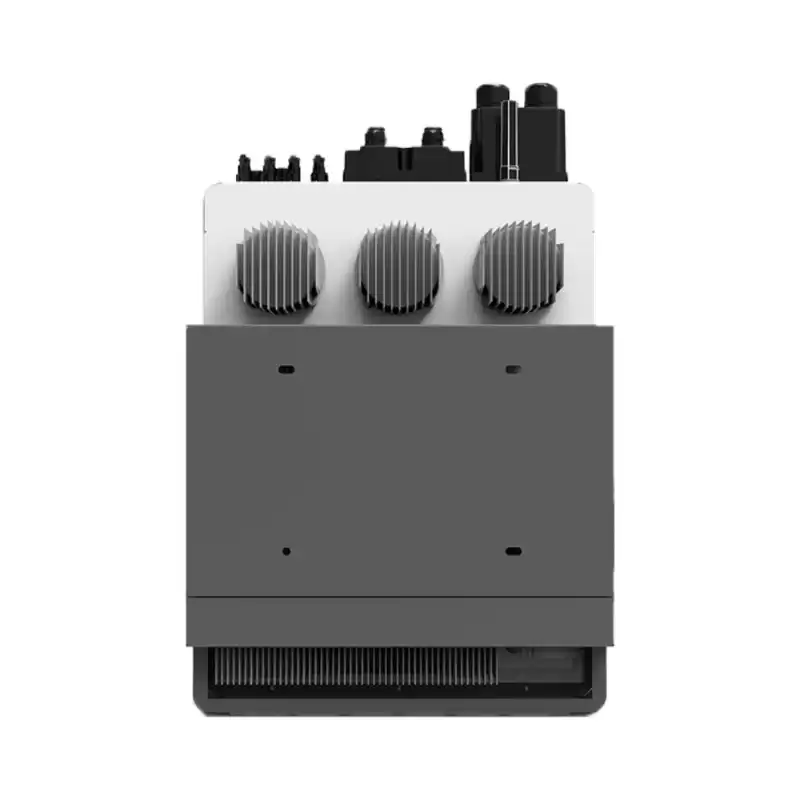

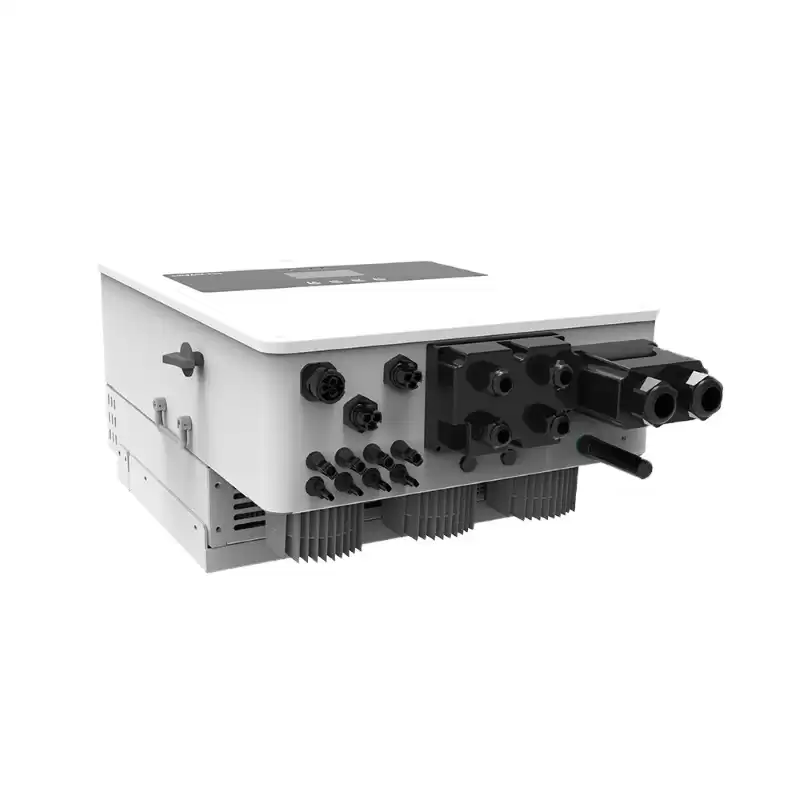

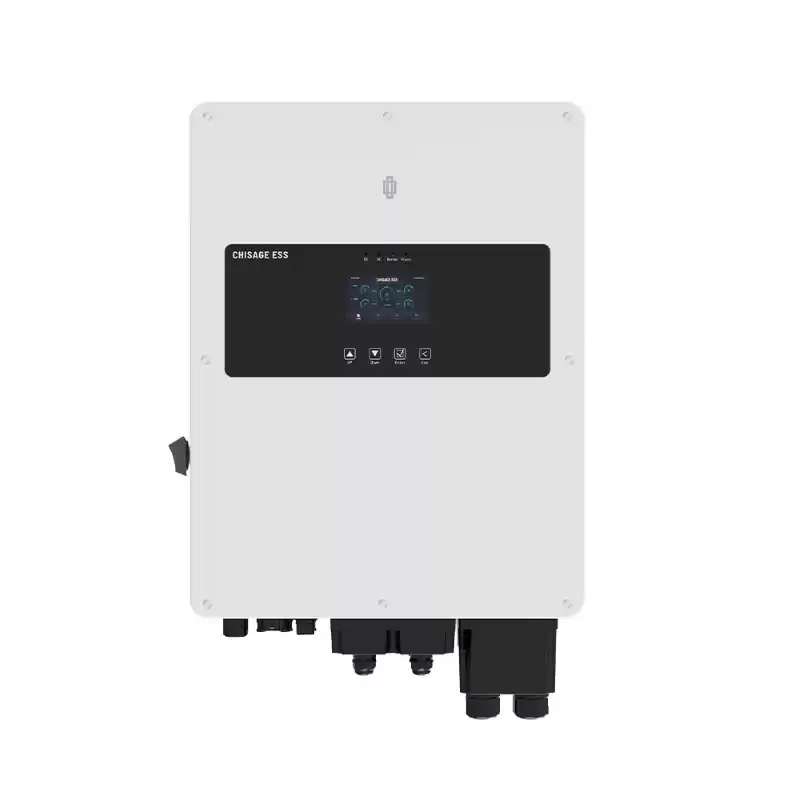

CHISAGE ESS Jup-3/3.6/4/5/6/8/10 G2-LE 48V On Off Grid Hybrid Solar Inverter

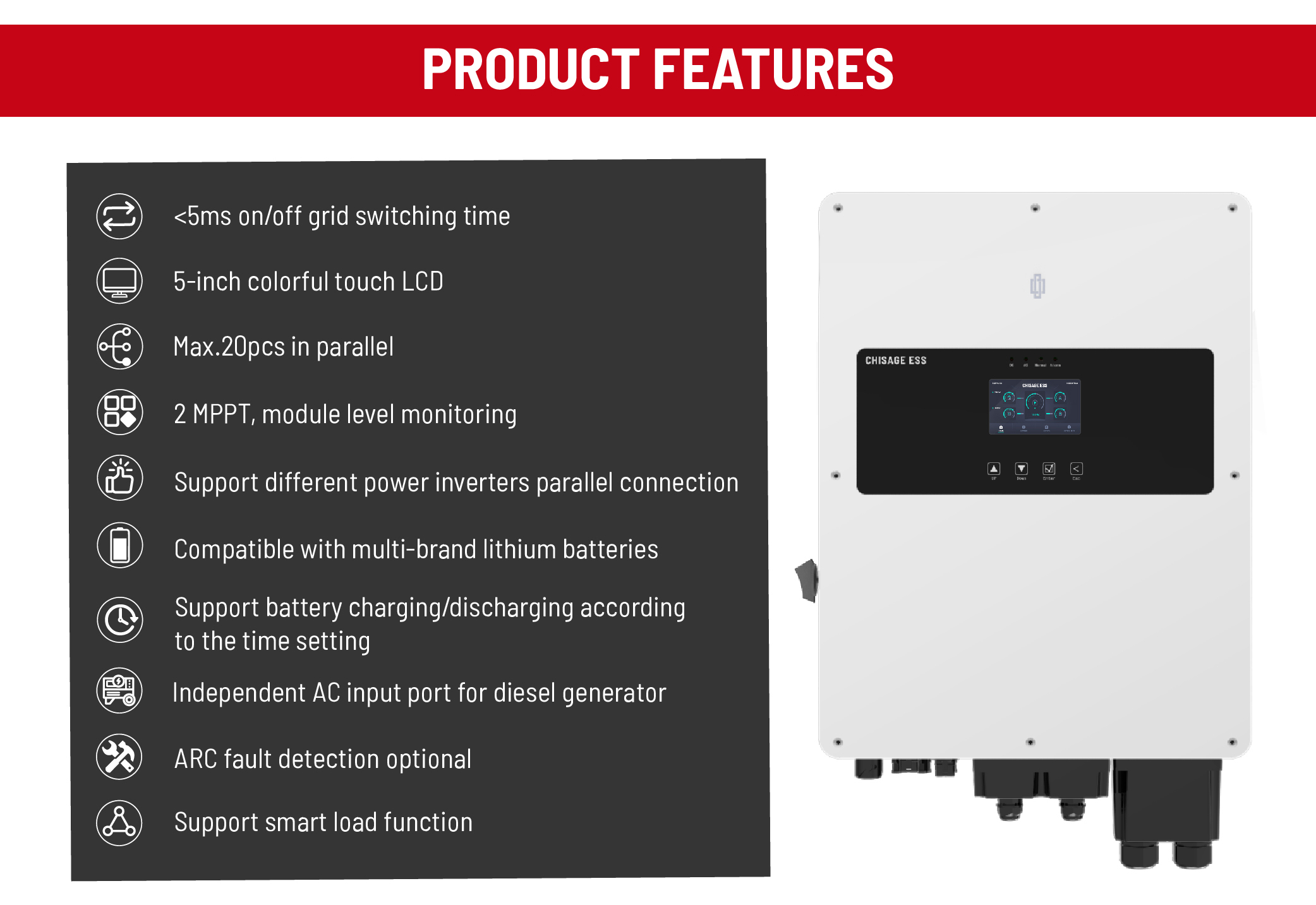

Product Features

Support different power inverters parallel connection

20 PCS inverters parallel for off-grid operation

support on/off grid mode switch, Eps output

Colorful 5-inch touch LCD, IP65 protection degree

support battery charging/discharging according to the time setting

Independent AC input port for diesel generator

Support storing energy from diesel generator

ARC fault detection optional

Facebook Twitter Pinterest LinkedIn 分享
Overview
Products Description
Specification
Model
Jup-5G2-LE
Jup-6G2-LE
Jup-8G2-LE
Jup-10G2-LE
Battery Input Data
Battery Type
Lead-acid or Li-ion
Battery Voltage Range (V)
40-60
Max. Charge Current (A)
120
140
190
210
Max. Discharge Current (A)
120
140
190
210
Charging Curve
3 Stages/Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-Adaption to BMS
PV String Input
Max. DC Input Power (W)
7,500
9,000
12,000
15,000
PV Input Voltage (V)
370(125~500)
MPPT Range (V)
150~425
Start-up Voltage (V)
120
PV Input Current (A)
17+17
26+26
Max. PV ISC (A)
20+20
34+34
No. of MPPT Trackers
2
No. of String per MPPT Trackers
1+1
2+2
AC Output
Rated AC Output and UPS Power (W)
5,000
6,000
8,000
10,000
Max. AC Output Power (W)
6,000
7,200
9,600
12,000
Peak Power (off grid)
2 times of rated power, 10s
1.8 times of rated power, 10s
AC Output Rated Current (A)
22.7/21.7
27.3/26.1
34.5/33
45.5/43.5
Max. AC Current (A)
25/23.9
30/28.7
40/38.3
50.0/47.8
Max. Continuous AC Passthrough (A)
40
40
50
60
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)
50/60Hz,220/230Vac(single phase)
Grid Type
single phase
Current Harmonic Distortion
THD<3%(Linear load <1.5%)
Efficiency
Max. Efficiency
97.90%
Euro Efficiency
96.90%
MPPT Efficiency
99.90%
Protection
Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV Arc Fault Detection
Optional
Output Over Voltage Protection
DC Type II/AC Type III
Certifications and Standards
Grid Regulation
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
EMC/Safety Regulation
IEC/EN 62109-1 IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (°C)
-40~60, >45 Derating
Cooling
Smart cooling
Noise (dB)
≤45
Communication with BMS
CAN, RS485
Weight (kg)
34

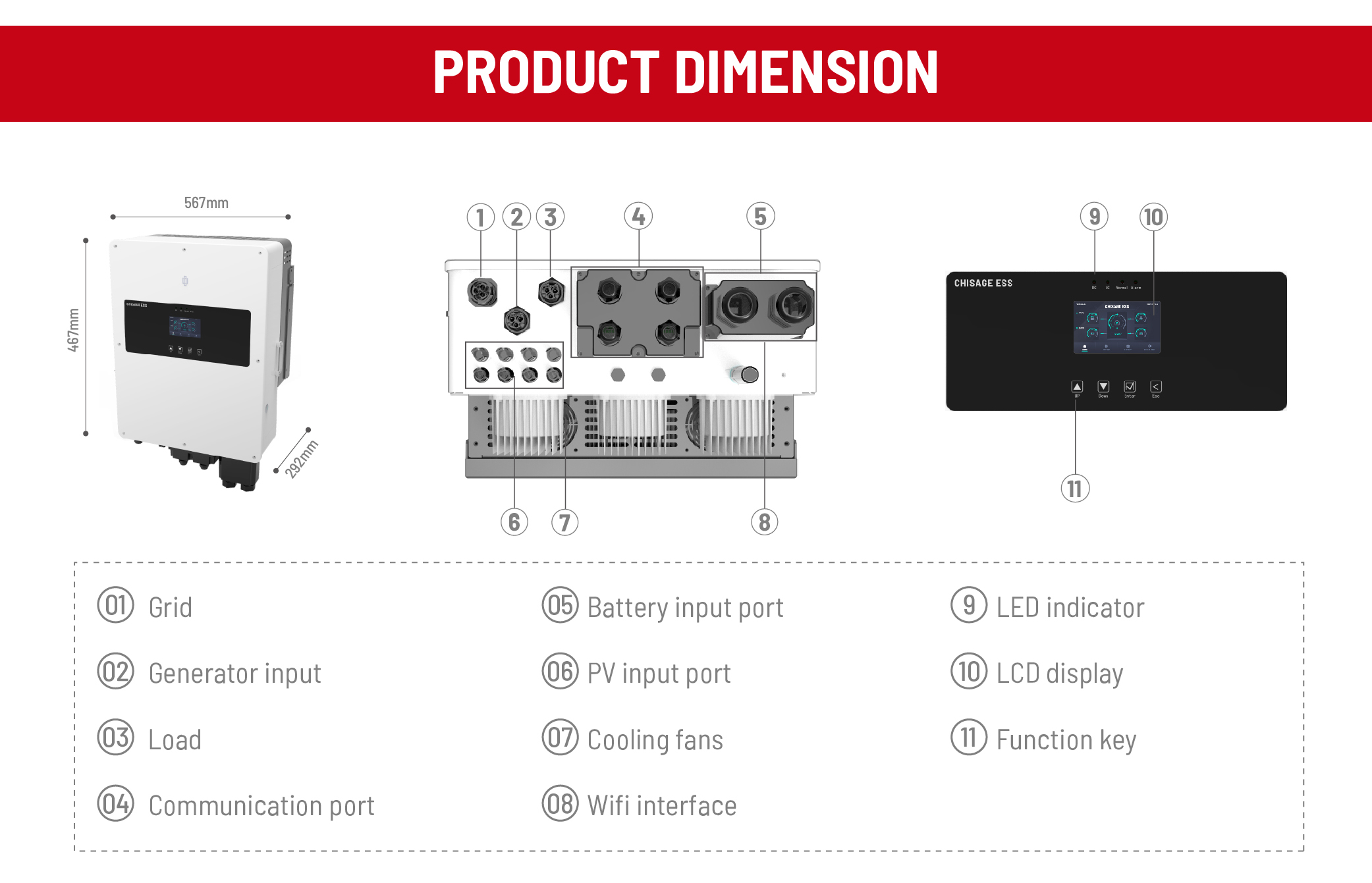

Dimensions (mm)
567W×467H×292D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 Years

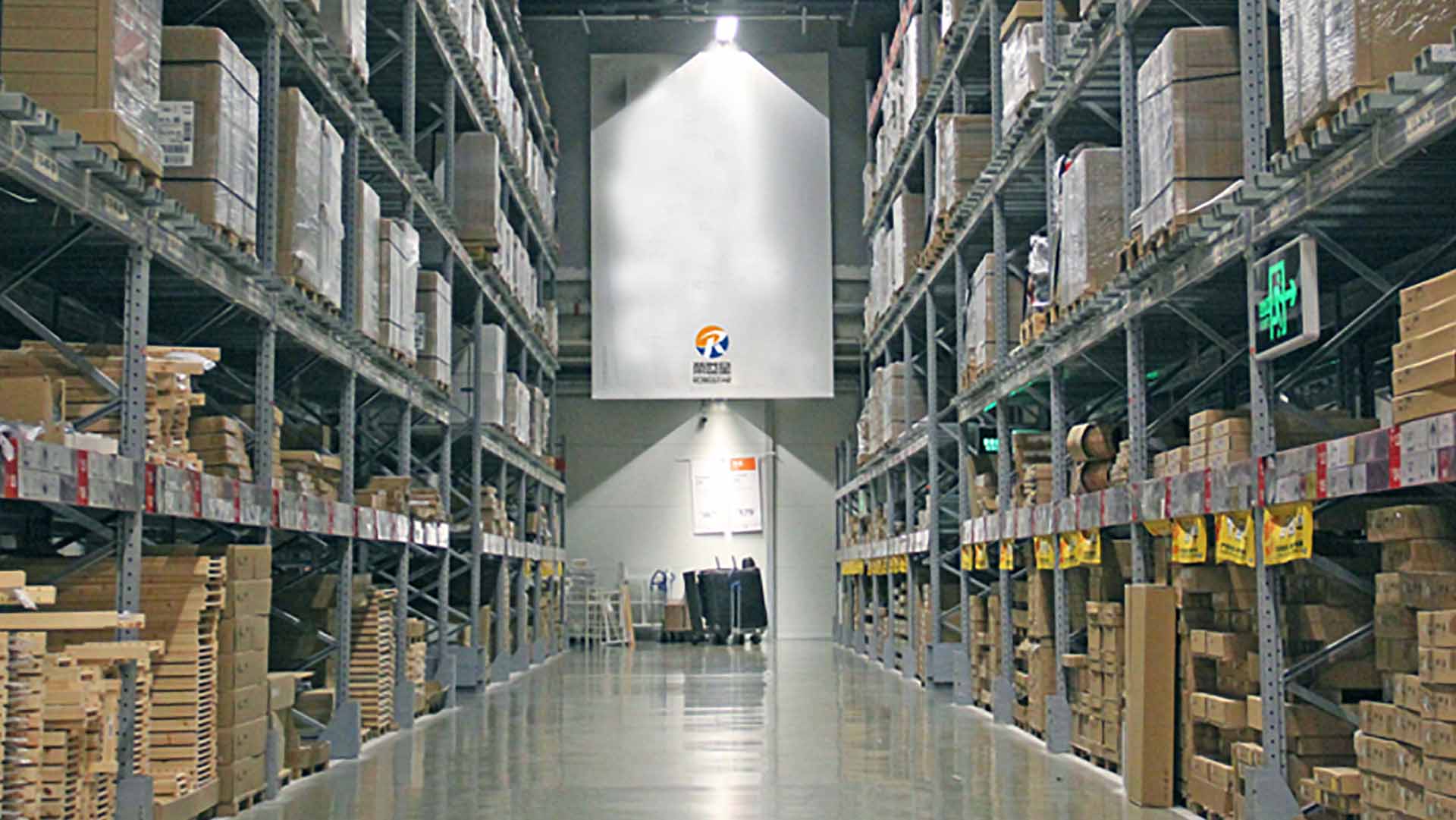

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
