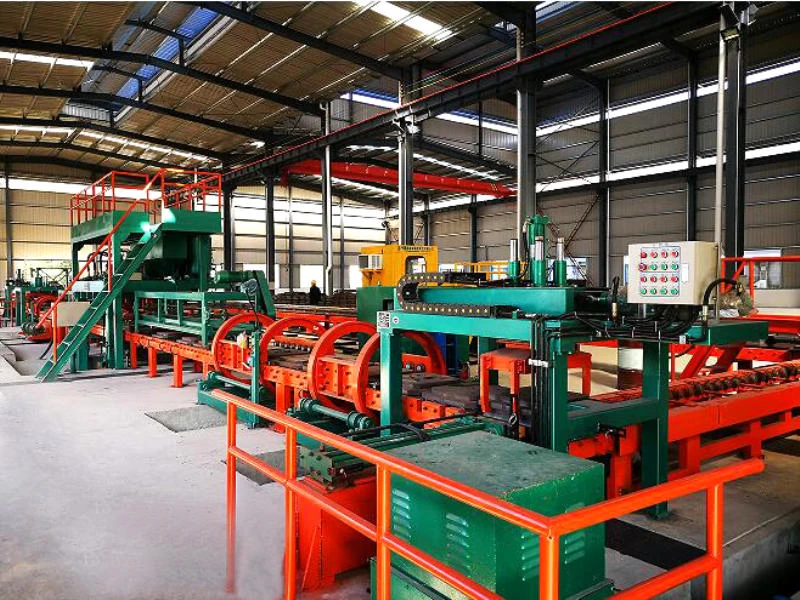

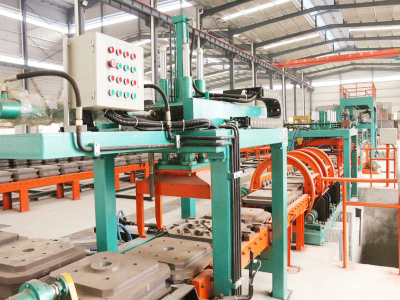

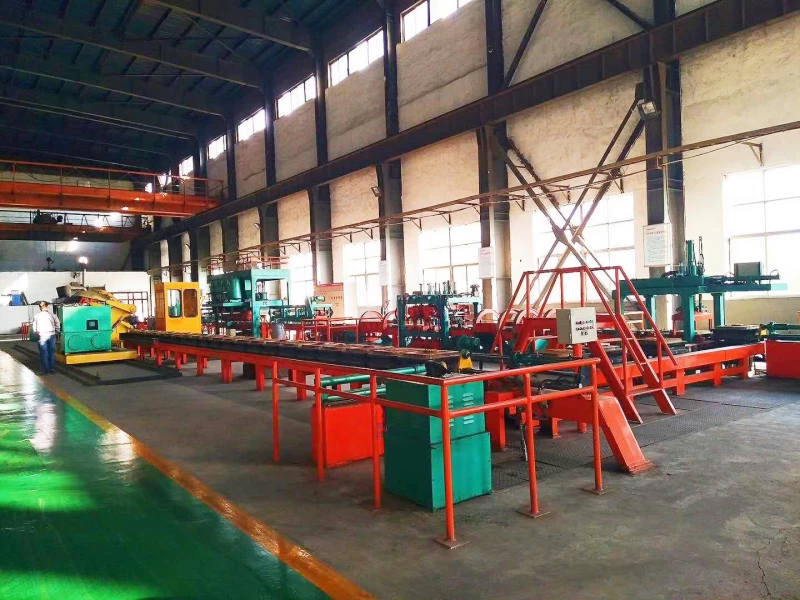

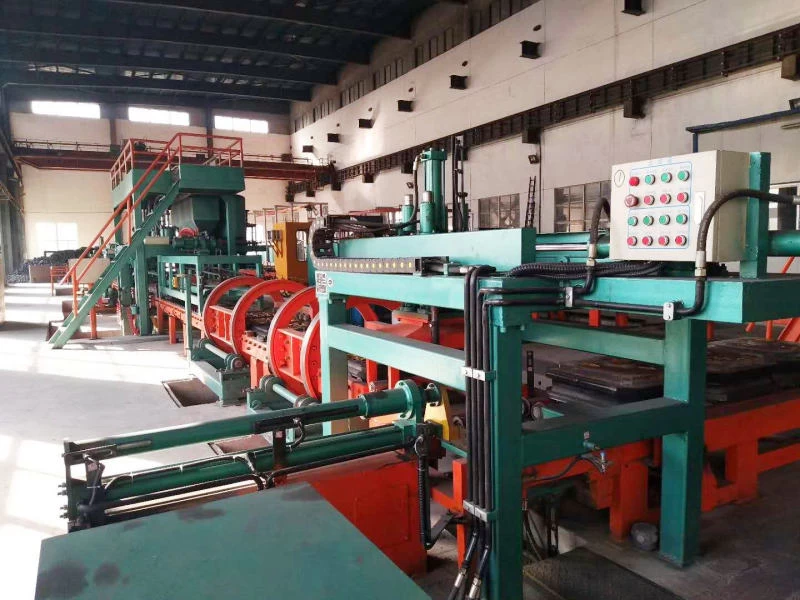

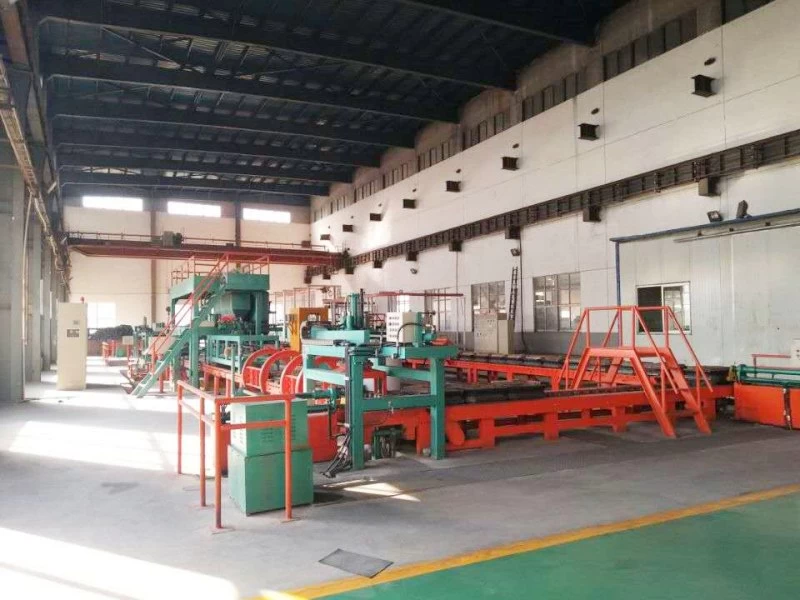

Automatic High Chrome Grinding Ball Casting Production Line ZQJX-840-F4
Function:
Automatic Chrome Grinding Media Mill Ball Casting Line adopts sand coated in metal mold cavity technology.It is used to produce steel grinding media ball from Dia 40mm to Dia 150mm.These casting chrome grinding media ball is widely used in mining industry,cement plant,power plant,etc.Grinding media ball casting line control mode is automatic PLC & intelligent remote service.Equipped with PLC automatic control and touching screen.Operators can monitor the whole grinding media ball production process by touching screen.If there is any problem,it can automatically alarm. All control box has emergency stop button.It also has the ability of remote maintenance&remote diagnose failure functions
Main parts of grinding ball casting line:
Pouring station
Pushing grinding media mold machine
Changing direction & lifting grinding ball mold station
Motorized roller,Open mold station

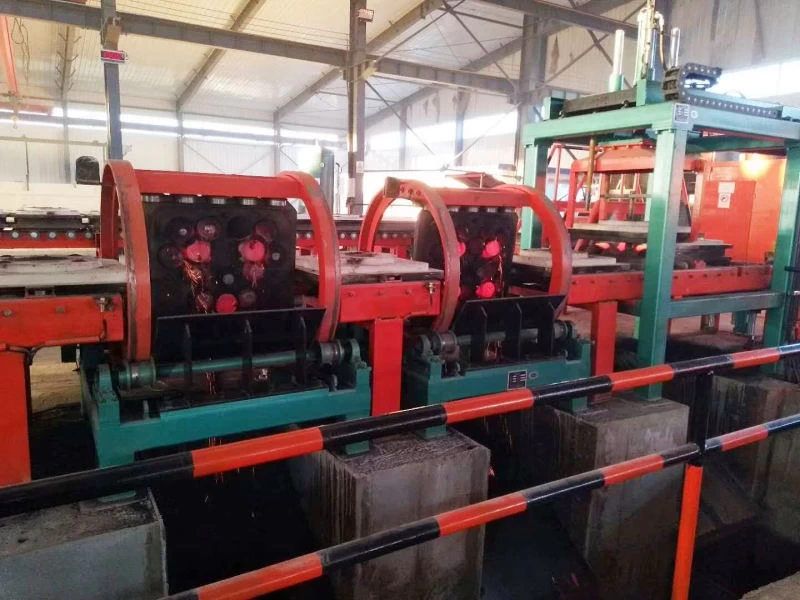

Grinding ball coming out from mold station
Vibrating used sand machine
Intelligent temperature control station
Molding sand station
Close mold station
The flow chart of grinding media ball assembly line
The production process of grinding media ball casting line:
Preheat grinding ball mold into a certain temperature→Grinding ball mold into molding station and shooting sand→Operator checks（If the sand is not shot well into the mold cavity,the operator will repair this part)→Close mold→ Pouring molten metal liquid→Opening mold,then grinding ball coming out from the mold→Cleaning the residual sand→shooting sand again.
In our factory, ZZJX-840-F4 chrome grinding media mill ball is much more widely sold than ZQJX-630-F4 Chrome Mill Ball Production Line
ZQJX-840-F4 Mill ball casting line technical parameters
|
Item
|
ZQJX-840-F4
|
|
Floor space
|
L45m*W14m
|
|
Driving mode
|
By hydraulic
|
|
Installed capacity
|
100kw
|
|
Air compressor
|
Gas consumption is 5m³/min
Working pressure is 0.8Mpa
|
|
The fastest running speed per mold without loading
|
≤40second/mold
|
|
Control mode
|
Automatic PLC+Intelligent remote service
|
|
Main Workers needed
|
Four people
|
|
Grinding ball mold size
|
840*840mm
|
|
Grinding ball mold Qty needed
|
70 pairs
|
The production time of mill ball automatic casting line is about 5 months
Our grinding ball molding line has exported to Congo,Zimbabwe,Outer Mongolia, Zambia,South Africa,Malawi,Vietnam,etc.

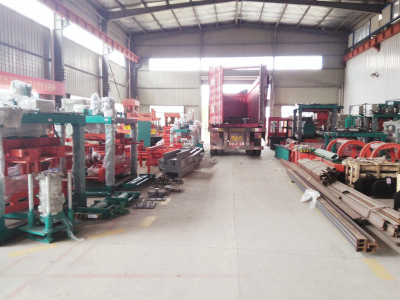

For a complete ZQJX-840-F4 grinding ball production line,it needs about 10+pcs 40 OT containers (It mainly depends on how many size mold do you need)
Our advantages:
1. We are the leading manufacturer in China for grinding media production line,grinding media heat treatment plant,grinding media mold,grinding ball producing related equipment.
2.20+Years manufacture experience.
3.We have sold out 200+Grinding ball making machines. Customers are the best way to prove the quality of our grinding ball molding lines.
4. More than40+patent for invention
For more detail information about grinding media production line,please contact with us
