Chrome Steel Bearing Insert UD2


UD  Standard duty




Facebook Twitter Pinterest LinkedIn 分享

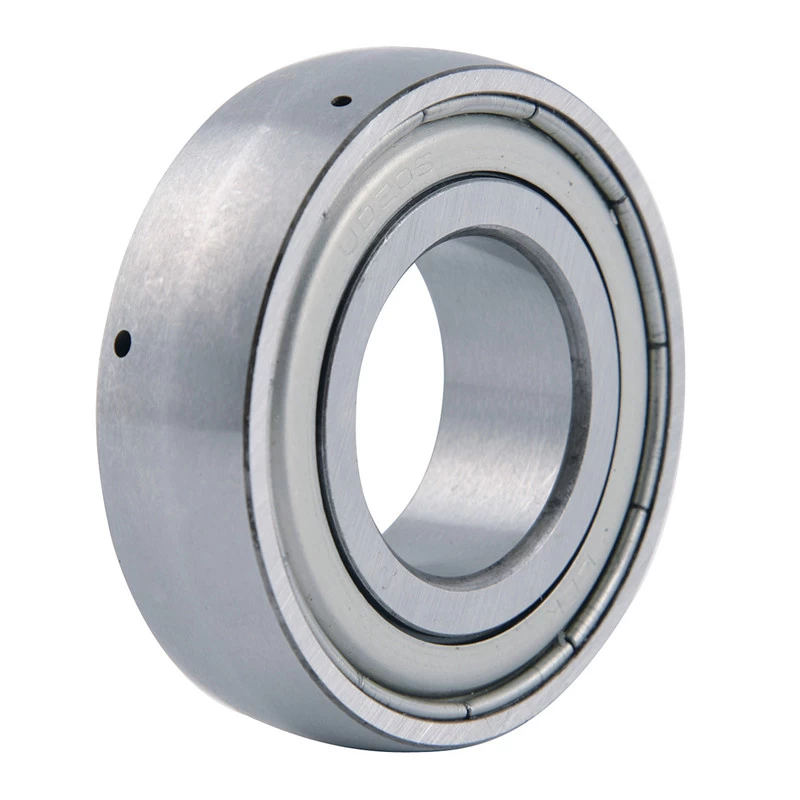

UD212 Bearing Inserts

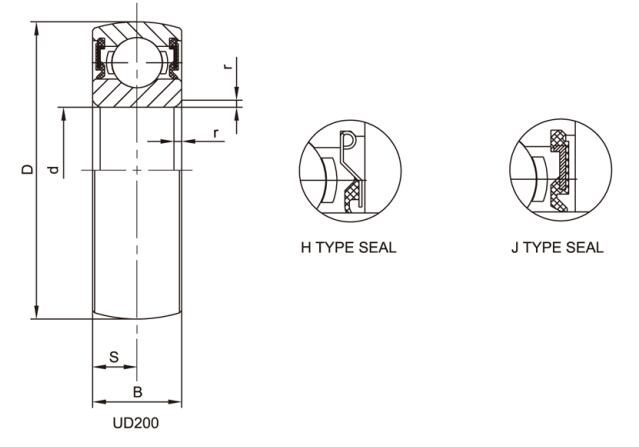

Bearing No. Dimensions! mm)
Basic load ratings
( KN )
Weight
(kg)
d D B S r
Basic load ratings
( N )
Static
Cor
UD203 17 40 12 6.0 1.0 9.55 4.78 0.07
UD204 20 47 14 7.0 1.5 12.82 6.65 0.12
UD205 25 52 15 7.5 1.5 14.03 8.05 0.18
UD206 30 62 16 8.0 1.5 19.47 11.43 0.26
UD207 35 72 17 8.5 2.0 25.69 15.55 0.43
UD208 40 80 18 9.0 2.0 29.51 18.14 0.60
UD209 45 85 19 9.5 2.0 31.85 20.8 0.8
UD210 50 90 20 10.0 2.0 34.99 23.7 0.83
UD211 55 100 21 10.5 2.0 43.34 29.39 1.12
UD212 60 110 22 11 2.0 47.68 33.43 1.55
