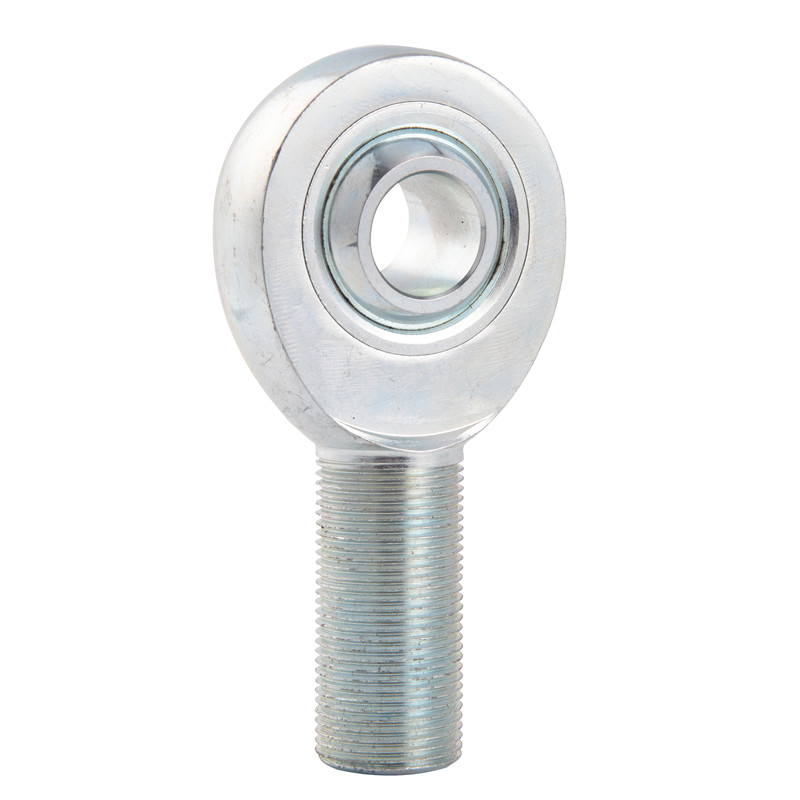

Chromoly Rod Ends JMX..T




Ball: AISI 52100 bearing Steel, Heat treated, HRC56 min;

Precision ground polished hard chromium plated

Body: Steel alloy, Heat treated, Zinc plated, Chromate treated

Race: Steel alloy, Heat treated, Zinc plated, Chromate treated

Sliding contact surfaces: Steel/PTFE composite




Facebook Twitter Pinterest LinkedIn 分享

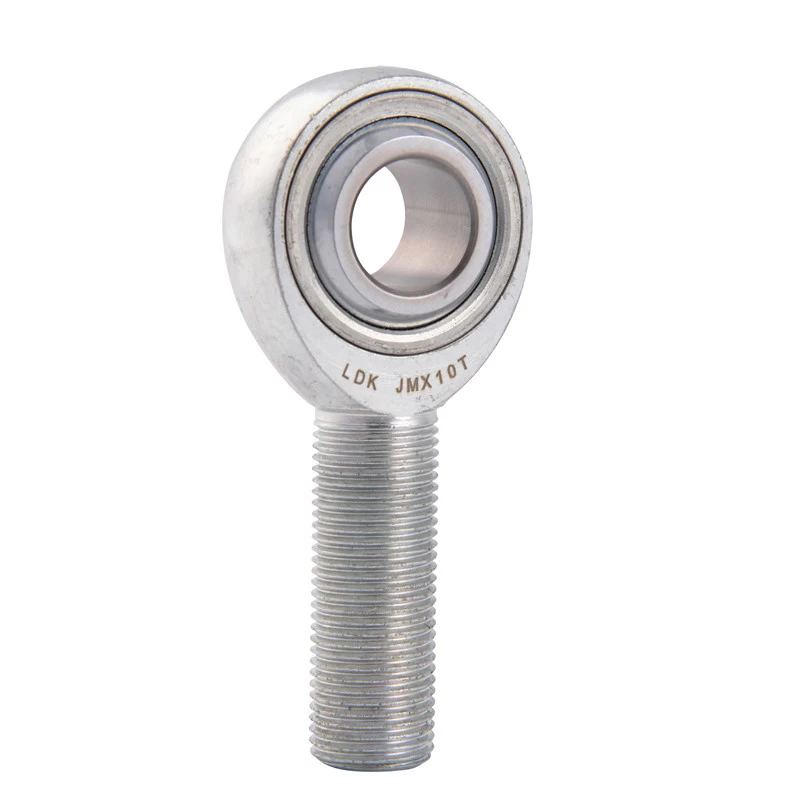

JMX3T Steel Rod End Bearings

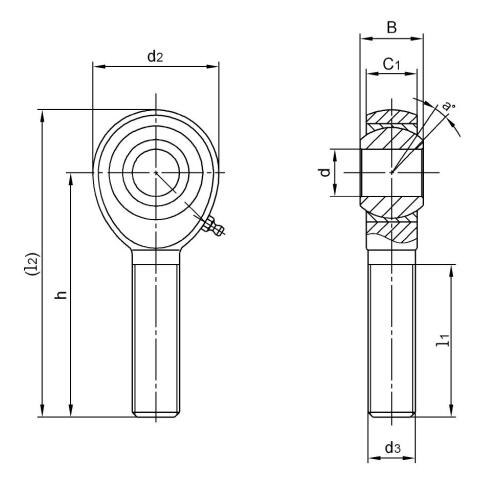

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈kg
d+0.038
 -0 012
B C1 d2
d3
UNF-2A
h L1 (L2)
JMX3T 4.826 7.92 6.35 15.88 10-32 31.75 19.05 39.69 11.11 13 12.6 0.013
JMX3T 0.1900 0.312 0.250 0.625 10-32 1.250 0.750 1.562 0.437 13 12.6 0.013
JMX4T 6.35 9.53 7.14 19.05 1/4-28 39.67 25.4 49.2 12.7 16 23.4 0.018
JMX4T 0.2500 0.375 0.281 0.750 1/4-28 1.562 1.000 1.937 0.500 16 23.4 0.018
JMX5T 7.938 11.10 8.74 22.23 5/16-24 47.63 31.75 58.75 15.88 14 33.9 0.031
JMX5T 0.3125 0.437 0.344 0.875 5/16-24 1.875 1.250 2.312 0.625 14 33.9 0.031
JMX6T 9.525 12.7 10.31 25.4 3/8-24 49.22 31.75 61.92 18.26 12 42.4 0.049
JMX6T 0.3750 0.500 0.406 1.000 3/8-24 1.938 1.250 2.437 0.719 12 42.4 0.049
JMX7T 11.112 14.27 11.1 28.58 7/16-20 53.98 34.93 68.27 20.62 14 45.7 0.072
JMX7T 0.4375 0.562 0.437 1.125 7/16-20 2.125 1.375 2.678 0.812 14 45.7 0.072
JMX8T 12.7 15.88 12.7 33.32 1/2-20 61.92 38.1 78.58 23.8 12 72.2 0.113
JMX8T 0.5000 0.625 0.500 1.312 1/2-20 2.438 1.500 3.093 0.937 12 72.2 0.113
JMX10T 15.875 19.05 14.27 38.1 5/8-18 66.68 41.28 85.73 28.58 16 79.8 0.172
JMX10T 0.6250 0.750 0.562 1.500 5/8-18 2.625 1.625 3.375 1.125 16 79.8 0.172
JMX12T 19.05 22.23 17.45 44.45 3/4-16 73.02 44.45 95.25 33.33 14 124.9 0.272
JMX12T 0.7500 0.875 0.678 1.750 3/4-16 2.875 1.750 3.750 1.312 14 124.9 0.272
JMX14T 22.225 22.23 17.45 50.8 7/8-14 85.73 47.63 111.1 33.33 10 247.7 0.408
JMX14T 0.8750 0.875 0.687 2.000 7/8-14 3.375 1.875 4.375 1.312 10 247.7 0.408
JMX16T 25.4 34.93 25.4 74.93 5/4-12 104.78 53.98 139.7 47.62 14 476.7 1.241
JMX16T 1.0000 1.375 1.0000 2.950 5/4-12 4.125 2.125 5.500 1.875 14 476.7 1.241
JMX16-1T 25.4 34.93 25.4 74.93 1-14 104.78 53.98 139.7 47.62 14 476.7 1.117
JMX16-1T 1.0000 1.375 1.0000 2.950 1-14 4.125 2.125 5.500 1.875 14 476.7 1.117


Notes: For grease fittings add "Z" to suffix. Example:JMX6Z

          For studs add "Y" to suffix.         Example: JMX5Y

Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:JMXL12T 3/4-16L
