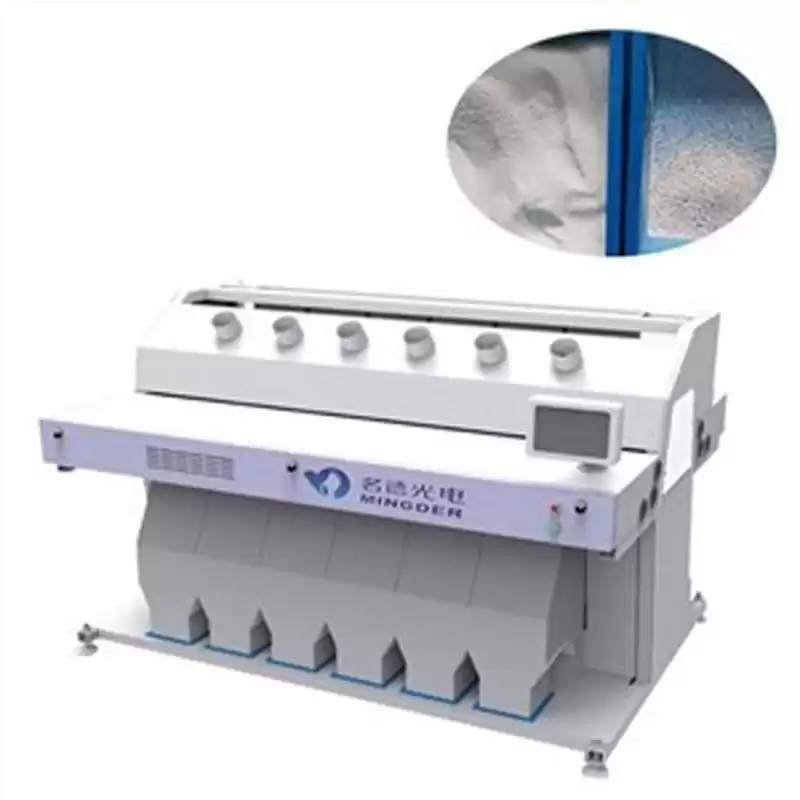

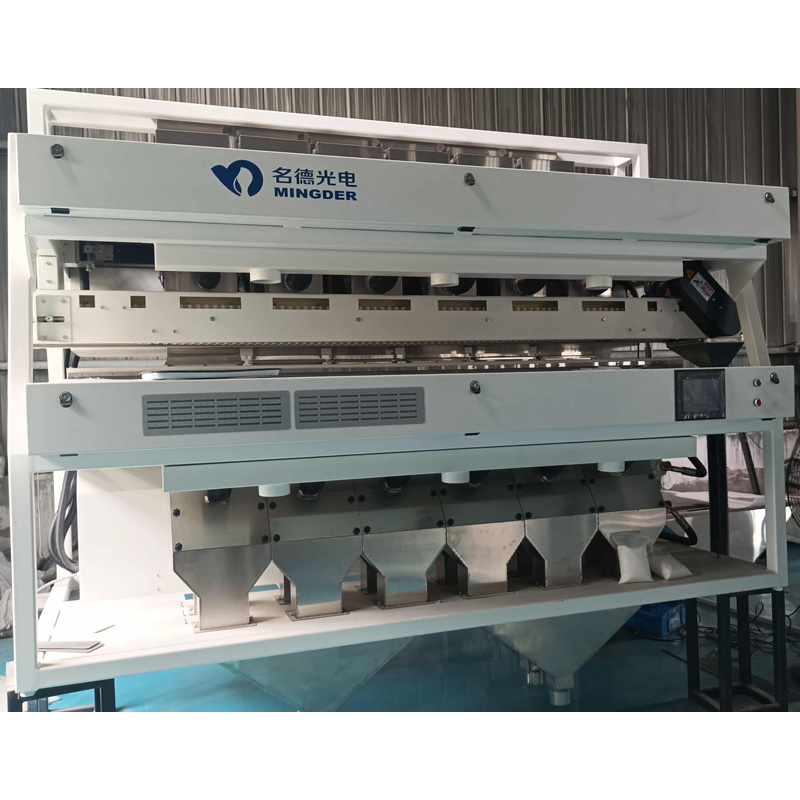

This Silica Sand Color Sorting Equipment is a combination of optical and electromechanical equipment for sorting and purifying materials by means of photoelectric detection and image processing based on differences in the colour or shape of sand and gravel. It is used extensively in grain and ore screening and is rapidly gaining popularity for its high sorting, impurity rejection and output rates.
This product has a large range of colour separation, sand and gravel sizes can be finely screened after setting on the machine according to your needs. In addition one colour sorter can sort hundreds of non-metallic ores and also supports mixed sorting of materials. The machine has a high colour separation accuracy and a high output, which is suitable for your large number of sand and gravel sorting tasks, and the power consumption is relatively low, so the cost performance is very good.
Advantages
1. The Silica Sand Color Sorting Equipment adopts a propeller spreading disc, which not only has the effect of spreading material, but also generates rising airflow to make the material particles on the spreading blade boil up and be dispersed, which improves the material particle sorting and dispersing performance.
2. The machine is equipped with a wind guide plate and a newly developed cyclone sleeve structure, which reduces the fluid resistance and improves the dust collection efficiency of the cyclone.
3. We have optimised the design of various anti-caking devices in the machine, which makes the sand and gravel dry and dispersed with good anti-caking effect.
Technical parameters
|
Model
|
Feeding Capacity(T/H)
|
Optimized Carryover
|
Soring accuracy(%)
|
Power(kW)
|
|
MS-S5
|
3-9
|
1:8
|
99.9
|
2
|
|
MS-S6
|
3.5-10
|
1:10
|
99.9
|
2.3
|
|
MS-S8
|
4-11
|
1:10
|
99.9
|
2.6
|
|
MS-S10
|
5-12
|
1:10
|
99.9
|
3.2
|
NOTE:it is suggested that the rate of impurities of quartz sand with 40-70 mesh and 70-120 mesh should be controlled within 3%
Application:Nonmetallic ore: quartz sand,potash feldspar,barite,calcite,calcium carbonate,garnet,talcum,andalusite,kaolin,wollastonite,limestone,fluorite,etc.
Metallic ore: tungsten,gold,silver,iron,etc.
