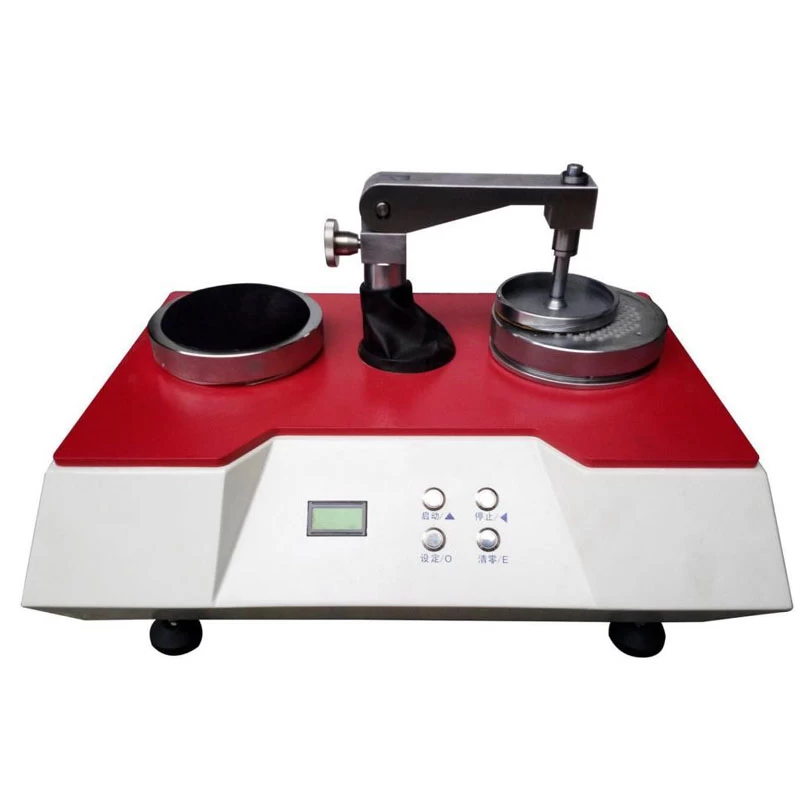

AG34-Circular Locus Pilling Tester(Circular trajectory method)
Application Of Circular Locus Pilling Tester(Circular trajectory method)
Circular Locus Pilling Tester is used to test the pilling performance, suitable for different kinds of fabric including woven fabric and shuttle fabric.
Feature Of Circular Locus Pilling Tester(Circular trajectory method)
-
Linear guide slide, DC motor drive, PI control algorithm speed regulation, make the instrument smooth operation and low noise.
-
Running for pole free speed regulation, speed can be set according to test requirements.
-
can be set up required test mode: 1. Counting mode(number count, time count), 2. Counting mode(add count, subtract count)
Standards Of Circular Locus Pilling Tester(Circular trajectory method)
DIN 53863.2, GB/T 4802.1, GB8965.1-2009, JIG 040-1990
Key Specification Of Circular Locus Pilling Tester(Circular trajectory method)
|
Model
|
AG34 Circular
Locus Pilling Tester
|
|
Move track
|
￠ 40mm Circular trajectory movement
|
|
Brush
adjustable height
|
2-12 mm
|
|
Sample
pressure
|
Chemical
fiber fabric pressure: 590cN
Combed
fabric pressure: 780cN
Combed
fabric pressure: 490cN
|
|
Sample
size
|
￠ 112.8mm, 100cm2
|
|
Speed
range
|
(40～80)±2r/min
|
|
Counting
mode
|
Number
count: 1～99999times
time
count: 1～999min
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
48×30×33cm
|
|
Weight
|
25kg
|
