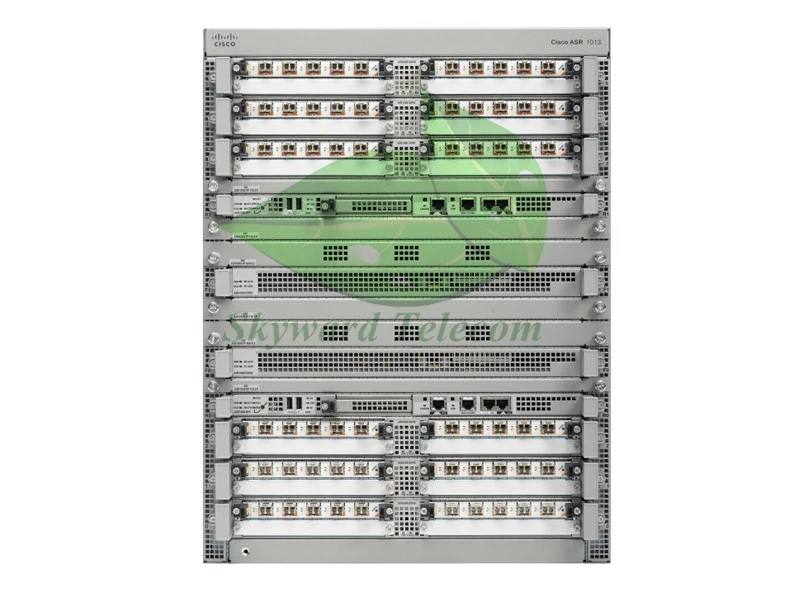

ASR1013 Overview
The Cisco ASR 1013 Router offers highly integrated services for enterprise and service provider networks. With 100 Gbps total system bandwidth and 4- to 63-Mpps packet-forwarding capabilities, this powerful edge device delivers exceptional performance for its price range.
ASR1013 Specification
| Brand | Cisco |
| Part Number | Cisco ASR 1013 |
| Height | 22.8 in. (579.1 mm) |
| Width | 17.2 in. (437.4 mm) |
| Depth | 18.15 in. (461.0 mm) |
| Default Memory | 4-GB DRAM RP1 |
| Shared port adapters | 24 SPA slots |
| Cisco ASR 1000 Series ESP | 2 ESP slots |
| Route Processor | 2 route-processor slots |
| Airflow | Front-to-back |
| ESP support | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) |
| ESP bandwidth | 40 to 200 Gbps |
| ESP memory | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8-GB DRAM |
| Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM | |
| Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM | |
| SIPs and Ethernet Line Cards | Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40) and ASR 1000 Fixed Ethernet Line Card; 2x10GE + 20X1GE (ASR1000-2T+20X1GE); and 6x10GE(ASR1000-6TGE) |
| Embedded hardware-based encryption | Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11 Gbps and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78 Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires CiscoIOS XE Software Release 3.1.0S, ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S, and ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) requires Cisco IOS XE Software Release 3.10.0S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Warranty | One year |
| Lead time | 2-3 business days |
| Shipment | DHL, Fedex, Aramex, EMS or per request |
