6807-XL Overview

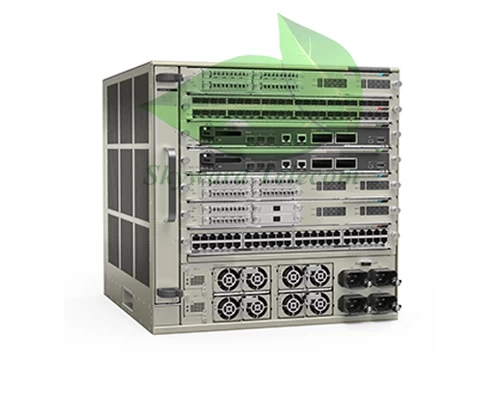

The Cisco Catalyst 6807-XL chassis (Figure 1) is built to be capable of delivering up to 11.4 Terabits per second (Tbps) of system bandwidth capacity and up to 440 Gigabits per second (Gbps) of per-slot bandwidth. In a system configured for VSS, this translates to a system capacity of up to 22.8 Tbps. With the Supervisor Engine 6T and latest generation of line cards, the 6807-XL chassis supports a maximum of 160 Gigabits per second (Gbps) of per slot bandwidth. The Cisco Catalyst 6807-XL Modular Switch is optimized for high-density 10 Gigabit Ethernet and capable of supporting 40 Gigabit Ethernet.
6807-XL Specification
|
Number of Slots
|
7
|
|
Number of Supervisor Engine Slots
|
2
|
|
Number of Module Slots
|
5
|
|
Supervisor Compatibility
|
C6800-SUP6T
C6800-SUP6T-XL
VS-S2T-10G
VS-S2T-10G-XL
|
|
Module Compatibility
|
C6800-8P40G
C6800-8P40G-XL
C6800-32P10G
C6800-32P10G-XL
C6800-16P10G
C6800-16P10G-XL
C6800-8P10G
C6800-8P10G-XL
WS-X6904-40G-2T
WS-X6904-40G-2TXL
WS-X6908-10G-2T
WS-X6908-10G-2TXL
WS-X6816-10G-2T
WS-X6816-10G-2TXL
WS-X6816-10T-2T
WS-X6816-10T-2TXL
WS-X6848-SFP-2T
WS-X6848-SFP-2TXL
WS-X6824-SFP-2T
WS-X6824-SFP-2TXL
WS-X6848-TX-2T
WS-X6848-TX-2TXL
WS-X6704-10GE (with CFC or DFC4)
WS-X6748-GE-TX (with CFC or DFC4)
WS-X6748-SFP (with CFC or DFC4)
WS-X6724-SFP (with CFC or DFC4)
WS-X6716-10G-3C (with DFC4)
WS-X6716-10G-3CXL (with DFC4XL)
WS-X6716-10T-3C (with DFC4)
WS-X6716-10T-3CXL (with DFC4XL)
NAM3
ASA-SM
WiSM2
ACE30
|
|
Performance
|
The chassis is capable of up to 440 Gbps per slot
The performance of the individual modules is available in the module data sheets.
|
|
Power Supply Compatibility
|
AC: 3000W (up to 4 power supplies)
|
|
Software compatibility (minimum software version)
|
|
|
Reliability and Availability
|
|
Calculated Mean Time between Failure (MTBF)
|
|
|
Online Insertion and Removal (OIR)
|
OIR of the following components: supervisor engines, line card modules, power supplies, and fan tray
|
|
MIBs
|
Check the supervisor engine data sheet
|
|
Network Management
|
Check the supervisor engine data sheet
|
|
Physical Dimensions (H x W x D)
|
|
Inches
|
17.45 x 17.37 x 18.1
|
|
Centimeters
|
44.3 x 44.1 x 46
|
|
Rack Units (RU)
|
10
|
|
Weight
|
|
Chassis Only (lbs)
|
62
|
|
Fully Configured (lbs)
|
185
|
|
Input Voltage
|
100 to 240 VAC
-48 to -60 VDC
|
|
Safety
|
UL 60950 Second Edition
CAN/CSA-C22.2 No. 60950 Second Edition
EN 60950 Second Edition
IEC 60950 Second Edition
AS/NZS 60950
|
|
EMC
|
FCC Part 15 (CFR 47) Class A
VCCI Class A
EN55022 Class A
CISPR 22 Class A
CE marking
AS/NZS 3548 Class A
ETS300 386
EN55024
EN61000-6-1
EN50082-1
|
|
ETSI
|
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3
ETS 300 019 Stationary Use Class 3.1
|
|
Operating Environment
|
|
Operating Temperature
|
32°F to 104°F (0 to 40°C)
|
|
Storage Temperature
|
-4 to 149°F (-20 to 65°C)
|
|
Thermal Transition
|
0.5°C per minute (hot to cold)
0. 33°C per minute (cold to hot)
|
|
Relative Humidity
|
Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
|
|
Operating Altitude
|
Certified for operation: 0 to 6500 ft (0 to 2000 m)
Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
|
