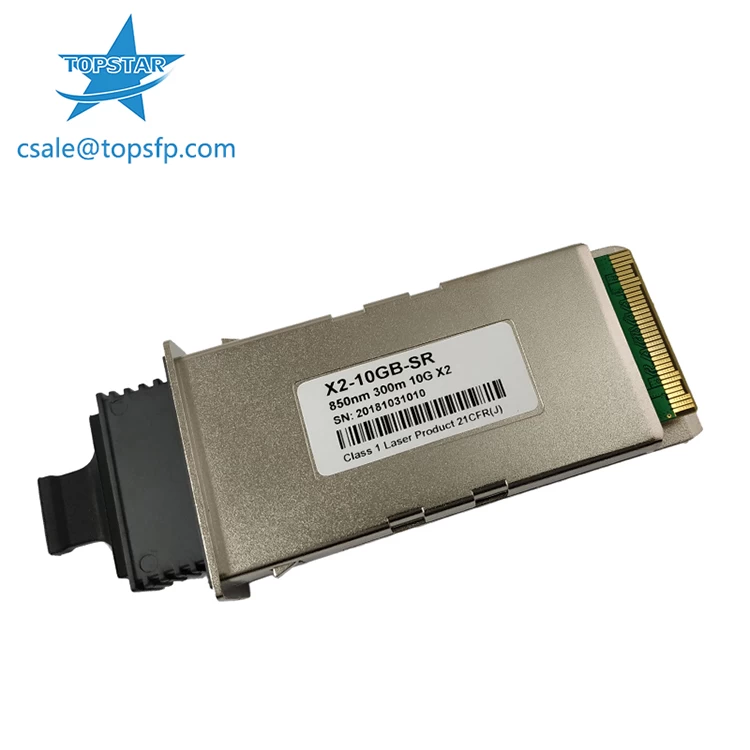

Cisco DS-X2-E10G-SR Compatible 10GBASE-SR X2 850nm 300m DOM Transceiver Module

Cisco DS-X2-E10G-SR Compatible 10GBASE-SR X2 850nm 300m DOM Transceiver Module is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.


  • ConnectorSC duplex
  • Wavelength850nm
  • Distance300m
  • Data Rate10G
  • Temperature0 to 70°C
  • Warranty3 Years

Cisco DS-X2-E10G-SR Compatible 10GBASE-SR X2 850nm 300m DOM Transceiver Module


Features

  • Compatible with X2 MSA Rev2.0b
  • Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
  • Transmission Distance up to 300m (MMF)
  • Vertical Cavity Surface Emitting Laser at 850nm
  • SC Duplex Optical Connector
  • Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
  • Management and control via MDIO 2-wire interface
  • Power Supply :+3.3V, APS(+1.2V)
  • Diagnostic Optics Monitoring
  • Temperature Range: 0~ 70 °C
  • ROHS Compatible
