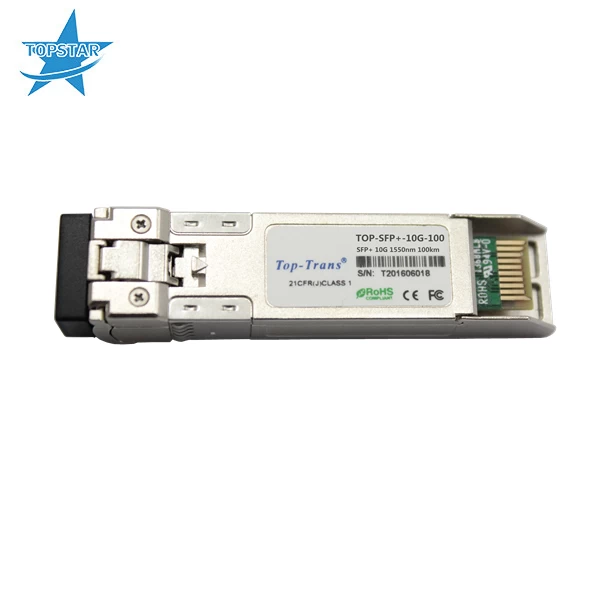

Cisco Network 10g SFP Module 1550nm 100km Optical Fiber Cable


This SFP+ 1550nm transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 100km. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.



  • Wavelength1550nm
  • Distance100km
  • Data Rate10G
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years
  • ConnectorSingle port LC/SC

Cisco Network 10g SFP Module 1550nm 100km Optical Fiber Cable


PRODUCT FEATURES

●Compliant with SFF-8431,SFF-8432 and IEE802.3ae

●Cooled EML transmitter and APD receiver

●Digital Diagnostic Monitor Interface

●Hot pluggable

●link length up to 100km

●10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.

●Low power consumption

●Operating case temperature: 0 to 70 °C



APPLICATIONS

●10G Ethernet

●10G Fiber Channel


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered.
