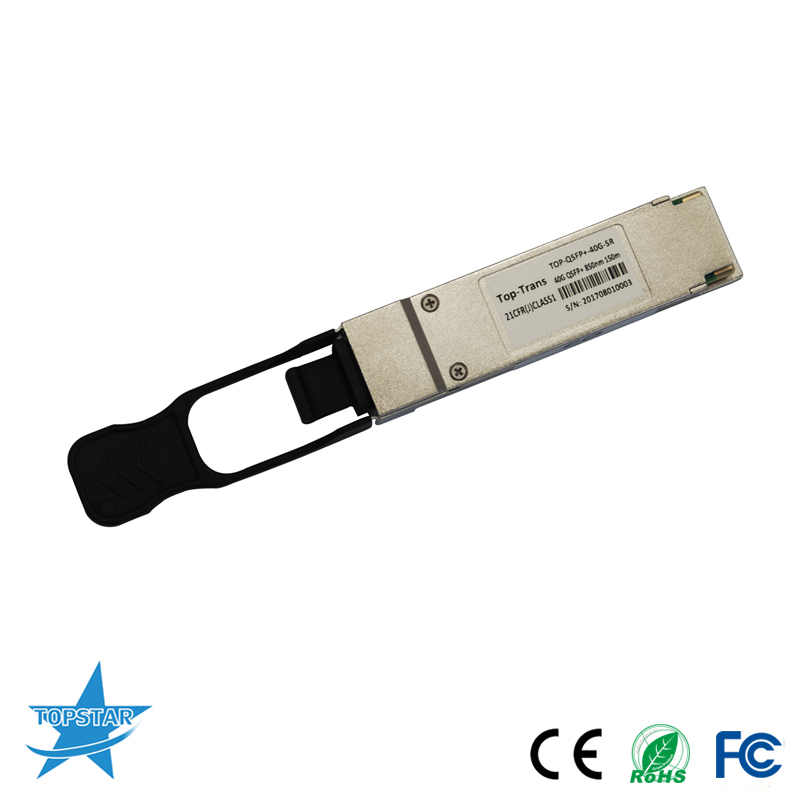

Cisco QSFP-40G-CSR4 Compatible 40GBASE-CSR4 QSFP+ 850nm 400m 10-2837-02 Transceiver Module

Cisco QSFP-40G-CSR4 Compatible 40GBASE-CSR4 QSFP+ 850nm 400m 10-2837-02 Transceiver Module

Features

• 4 channels full-duplex transceiver modules
• Transmission data rate up to 10.5Gbps per channel
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• Low power consumption <1.5W
• Hot Pluggable QSFP form factor
• Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
• Single MPO connector receptacle
• Built-in digital diagnostic functions
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant

Compatible with

• Cisco Nexus 3000 N3K-C31128PQ-10GE

• Cisco 3850 WS-C3850-48XS-S

• Cisco Nexus 9000 N9K-M6PQ-E

• Cisco Nexus 9000 N9K-X9464PX

• Cisco Nexus 6000 N6004-96Q

• Cisco Nexus 9000 N9K-C9372TX-E

• Cisco Nexus 9000 N9K-M6PQ

• Cisco Nexus 9000 N9K-C92160YC-X

• Cisco Nexus 9000 N9K-M6PQ-E

• Cisco Nexus 9000 N9K-C93120TX

• Cisco Nexus 3000 N3K-C3064X

• Cisco Nexus 9000 N9K-X9564TX (uplinks)

• Cisco Nexus 9000 N9K-M12PQ

• Cisco Nexus 9000 N9K-X9432C-S

• Cisco Nexus 9000 N9K-X9636PQ

• Cisco Nexus 7000 N77-F324FQ-25

• Cisco WS-C3850-48XS-F-S

• Cisco 3850WS-C3850-48XS-E

• Cisco Nexus 3000 N3K-C3132Q-X

• Cisco Nexus 9000 N9K-C9372PX

• Cisco Nexus 9000 N9K-M6PQ

• Cisco 6500 C6800-SUP6T

• Cisco Nexus 5000 N5K-C5672UP

• Cisco Nexus 9000 N9K-X9432PQ

• Cisco Nexus 6000 N6K-C6004-M12Q

• Cisco Nexus 3000 N3K-C3064PQ-10GE
