City Garbage compactor Dongfeng

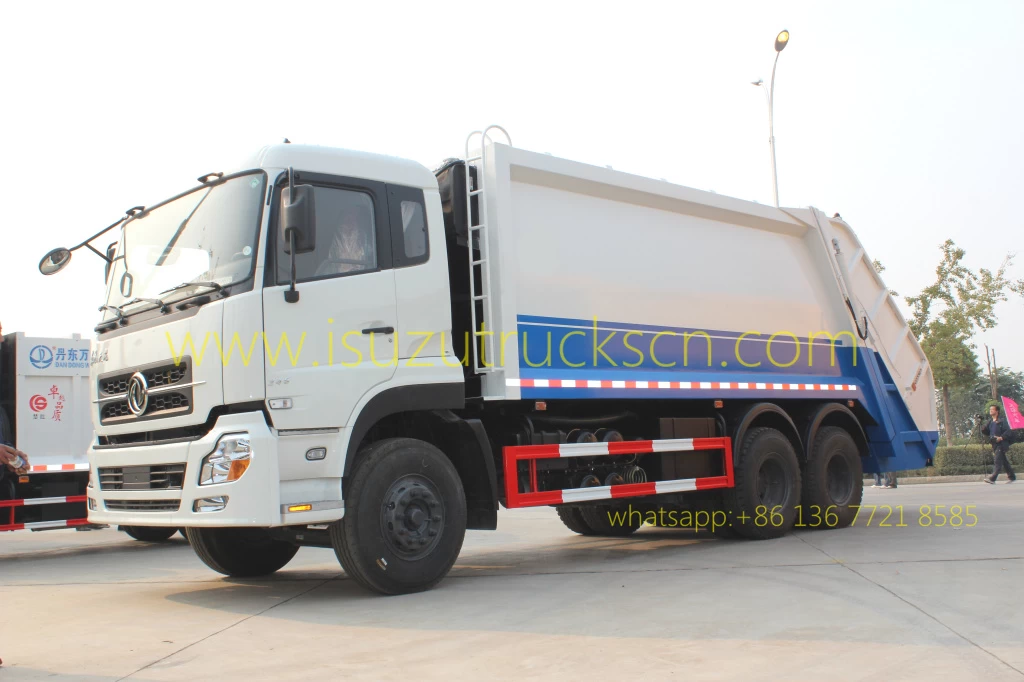

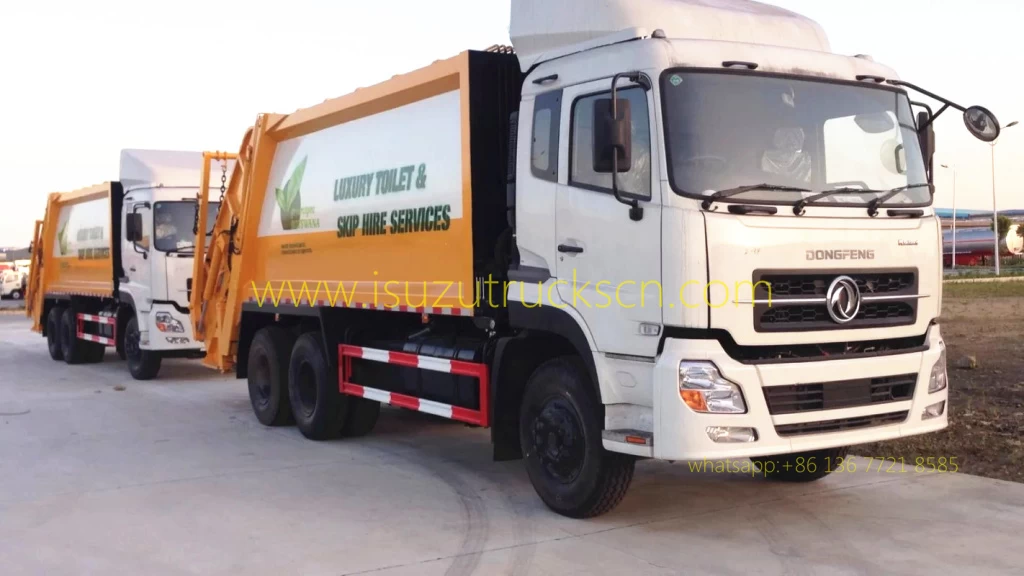

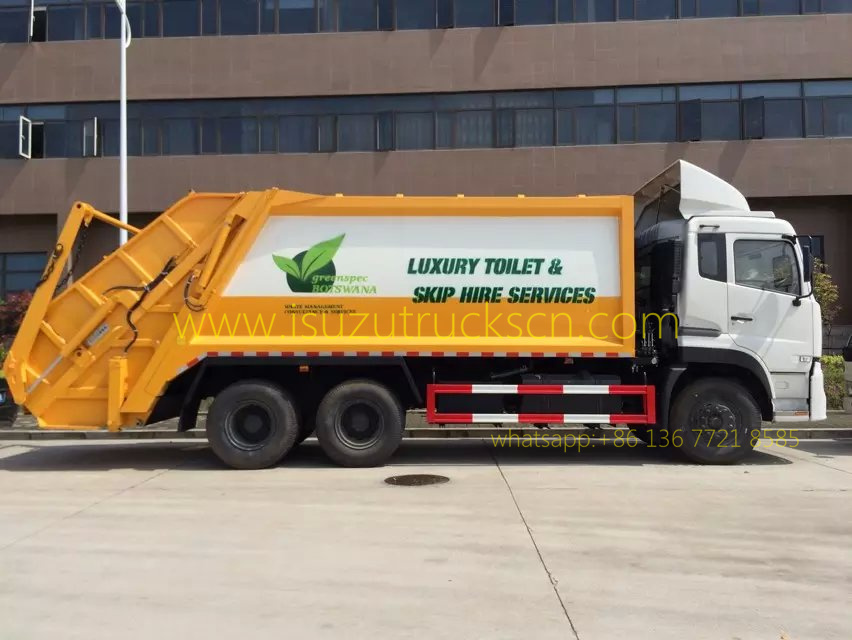

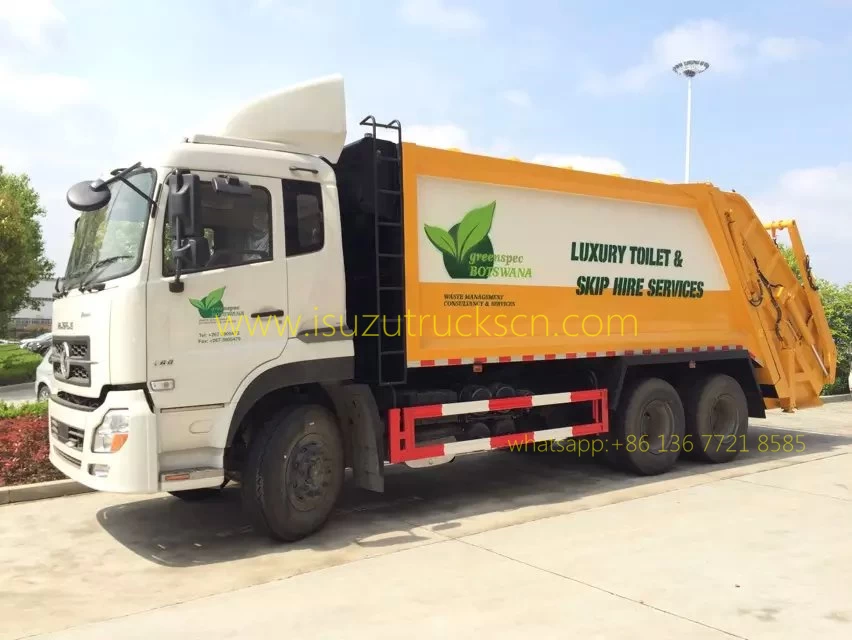

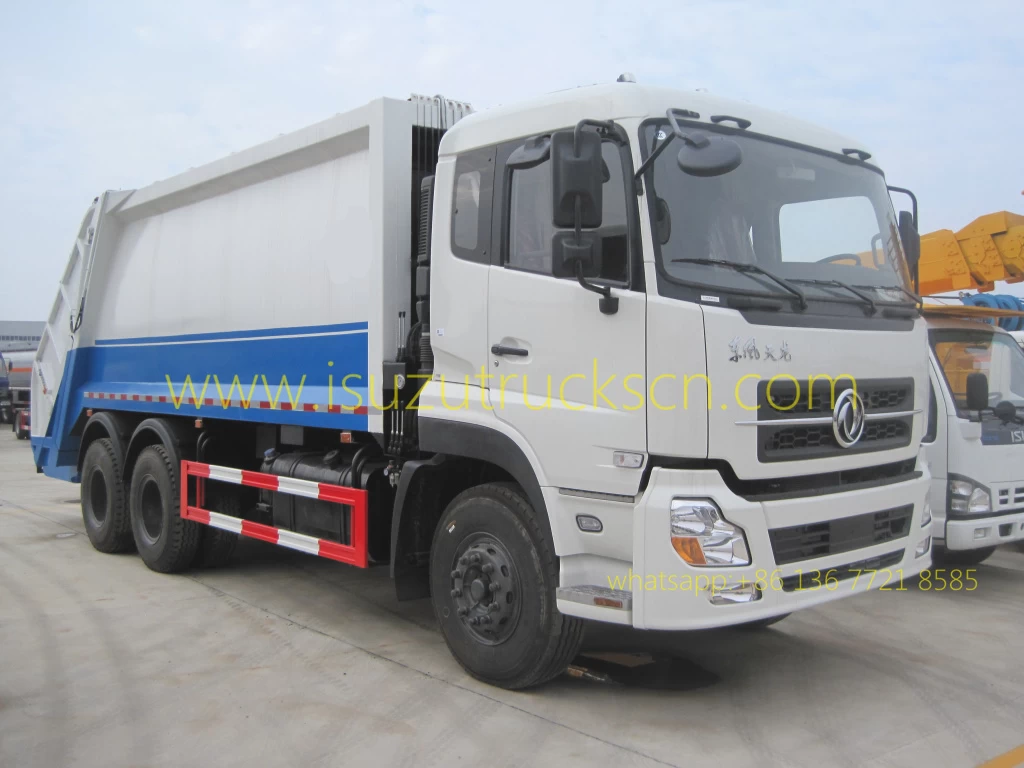

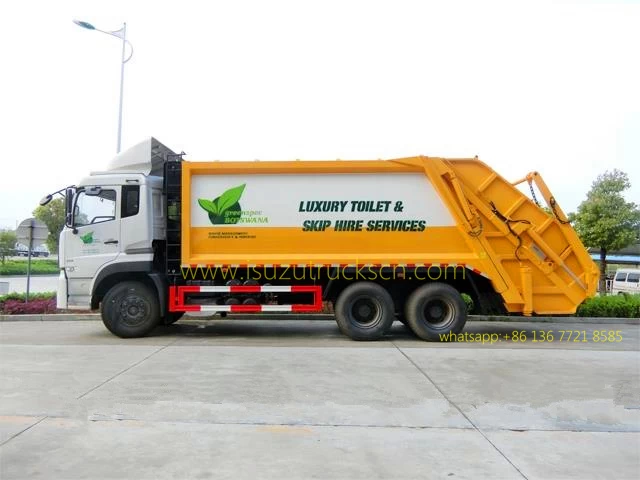

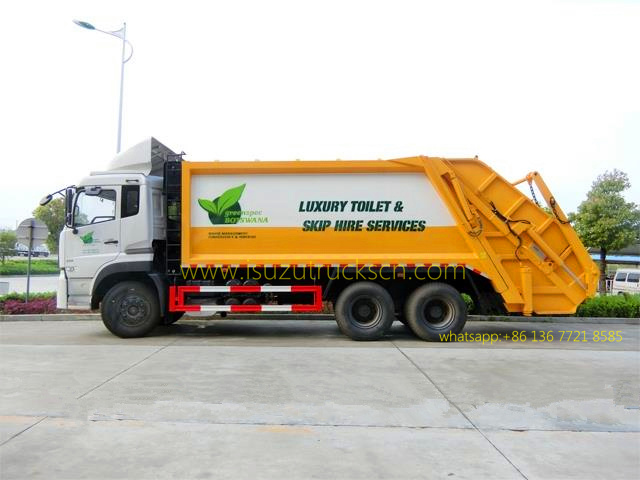

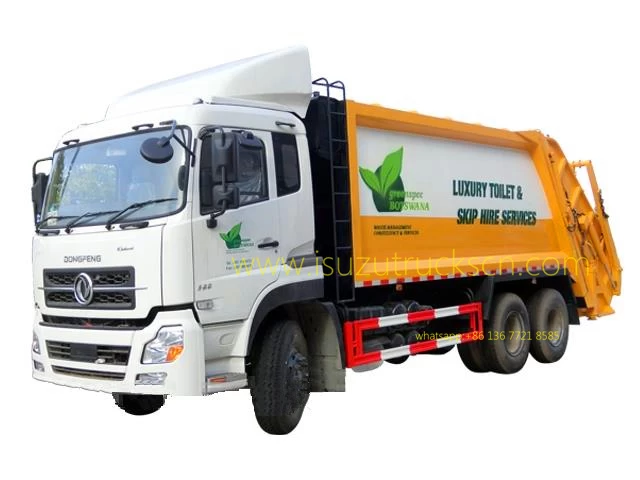

Rear Loader Garbage Compactor DongFeng (20 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

DONGFENG

Overall Dimension

10070 * 2500 * 3480 mm

GVW / Kerb Weight

25,000kg / 13,680kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Cummins

Power

260 HP (191KW)

Displacement

8300 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

6X4, (left hand drive or Right hand drive)

Transmission

9 speed levers with 1 reverse

Wheelbase/No. of axle

4350+1300 mm / 3

Tire Specification

10.00-20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

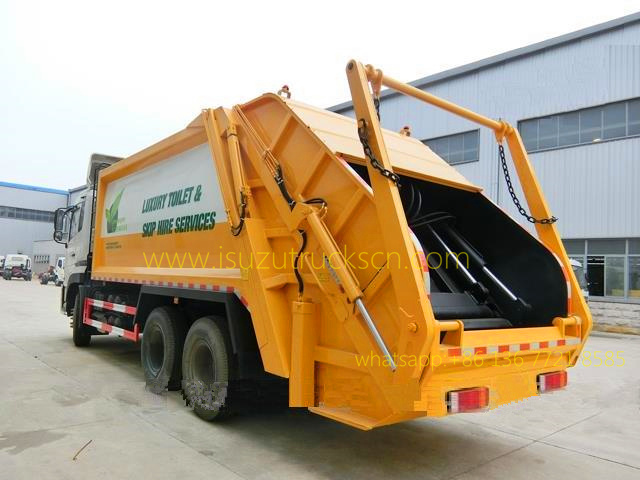

Superstructure

Body Capacity

20  CBM

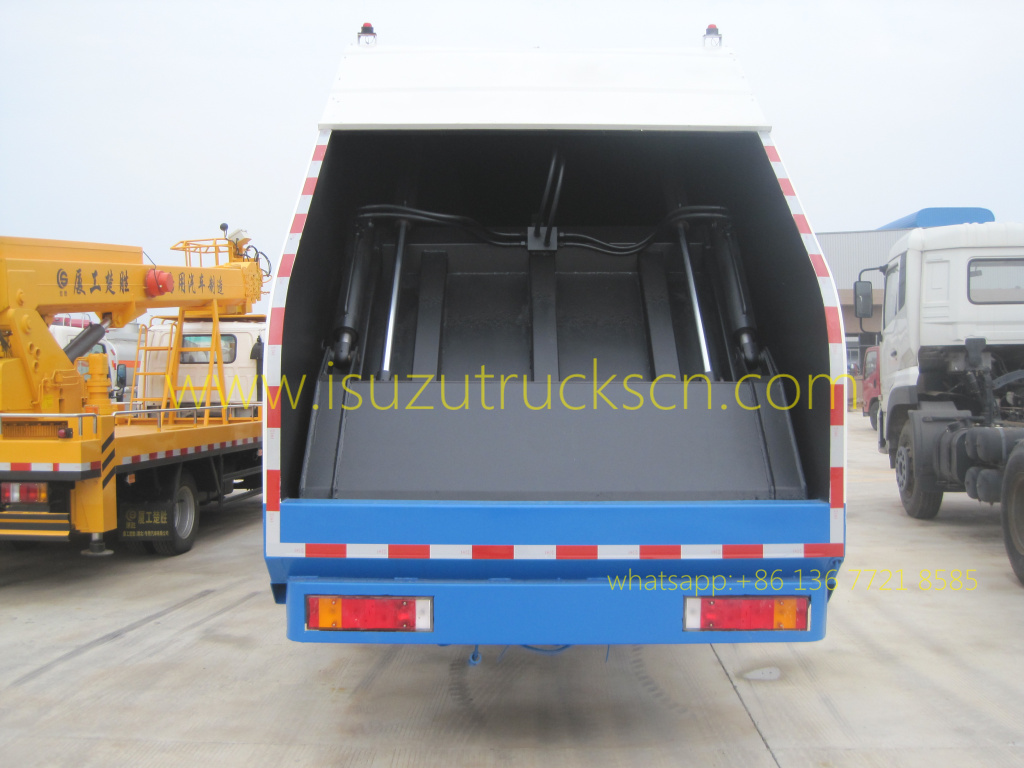

Fill Hopper Capacity

2.3 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

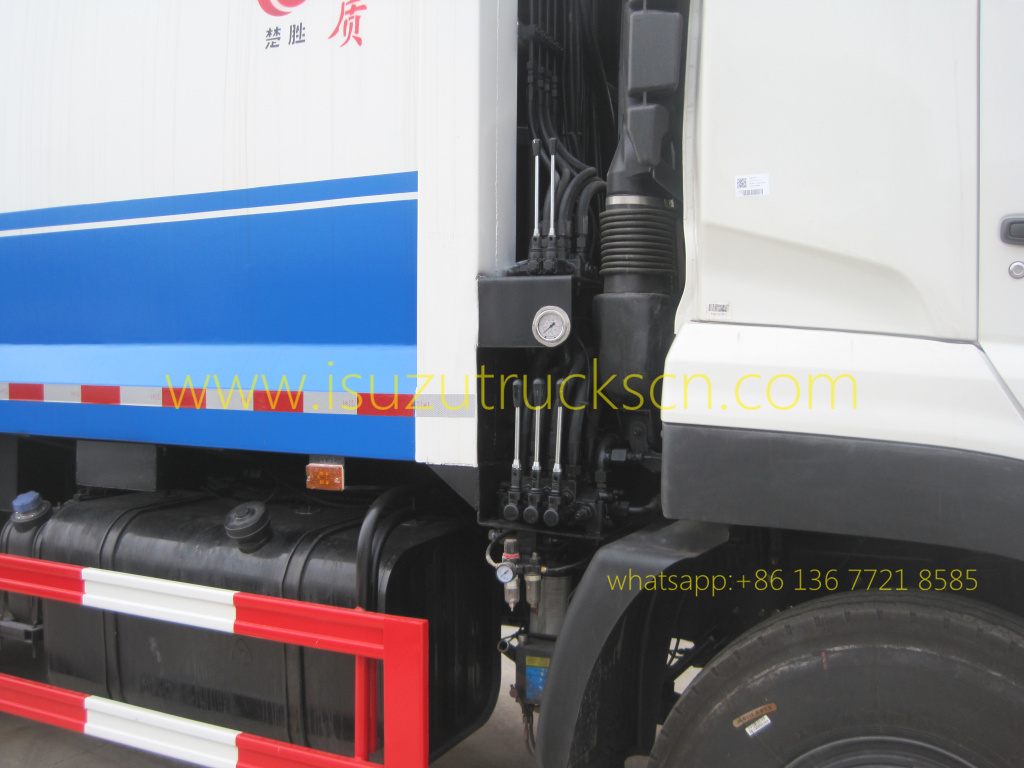

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
