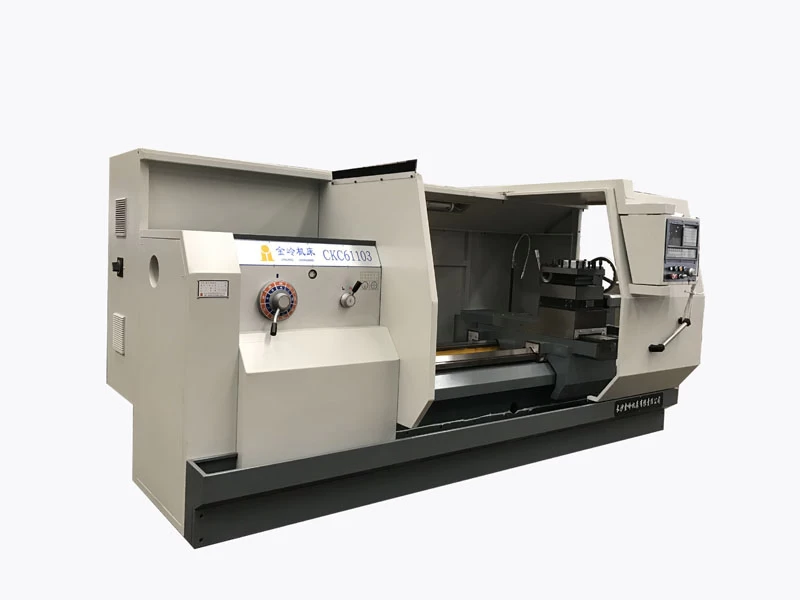

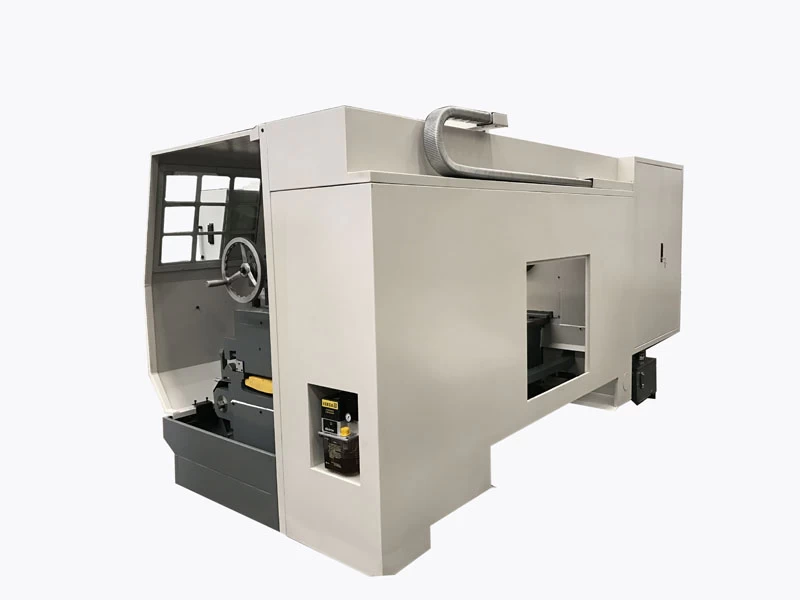

Brief introduction:
This series machines are semi-circle controlled, with some advanced functions like threading tolerance compensation, variable frequency acceleration and so on. With this machine, not only the machining jobs which a horizontal lathe does can be done, but also auto position changing of turret and multi-step continuous machining can be realized. This machines are specially used for machining spare parts in bulk and in different type.
Detailed specification:
|
SPECIFICATIONS
|
UNIT
|
MODEL
|
|
CKC/CKD6183, CKC/CKD61103,
CKC/CKD6193, CKC/CKD61123
|
|
Center height
|
mm
|
415,465,515,615
|
|
Max swing over bed
|
mm
|
830,930,1030,1230
|
|
Max swing over carriage
|
mm
|
440,540,640,840
|
|
Max. part length
|
mm
|
1500,2000,3000,4500
|
|
Max. turning length(saddle stoke)
|
mm
|
1350,1850,2850,4350
|
|
Bed width
|
mm
|
610
|
|
Spindle bore diameter
|
mm
|
φ105,φ130
|
|
Spindle bore taller
|
|
Metric 120 /140
|
|
Numberof steps of spindle speed
|
|
CKC :18steps manual change
CKD :2 steps stepless speed change
(frequency converter)、Spindle servo motor
|
|
Rangeof spindle speed
|
r/min
|
13-1000/10-800
|
|
Main motor power
|
kW
|
11
|
|
Quill diameter
|
mm
|
φ120
|
|
Quill taper
|
|
MT6
|
|
Quill travel
|
mm
|
260
|
|
Quill travel of tailstock
|
mm
|
±15
|
|
X travel
|
mm
|
500, 500, 540, 540
|
|
Z Ztravel
|
mm
|
1350,1850,2850,4350
|
|
Size of tool rot
|
mm×mm
|
32×32,40×40
|
|
Positioning accuracy
|
mm
|
X:0.03 Z:0.045，0.05
|
|
Repeatability
|
mm
|
X:0.012 Z:0.02，0.025
|
|
Roudness
|
mm
|
0.01
|
|
Flatness
|
mm
|
0.025/300 only for concave
|
|
Surface roughness
|
um
|
Ra1.6
|
|
StandardCNC System
|
|
GSK980TDC/SIEMENS 808D
|
|
Dimensions
|
Length
|
mm
|
3630,4130,5130,6630
|
|
Width
|
mm
|
1850,1850,1950,1950
|
|
Height
|
mm
|
1750,1850,2000, 2200
|
Delivery:
The delivery depends on different machines with different configurations. In about 60 days.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
Warranty:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
Agents Wanted:
We have partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. Wherever you are from, we are looking forward to explore new market with you.
