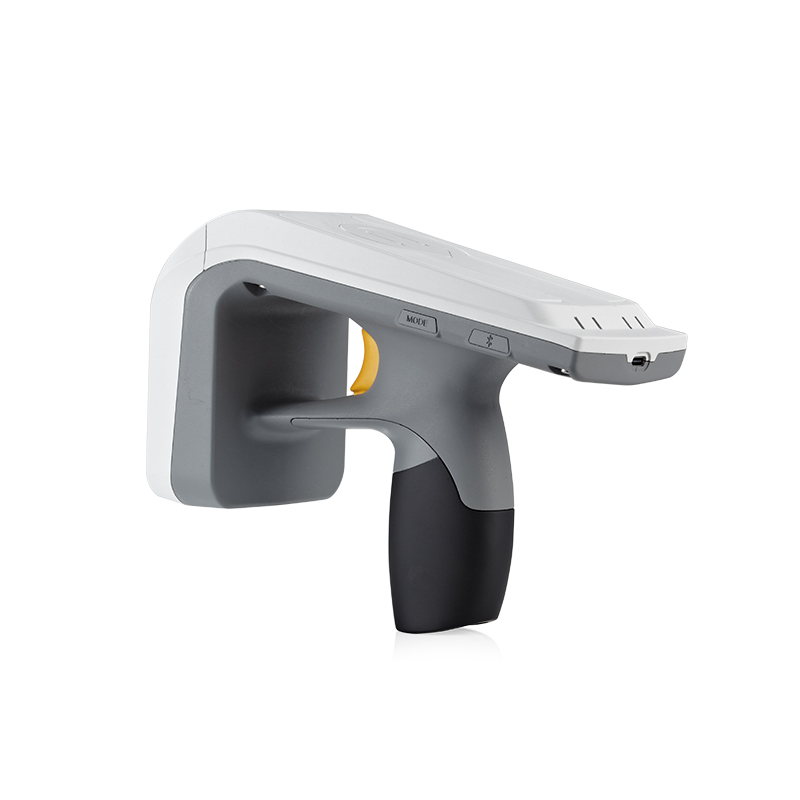

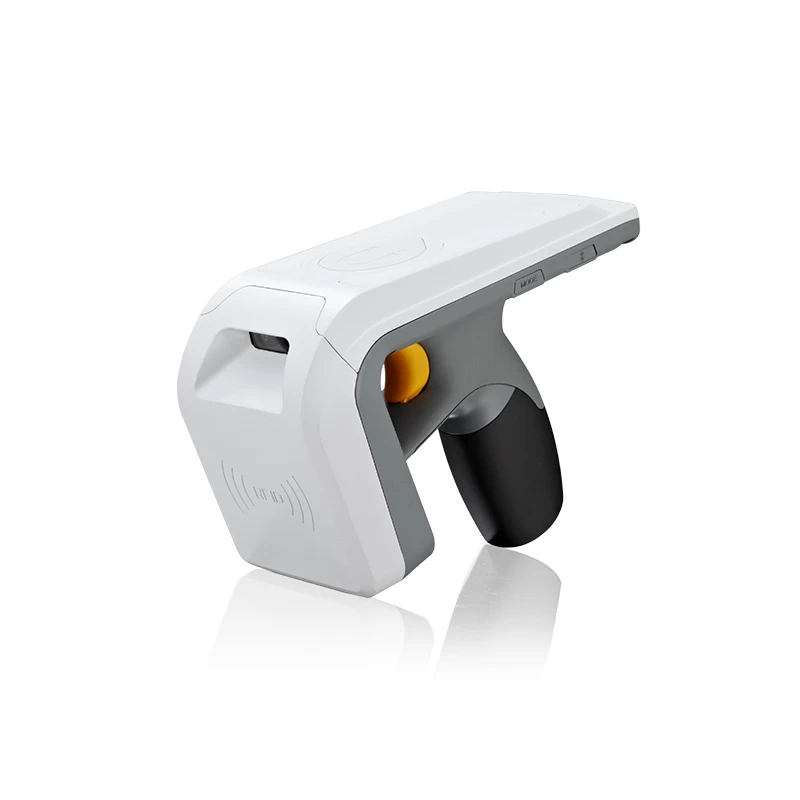

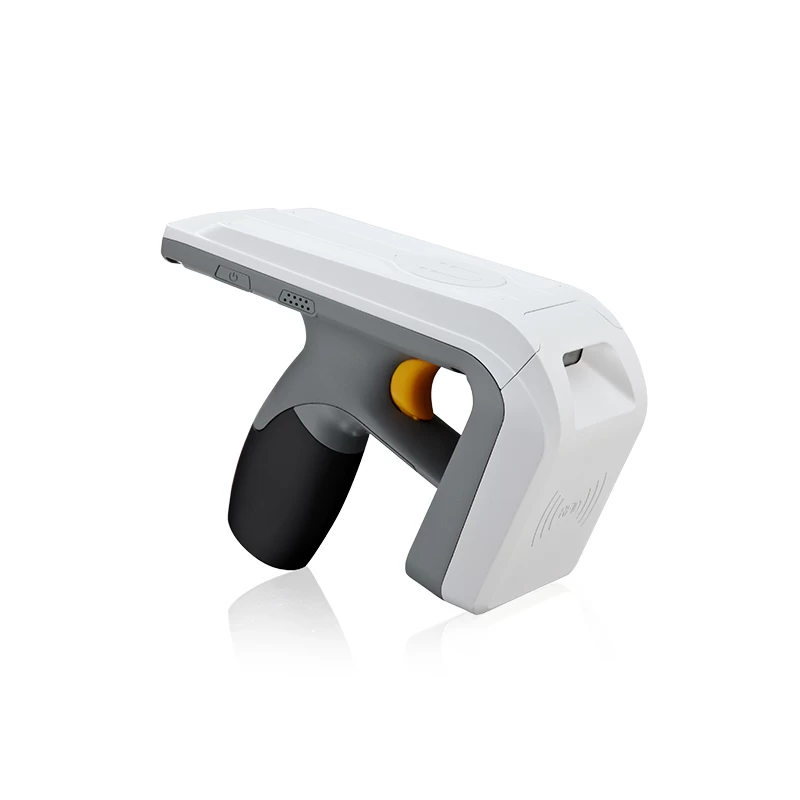

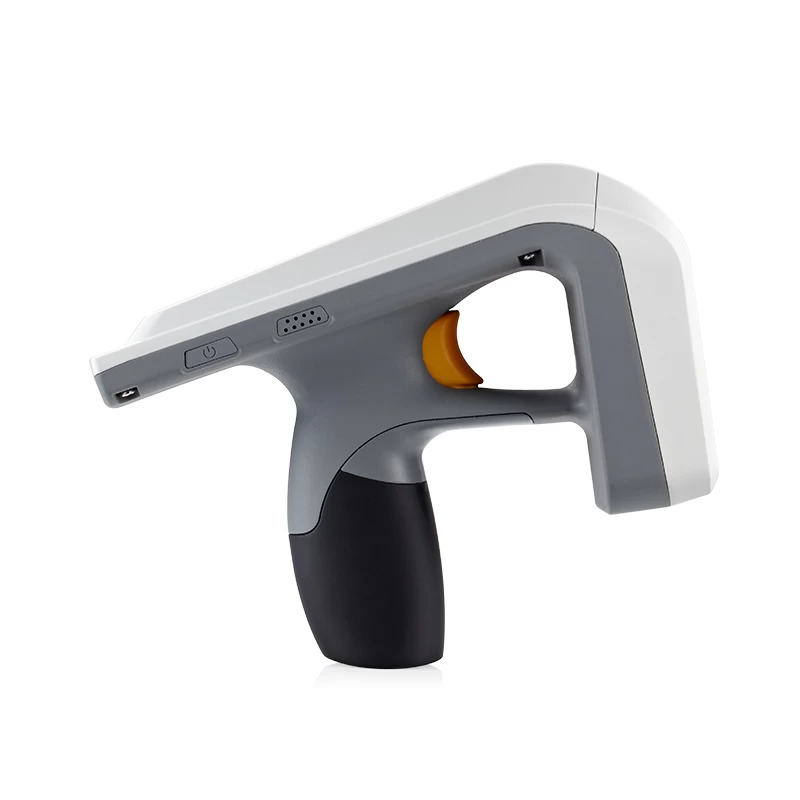

CL7202K8 Bluetooth handheld terminal reader mobile scanner

HL7202K8 is the latest handheld UHF reader product independently developed by Shenzhen Hopeland technology co., LTD. The product supports Bluetooth v2.0/2.1 +EDR. RFID meets mainstream standards in Europe (ETSI EN 302 208), American (FCC part 15), Japan TELEC, Chinese CMII etc. According to the human body engineering design, exquisite appearance, high protection level, comfortable operation, simple, easy to carry, high flexibility, suitable for working in various environmental conditions. It is mainly used in warehousing and logistics, asset management, book management, financial management, production management, ticket management and other fields.




HL7202K8

Features

  • Flexible working with most Android OS devices
  • Impinj Indy R2000 chipset brings strong prime mover
  • 5000mAh large battery capacity supports 8 hours continue working ability
  • Humanist design with hand grip ergonomic for comfortable
  • Various communication transfer method options match various applications
  • Widely used in ITS / Smart Grid, execution inspection, warehousing & logistic, Smart retail



UHFRFID




Specifications

Communication

Bluetooth

Bluetooth V2.1+EDR/V3.0+HS/4.1 communication distance is not less than 10

    UHF RFID

Air Protocols

ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2

C2GEN2 optional

Reading Range

3~10m (According to Tag & Environment)

RF output

0-30dBm (±1dBm) adjustable

Antenna

1* 4dBi circular

Programing Function

match reading / data filter

RFID-temperature & humidity sensor data acquisition customizable

Physical Characteristics

Dimensions(L x W x H)

130mm(L)*83.5mm(W)*176mm(H)

Net. weight

0.4Kg

User Input

Function Button, Trigger, Bluetooth Button, Power Button

Notification

Indicator LED, Speaker

Indicators

Bluetooth Indicator, Power Indicator, Mode Indicator, Status Indicator

External interface

USB Type-C

Dust & Water Proof

IP53

Storage Temp.

-30℃+65℃

Operating Temp.

-20℃+55℃

Humidity

5% RH95%RH (non-condensing)

Drop Test

1.2M Drop to concrete

Date Capture & Data Processing Devices

Barcode Engine

1D Laser or 2D Imager Barcode Scanner

Power Supply

Main Battery(Replaceable )

DC 5V adapter, follow local standards

Battery Supply

3.7V 5000mAh Li-ion battery

Power Consumption

Working continuously for more than 8 hours.

Accessories

Power Adapter

Power Adapter: DC 5V adapter, follow local standards

Communication cable

USB communication cable

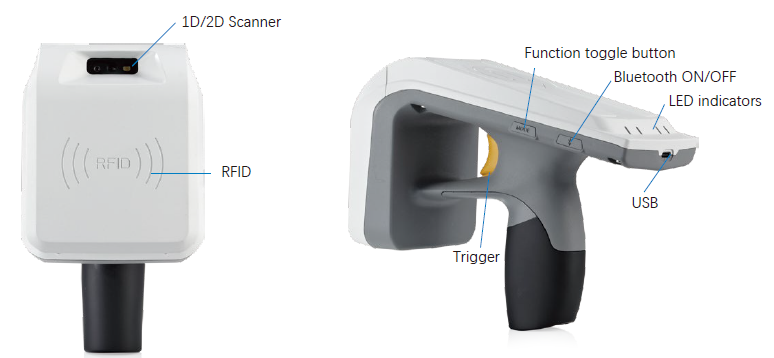

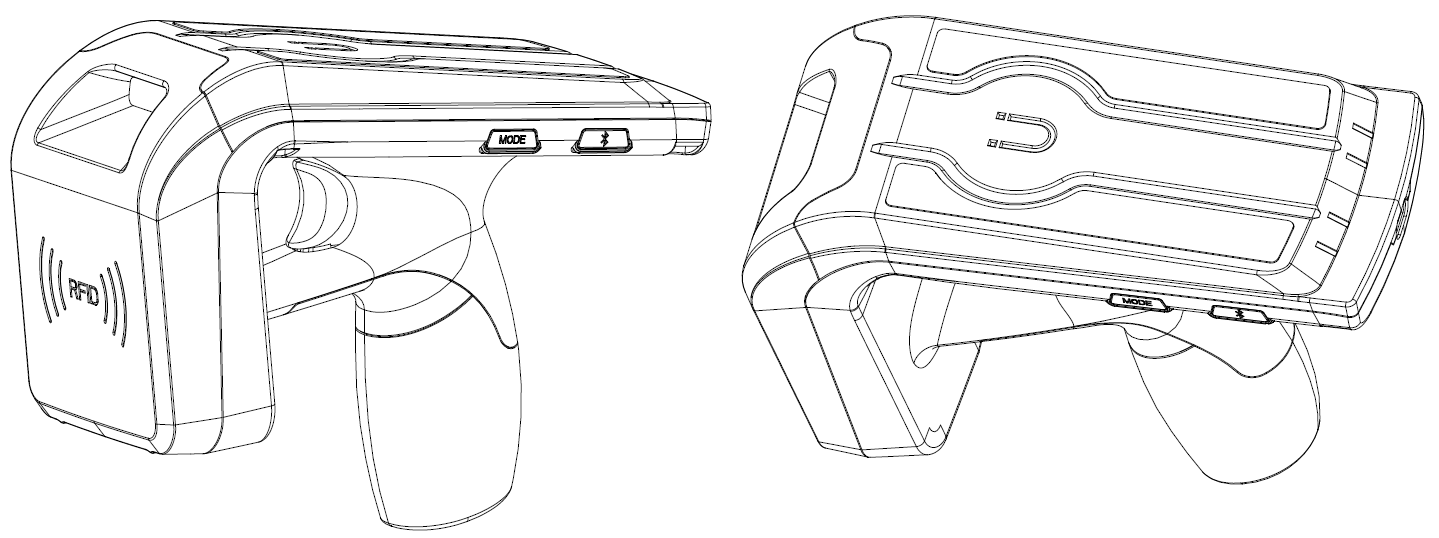

Construction Appearance

UHFRFID
