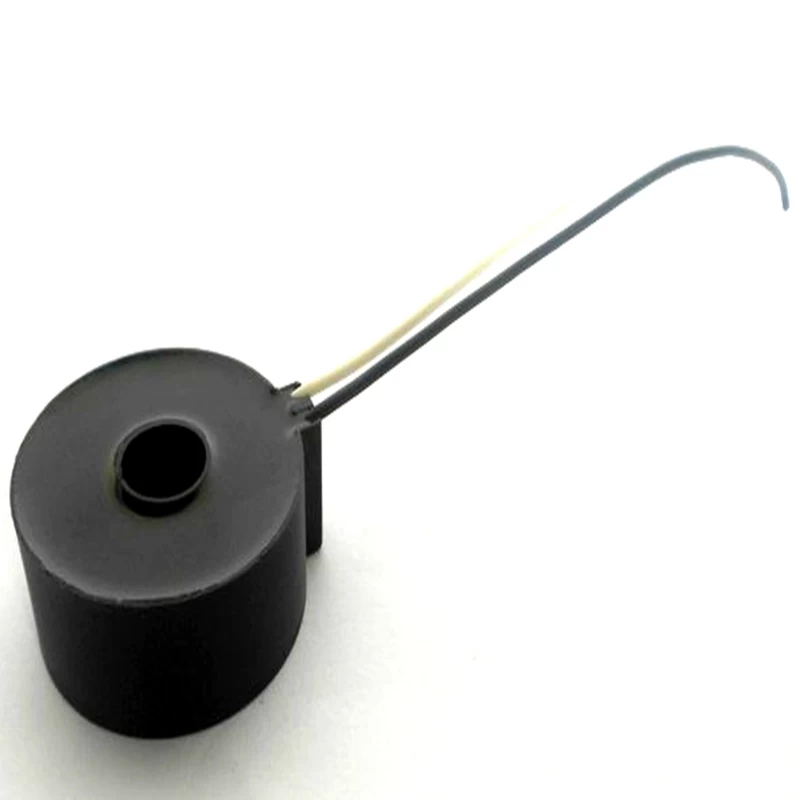

Class 0.1 High Precision current transformer PCT216

Model No.

Electrical Characteristics

Dimension(Unit: mm/inch)

Standard PN

Current Ratio

RL(Ω)

Accuracy Class

A

B

C

D

E

F

PCT207

10A(30)/10mA

10

0.5

15.4

29.8

10.0

32.1

To be defined

To be defined

PCT207N100

20A(70)/10mA

10

0.5,0.2

0.606

1.173

0.394

1.264

PCT207N200

PCT210

10A(50)/10mA

10

0.5,1

6.8

16.9

7.85

19.5

PCT210S100

5A(10)/5mA

10

0.5,0.2

0.268

0.665

0.309

0.768

PCT210N100

PCT216

20A(40)/20mA

10

0.5,0.2

8.6

29.2

13.0

31.7

PCT216N100

50A(80)/25mA

10

0.5,0.2

0.339

1.150

0.512

1.248

PCT216N200

PCT225

20A(30)/20mA

10

0.5,0.2

10.9

25.5

9.0

28.5

PCT225N100

50A(60)/25mA

10

0.5,0.2

0.429

1.004

0.354

1.122

PCT225N200

PCT226

20A(30)/20mA

10

0.5,0.2

10.1

24.0

11.6

26.5

PCT226N100

50A(60)/25mA

10

0.5,0.2

0.398

0.945

0.457

1.043

PCT226N200

PCT233

20A(30)/10mA

10

0.5,0.2

10.2

24.8

10.0

27.8

PCT233N200

30A(50)/10mA

10

0.5,0.2

0.402

0.976

0.394

1.094

PCT233N300

PCT234

20A(60)/10mA

10

1,2

18.2

28.0

11.0

38.0

PCT234S200

30A(100)/10mA

10

1,2

0.717

1.102

0.433

1.496

PCT234S300

PCT235

10A(40)/10mA

10

0.5,0.2

8.0

27.0

17.0

29.6

PCT235N100

50A(85)/25mA

10

0.5,0.2

0.315

1.063

0.669

1.165

PCT235N200

PCT236

10A(30)/10mA

10

0.5,1

9.0

22.0

8.2

25.0

PCT236S100

20A(40)/8mA

10

0.5,1

0.354

0.866

0.323

0.984

PCT236N250

PCT237

20A(30)/10mA

10

0.5,0.2

14.6

30.0

9.2

32.2

PCT237N200

50A(120)/25mA

10

0.5,0.2

0.575

1.181

0.362

1.268

PCT237S200

PCT245

10A(30)/10mA

10

0.5,1

7.0

19.5

8.2

22.5

PCT245N100

20A(80)/10mA

10

0.5,1

0.276

0.768

0.323

0.886

PCT245S200
