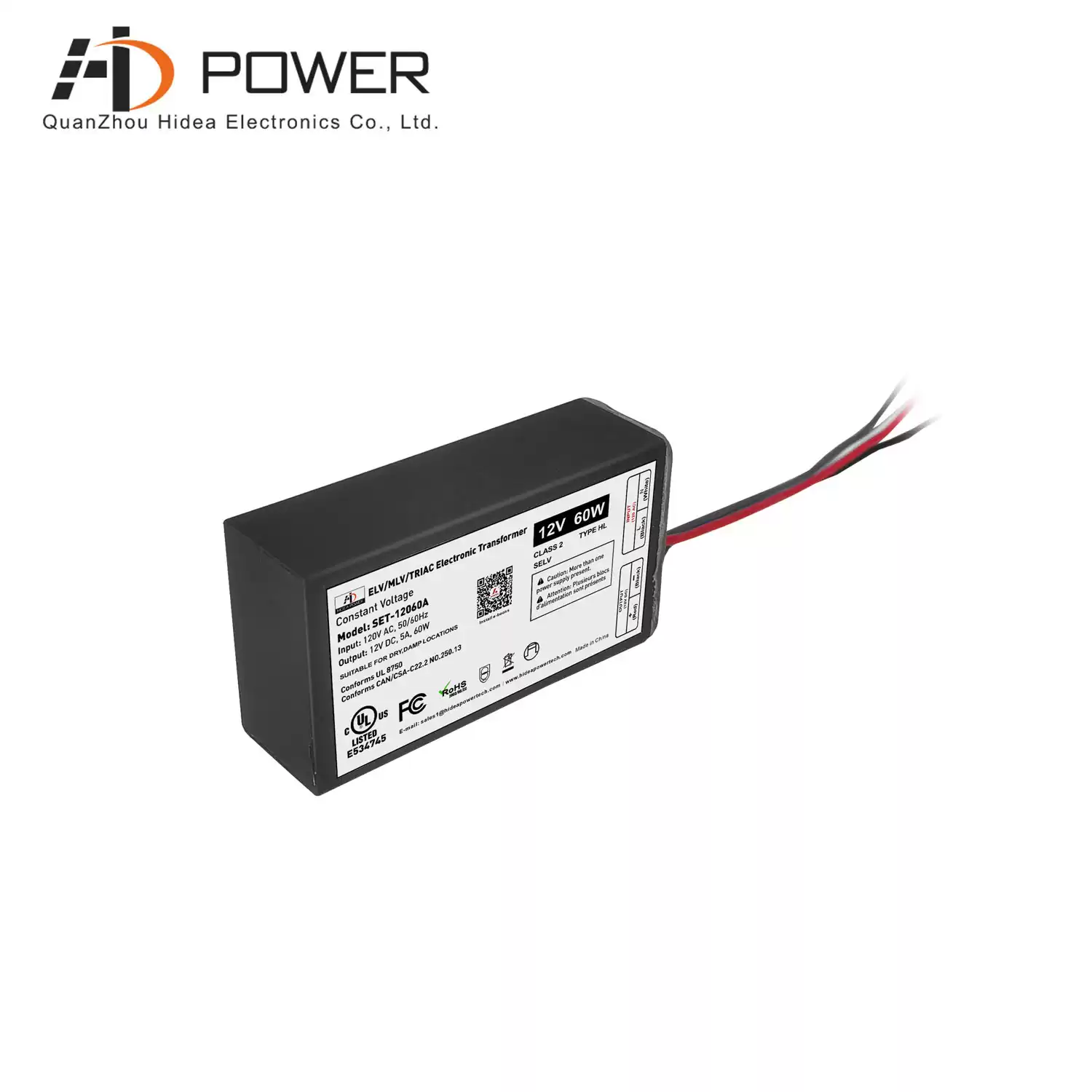

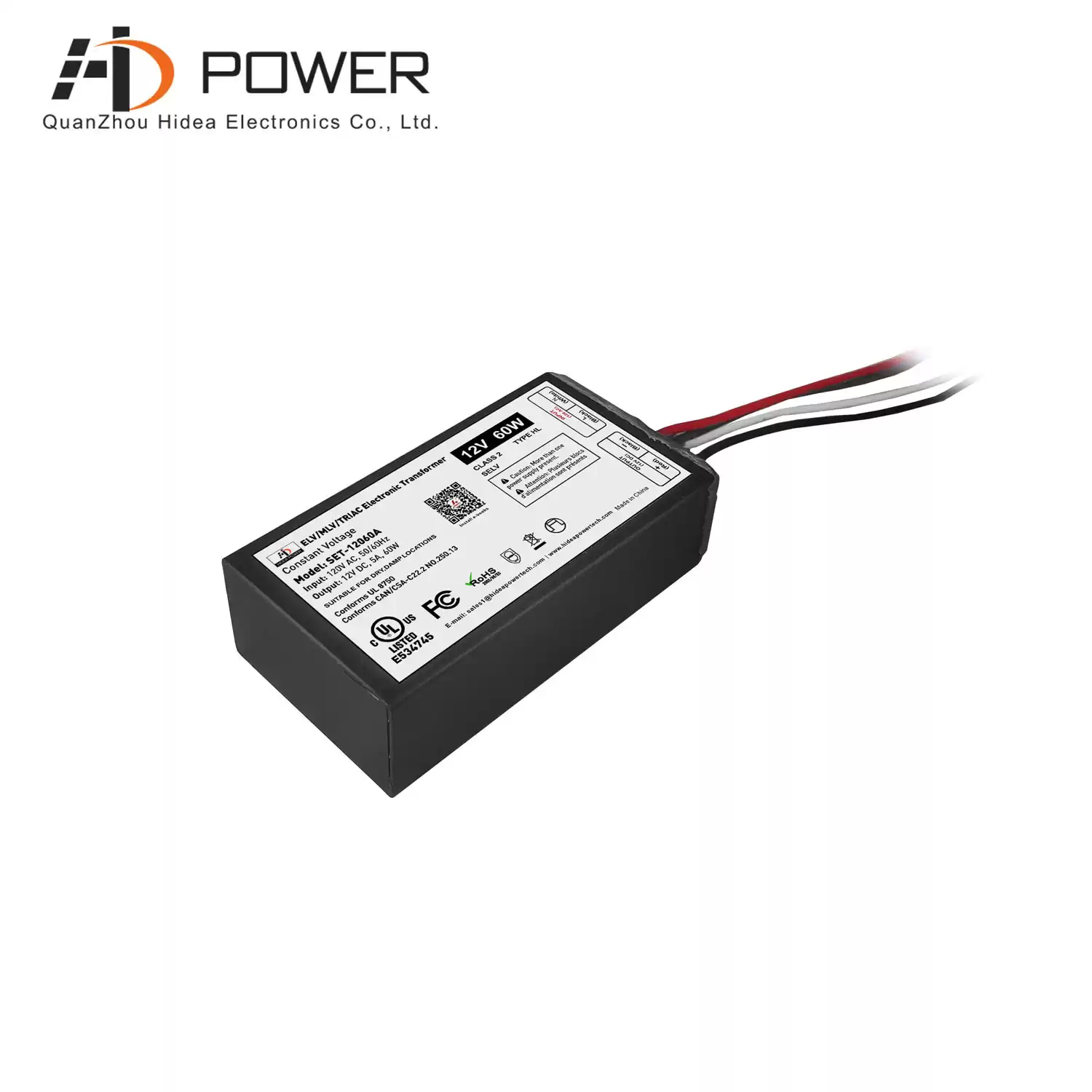

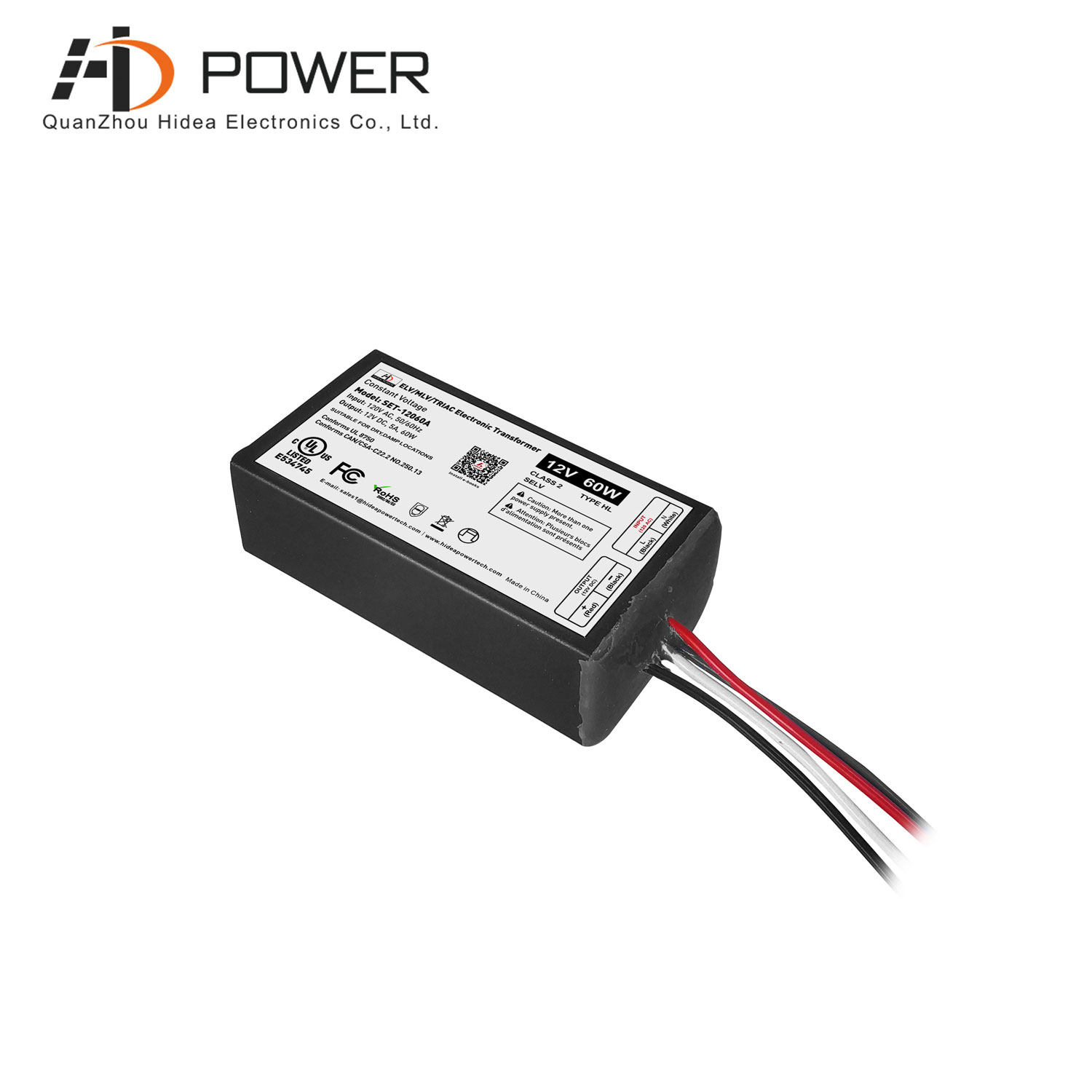

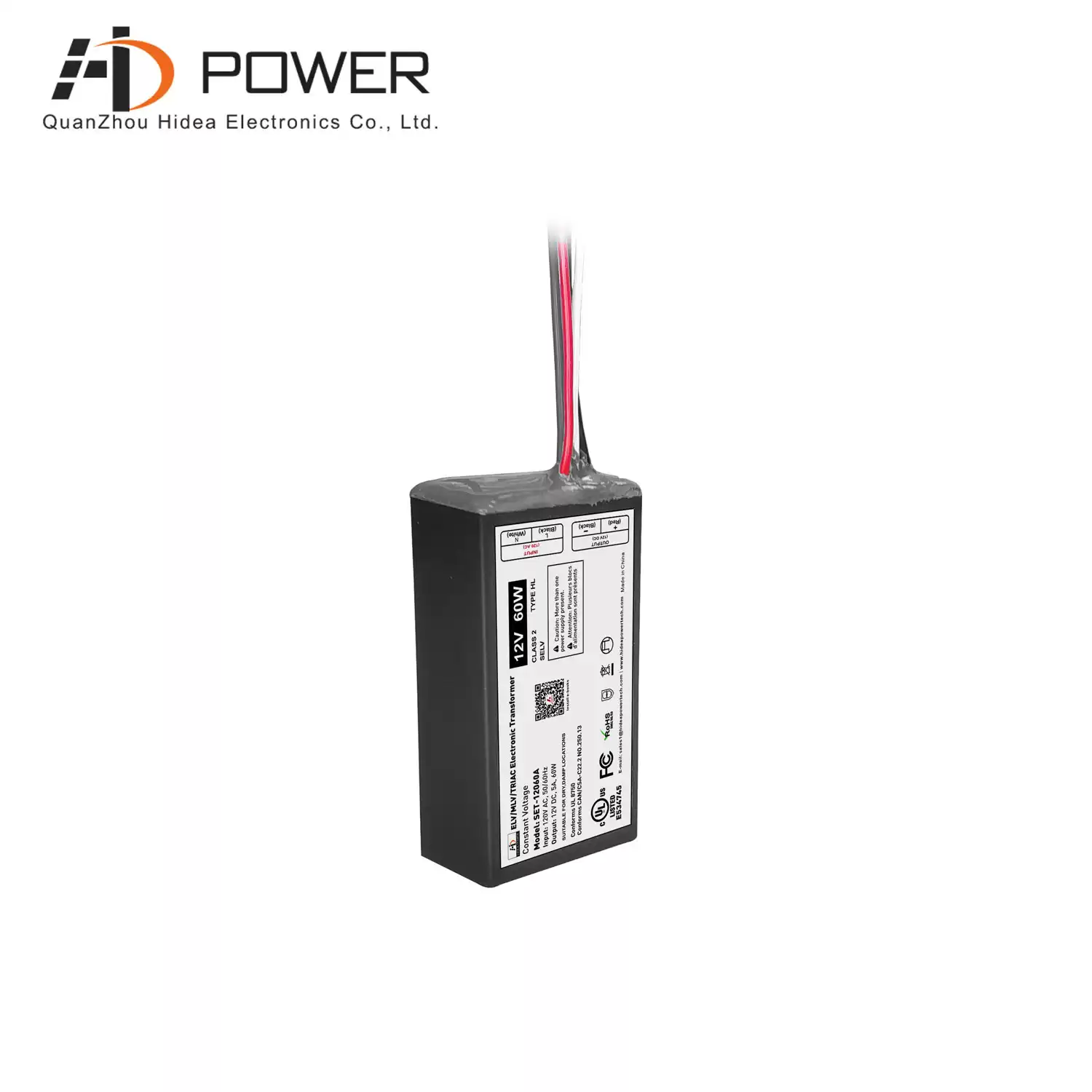

Class 2 12V/24V triac dimmable waterproof led power supply 12v 60w
Triac/ ELV/ MLV dimmable 60W led driver The dimming range is 0-100%, small size, ultra-low load requirements, can work perfectly under 20-100% load, constant voltage working mode, can provide stable voltage for the lamp
Specification
|
Model Number
|
SET-12060A
|
SET-24060A
|
|
Output Type
|
|
Reted Power
|
60W
|
60W
|
|
Reted Voltage
|
12V
|
24V
|
|
Reted Current
|
5A
|
2.50A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input Type
|
|
Voltage Range
|
120V
|
|
Frequency Range
|
47-63HZ
|
|
Efficiency(Typ.)
|
88%@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Power Factor(typ.)
|
0.98@120VAC
|
|
AC Current(Typ.)
|
0.58A
|
|
Inrush Current(Typ.)
|
-
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Safety standards
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
2.83x1.53x0.79 inch (L*W*H)
|
|
Packing
|
-
|
Related Products
|

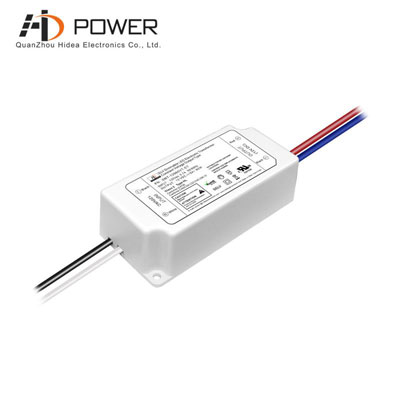

triac/ELV/MLV dimmable 60W led driver ip20 plastic case, output voltage 100-130vac, working mode is constant voltage
