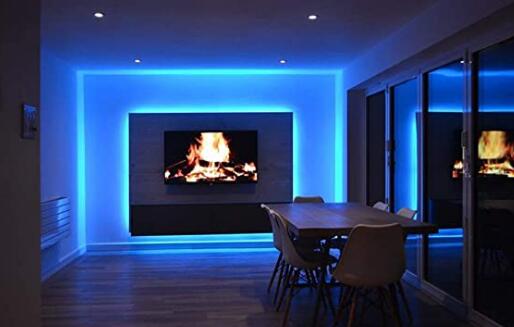

Great for under cabinet lighting, closets and any room needing led dimmable driver that extra ambiance, décor and mood lighting accent. Give basic home design a luxurious feel with MINGER single color strip lights. Perfect, reliable lighting component for any home remodels and renovations.
Specification
|

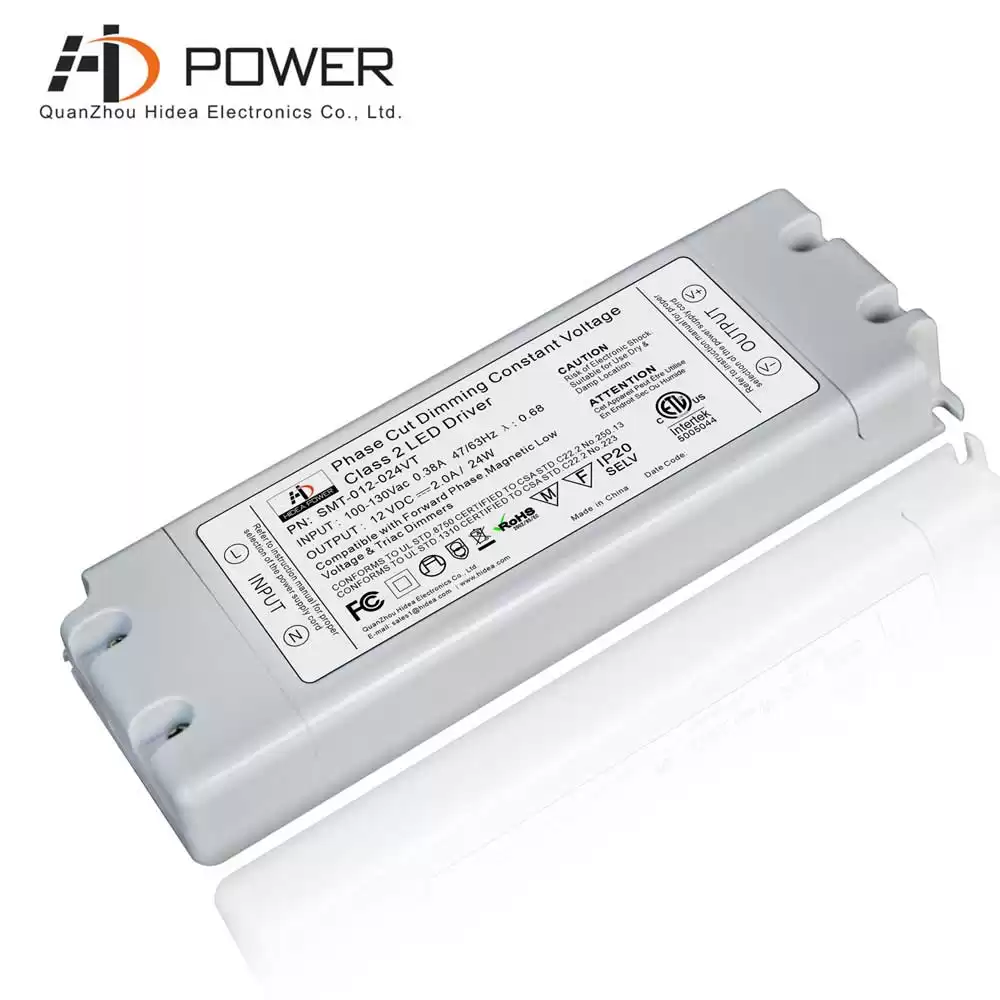

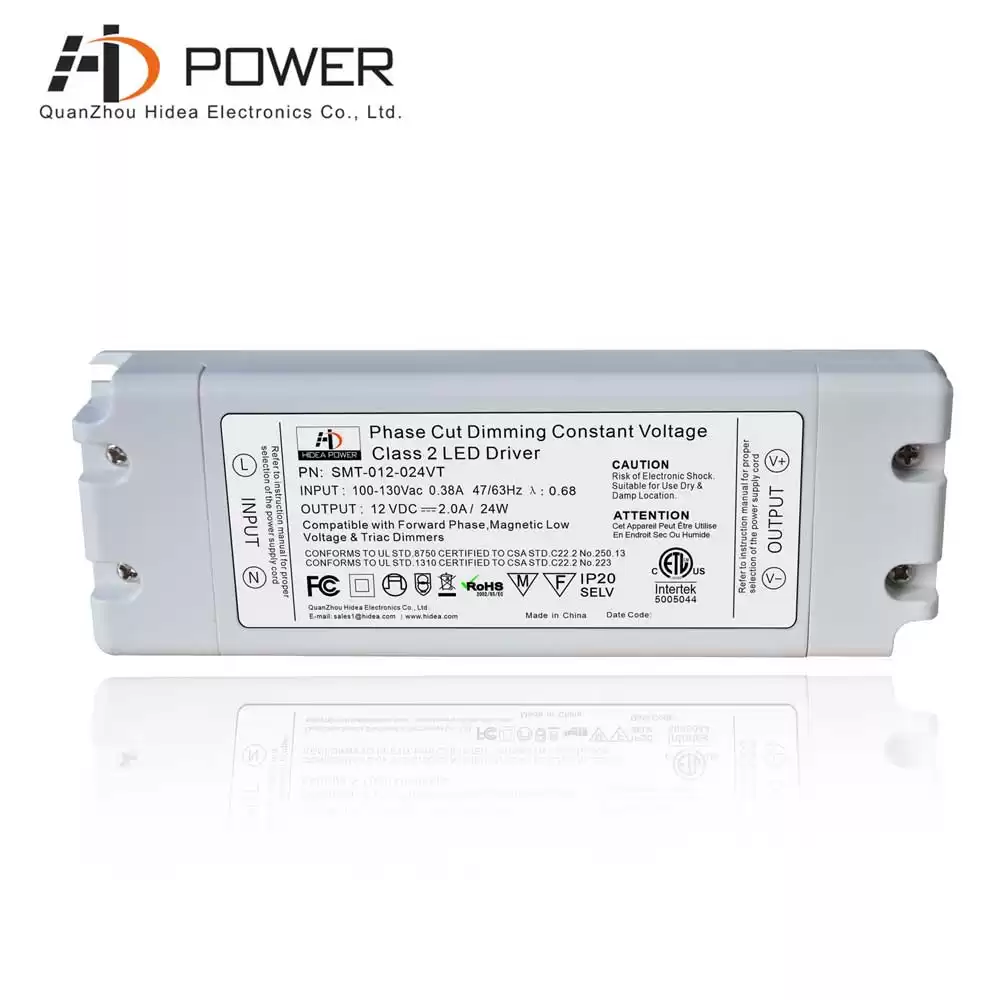

Model
|
SMT-012-024VT
|
SMT-024-024VT
|
|
output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
2.08A
|
1.04A
|
|
Rated power
|
24W
|
|
input
|
Voltage Range
|
100~130VAC / 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor (Typ.)
|
PF≥0.65
|
|
Efficiency(Typ.)
|
>81%
|
>84%
|
|
AC Current(Typ.)
|
0.9A
|
0.9A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
others
|
Net. Weight
|
0.68kg=0.21kg(driver)+0.47kg(J10)
|
073kg=0.21kg(driver)+0.52kg(J12-2)
|
|
Size
|
350*77*26mm(L*W*H)
|
350*77*37mm(L*W*H)
|
|
Packing
|
430*375*150mm 20PCS/CTN
|
430*375*190mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3. Loading should be 5-100%.
|
Compatible Light Type
Easy to installed Lepro 50ft strip lights: with back adhesive and flexible strip design, it can stick on any dry and flat surface. Using the 24 watt led power supply dimmable driver to meet dimming requirement.
Related Products
|
 Screw terminals allows for easy installs and complies to electrical codes. No minimum load requirements and 24 watt max, strip light drivers perfect to cover a complete room.

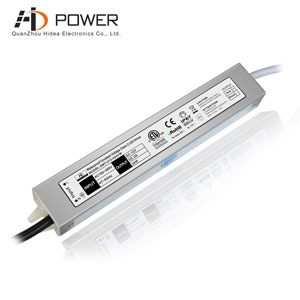

Mode：SMT-012-024VW
Dimming Mode : Non-Dimming
Output Power : 24W
intput voltage：100~265V AC
Size：182*29*20MM （L*W*H）
|
