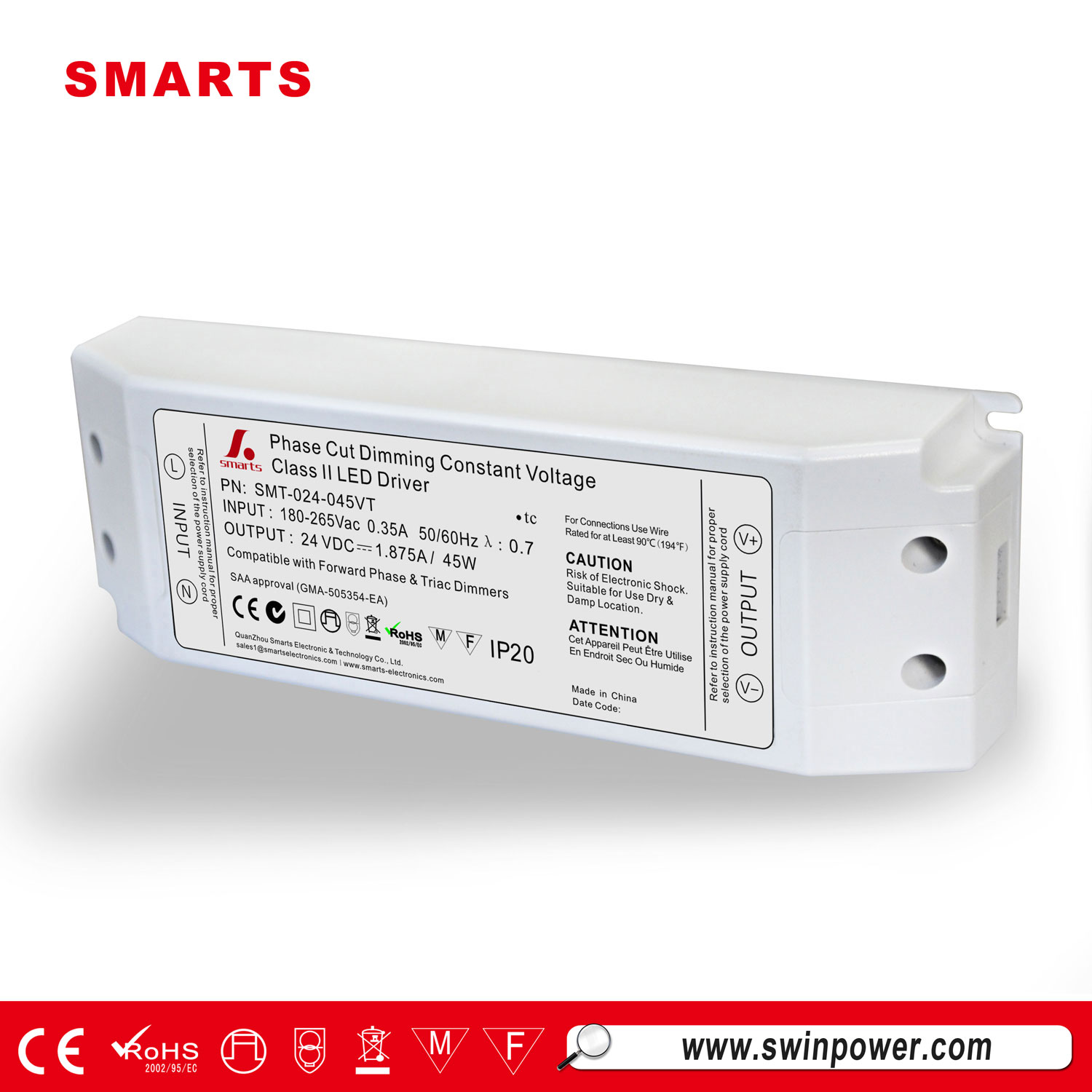

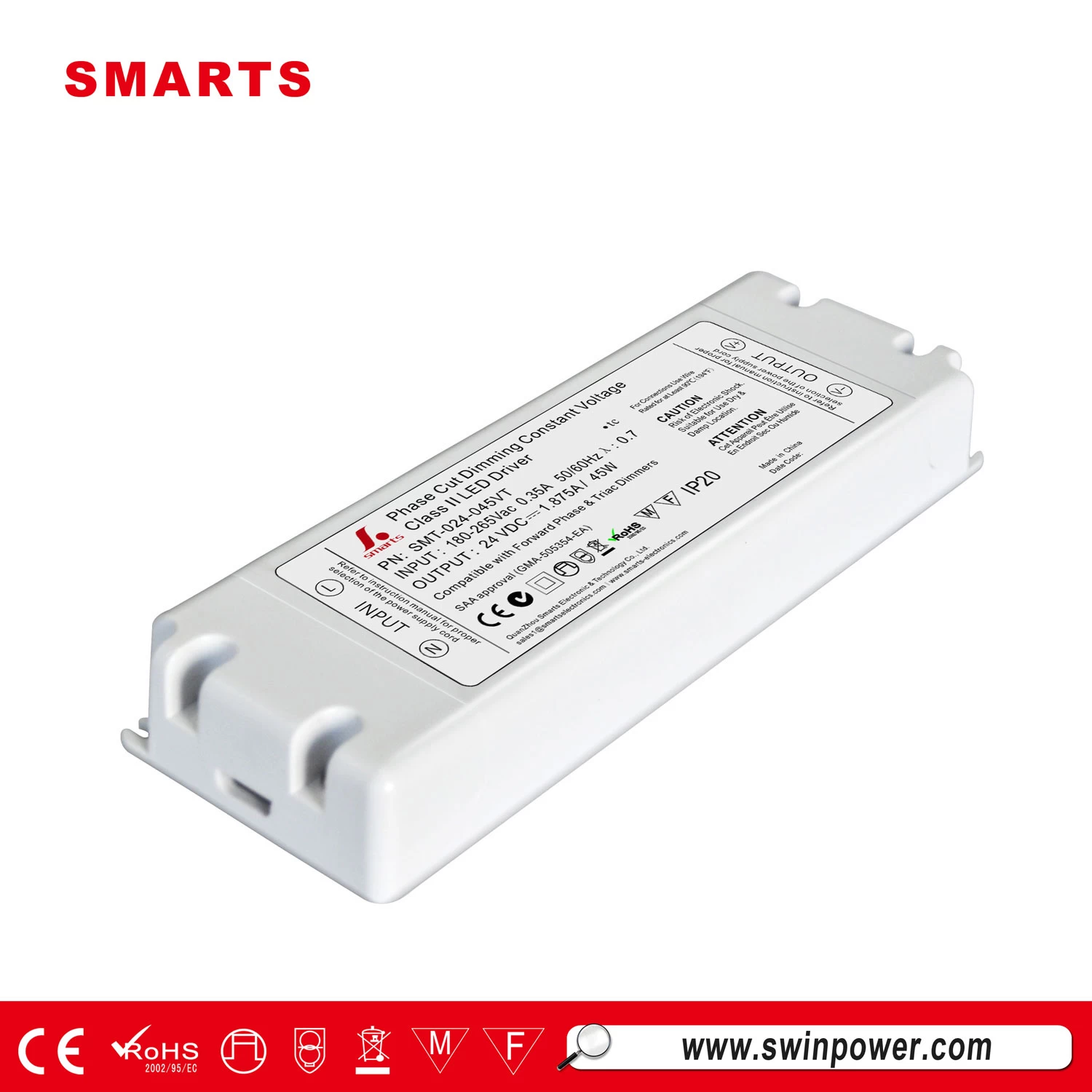

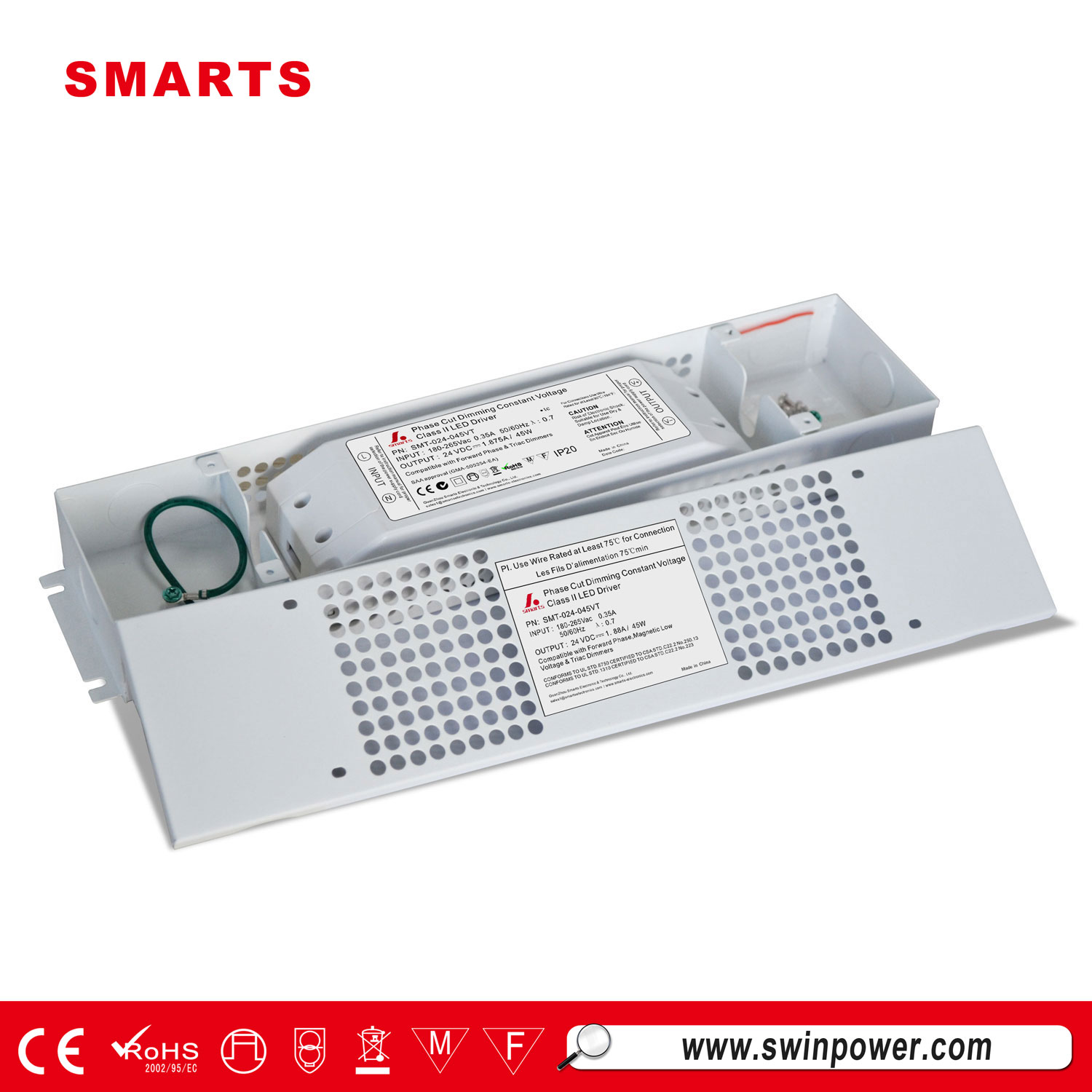

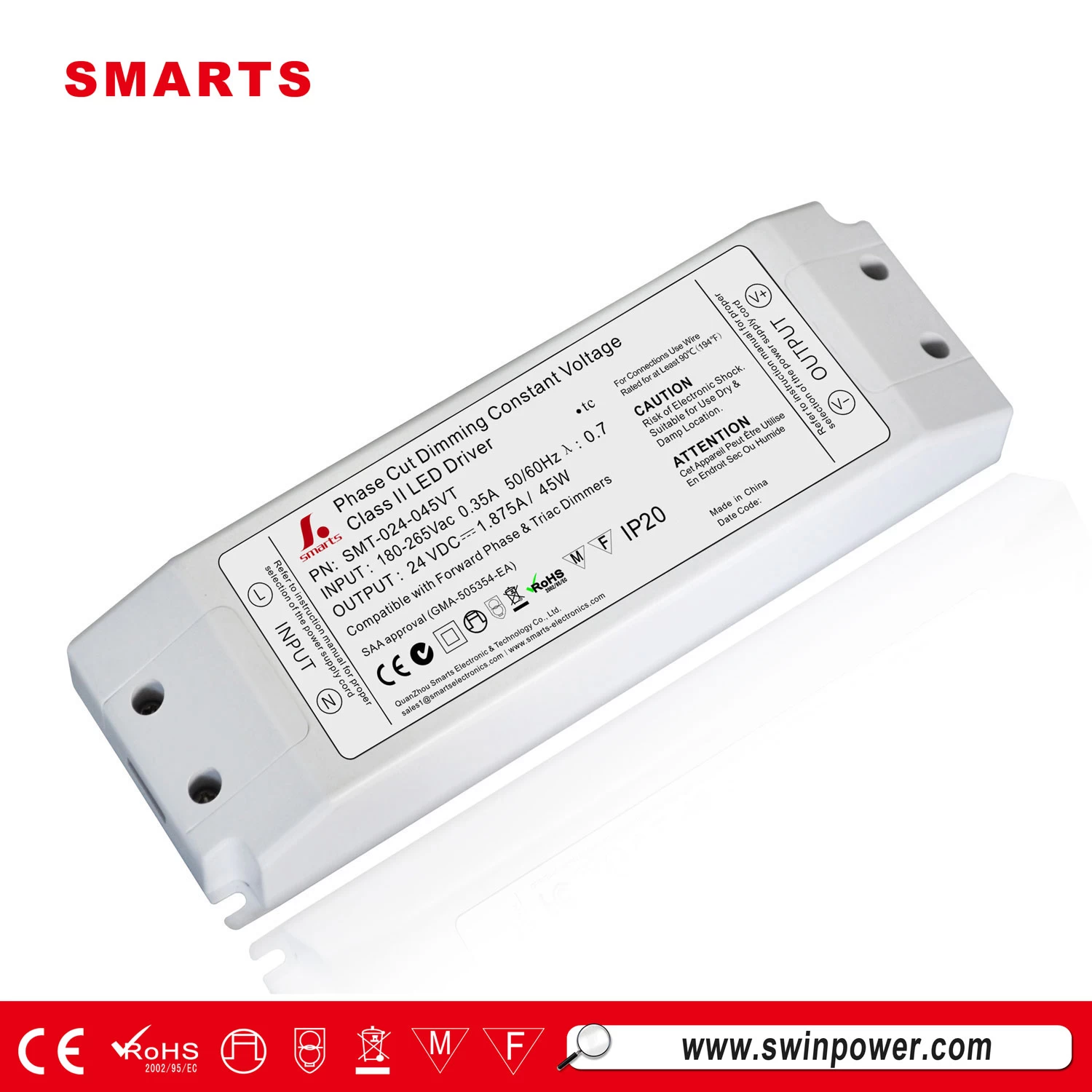

class 2 power supply 24v triac dimmable constant voltage led driver 45w
The led driver is triac dimmable constant voltage with class2 whose output power is 45watt. There are two types of output voltage: 12v, 24v. They all have saa certification and a five-year warranty.
Features：
·Output constant voltage
·range 180-265VAC
·Built-in PFC function / Efficiency> 83%
·Protections:short circuit/over voltage/over heat
·Fully isolated plastic case IP20
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·5 years warranty
Environment :
1.Working Temperature : -25 ~ +50°C
2.Working Humidity : 20 ~ 90% RH non-condensing
3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
