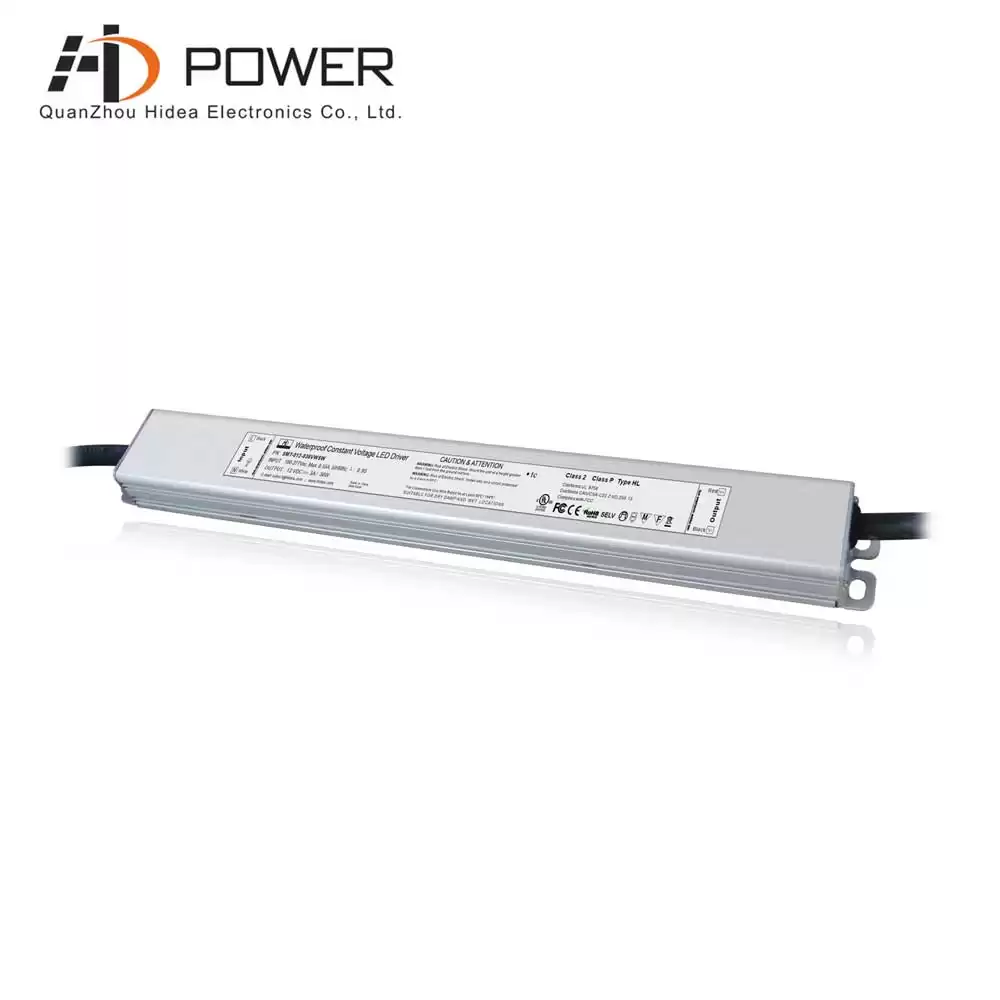

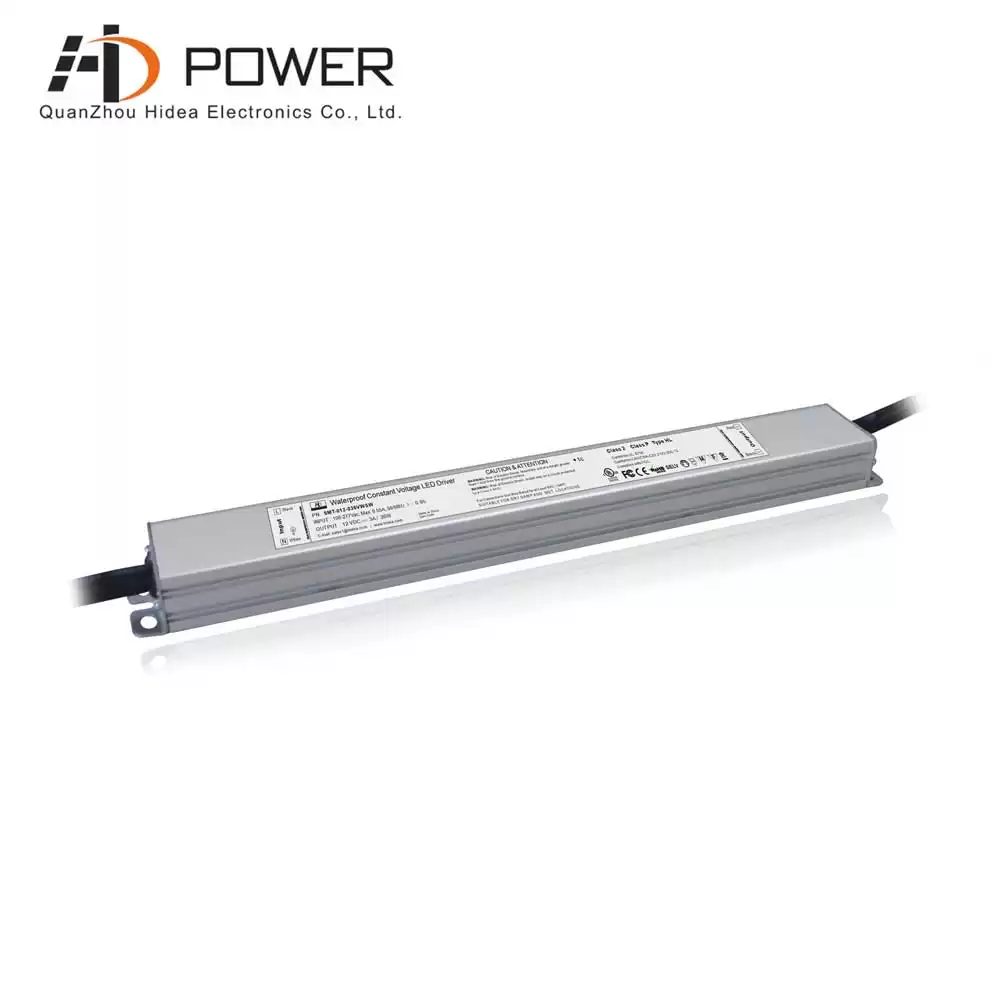

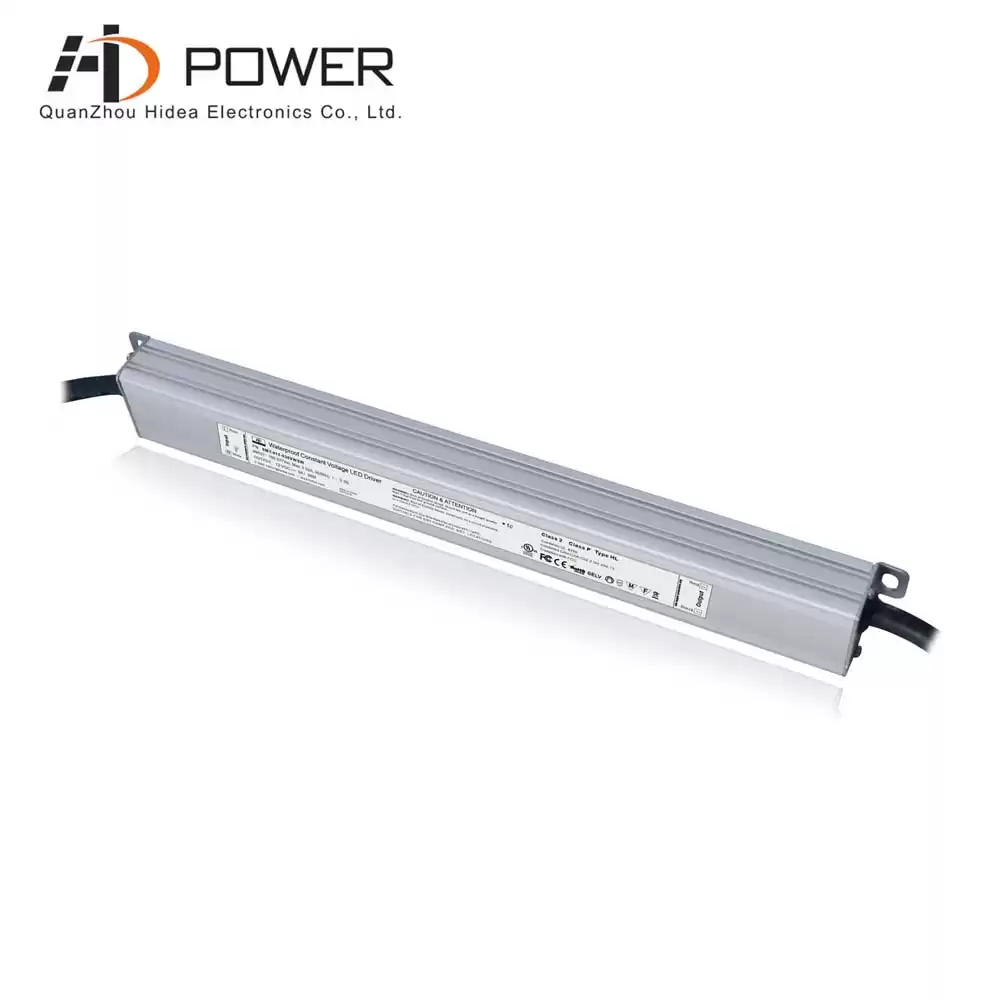

The 12v 24v led strip driver is full sealed with power cables 20mm in both side. The input range is 100-277VAC. This driver already get UL FCC CE ROHS approval which can be used all over the world.
Label
Specification
Model
|
SMT-012-036VWSW
|
SMT-024-036VWSW
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
Voltage Accuracy
|
±5%
|
±5%
|
Rated current
|
3.0Amp
|
1.5Amp
|
Rated power
|
36W
|
36W
|
Voltage Tolerance
|
±0.5V
|
Voltage Regulation
|
±0.5%
|
Load Regulation
|
±1%
|
Input
|
Voltage Range
|
100-277 VAC
|
Frequency Range
|
47~63HZ
|
Power Factor ( Typ.)
|
0.99@120VAC 0.97@230VAC 0.95@277VAC
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
Full Load Efficiency(Typ.)
|
82%@120VAC ; 83%@230VAC; 84%@ 277VAC
|
AC Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;
12A,50%480us@277VAC
|
Leakage current
|
<0.50mA
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
Environment
|
Working TEMP.
|
-40~+60℃
|
Working Humidity
|
20~90%RH,non-condensing
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
Others
|
Weight
|
0.35Kg
|
Size
|
260*32*20mm (L*W*H)
|
packing
|
50PCS/CTN
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The 12V 36W non dimming transformateur led driver are suitable for LED module, panel light, channel letter etc. We suggest this high quality drivers for constant voltage LEDs such as Ustellar LED strip light.
Related Products

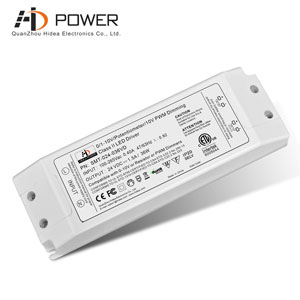

The driver led 0 10v 36W is pastic case for indoor applications. A wide input range 100-265Vac for worldwide using.
Mode:SMT-012-036VD
Dimming Mode : 0-10V Dimming
Output Power : 36W
intput voltage:100~265V AC
Size:180*60*35MM (L*W*H)
|
