Class D Amplifier PCB Manufacturing And Assembly

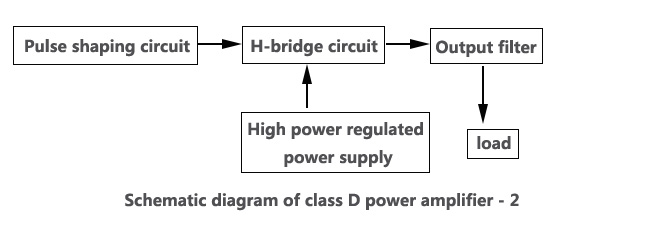

The working principle of Class D amplifier:
The working principle is similar to the switching power supply, and the asynchronous modulation method is used.

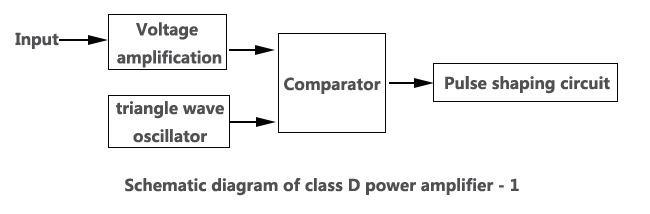

The input terminal is the analog signal and the triangular wave of the triangular pulse signal generator is modulated into pulse width modulation waveforms with unequal widths through the comparator.
Class D amplifier modulates the audio frequency below 20KHz into PWM signal, and the frequency of the triangle wave must reach at least 200KHz, after correction, output to the switch tube for voltage and current amplification.
The amplified high-frequency digital signal is passed through a high-quality low-loss low-pass filter to restore the high-power PWM signal to an audio power signal, thereby driving the speaker to complete the work of converting electrical energy into sound energy.
We have made 1 IR2092 Class D amplifier PCBA:
PCBA size 85*65mm, OSP, green oil, white character, BOM list is confidential.
The advantages of this amplifier are low cost, high power, high efficiency, no heat, and the power can reach 600 watts to 1000 watts.
Some people say work efficiency is 100%, we measure about 85% (of course, it is not the only criterion to measure the quality of amplifier).
Because of the above advantages, it is very popular in the entertainment industry.
Xianglong (Shenzhen) Electronic Technology Co., Ltd supports customized production of amplifier PCBA, whether it is Class A, Class B, Class AB, or Class D amplifier PCB/PCBA, we will strictly follow the ISO9001 quality management system to help you manufacture, if You have related needs and questions, don't hesitate to contact us immediately!
FAQ:
Q: What is the amplifier PCB assembly cost?
A: Please provide us your amplifier PCB gerber files and BOM list.
Q: What file formats do you accept for amplifier PCB assembly?
A: Gerber file：CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel(PDF, WORD, TXT)
Q: Are my the amplifier design files safe?
A: For your files are held in complete safety and security. We can sign NDA with customers. We protect the intellectual property for our customers are never shared with any third parties.
