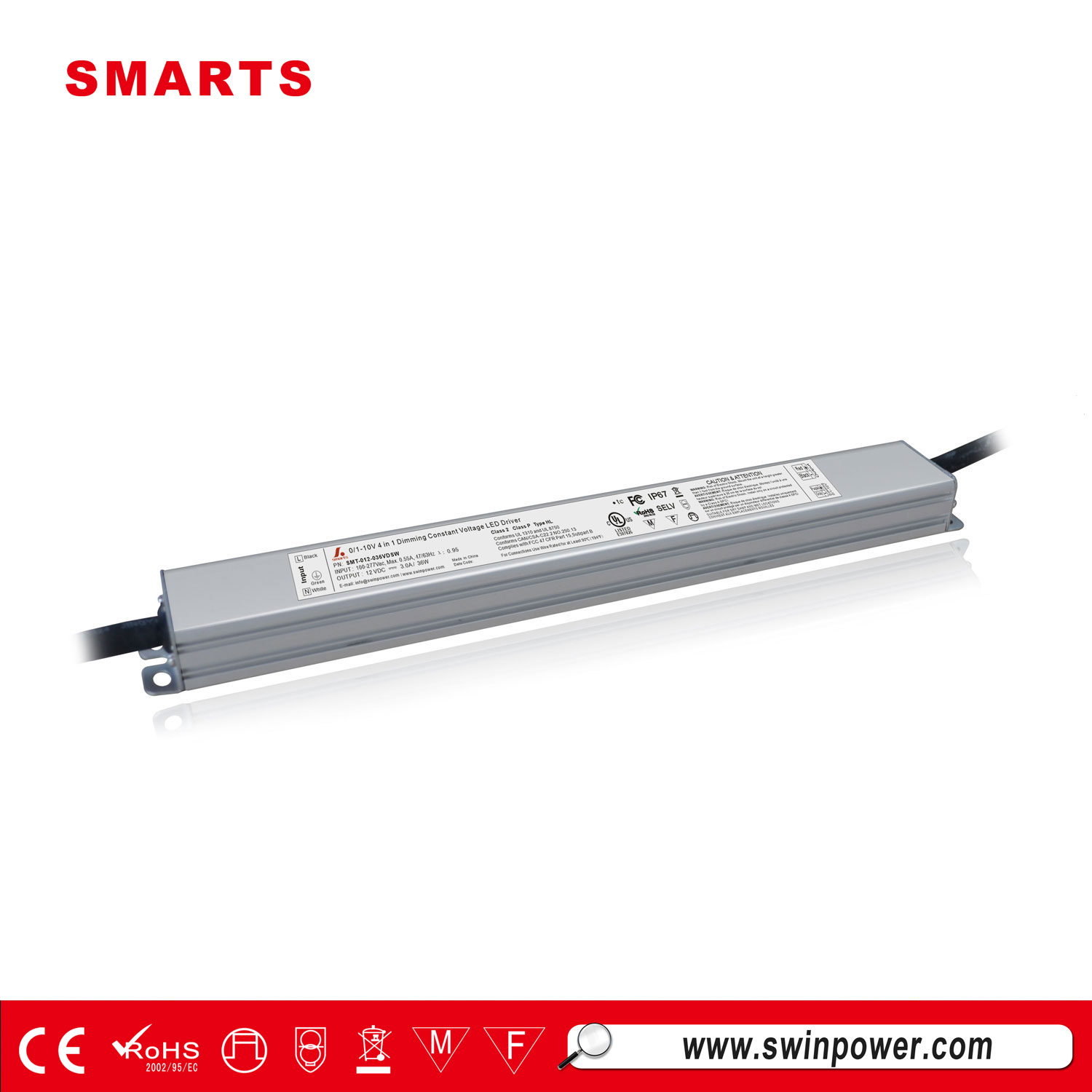

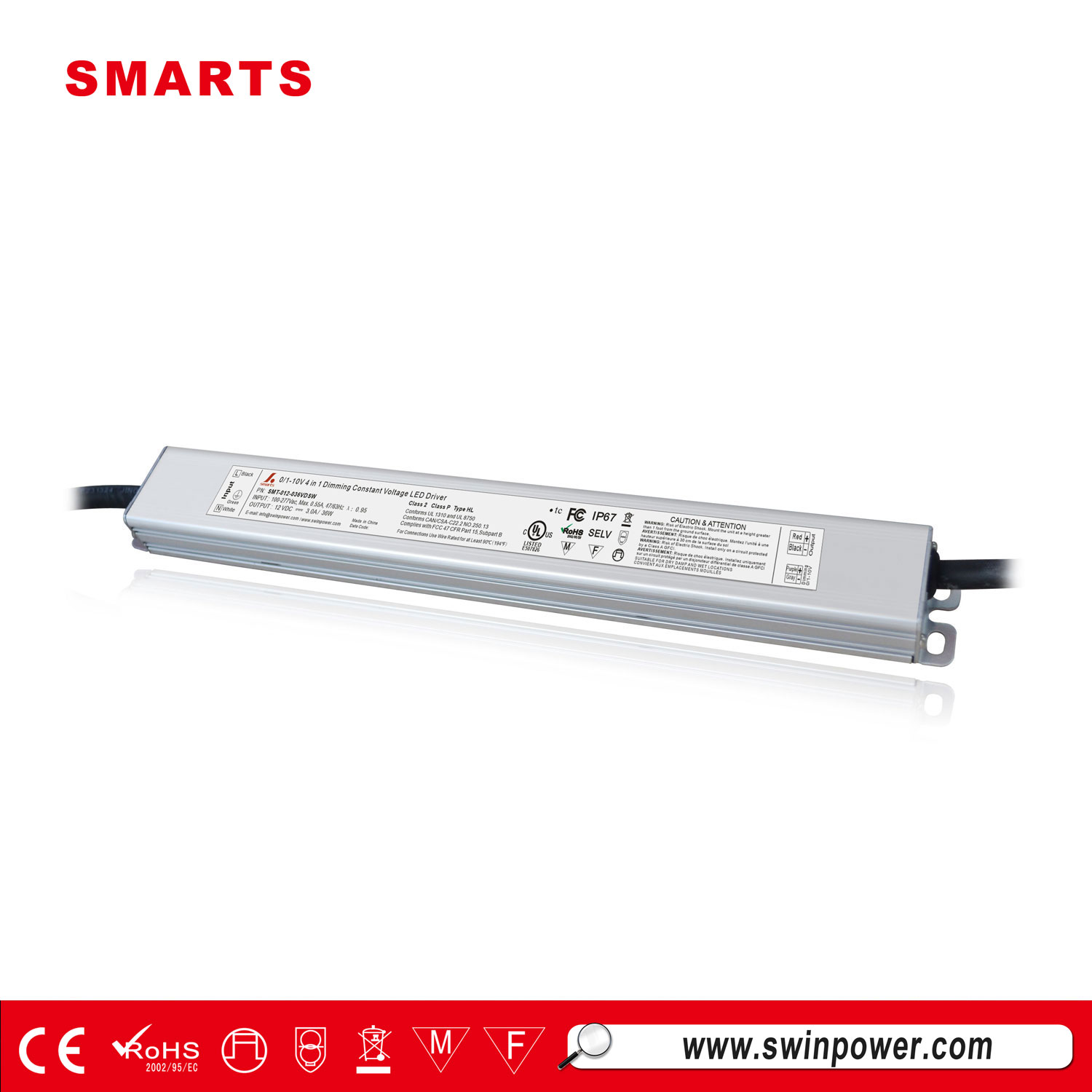

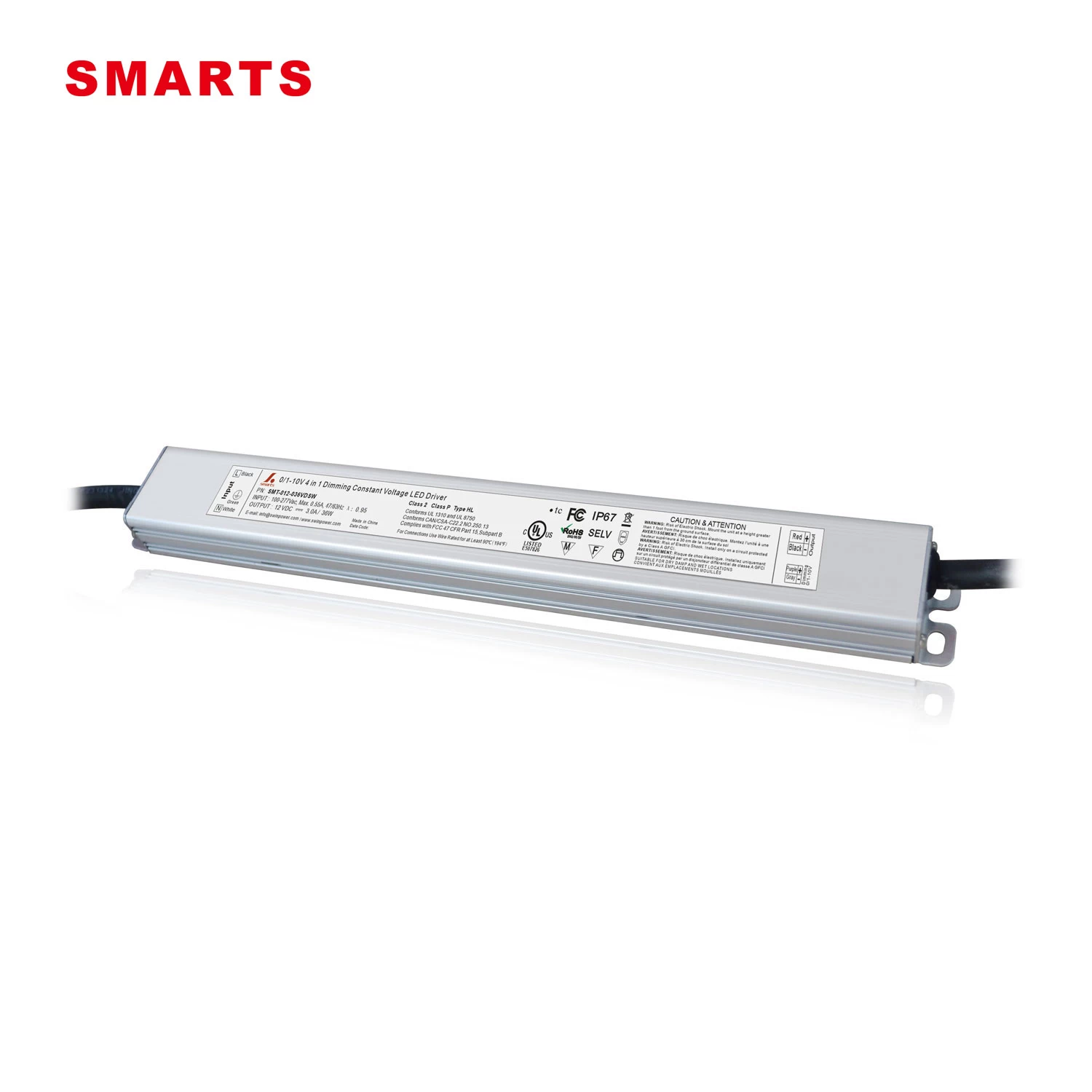

Class P led power supply 12v dc 36w 3a 277v led driver transformer for lighting
The high efficiency of 277v led driver transformer and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Feature
·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P standard approval
·Built-in PFC function / Efficiency > 85% / PF> 0.99
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry,wet or damp environment installations
·Cooling by free air convection
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model
|
SMT-012-036VDSW
|
SMT-024-036VDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency（Typ.）
|
85%@120VAC ,86%@277VAC
|
86%@120VAC, 87%@277VAC
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
AC Current（Typ.）
|
0.55A
|
|
Inrush Current（Typ.）
|
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
290*270*160mm, 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

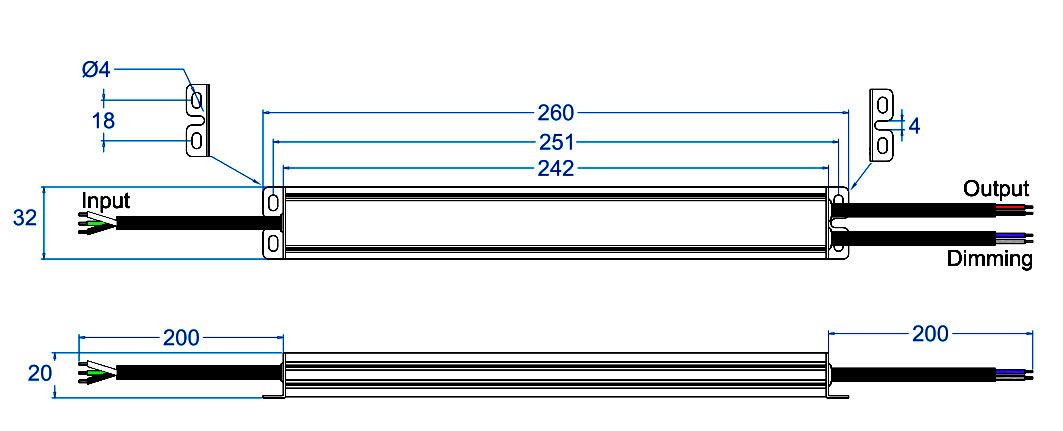

Mechanical Specification
Ø Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC
Ø Output cable 2*18AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Ø Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

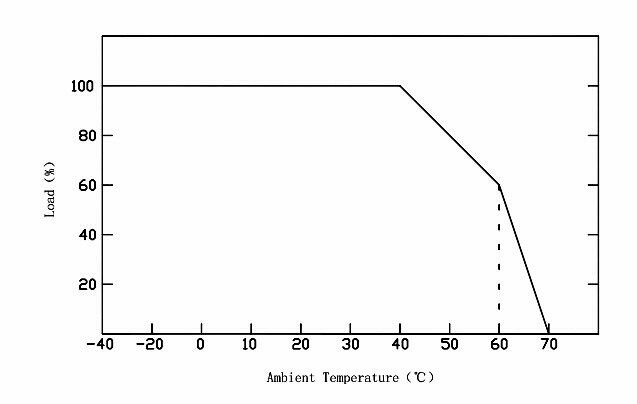

Derating Curve

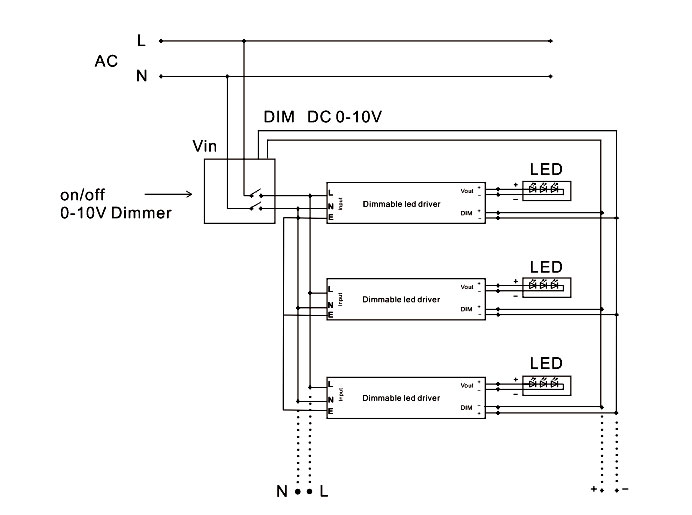

Connecting Diagram
