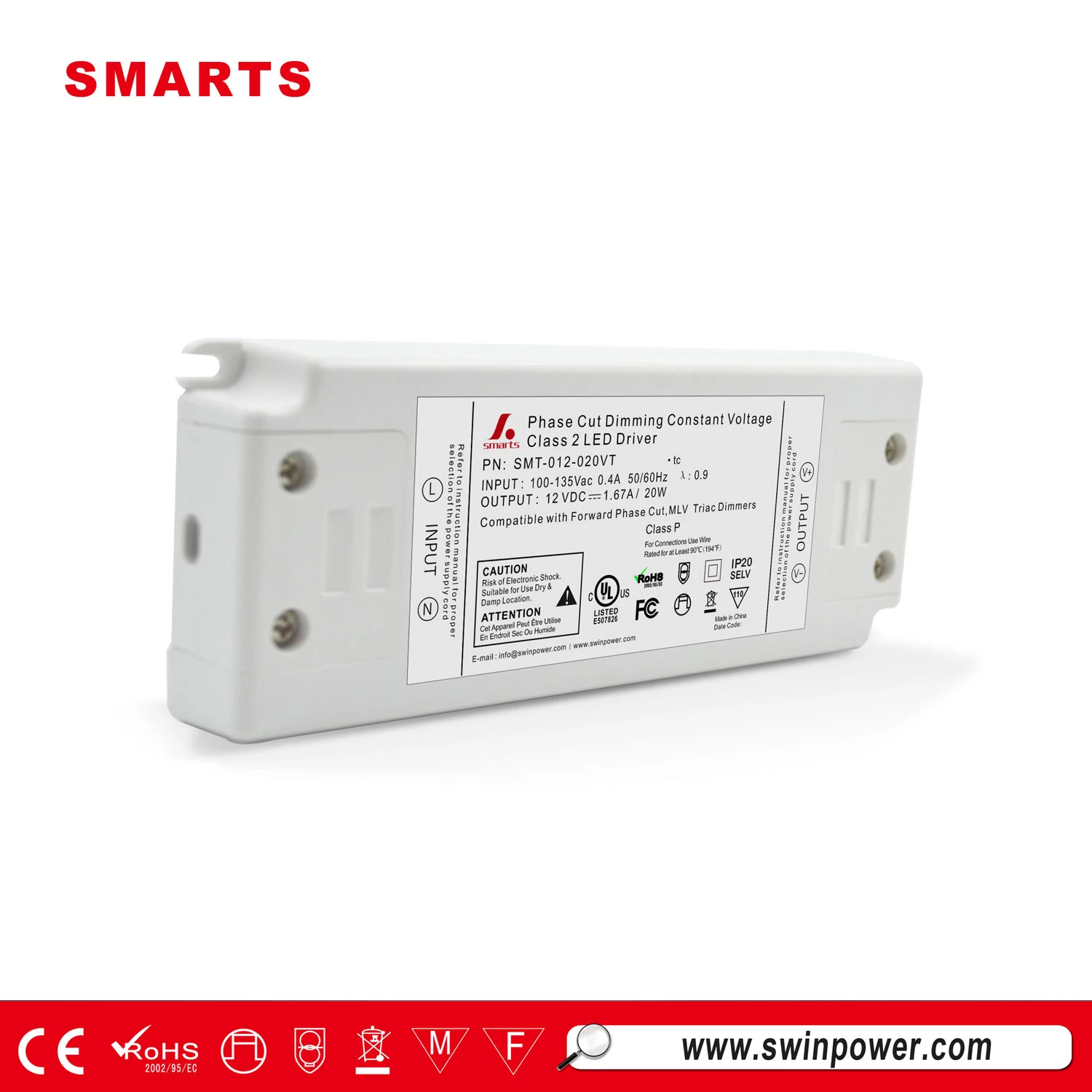

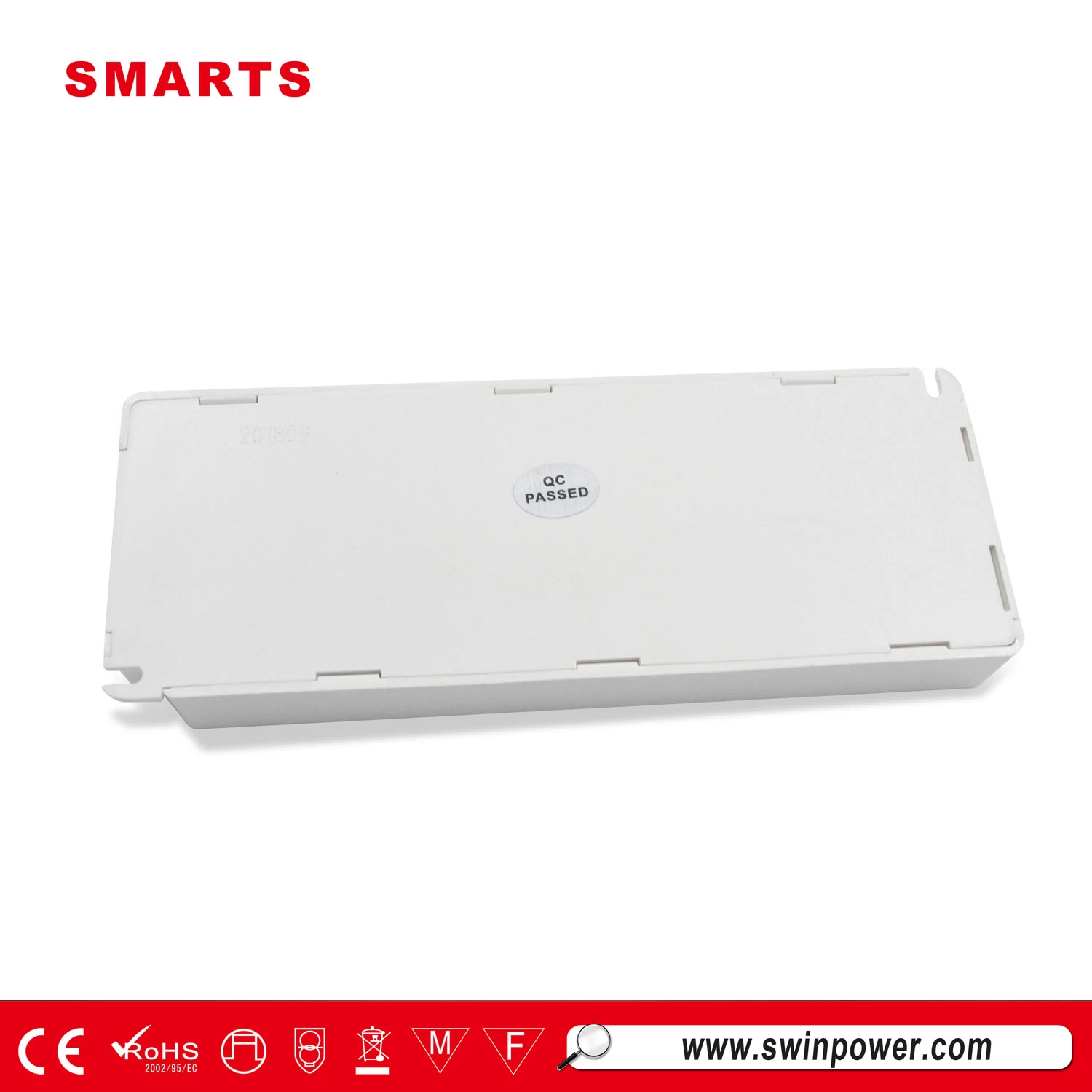

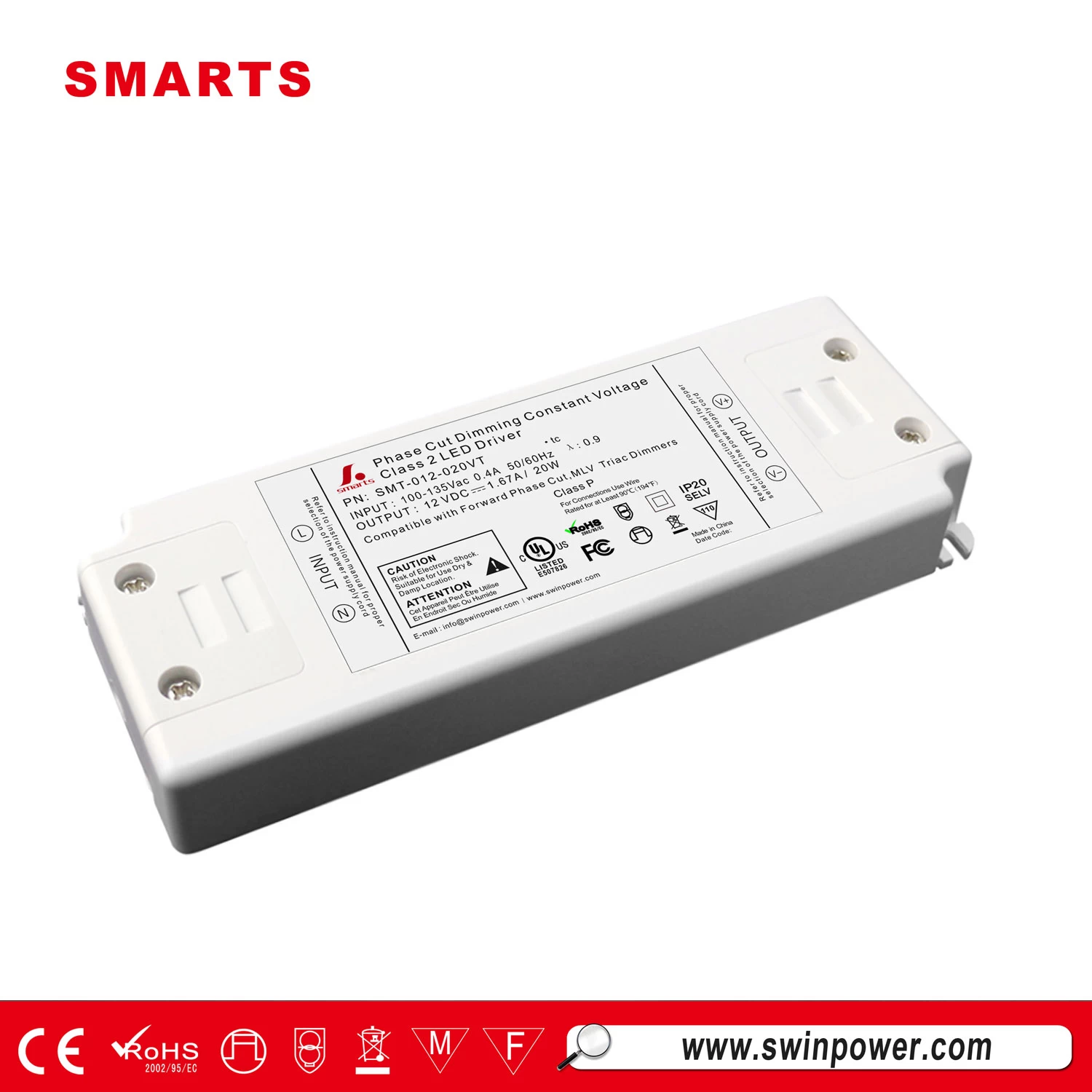

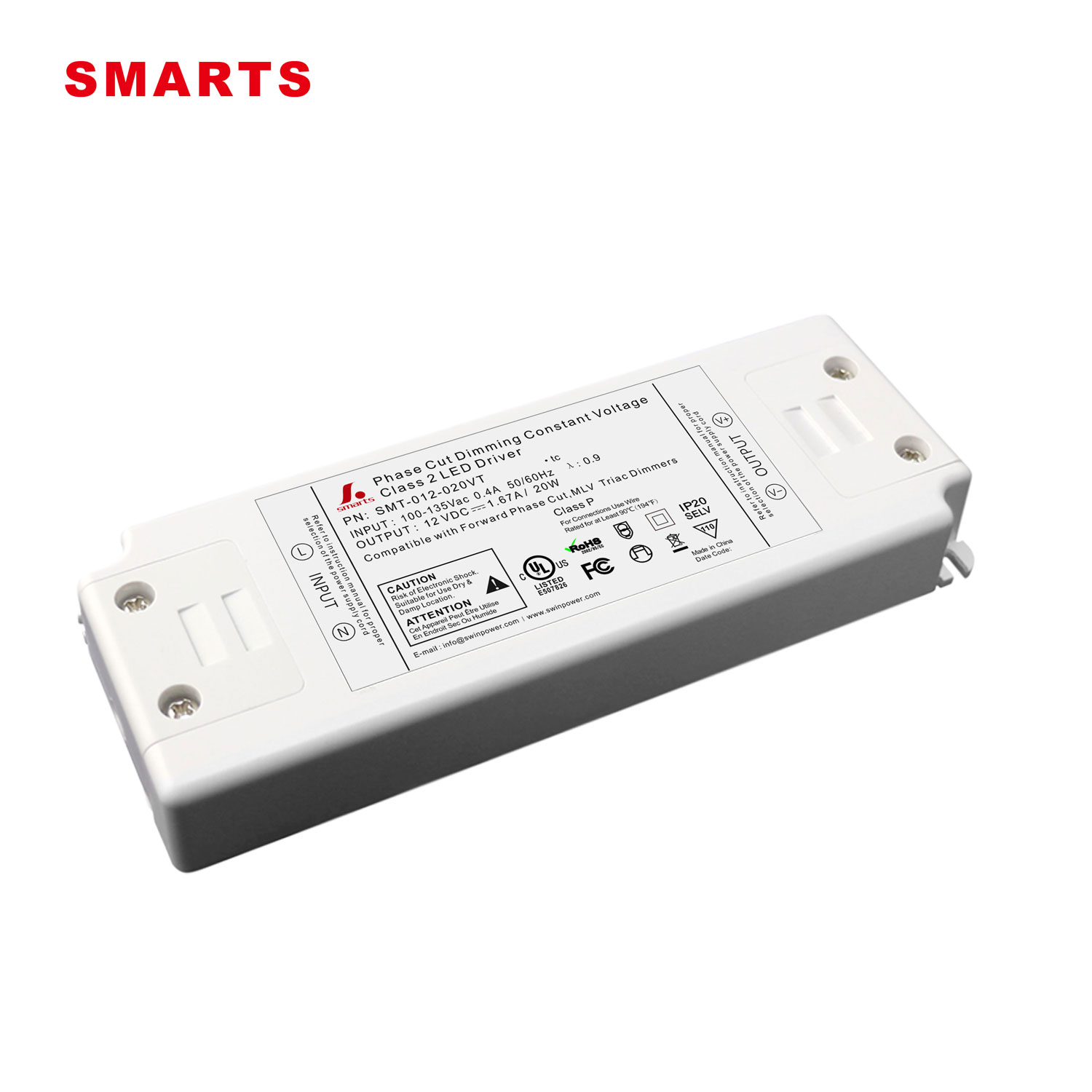

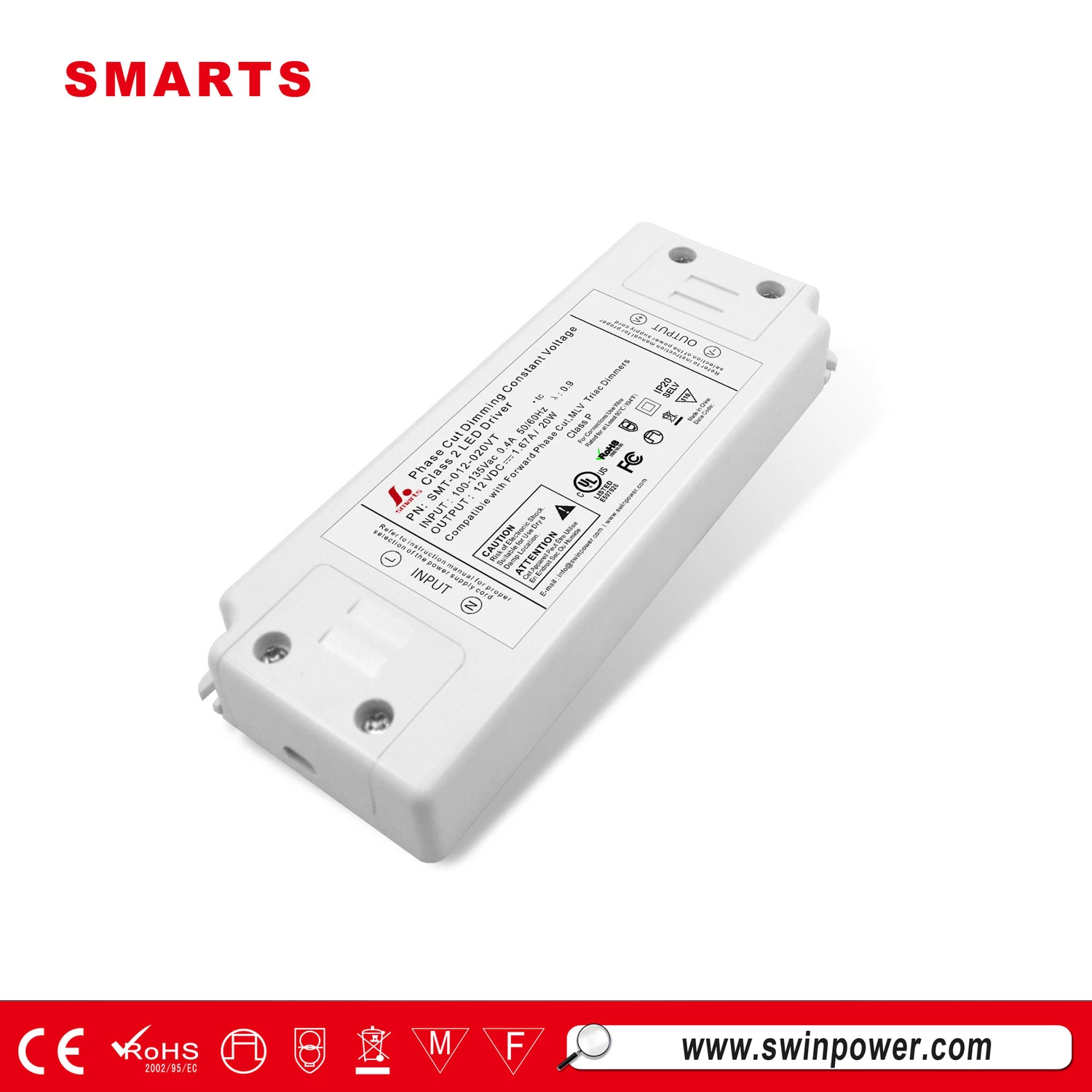

Class2 power supply 12v 20w triac dimmable led driver with UL CE ROHS FCC approval

Class2 power supply 12v 20w triac dimmable led driver are our UL list triac dimmable constant voltage led driver



  • Size140*45*28mm
  • Dimming modeTriac Dimmable
  • Working Modeconstant voltage
  • Output Current20w
  • Output Voltage12v
  • Input Voltage100~265V
  • CertificationUL CE ROHS

Class2 power supply 12v 20w triac dimmable led driver with UL CE ROHS FCC approval


vt1.0 series are UL CE ROHS FCC approval, this series are devide 2 parts,12v triac dimmable constant voltage led driver & 24v triac dimmable constant voltage led driver.


Product Spec.


Model

SMT-012-020VT

SMT-024-020VT

Output DC Voltage 12V 24V
Rated current 1.67A 0.83A
Rated Power 20W 20W
Input Voltage Range

100~130VAC / 170~265VAC

100~130VAC / 170~265VAC
Frequency Range

47~63HZ

47~63HZ

Power Factor

PF≥0.80

PF≥0.80

Efficiency

>84%

>84%

AC current

0.34A@120VAC, 0.18A@220VAC

0.34A@120VAC, 0.18A@220VAC

Leakage current

less than 0.70mA/110VAC  / less than0.5mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Current

1.2*I out

Over Loading

≤120%

Over temperature



100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic



Environment

Working temp.



-40~+60℃

Working humidity





20~90%RH, non-condensing



Storage TEMP. Humidity



-40~+80℃,10~95%RH



TEMP .coefficient



±0.03%/℃(0~50℃)



Vibration



10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards



UL8750+UL1310



Withstand voltage



I/P-O/P:1500KVAC



Isolation resistance



I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION



FCC Part 15 B

other information Warranty 3 years
Case material plastic
Cetificate CE/ROHS/FCC/UL
Waterproof rate IP 20

tria dimmable led driver 12v 20w


FAQ



Q1.    What's the trade terms you can do??

A1:    We accept EXW(Optional)

Q2.    What's shipping mode can we choose?
A2:    Express, Ocean and air transportation (optional).

Q3.    What's the MOQ?
A3:    Our MOQ is 10pcs. better price for large quantity;

Q4.    What can you do if the product is broken?
A4:    We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5.    Can i get products with my own logo??
A5:    Sure, you can, MOQ is 500pcs.



Q6.    Can i get a sample for testing??
A6:    Sure, but sample fees should be charged on your account.

Q7.    What's the mormal lead time??
A7:    7 working days for samples, 15 working days for mass production.

Q8.    What's the payment conditon?
A8:    All are paid before production or 30% deposit and 70% before delivery (optional)

Q9.    What's the Payment do you have?
A9:    We accept payment be sent via T/T, L/C,  Trade Assurance, WESTERN UNION, PAYPAL.
