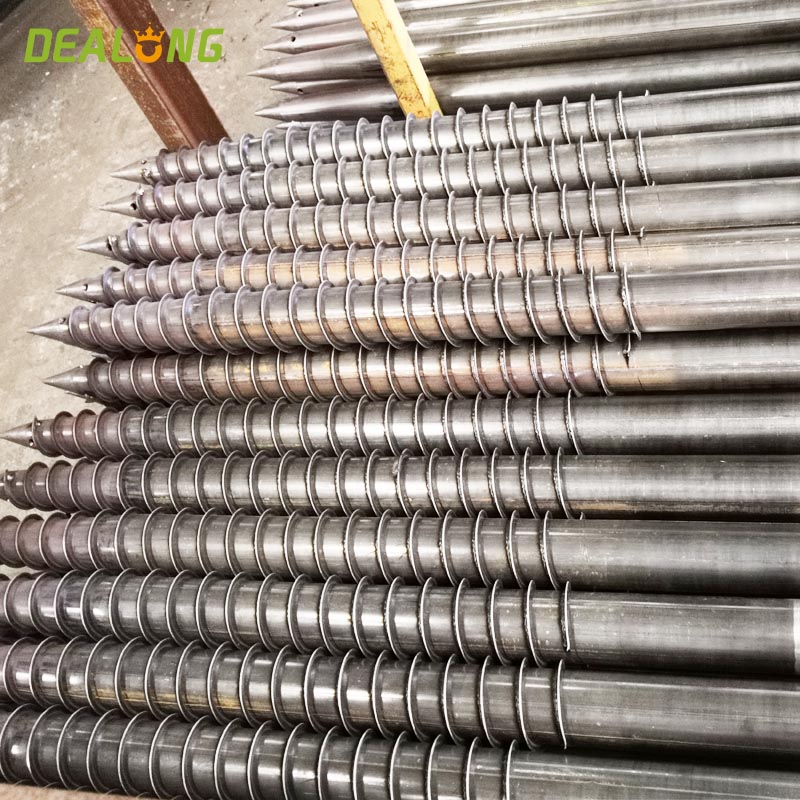

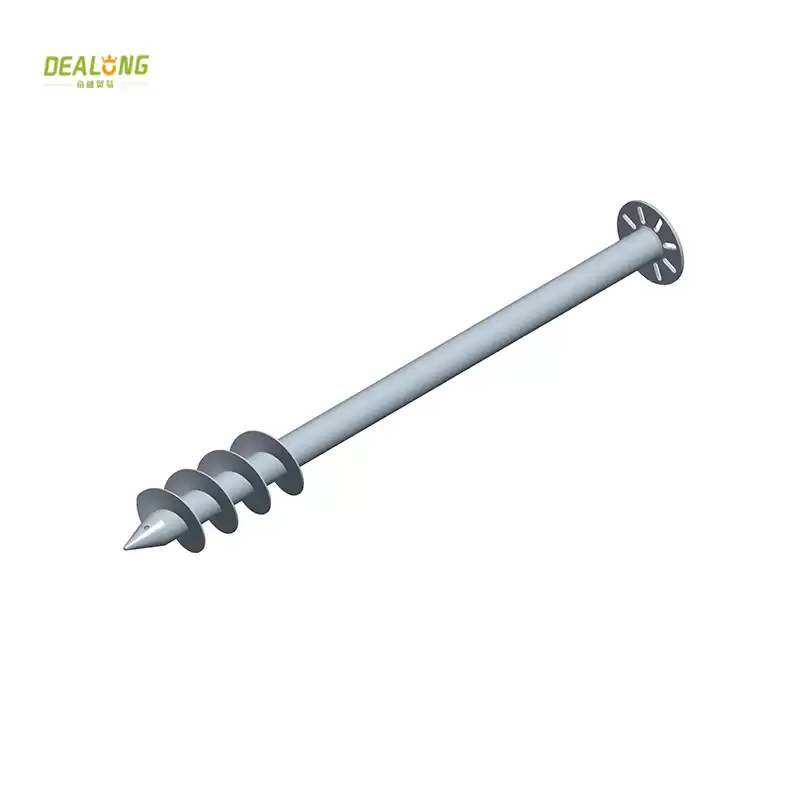

Clayey Soils Ground Screw Piles

Ground screw load capability

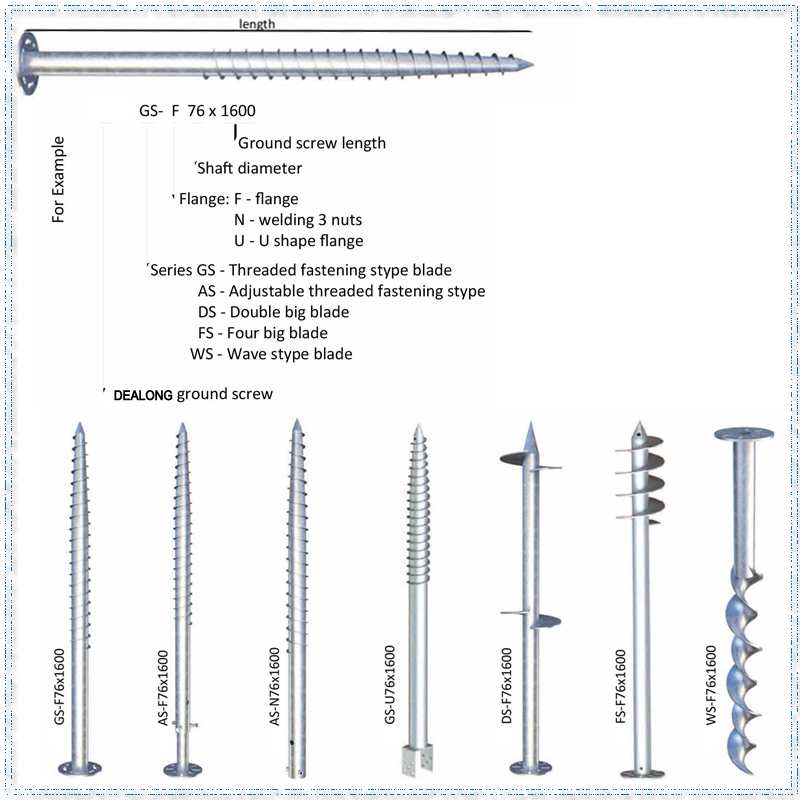

Item No.

Dia. of tube(mm)

Dia. of flange(mm)

Thickness of tube(mm)

200mm ground of flange  Compression & pulling force(kn)

Clay soil N value

Sandy soil N value

3

5

10

3

5

10

DL-F76-1600-T3

76

200

3

10.13

16.91

33.82

23.46

33.46

58.46

DL-F76-1800-T3

76

200

3

11.58

19.33

38.66

24.66

34.66

59.66

DL-F76-2000-T3

76

200

3

13.03

21.74

43.49

25.87

35.87

60.87

DL-22F76-1600-T3

76

200

3

10.13

16.91

33.82

23.46

33.46

58.46

DL-22F76-1800-T3

76

200

3

11.58

19.33

38.66

24.66

34.66

59.66

DL-22F76-2000-T3

76

200

3

13.03

21.74

43.49

25.87

35.87

60.87

Notes: The value of the ground screw is the experimental value.
             Installation condition change,the data of ground screw change.
