Introduction detail:

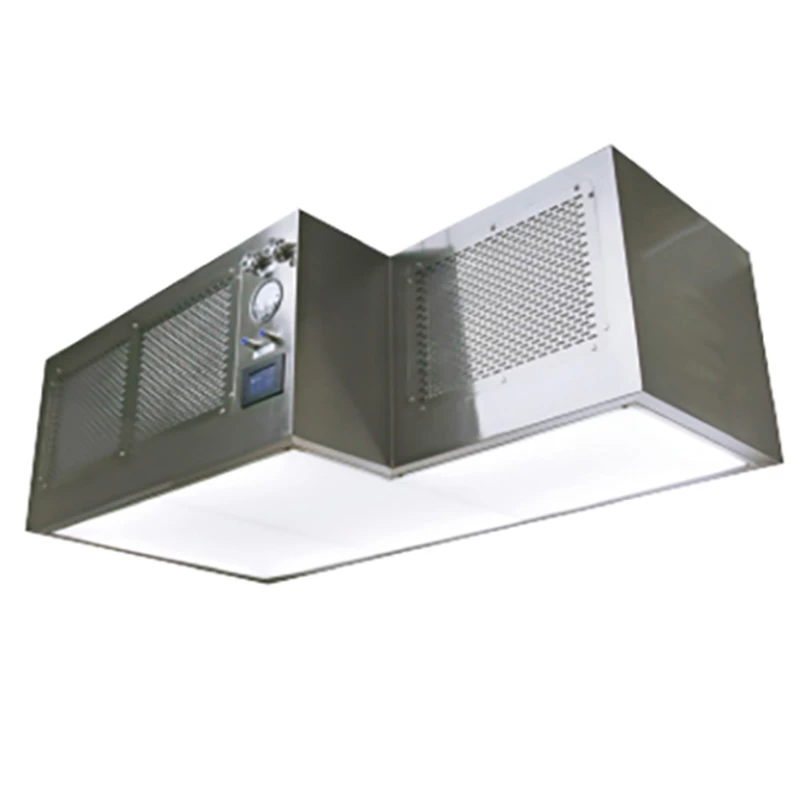

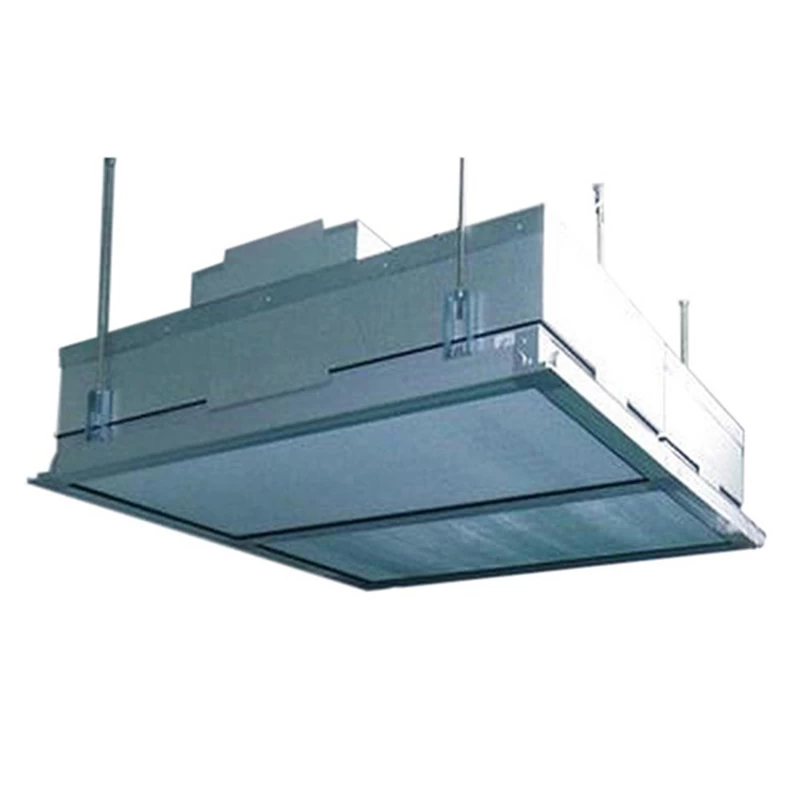

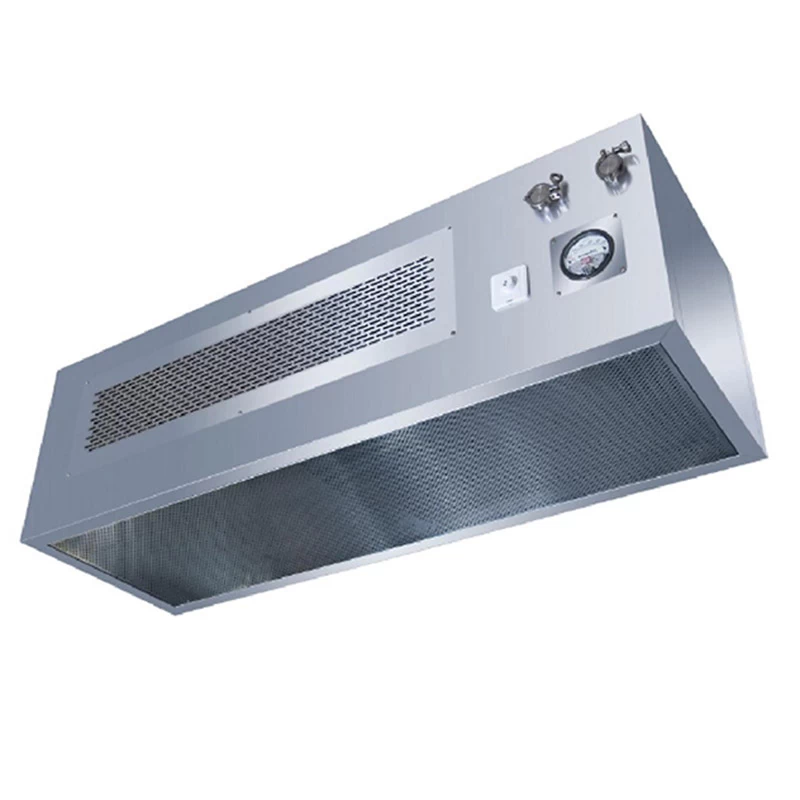

Purified laminar flow cover is an air purification unit that provides a local clean environment. It can be flexibly installed above the process point where high cleanliness is required. It can be used alone or in combination to form a strip-shaped clean area.Purified laminar flow cover passes the air through a high-efficiency filter at a certain wind speed to form a uniform flow layer, so that the clean air is vertically unidirectional, thereby ensuring the cleanliness of the process area.
Features:
●The cabinet is made of high quality SUS304 stainless steel, which is easy to clean;
● Top air supply, high efficiency filter efficiency ≥99.99%@0.3um, the operating area purification level is higher than the room cleanliness;
● The inverter adjusts the wind speed ; the button controls the lighting and power.
|
Technical reference
|
|
Material
|
Stainless steel panel
|
|
Features
|
Hanging type landing support type
|
|
Applications
|
Precision Machinery, Electronics, Pharmaceuticals, Food, Fine Chemicals
Usage, purification
|
|
Usage
|
purification
|
|
Average wind speed
|
0.25-0.45m/s (adjustable)
|
|
Noise
|
≤62dB(A)
|
|
Power supply
|
220V 50HZ
|
|
Certification
|
ISO9001:2008; SGS
|
