Introduction detail:

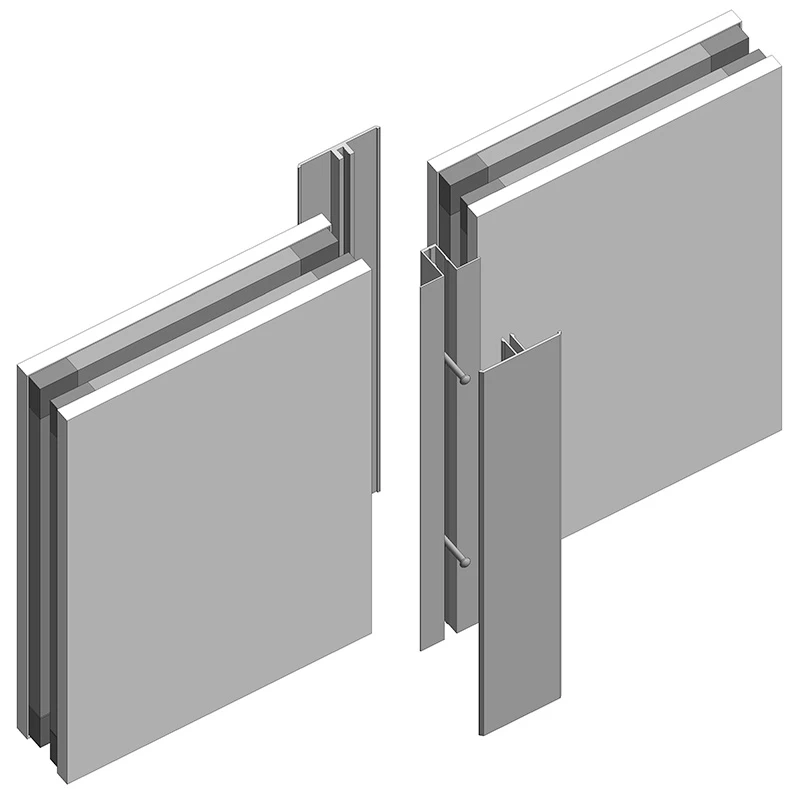

The connecting components between the individual panel units of the demountable wall are clamped by front and rear and fixed by screws. When the equipment enters or moves out, only the gusset plate needs to be removed. Unscrew the screw to completely remove the aluminum profile connected to the plate, and then remove the panel. When needs to be installed back to the original position, it only needs to be Step by step installation is completed in the reverse order of removal.

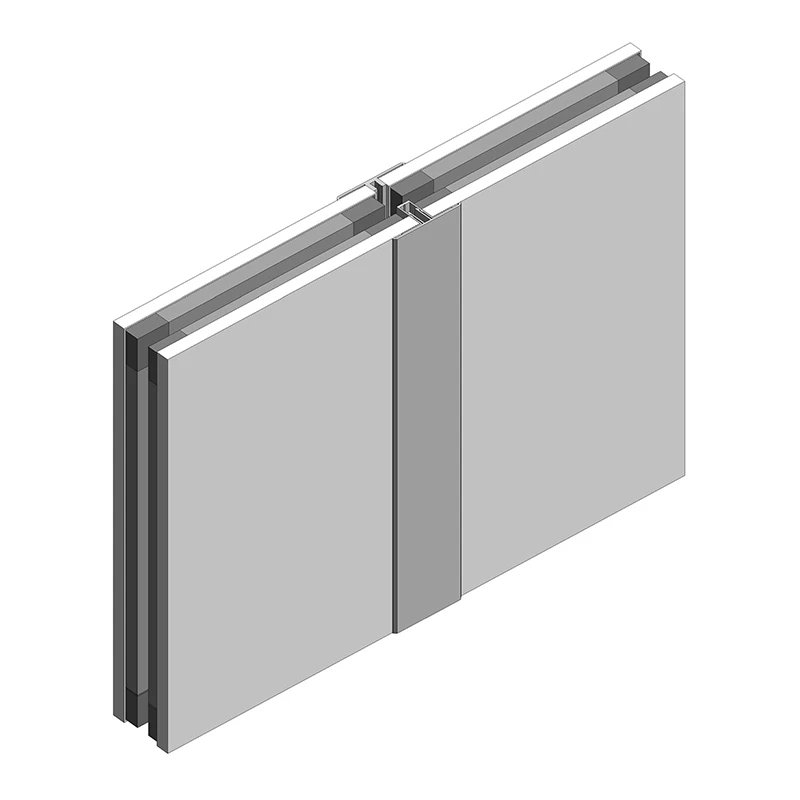

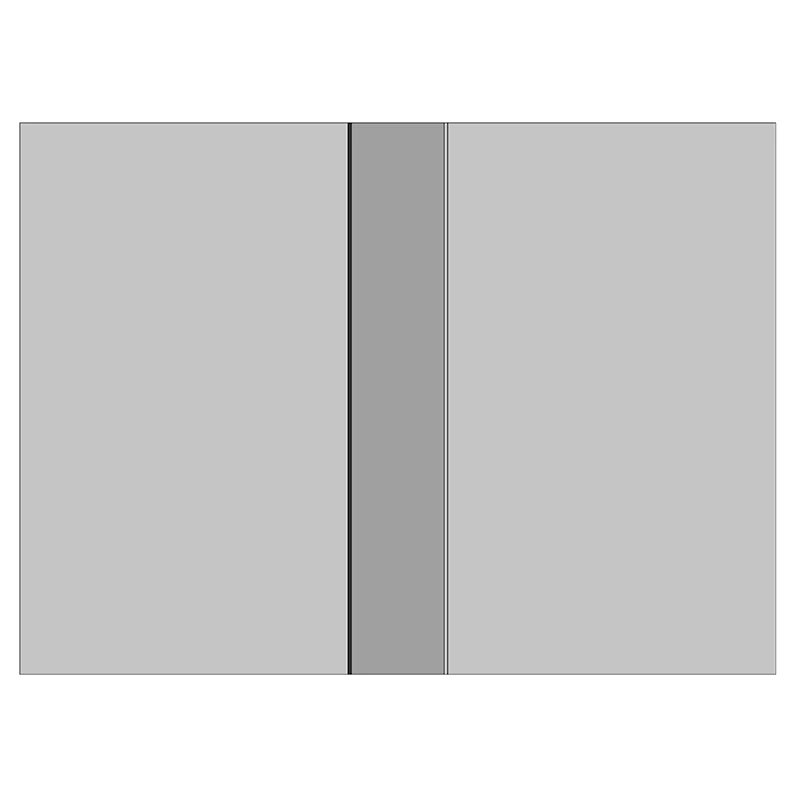

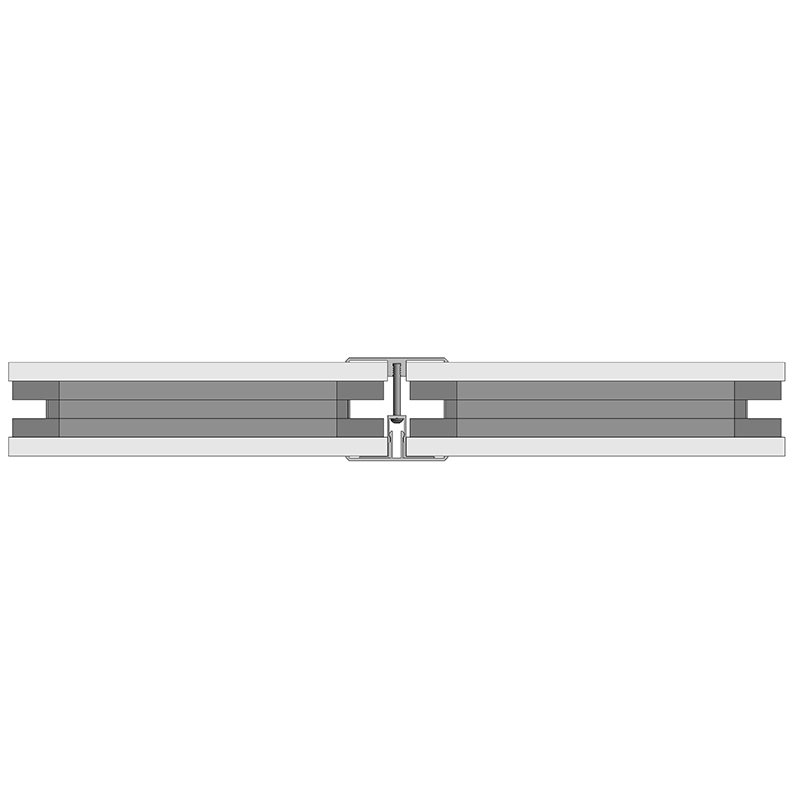

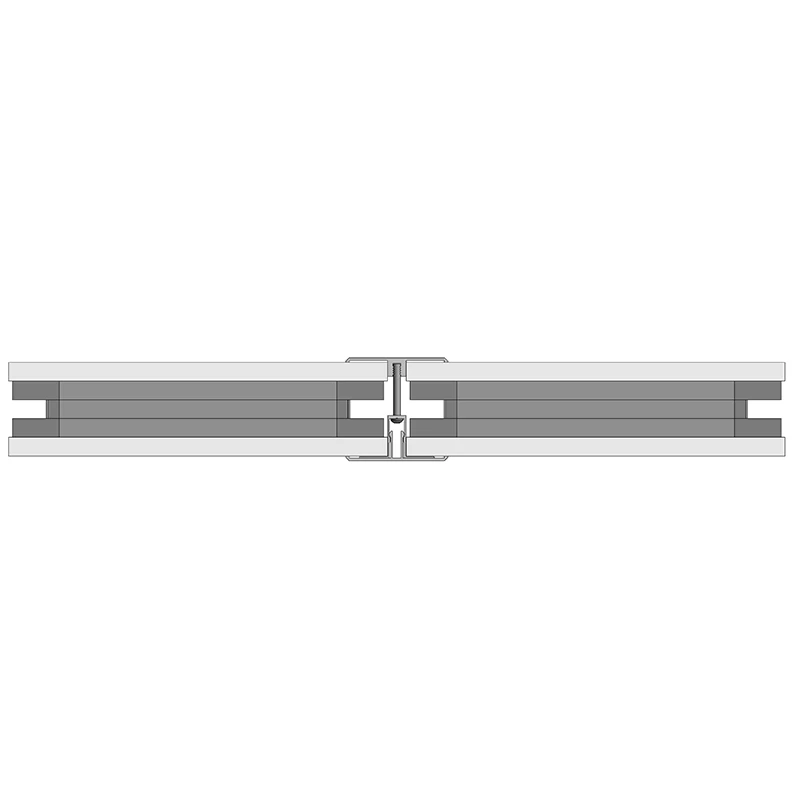

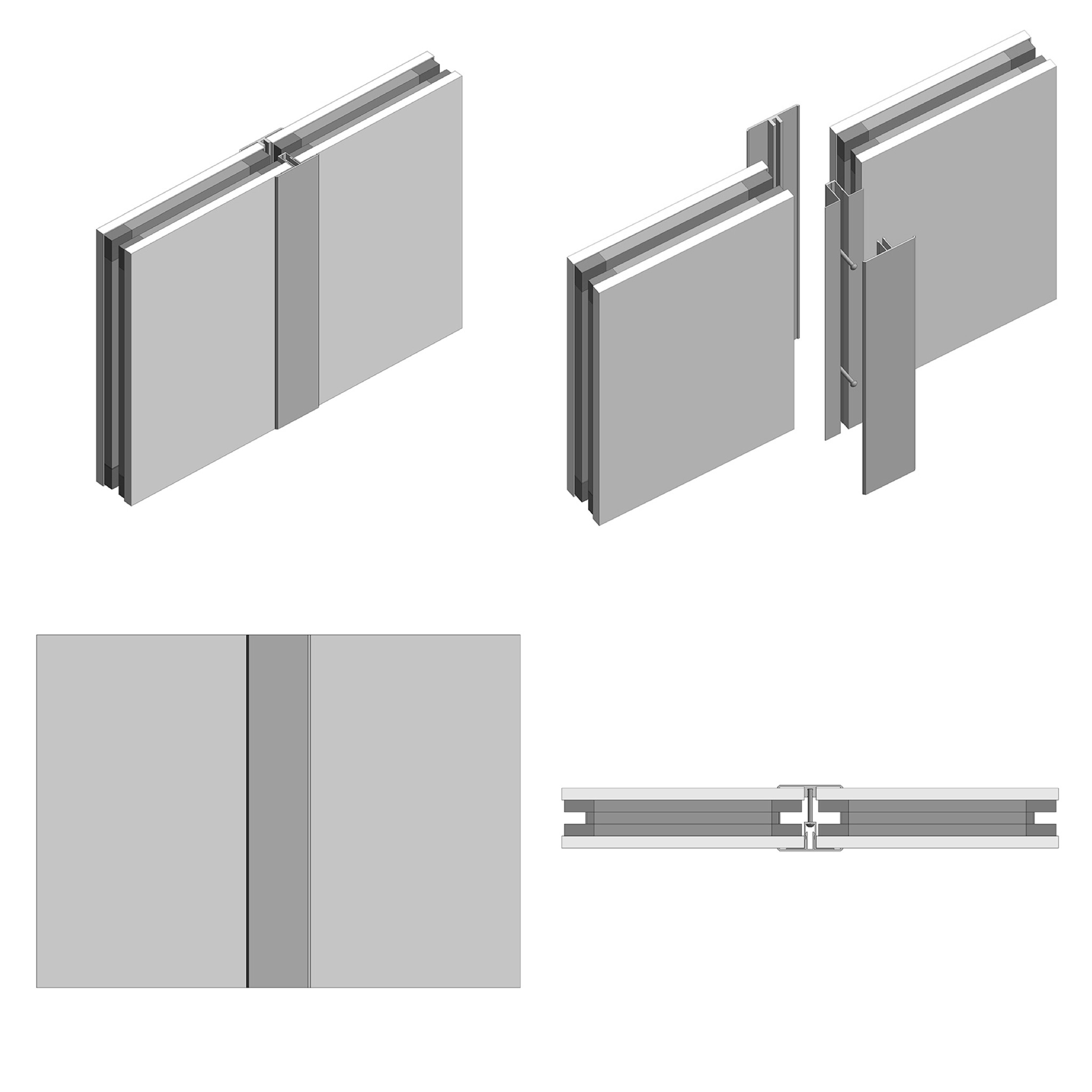

Detail picture:
|
Products specification
|
|
Name
|
Demountable partition wall
|
|
Thickness
|
50mm 75mm 100mm
|
|
Panel
|
Rockwool
|
|
Core material
|
Rockwool PU XPS PIR
|
|
Application
|
Clean room wall system/pharmaceutical clean room/electronic clean room etc.
|
Products advantage
1. It’s a kind of easily removable partition system.
2. Has complete flexibility.
3. Easily integrated with existing modular wall systems.
4. Wide range of applications.
