Cleanroom Rockwool Sandwich Panel

Clean room sandwich panel are main products in clean room engineering, which is not only flame retardant soundproof and environmentally friendly.



PRODUCT DETAILS

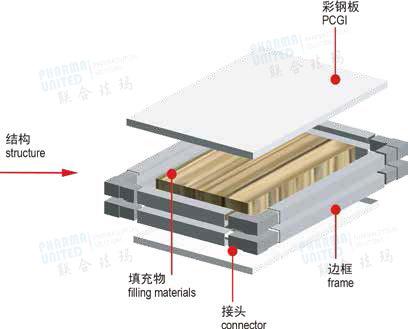

Introduction detail:

Wall thickness: 50mm, 75mm, 100mm

Regular width: 985mm, 997mm, 1180mm

Surface: PCGI/PCAL/SS304

Frame: hot-dip galvanized steel / Alum.Alloy

Filling material: rock wool, paper honeycomb, aluminum honeycomb, magnesium oxide or gypsum board, PU, etc.



Panel material: PE, antistatic, PVDF, salinized plate, stainless steel, nano-catalytic antibacterial plate, PVC film

Connector: aluminum alloy profile (3mm seam)

Sealant: Silicone

Use place: medical clean room, electronic clean room, operating room, food clean room, office partition, etc.



Classification:

Rockwool sandwich panel

Rock Wool sandwich panel are usually used for wall or ceilings that have certain requirements for fire resistance. In addition, it has very good thermal insulation properties. Most customers like the rock wool sandwich panels. Rockwool sandwich panels are commonly used in clean room engineering in electronics and pharmaceutical plants. Rock wool is a kind of inorganic fiber board which is made of basalt as the main raw material and melted at high temperature. Rock wool board is a new type of heat preservation, flame insulation and sound absorption material.
The artificial inorganic fiber processed by high temperature melting of rock wool board has the characteristics of light weight, small thermal conductivity, heat absorption and non-combustibility.

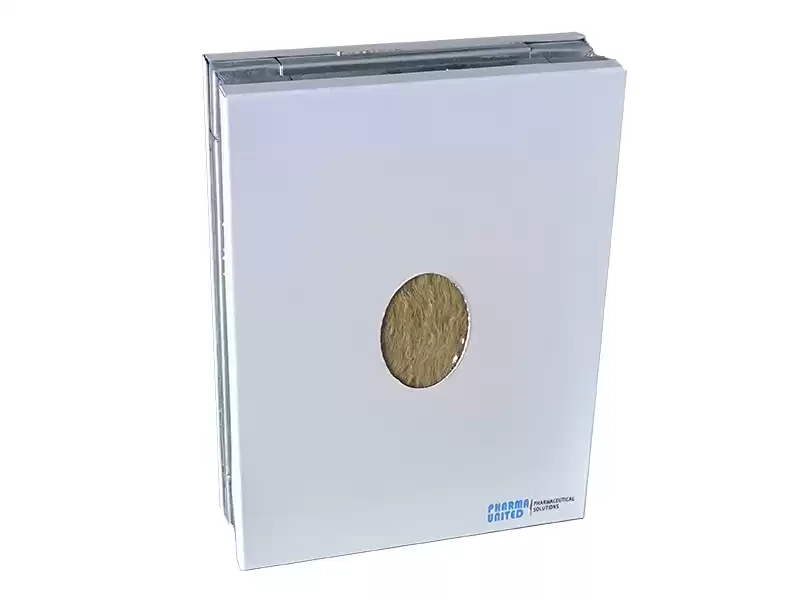

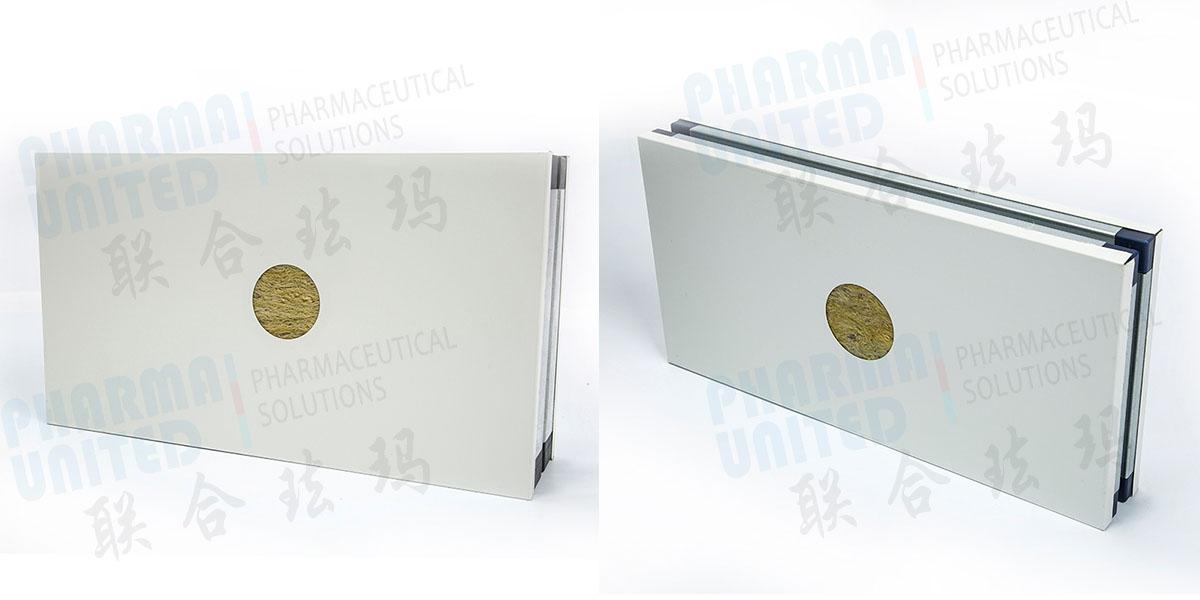

The detail of Rock wool sandwich panel:
