clear tube carbon fiber IR emitters heating lamps for printing

Carbon infrared heaters have heating elements made from woven carbon fibers which are housed in quartz. They operate at around 1,200C and emit medium wave length radiation,it dries water-based coatings more efficiently than short-wave infrared radiators.

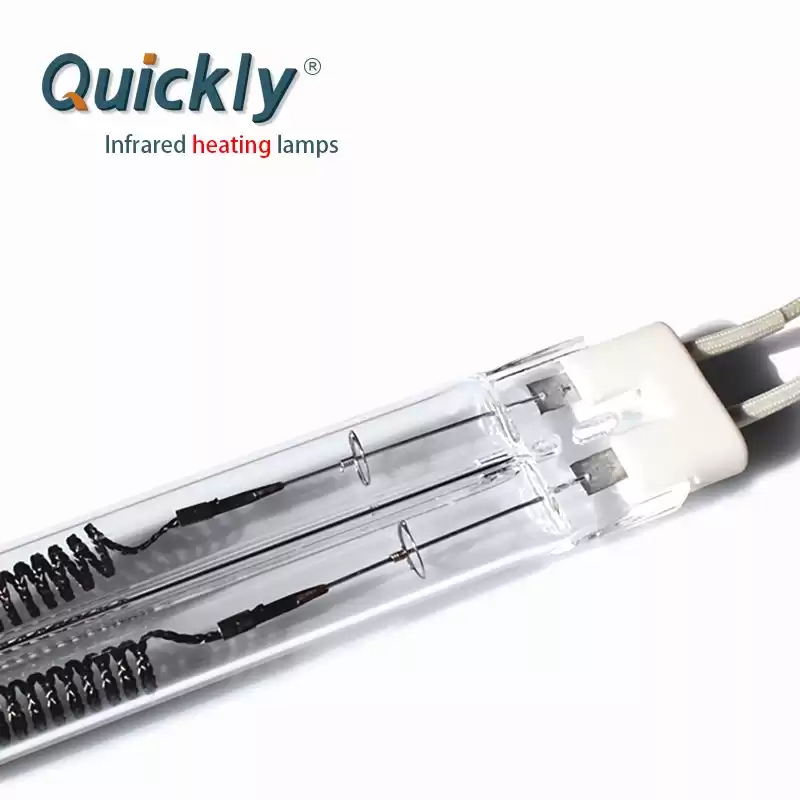

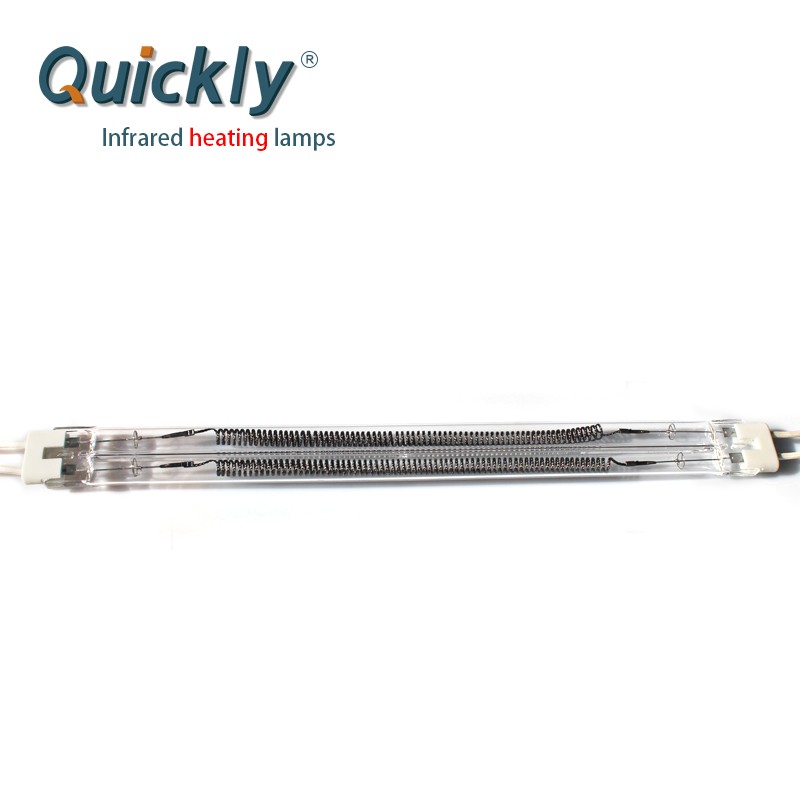

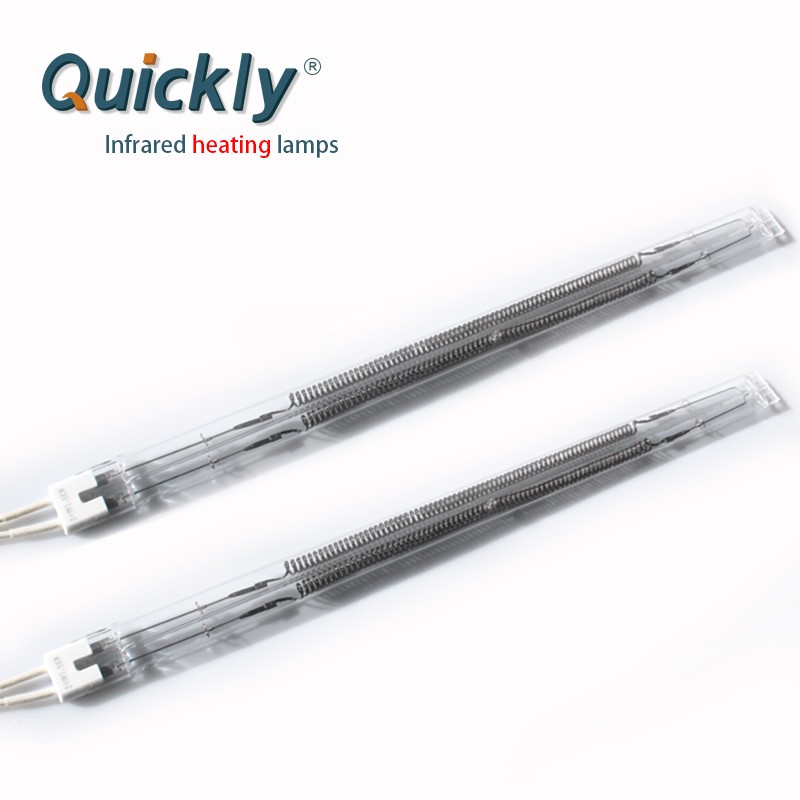

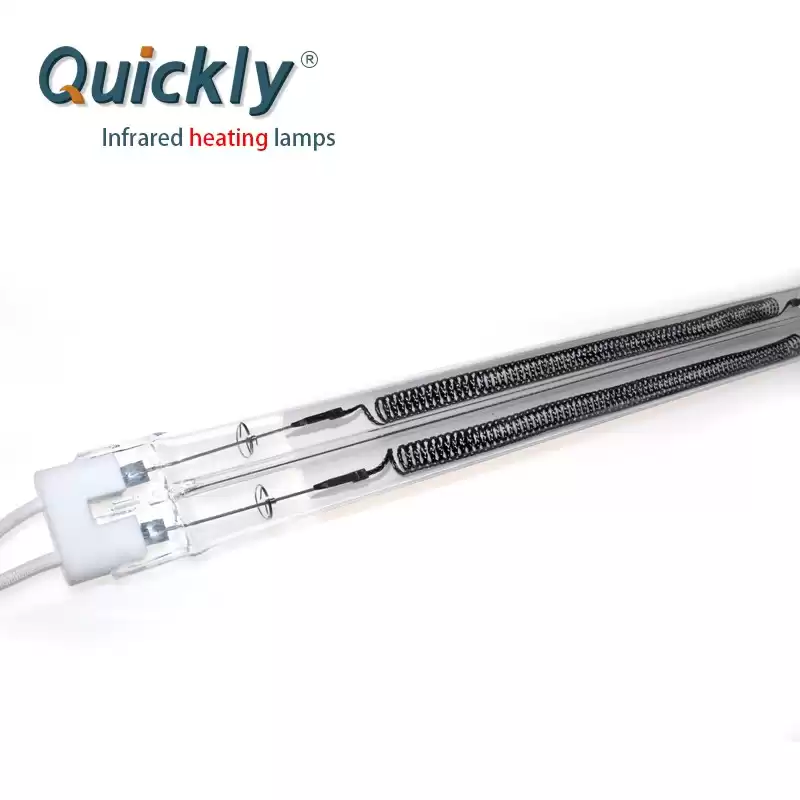

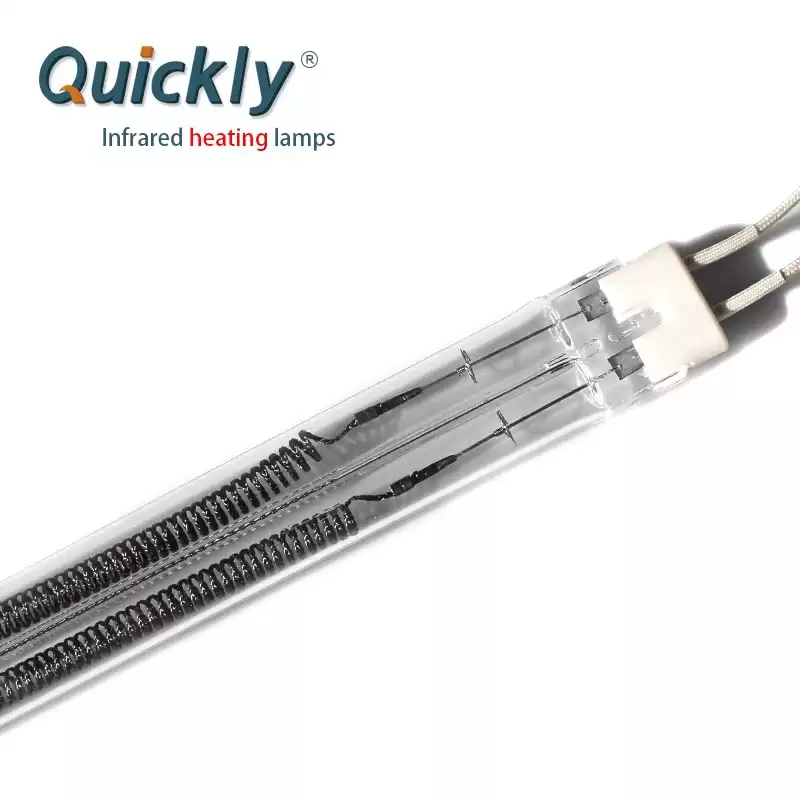

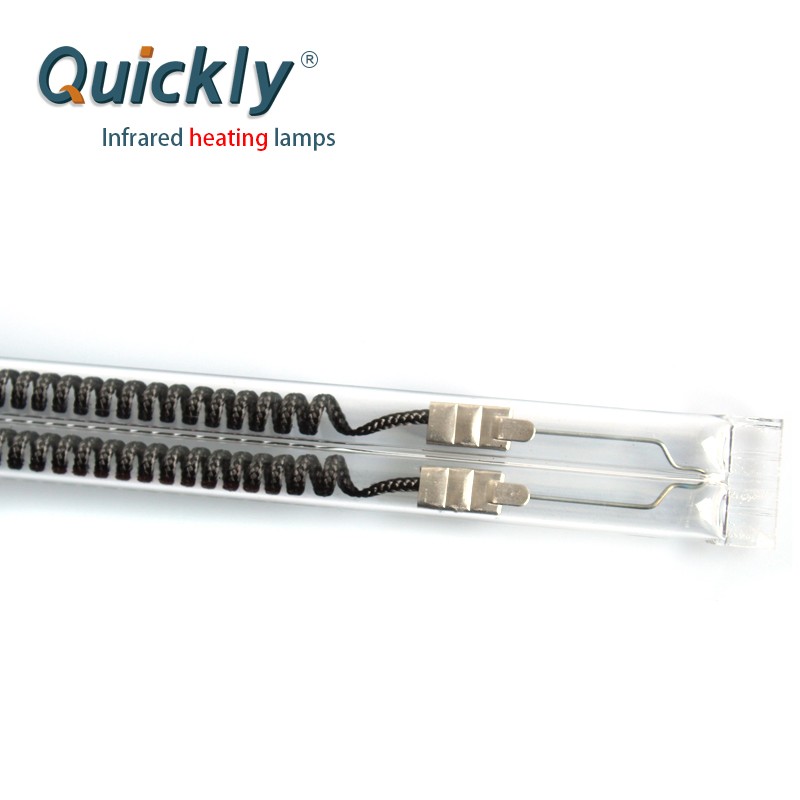

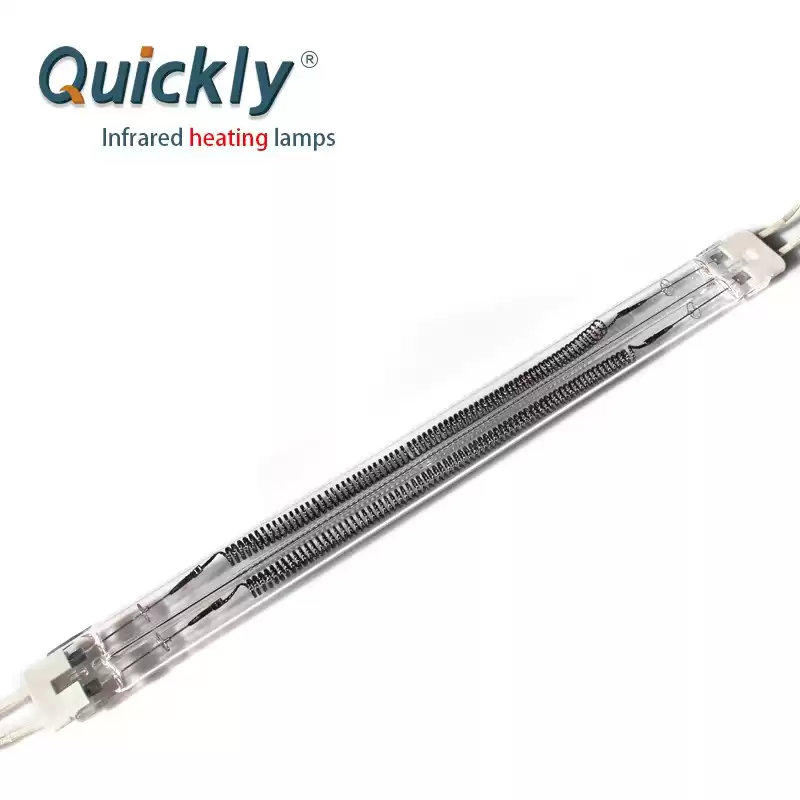

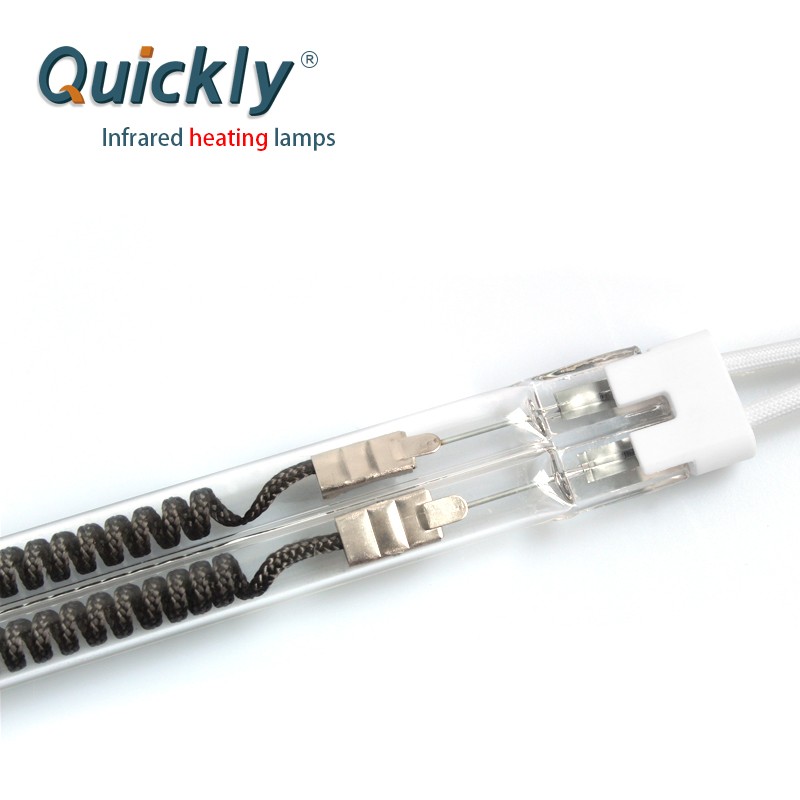

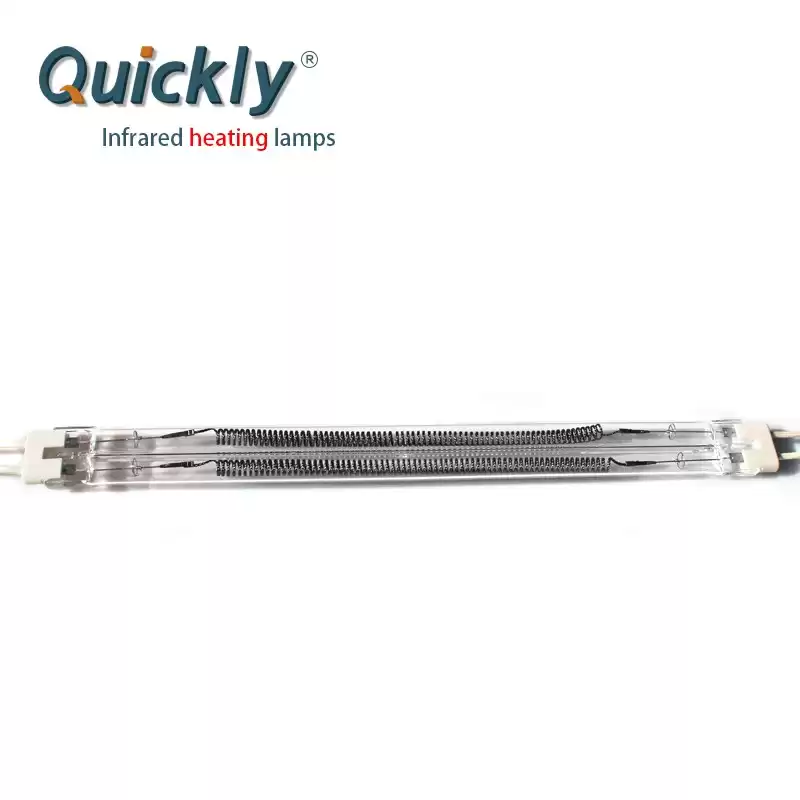

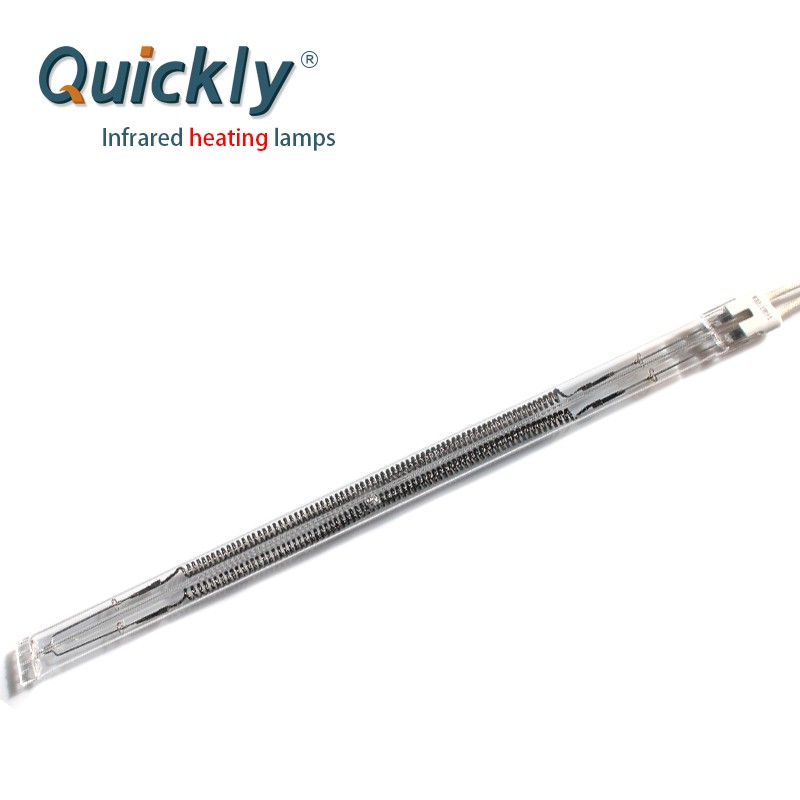

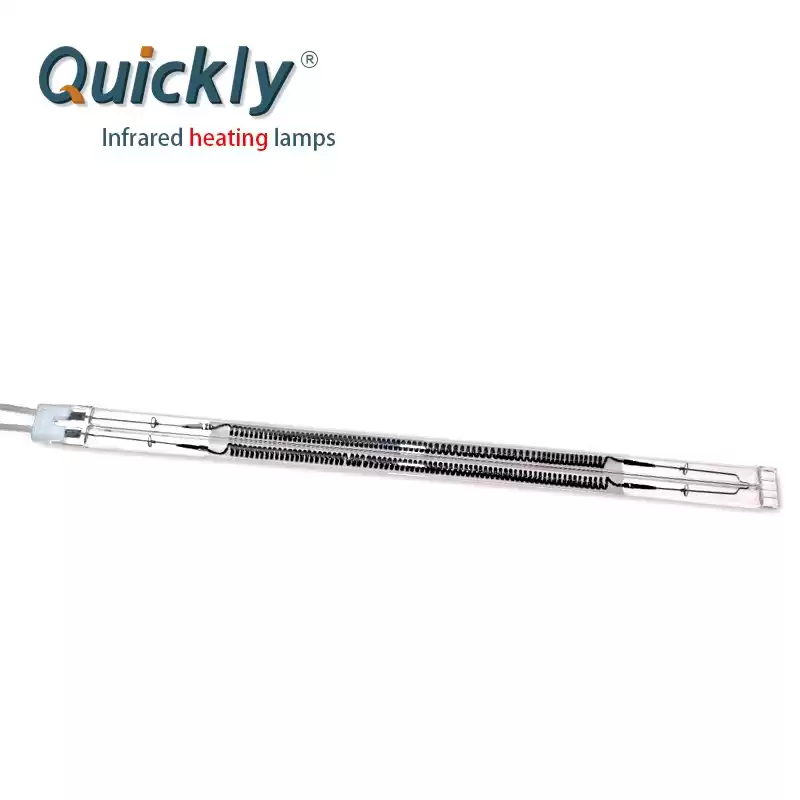

Clear Tube Carbon Fiber IR Emitters Heating Lamps for Printing

Product Description

Carbon fiber infrared heater are produced as single round tube or twin tube emitters, in lengths up to 4 meters. This unique lamp is ideal for drying applications that don’t require high, intense heat of short-wave and long drawn-out heat of medium-wave, but rather falls in between. And it is available with white ceramic reflector and golden coating.

Carbon-based Medium-Wave Infrared Emitters dry water-based coatings more efficiently than short-wave infrared radiators. Materials such as glass and plastic, are more suitable for medium wave radiation.

Glass tube

99.9% pure fused silica quartz sealed

Filament material

Wound Carbon Fiber-Woven

Filament temperature

~ 1200°C

Response time

> 3 seconds

Peak wavelength

~ 2.0 µm

Average working life

10000 hours

Cross section(mm)

10, 11, 12, 13, 14, 15, 18, 20, 23*11, 33*15

Max unit power

80w/cm

Available length

100-4000mm

Operation orientation

Universal

Typical Applications

Drying Processes

Curing of Coated Surfaces

Pre-heating and Post-heating

Product advantages

energy saving Infrared radiation unlike convection or conduction, dose not rely on any medium to transfer heat from infrared source to the object being heated, heat directly to the object
time saving

no need medium transferring, quick response,can reach working temperature more quickly, heating by infrared emitters shortens process time and increases production rates
space saving

small size
cost saving low capital cost, easy installation, reliable operation, low maintenance costs and efficient use of energy.
Better product quality

Controllable, predictable heating reduces wastage and promotes products quality
environment protection

Clean, and no any pollution released to the surroundings


Applications

Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.

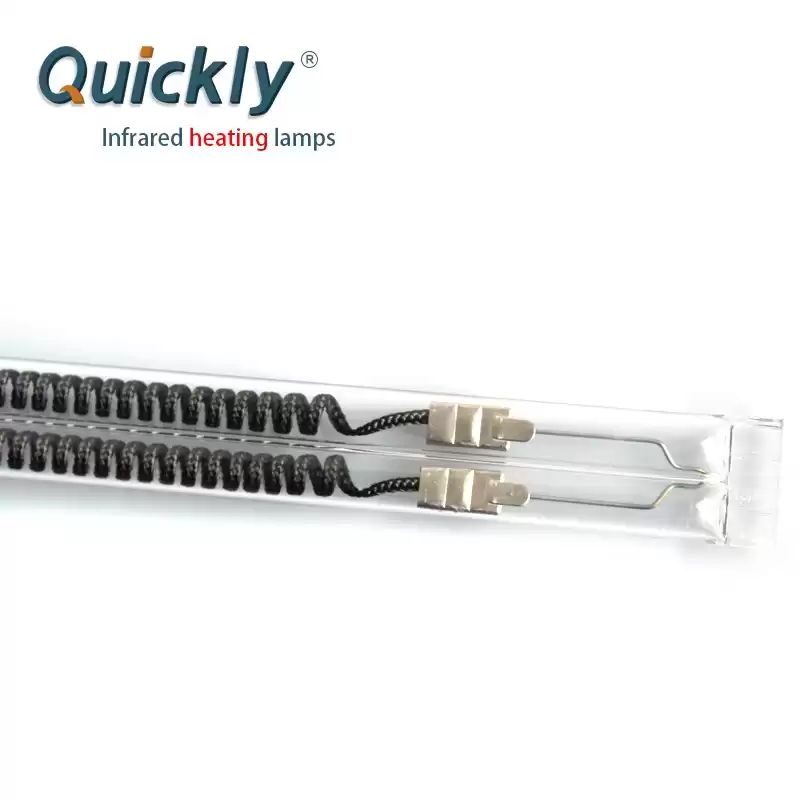

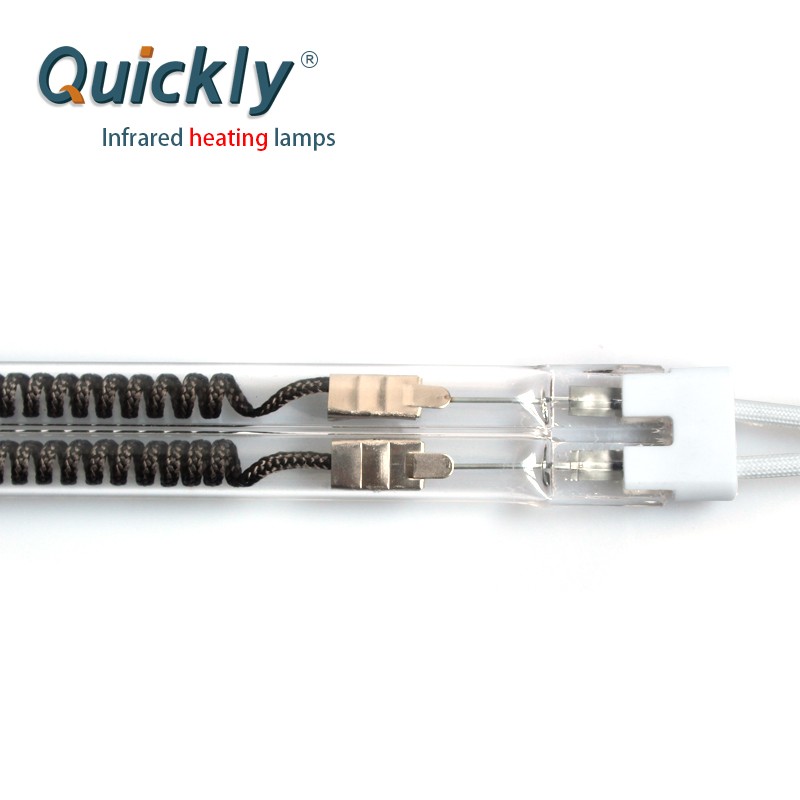

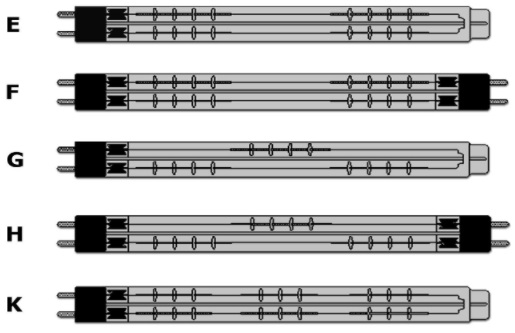

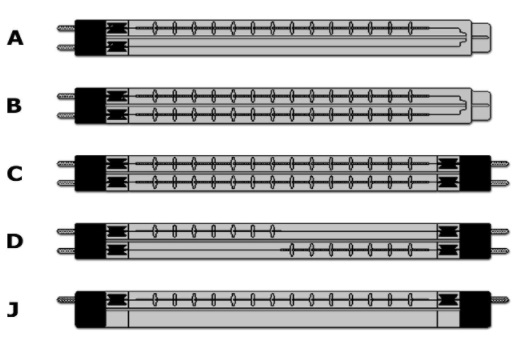

Filament contstruction of twin tube heaters

for twin tube heaters, it can be made single side or two sides cable connection, and different heating channel

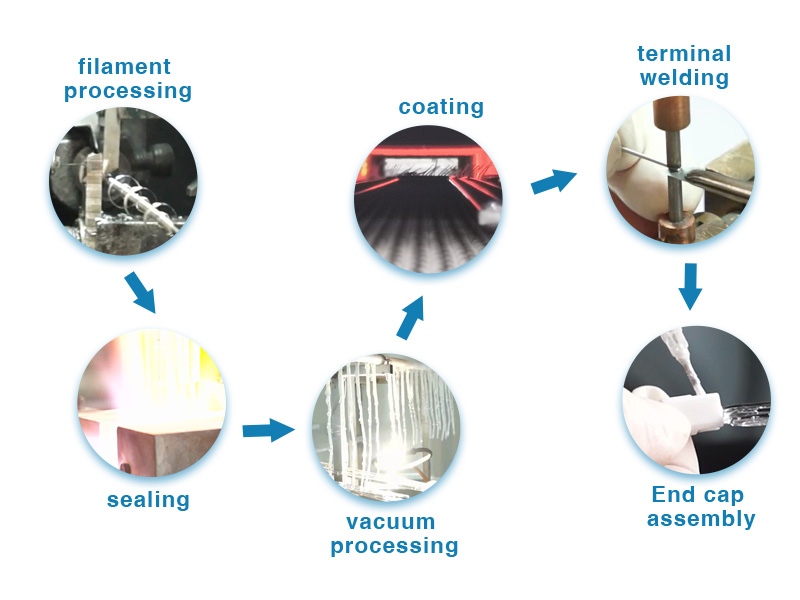

Main production processing of carbon fiber IR heater

Why QUICKLY ?

  1. The materials used for our lamps are at good quality approval UL testing

  2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

  3. We are factory, so we can control the delivery date, material, quality directly
  4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming

  5. Safe package to protect lamps from being broken during shipping

  6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)

  7. Various Payment methods like wire transfer, paypal, western union

  8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

FAQ:

  1. how to place the order?
    Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
    quotation,after payment,production will be started, after finished, they will be shipped to your side.

  2. Why Quartz Glass as the one main of material?
    The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
    working temperatures of more than 1000°C and it is resistant to chemical corrosion.

  3. could you supply clamps for lamp installing ?
    Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.

  4. Have an unusual design?
    Send us a drawing, sketch, or sample and we'll be happy to quote it.
    We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

  5. How does your factory do quality control
    " quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.

  6. why coating on quartz tube surface ?
    QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
