Technical Features:
• Tubular positive plates: Robust tubular plates consisting of a lead calcium antimony-free alloy, optimized for high corrosion resistances
• Pasted negative plates: Grid plate construction consisting of lead calcium alloy
• Separators: Micro porous and robust, for electrical separation of the positive and negative plates and optimized for low internal resistance

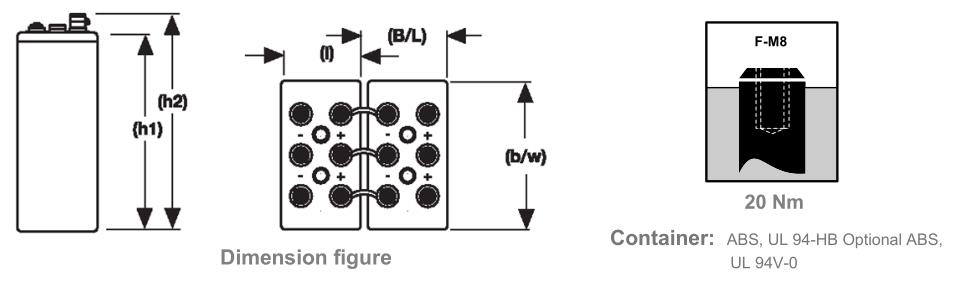

• Housing: ABS, on request flame retardant ABS according to UL 94 V-0
• One way relief valve: operates at low pressure and fitted with flame arrestor, release gas in case of excess pressure and protects the cell against atmosphere
• Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity
• Post seals: extremely high integrity post seal design to prevent electrolyte leakage and terminal corrosion
• Connectors: flexible fully insulated cable connectors screwed to the terminal with an insulated screw having a probe hole on the top for electrical measurement
• Electrolyte: Gel structure
|
Specifications:
• Extraordinary energy-saving features in addition with robust reliability
• Maintenance-free (no topping up) during the whole service life
• Nominal capacity 100~3000 Ah C 10
• Design life: 20 years at 20°C(80% remaining capacity from C 10 )
• Robust tubular plate technology
|
Applications:
• Telecommunication
• Emergency lighting
• Microwave radio system
• Power Generation plants
• Photo voltaics/ Solar
|
