Climatic Environmental simulation Temperature Humidity Test Chamber/Dust Test Chamber
|
Model No
|
OLT-TS-80L
|
OLT-TS-150L
|
OLT-TS-225L
|
OLT-TS-408L
|
OLT-TS-800L
|
OLT-TS-1000L
|
|
Inner chamber size W×H×D(mm)
|
400x500x400
|
500x600x500
|
500x750x600
|
600x850x800
|
1000x1000x800
|
1000x1000x1000
|
|
Exterior chamber size W×H×D(mm)
|
900x1350x910
|
950x1500x1050
|
950x1650x1150
|
1050x1750x1350
|
1450x1900x1350
|
1450x1900x1550
|
|
Temperature range
|
-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃,-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃
|
|
Humidity range
|
20%~98%RH
|
|
Temp.&Humi fluctuation
|
±0.2°C, ±0.5%RH
|
|
Temp.&Humi.uniformity
|
±1.5°C,±2.5% RH when RH is ≤ 75%,±4% RH when RH is > 75% (tested with the empty chamber, 30 minutes after stabilization)
|
|
Temp.&humi. Resolution
|
0.01°C,0.1%RH
|
|
Inner chamber material
|
SUS#304 stainless steel plate
|
|
Exterior chamber material
|
Stainless steel plate+ powder coated
|
|
Insulation
|
PU & Fiberglass wool
|
|
Wind circulation
|
Sirocco fan
|
|
Heating system
|
SUS#304 stainless steel high-speed heater
|
|
Humidifying
|
Surface evaporating system
|
|
Cooling
|

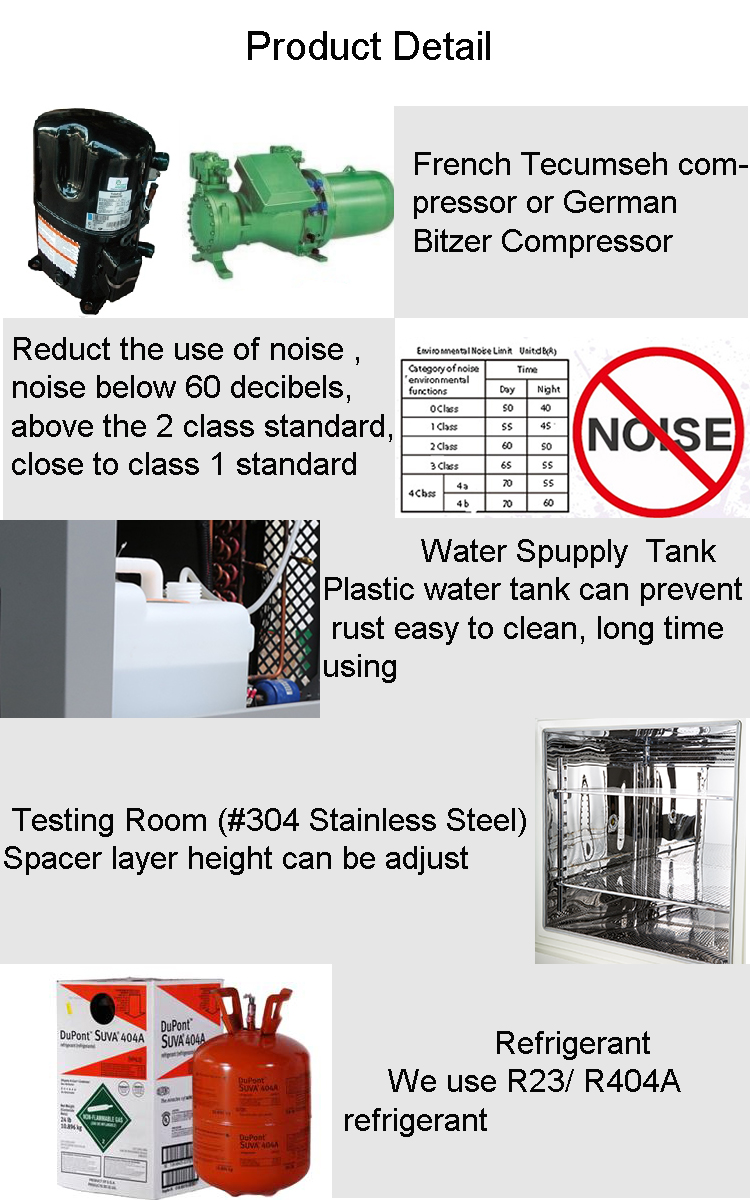

Imported compressor,Tecumseh compressor,finned type evaporator,air-cooling condenser
|
|
Dehumidifying
|
ADP critical dewpoint cooling/dehumidifying method
|
|
Controller
|
Digital electronic indicators+S.S.R.With PID automatic calculation capability
|
|
Power supply
|
AC 1 phase 220V; 2 phase 110V; 3 phase 380V 60/50Hz
|
High performance and quiet operation(65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe

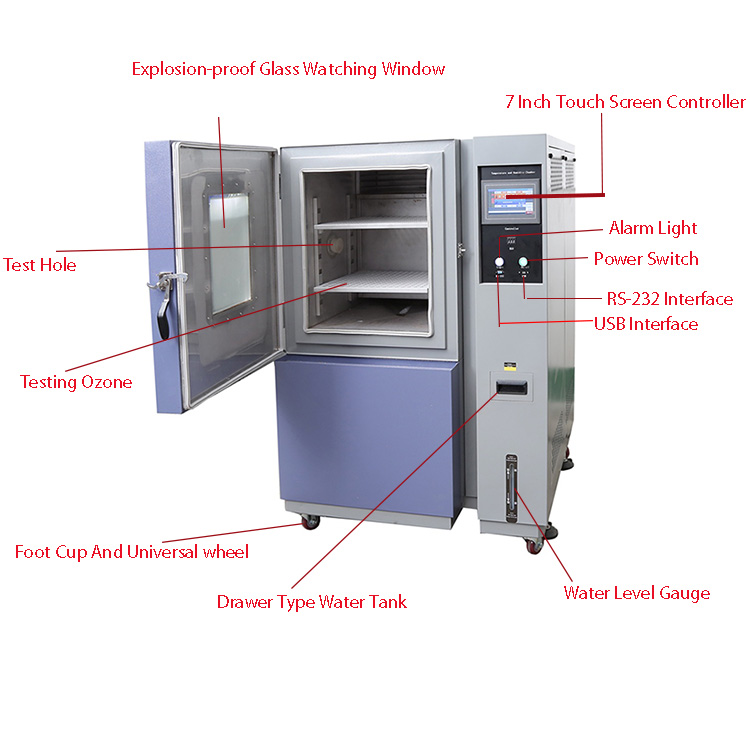

One 50mm (2") to 100mm (4") diameter cable port on left, with flexible silicone plug
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)

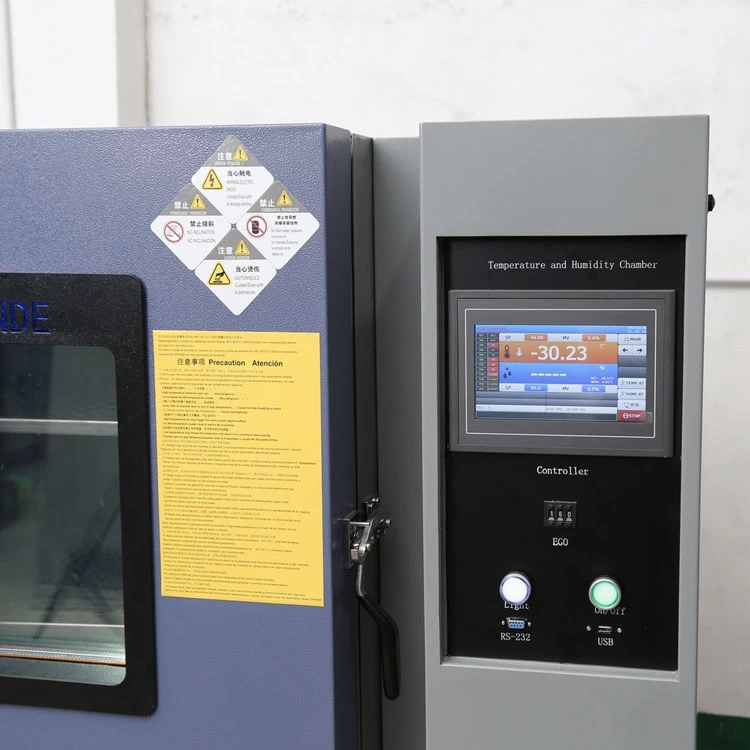

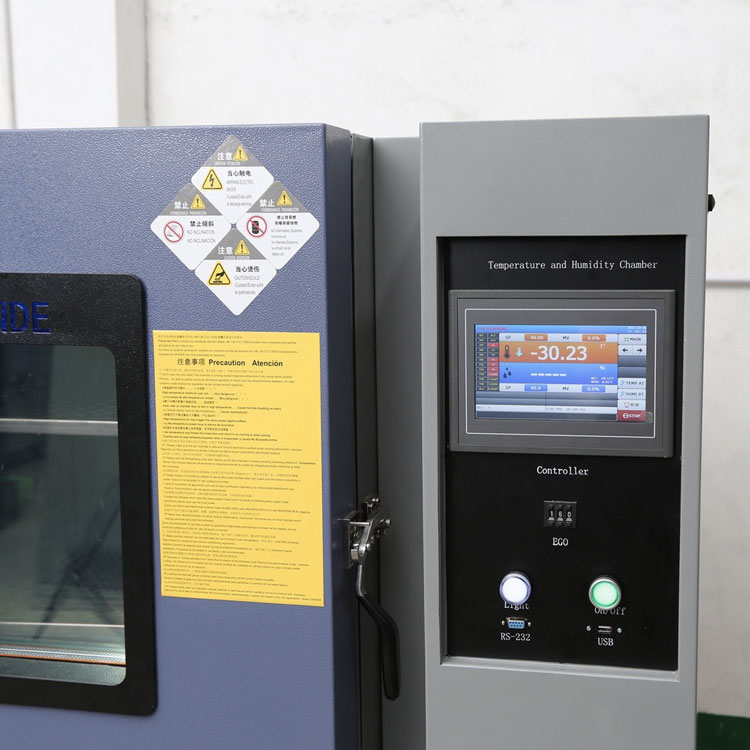

Touch-screen programmer/controller with Ethernet
Watlow F4T with touch-screen and Ethernet port standard
Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
One event relay for external device control, plus specimen power interlock relay for safety
Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.

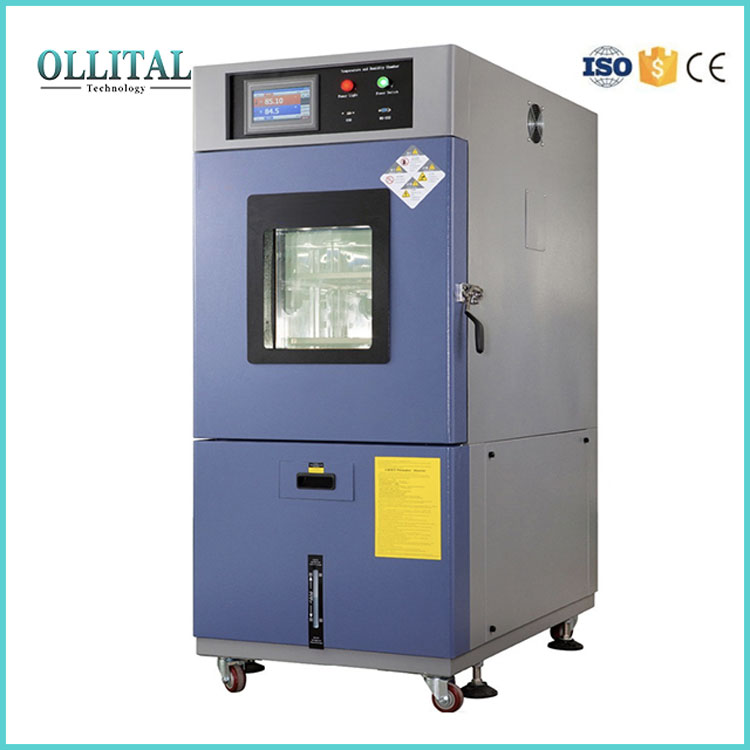

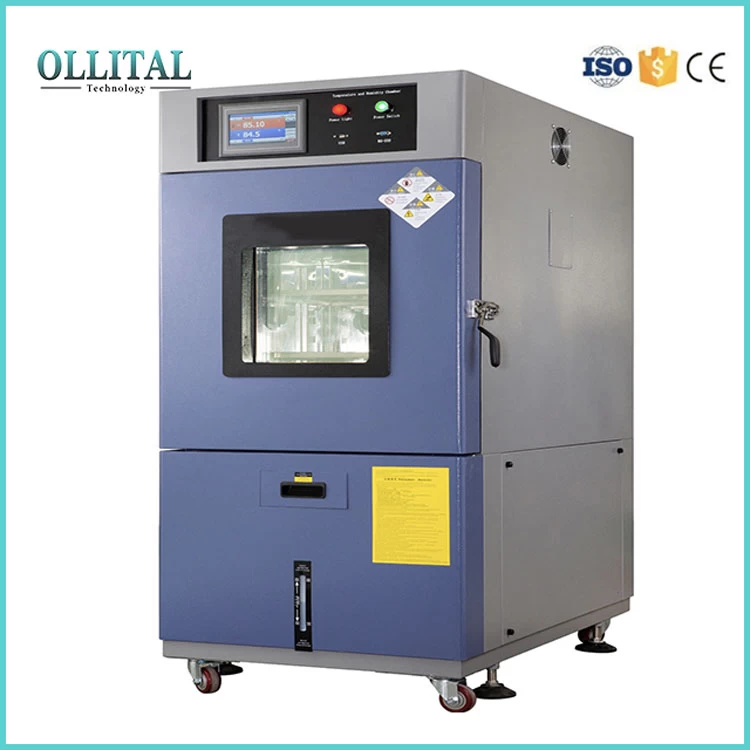

Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It cansimulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the Performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.
The programmer includes a temperature alarm as just one part of Grande's Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.
Corresponding Standard of the Temperature and Humidity Test Chamber:
1.GB11158 high-temperature testing condition
2.GB10589-89 low-temperature testing condition
3.GB10592-89 high-low-temperature testing condition
4.GB/T10586-89 humidity testing condition
5.GB/T2423.1-2001 low-temperature testing condition
6.GB/T2423.2-2001 high-temperature testing condition
7.GB/T2423.3-93 humidity testing condition
8.GB/T2423.4-93 alternating temperature testing machine
9.GB/T2423.22-2001 temperature testing method
10.IEC60068-2-1.1990 low-temperature testing method
11.IEC60068-2-2.1974 high-temperature testing method
12.GJB150.3 high-temperature test
13.GJB150.4 low-temperture test
14.GJB150.9 humidity test
Grande Expertise in Humidity Control
Controlling humidity in a small environmental chamber can be especially challenging. Grande expertise in humidity control brings intelligent design that is carefully integrated into the Criterion chambers. The humidity subsystems are designed for reliability, convenience, and performance:
An external steam generator allows expanded range and is easy to maintain.
A separate de-humidification coil improves low humidity control and range.
Wet-bulb humidity sensor is a “primary measurement method” for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation. (Read why analog is preferred over digital.)
Direct water supply connection is standard, with options for water filtering and recirculating water tank.
