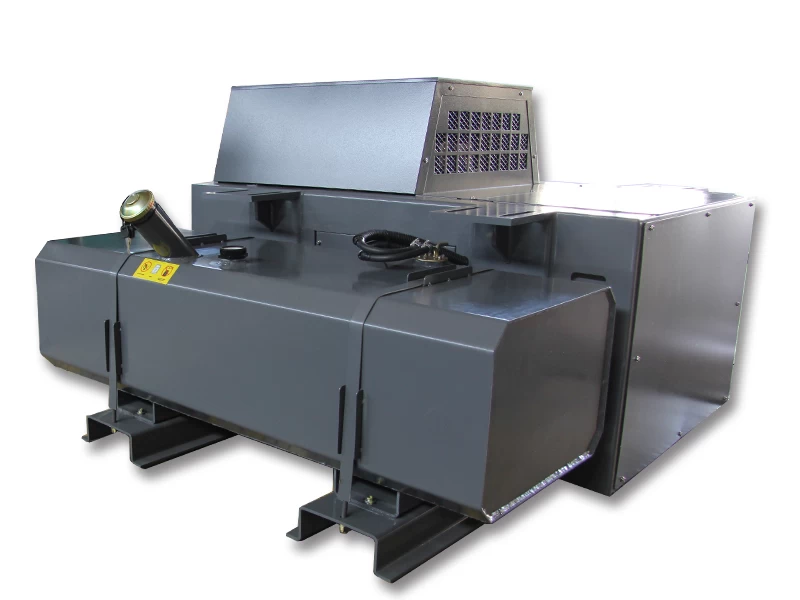

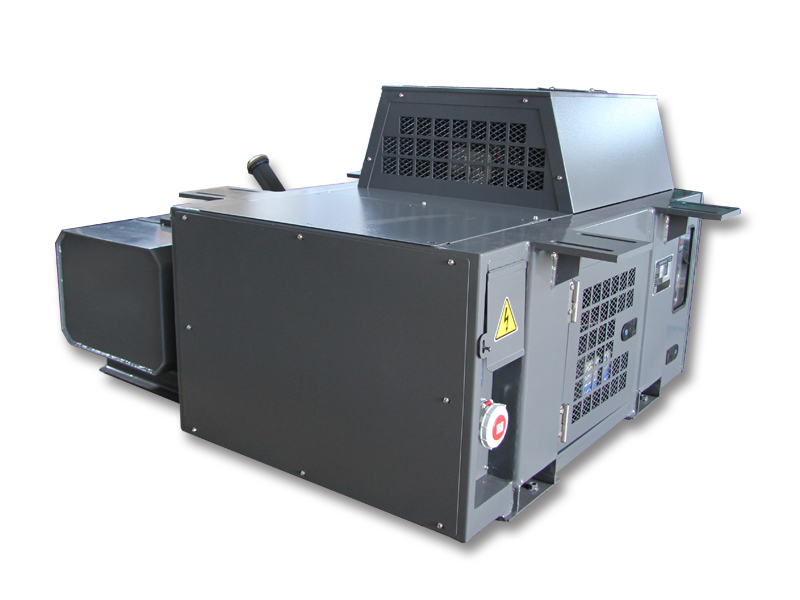

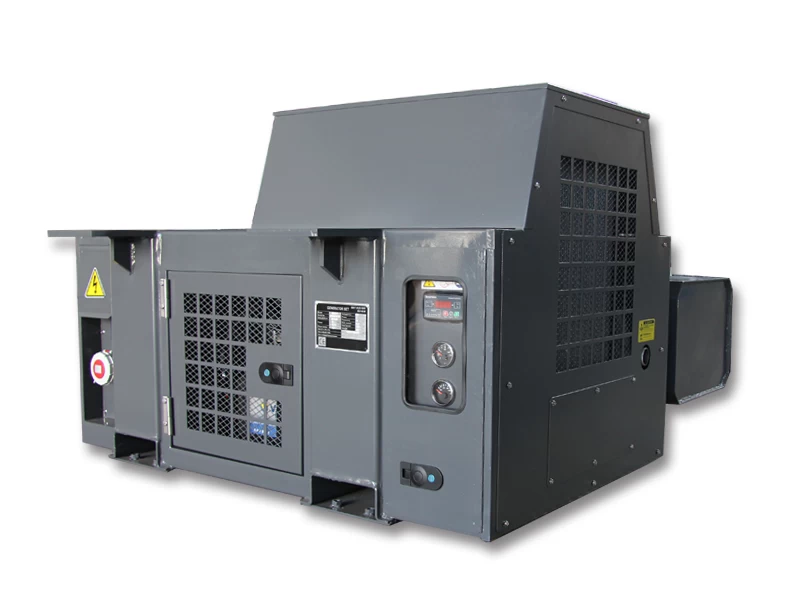

Clip-on Undermounted Carrier genset for reefer container generator

The GTL diesel Reefer Generator Set is designed to provide highly reliable unattended continuous operation for all refrigerated ocean going container units in both over-the-road and rail transport modes. Built to last, GTL uses only the highest quality materials in the production of its Reefer Generator Sets. Each unit is fully load tested to ensure trouble free operations for our customers. GTL Reefer Generator Sets are designed to mount to a variety of ISO container chassis, and are shipped complete and ready to operate.

Facebook Twitter Pinterest LinkedIn 分享


GTL reserves the right to discontinue or change any specification or design without prior notice or obligation.


Installation Type - Genset Undermount
Model PWUG15 FWUG15
Prime Power (kw) 15
Rated Voltage (V) 460
Rated Frequency (Hz) 60
Dimension L (mm)  1316
W (mm)  1550
H (mm) 800
Weight (kg)  705
Diesel Engine Model 404D-22(EPA/EU IIIA) 404D-24G3
Manufacturer Perkins FORWIN
Type  Direct-injection,4-stroke,4-cylinder, water-cooled, diesel engine
Cylinder Number 4 4
Cylinder Diameter (mm)  84 87
Intake Stroke (mm)  100 103
Maximum Power (kw)  24.5 24.2
Displacement (L) 2.216 2.45
Rotation (r/min)  1800 1800
Coolant Capacity (L)  7 7.8
Lubricating Oil Capacity (L)  10.6 9.5
Fuel Capacity(L)  189
Fuel Consumption (L/H) 1.5∽2.5
Air Filter Mode Heavy Oil-immersed Type
Start System  Electric Start DC12V
Auxiliary Device of Cold Start  Air Heater DC12V
Charging Dynamo  with DC12V
Alternator Model RF-15
Insulation Grade F/H
Exciting mode Brushless Excitation
Control System Control System Model PCC1420
Parameter Display Generator Set：Voltage V, Current A, Frequency HZ, Active Power KW, Apparent Power KVA,Power Factor Cos∮, Cumulative Power of Generator Set KWH；
Engine：Coolant Temperature, Lubrication Pressure, Rotation,Working hours,Battery Voltage, Fuel Level ect.
Safety Protection Generator Protection：Overvoltage / undervoltage, over frequency / under frequency, overload, short circuit.
Engine Protection：Low Oil Pressure, High Water Temperature, Low Fuel Level, Charging Failure, Over Speed
Optional Function 1.Energy Saving via Frequency Conversion ；2.Automatic Start and Stop System.
Auxiliary System Battery 12VDC-100AH Free Maintenance Battery
Power Outlet ISO Standard Junction Box 、Meet the Standard of CEE-17 ,32 A,It is the pointer at 3’s clock when connect the grounding pole.
Fuel Level Gauge Mechanical Fuel Level Gauge
Quality Assessment System ISO9001:2000
Safety Certificate CE
