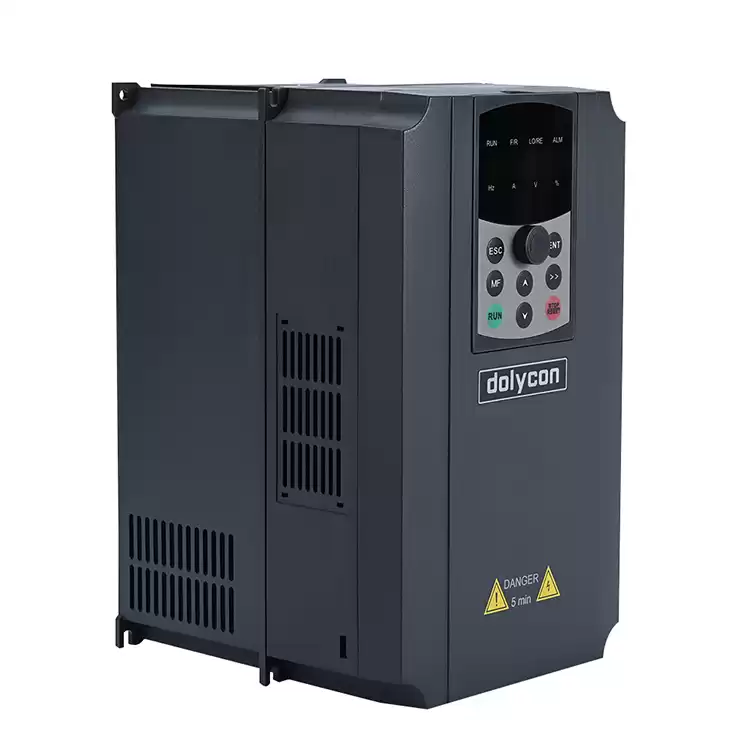

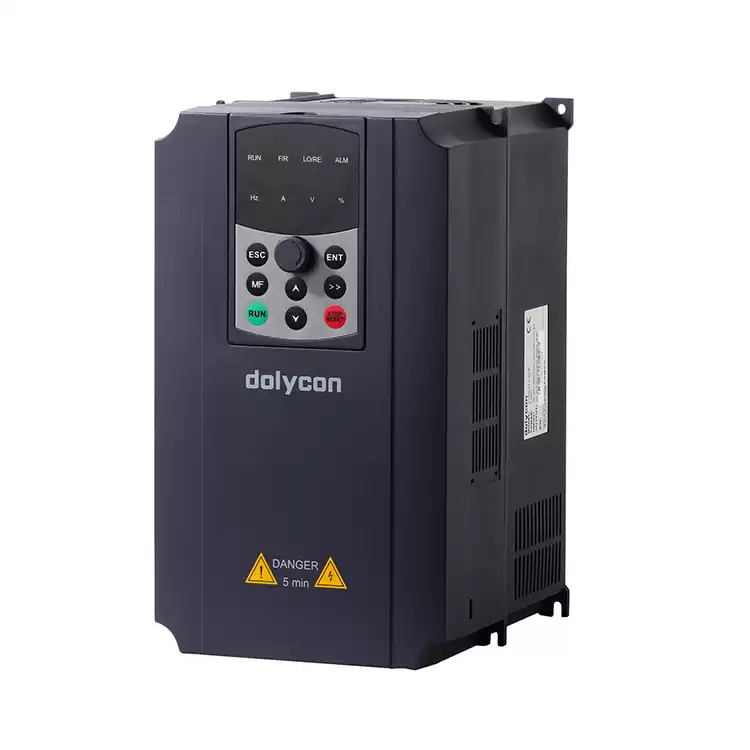

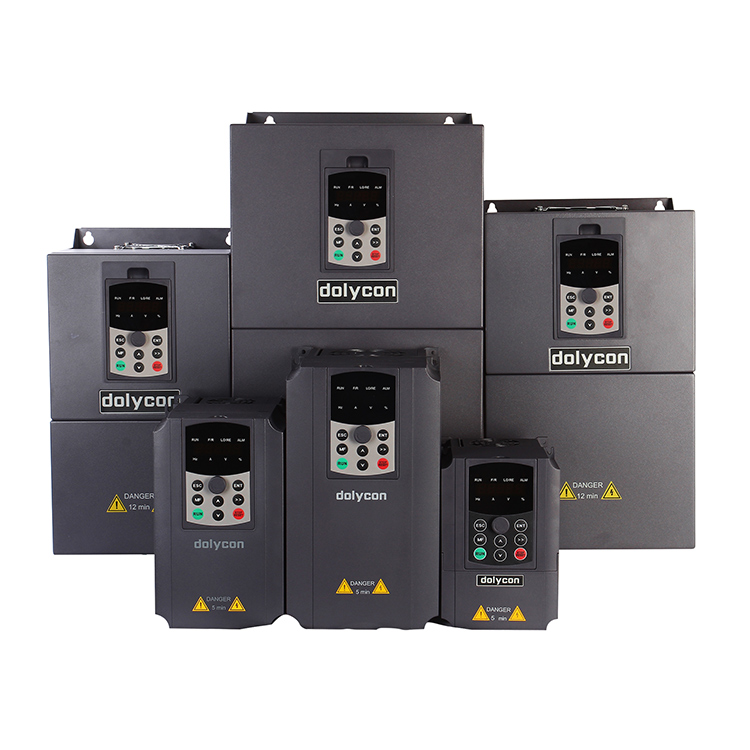

Close Loop Vector Control VFD AC Inverter Drives

CT300 Series Close Loop Vector inverter VFD, based on DSP control system, has high performance vector control technology of high performance of speed and torque control mainly for machine tools, textile, and other key industries, achieving excellent performance and high reliability.

Output Frequency 0-600Hz
Rated Power0.75kw to 1250kw
Control ModeV/F control, PG close loop vector control
TypeAC Drive
Horsepower1hp - 1700hp

Facebook Twitter Pinterest LinkedIn 分享

Description

Close Loop Vector Control VFD AC Inverter Drives

Close Loop Vector Control VFD Description:

Universal close loop control can be used to achieve high control precision, high starting torque, high adjustable-speed ratio and rapid response speed.
Compatible with asynchronous motor and permanent magnet synchronous motor, rapid and accurate motor parameter self-study.
Two control methods: V/F control, PG close loop vector control.
Support RS485 communication protocol and expansion for PROFIBUS-DP, CAN Open, Ethernet, etc.
Rapid and steady switch on-off.
High control accuracy, high start torque, high speed ratio and fast response speed.
Fast dynamic response and high speed control accuracy.
Large low frequency torque, hold 200% rated torque output at 0.00Hz
Great anti-inference capacity.
Offering a variety of fault protection functions: over-current, over-voltage, under-voltage, over-temperature, phase-failure, overload, etc.
MOQ: 10

Close Loop Vector Control VFD Specification:

Inverter model	Power（kW）	Input current（A）	Output current（A）	Applicable motor power（kW）
Single-phase 220Vac 50/60Hz
CT300-2S-0.7-B	0.7	8.2	4.0	0.75
CT300-2S-1.5-B	1.5	14.0	7.0	1.5
CT300-2S-2.2-B	2.2	23.0	9.6	2.2
Three-phase 380Vac 50/60Hz
CT300-4T-0.7-B	0.7	3.4	2.5	0.7
CT300-4T-1.5-B	1.5	5.0	3.7	1.5
CT300-4T-2.2-B	2.2	5.8	5.3	2.2
CT300-4T-4.0-B	4.0	12.0	9.5	4.0
CT300-4T-5.5-B	5.5	18.5	14	5.5
CT300-4T-7.5-B	7.5	22.5	18.5	7.5
CT300-4T-11-B	11	30.0	25.0	11
CT300-4T-15-B	15	39.0	32.0	15
CT300-4T-18.5-B	18.5	45.0	38.0	18.5
CT300-4T-22-B	22	54.0	45.0	22
CT300-4T-30-B	30	68.0	60.0	30
CT300-4T-37-B	37	84.0	75.0	37
CT300-4T-45	45	98.0	92.0	45
CT300-4T-55	55	123.0	115.0	55
CT300-4T-75	75	157.0	150.0	75
CT300-4T-90	90	188.0	180.0	90
CT300-4T-110	110	221.0	215.0	110
CT300-4T-132	132	267.0	260.0	132
CT300-4T-160	160	309.0	305.0	160
CT300-4T-185	185	344.0	340.0	185
CT300-4T-300	300	384.0	380.0	300
CT300-4T-220	220	429.0	425.0	220
CT300-4T-250	250	484.0	480.0	250
CT300-4T-280	280	539.0	530.0	280
CT300-4T-315	315	612.0	600.0	315
CT300-4T-350	350	665.0	650.0	350
CT300-4T-400	400	715.0	720.0	400
CT300-4T-500	500	890.0	860.0	500

Close Loop Vector Control VFD Application:
