Closed type galvanized steel/metal flooring

Closed type galvanized steel/metal flooring is available in a variety of models can be selected, and different rib distances and thicknesses are suitable for different working conditions. The bearing capacity is very good.MOQ:500M2






  • Red 18Y
  • Red 17Y

Closed type galvanized steel/metal flooring

Closed type galvanized steel/metal flooring is a more advanced combined floor support plate system. It has been verified that it has stronger bearing capacity and shear resistance than open floor bearing plate. The special design of closed rib makes the plate rib of floor bearing plate completely wrapped by concrete, so it can give better play to its characteristics and has excellent fire resistance.

Product Specification

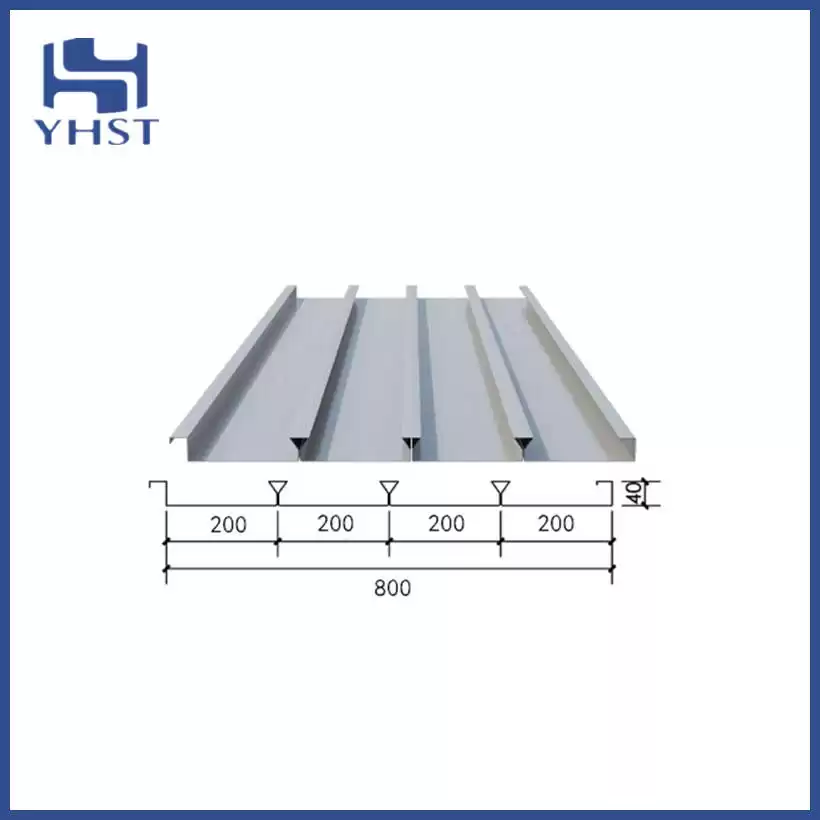

Closed profiled steel sheet

Rib height

40mm

Rib distance

200mm

Modular width

800mm

Feeding width

1255mm

Available Thickness

0.75mm-1.2mm

Length

20FT/40FT

Material

Galvanized sheets

Surface Treatment

Original pre-coating

MOQ

500m2 per color&size

Delivery time

10--20days


Steel deck type

Closed profiled steel sheet

Features

  • Strong concrete anti-cutting(special closed ribbing joint)
  • Best composite decking section feature( more efficient width and anti-bending)
  • Perfect fireproof (board rib packed by concrete like steel bar in the cast-in-place concrete)
  • The board bottom channel overhand system(be used for ceiling,and water and electricity assignment)
  • Construction is easy and quick( no need the end covering, no leaking)
  • Level bottom appearance
  • Instead of part pressure and reducing steel bar
  • Less value of thickness, reducing weignt,enarging space, cutting down cost.

Product display


Packing & Delivery

Packing:

Seaworthy packing standards:

Packed in stack with steel strips,and then loaded in containers.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery:

Delivery time for small order with stock material: 7-10 days;

Delivery time for special requirements and thickness: 15-20 days;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customers or accept appointed forwarder from customers.
