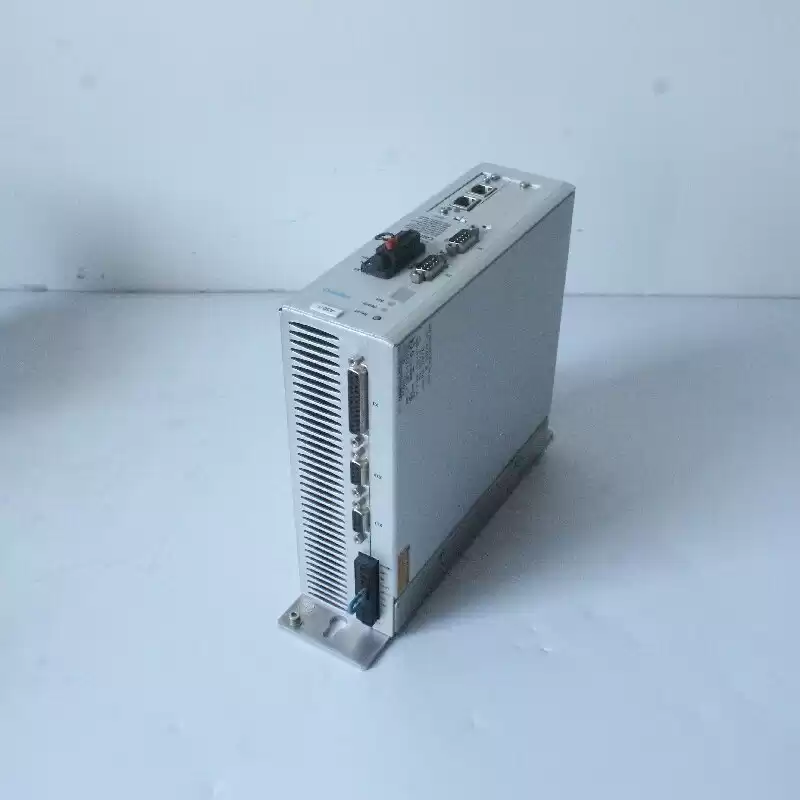

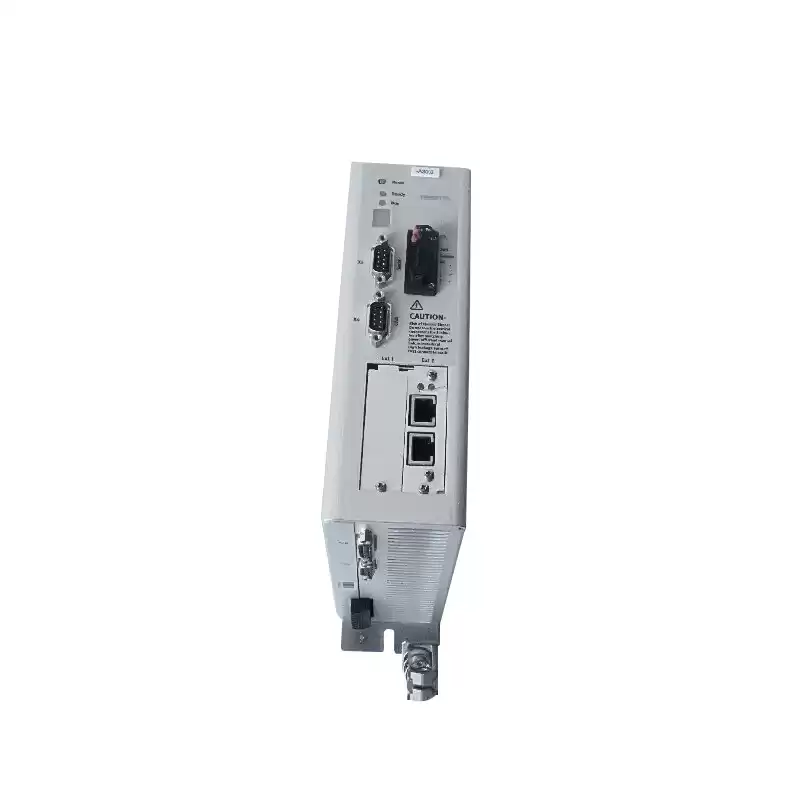

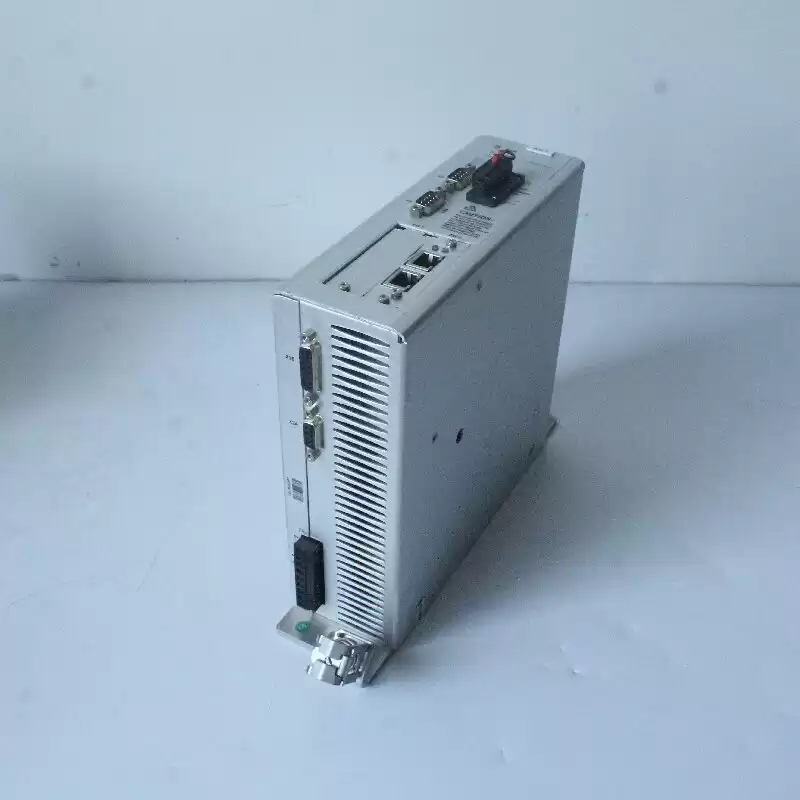

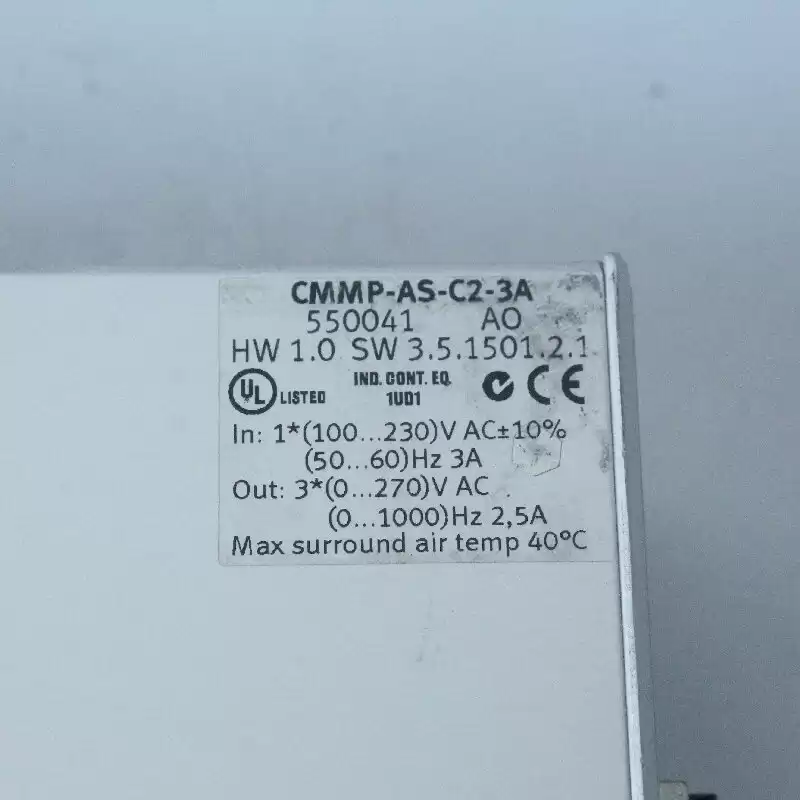

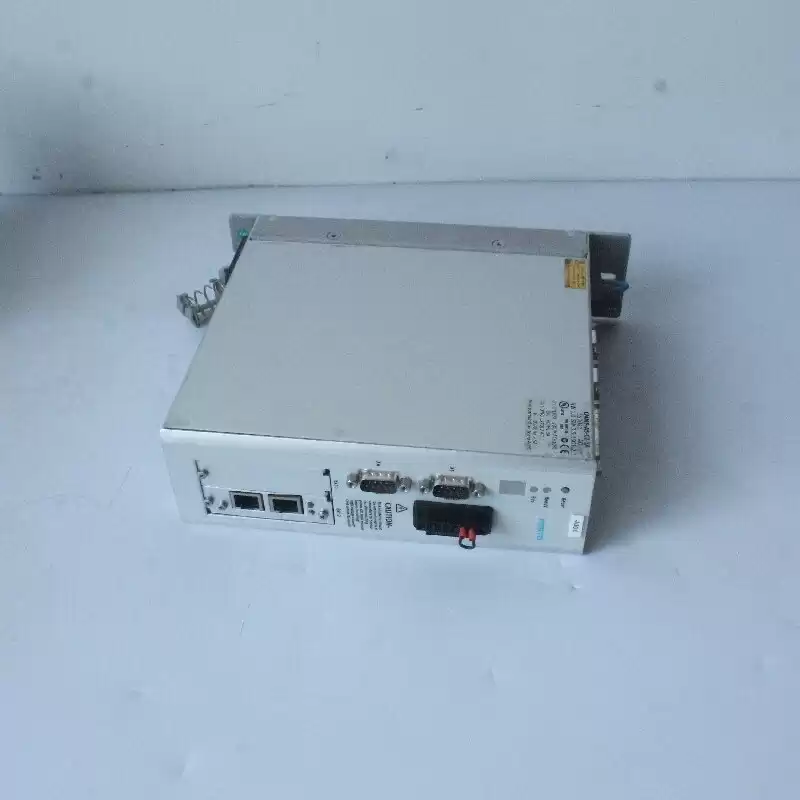

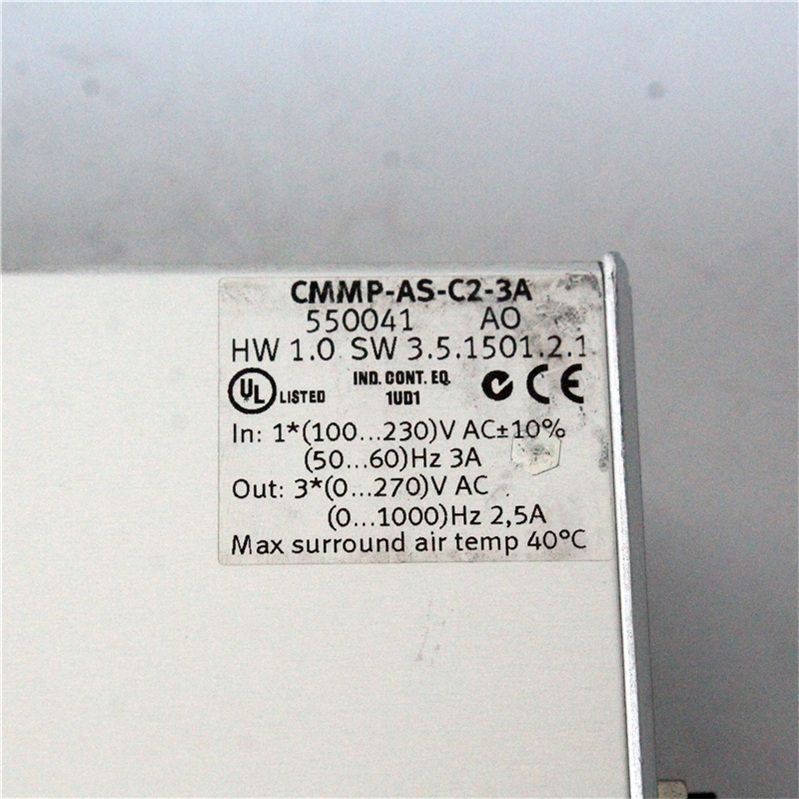

CMMP-AS-C2-3A FESTO Controller

  Description:

• CMMP-AS-C2-3A Product Overview:
• Type of mounting：On sub-base  screwed tightly
• Display：Seven-segment display
• Certification：RCM compliance mark：c UL us - Listed (OL)
• Storage temperature：-25 °C ... 70 °C
• Ambient temperature：0 °C ... 40 °C
• Relative air humidity：0 - 90 %
• Degree of protection：IP10   IP20
• Contamination level：2
•
• Note on materials：RoHS-compliant
• LABS (PWIS) conformity：VDMA24364 zone III
• Nominal operating voltage phases：1-phase
• Nominal operating voltage AC：230 V
• Permissible voltage fluctuations：+/- 10 %
• Mains frequency：50 Hz ... 60 Hz
• Nominal current：2 A ... 3 A

• Line filter: Integrated
• Max. DC link voltage:320 V
• Braking resistor: 60 Ohm
• Pulse power of braking resistor: 2.8 kVA
• Nominal voltage, logic supply DC :24 V
• Permissible range of logic voltage: ± 20 %
• Max. current consumption for logic supply without clamping brake: 0.55 A
• Output voltage range AC: 3x 0 - 270 V
• Nominal output current: 2.5 A
• Nominal current per phase, effective: 2.5 A
• Peak current per phase, effective: 5 A
• Max. peak current duration: 5 s
• Controller nominal power:500 VA
• Peak power: 1000 VA
• Output frequency:  0 Hz ... 1000 Hz
