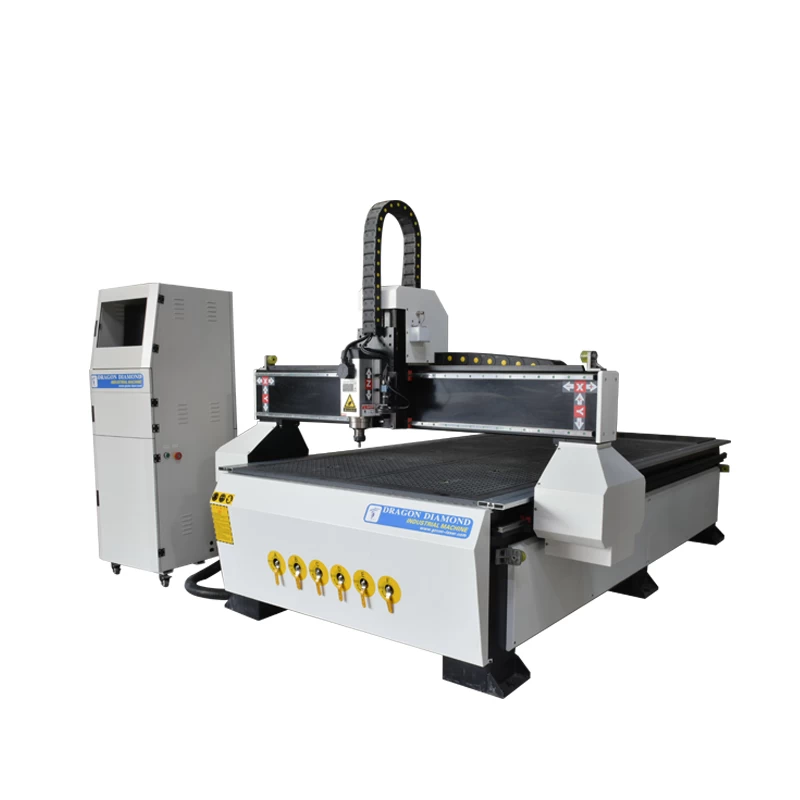

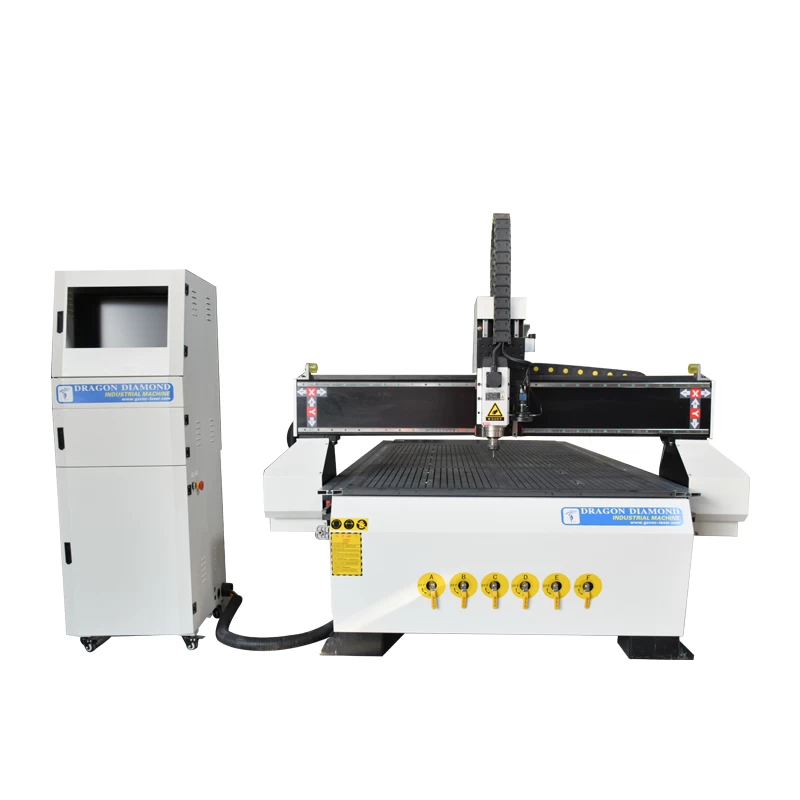

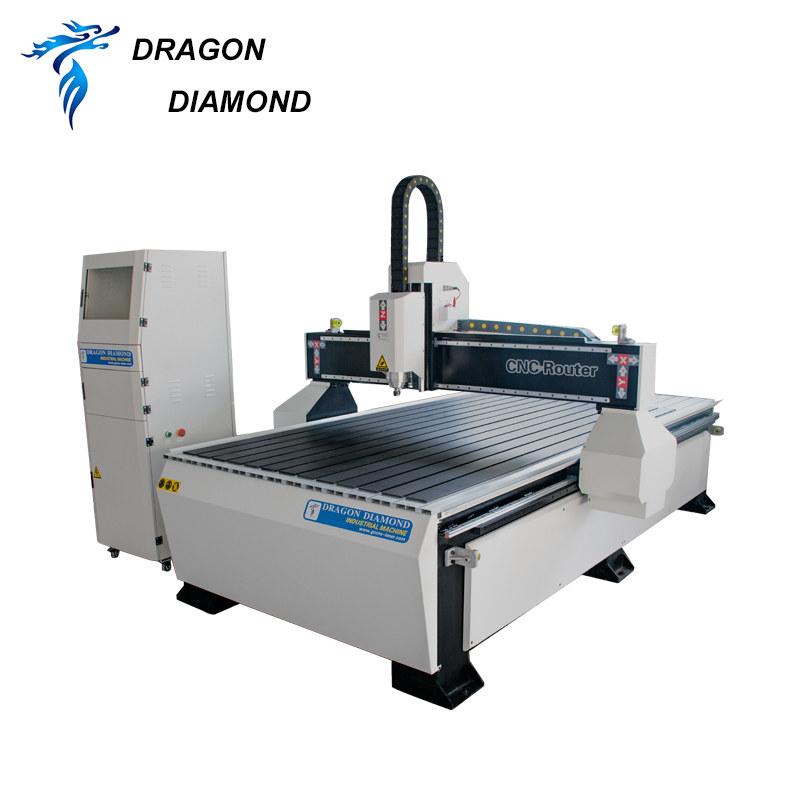

CNC Foam Contour Cutting Machine with CCD Camera
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1325-CCD
|
|
1
|
Working Area
|
1300x2500x200mm
|
|
2
|
Packing Size
|
3180x2130x1880mm
|
|
3
|
Working Table
|
T-Slot Aluminum Table/Vacuum Table
|
|
4
|
Control System
|
CCD professional system
|
|
5
|
CCD Function
|
Automatic edge inspection, contour cutting
|
|
6
|
CCD Pixels
|
130W
|
|
7
|
Spindle
|
3.2KW Air Cooling Spindle/3KW Water cooling Spindle
|
|
8
|
Cooling System
|
Air Cooling/Water Cooling
|
|
9
|
Inverter
|
Sunfar
|
|
10
|
Transmission Type
|
X,Y axis gears pinion, Z axis with ø20mm ball screws
|
|
11
|
Guide Rail
|
Taiwan HIWIN Square rail
|
|
12
|
Ball Screw
|
Taiwan TBI ball screw
|
|
13
|
Drive System
|
Leadshine stepper motor
|
|
14
|
Body
|
Welded steel T type structure as a whole
|
|
15
|
Spindle Speed
|
0-18000RPM/0-24000RPM
|
|
16
|
Editing Software
|
Artcam/Type3,other CAD/CAM
|
|
17
|
Traveling Speed
|
10m/min
|
|
18
|
Working Speed
|
8m/min
|
|
19
|
Reposition Accuracy
|
0.03mm
|
|
20
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
21
|
Voltage
|
AC220V/380V,50Hz/60Hz
|
|
22
|
Warranty
|
24 months
|
|
23
|
Optional parts
|
1.Dust Collects
2.Water Chiller CW3000
3.rotary axis
4.Servo Motor
5.different working area
6..semi-auto lubrication system
7.different power spindle
|
PRODUCT DETAILS

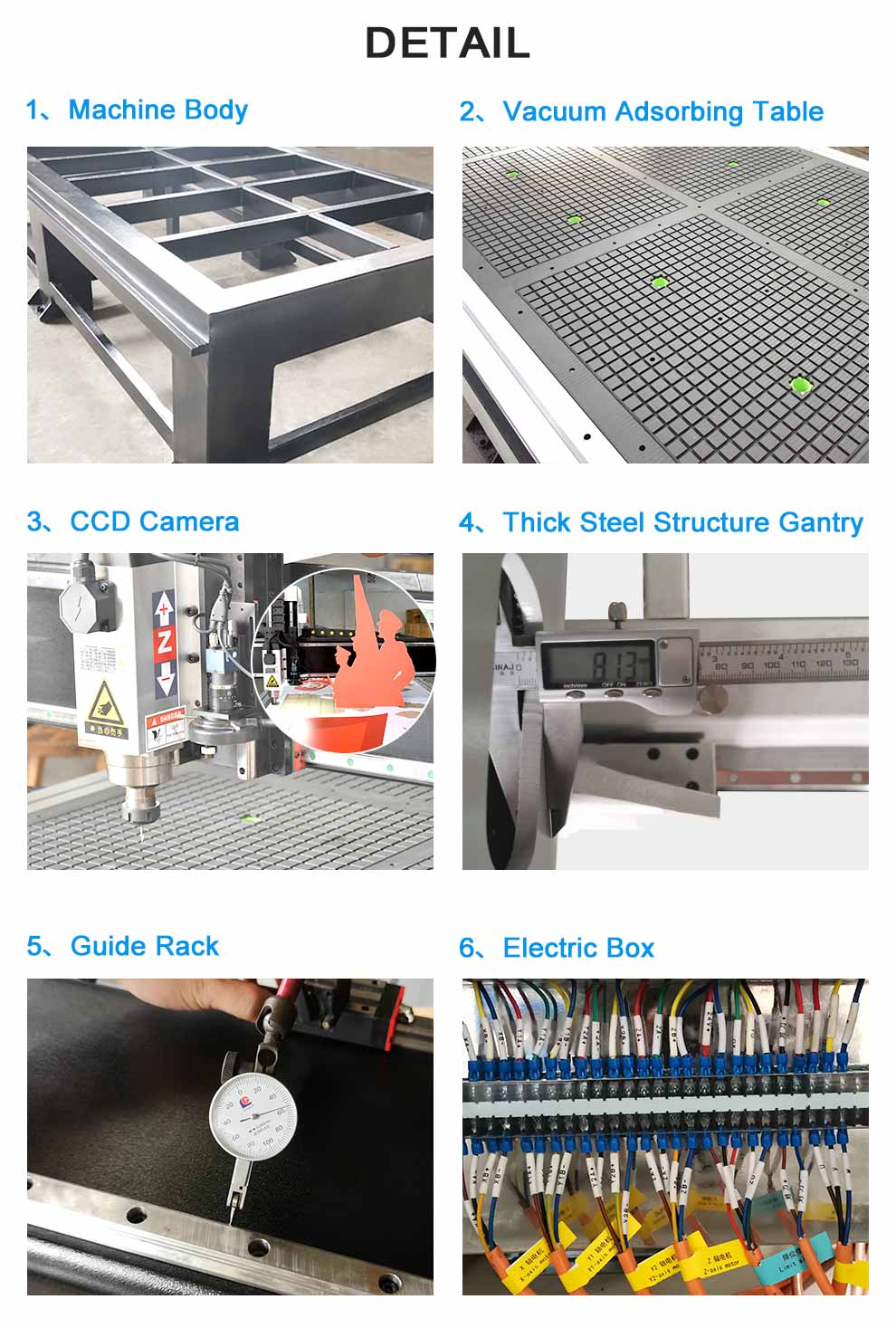

1.The gantry is welded with 8mm thickened square tube.
Accuracy is within 0.02mm.
More than 90% higher than the manufacturing level of peers

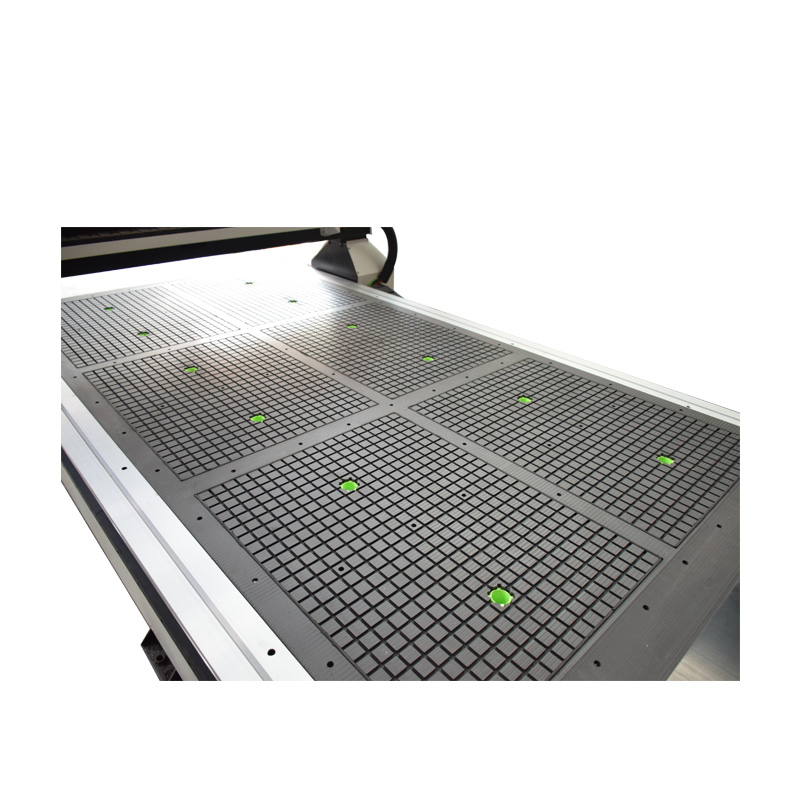

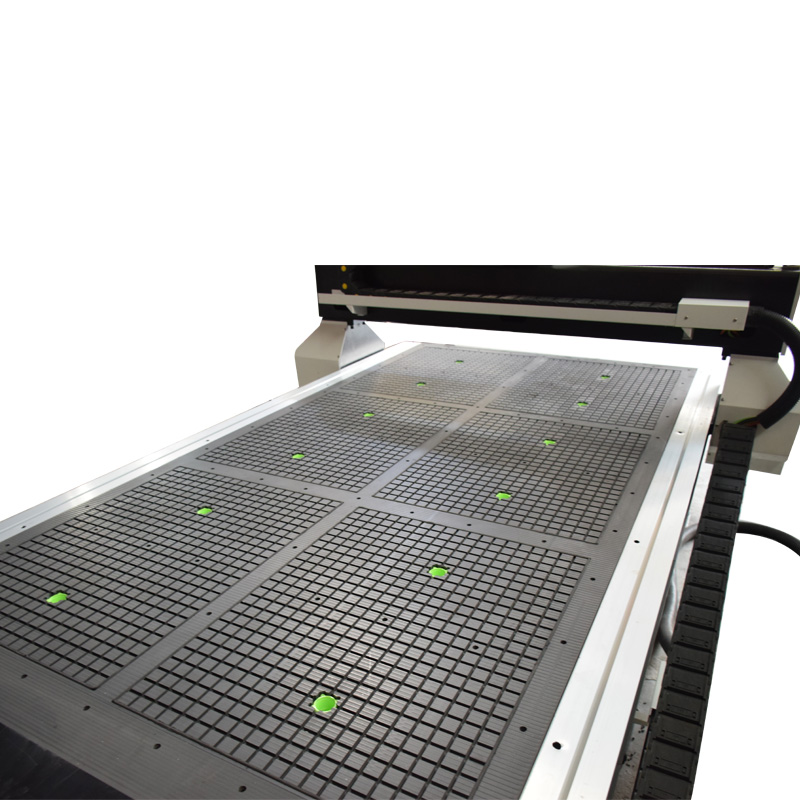

2.Vacuum pump is option item. Vacuum holding down surface could fix the workpiece with the vacuum adsorption power instead of T-slot clamps,convenient and save fixing time.
3.The professinal CCD camera can scan the patterns on the advertising sheet and cut along the edge automatically.
4.Gantry thickness 8mm.
Using heavy-duty columns.
Ensure that the machine body is stable during high speed and heavy cutting without jitter.
5.Imported Rack and Pinion Drive and Hiwin linear guide rail ensure accuracy and high precision.
6.AII the connecting cables have been placed neatly with the label of cable information.It is very convenient to help customer to check.

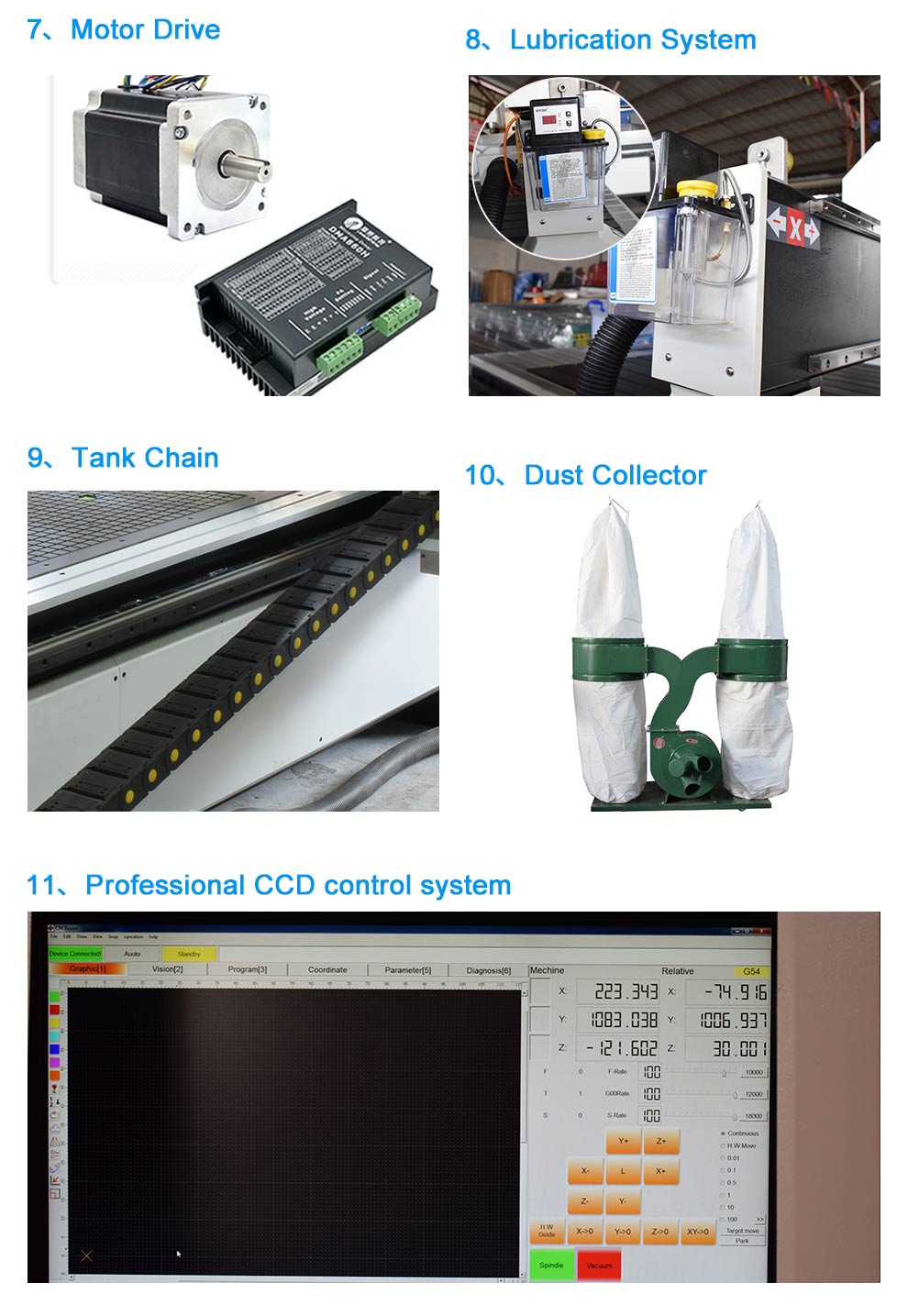

7.Leadshine Stepper motor runs smoothly, which creates a none vibration phenomenon even in low speed and heavy load conditions. Hybrid Servo motor and Servo Motor are optional.
8.Manual/Automatic Oil-injection system provides an easy maintenance working environment.
9.Tank Chain is designed for fireproof and avoided wear of wires and other components, protecting wires.

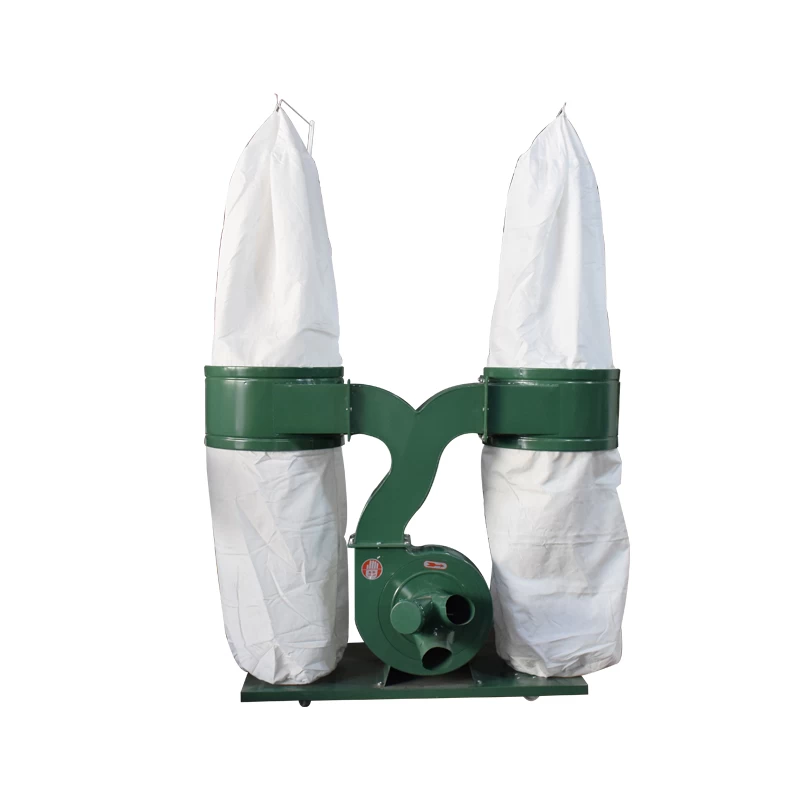

10.Dust collector will clean up the carving residuum and make the operations tidier and more convenient.
11.Control System:Basic function of CNC Router + CCD Camera Contour cutting function, CAD/CAM designing software, such as type3/ ucancam/ artcam are part of the machine package.
APPLICATION INDUSTRY
1.Advertising Industry
Signage,Logo,Badges,Display Board,Meeting Sign Board,Billboard Advertising Filed,Sign Making,Acrylic Engraving and Cutting,Crystal word marking,Blaster Molding,And other advertising materials.
2.Artwork and Decoration Industry
Wood crafts,Gift box,Jewelry box.
3.Die Industry
A sculpture of copper,Aluminum,Iron and other Metal molds.as well as artificial marble,Sand,Plastic sheeting,PVC pipe,and other non-metallic mold.
4.Wood Furniture Industry
Door;Cabinets,Tables,Chairs.Wave Plate,Antique furniture,Wooden door,Screen,Craft sash,Compostie gates,Cupboard doors,Interior doors,Sofa legs,Headboards and so on.
5.Others
Relief sculpture and 3D engraving and Cylindrical object.
