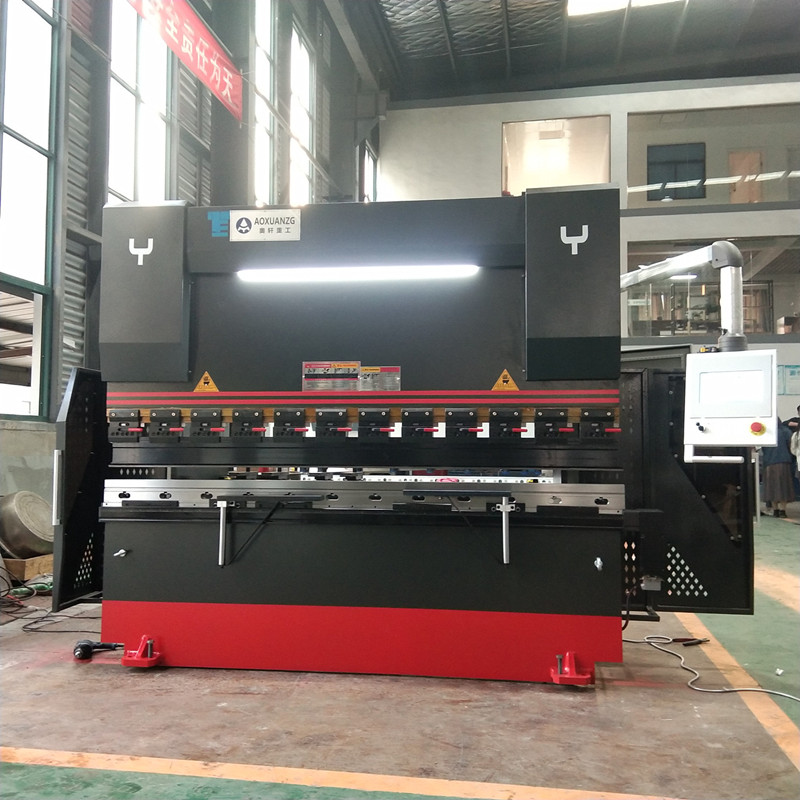

CNC Hydraulic Press Brake Sheet Metal Plate Bender
Main Features
1. Hydraulic system of our metal bender:
Adopt integrated hydraulic control system, more reliable
Be installed at the top of the oil box, which can assure that the cylinder is always full of oil when the slide is moving down at high speed
Consist of motor, oil pump and valve groups on the hydraulic press brake
Complete working cycle can be realized through the control of hydraulic valve.
The working pressure at the right side of the wall board can be adjusted by the remote adjustment valve
2. Protective fence and the safety interlock
Protective fence and the safety interlocker to ensure the CNC bending machine operation safety. Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up. Protecting barrier with safety interlocker is mounted on the back of the machine. Another, there are travel limit protection and foot pedestal mounted emergency off switch.
3.Synchro control system:
Slide syncho system: adopt steel torsion bar synchro system, simple in structure and high in accuracy
2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the press brake precision.
Adopt upper die compensation to improve the brake precision
