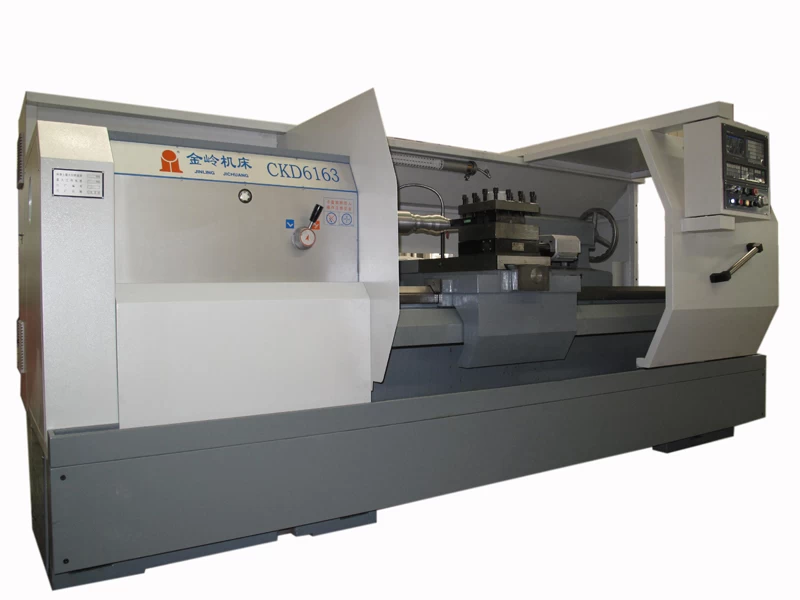

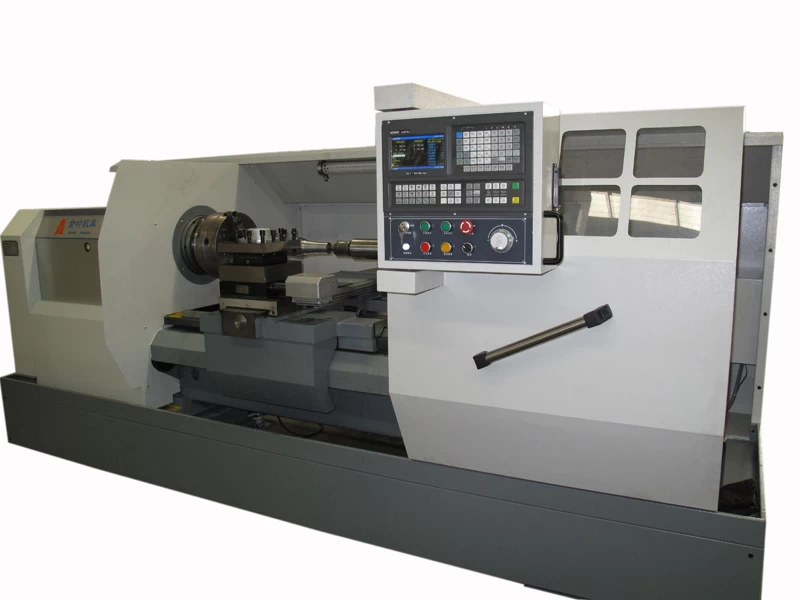

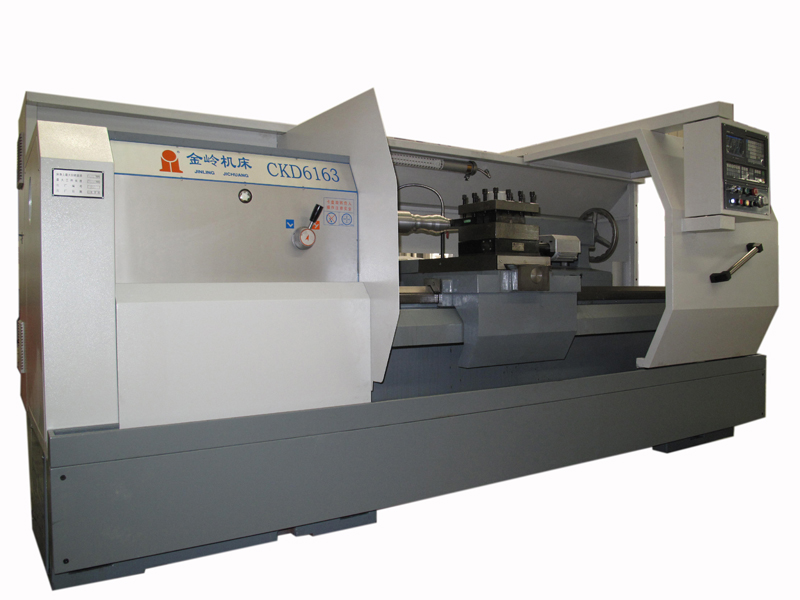

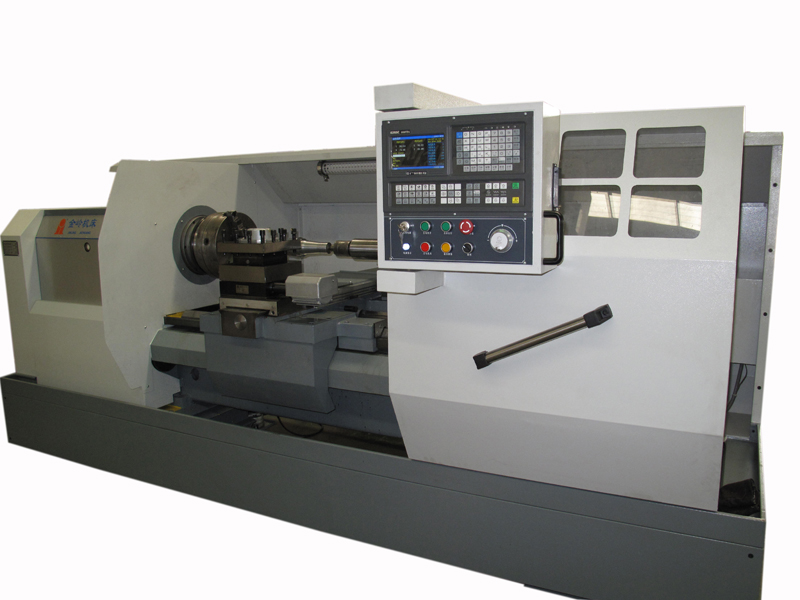

Brief introduction:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearings and so on.
Detailed specification:
|
SPECIFICATIONS
|
UNIT
|
MODEL
|
|
CKC/CKD6163,CKC/CKD6183,CKC/CKD6193
|
|
Center height
|
mm
|
315, 415, 465
|
|
Max swing over bed
|
mm
|
630, 830, 930
|
|
Max swing over carriage
|
mm
|
310, 490, 590
|
|
Max. part length
|
mm
|
1000,1500,2000,3000,4500
|
|
Max. turning length(saddle stoke)
|
mm
|
850, 1350,1850, 2850, 4350
|
|
Spindle bore diameter
|
mm
|
φ105, φ130
|
|
Spindle bore taller
|
|
metric 120, optional 140
|
|
Number of steps of spindle speed
|
|
CKC:Manual change speed,18 steps
CKD:Stepless change speed,2 steps
|
|
Rangeof spindle speed
|
r/min
|
13-1000/10-800
|
|
Main motor power
|
kW
|
11
|
|
Quill diameter
|
mm
|
φ100
|
|
Quill taper
|
|
MT6
|
|
Quill travel
|
mm
|
260
|
|
Quill travel of tailstock
|
mm
|
±15
|
|
Rapid traverse
|
mm
|
X: 4000 Z:8000
|
|
X travel
|
mm/min
|
370, 530,530
|
|
Ztravel
|
mm
|
850, 1350, 1850, 2850 , 4350
|
|
Size of tool rot
|
mm×mm
|
32×32
|
|
Positioning accuracy
|
mm
|
X：0.03, Z: 0.04，0.045，0.05
|
|
Repeatability
|
mm
|
X：0.012,Z: 0.016,0.02, 0.025
|
|
Roudness
|
mm
|
0.005,0.01
|
|
Flatness
|
mm
|
0.025/300（Only for concave）
|
|
Surface roughness
|
um
|
Ra1.6
|
|
StandardCNC System
|
|
GSK980TDC/ SIMENSE 808D
|
|
Dimensions
|
Length
|
mm
|
3155, 3620,4135,5135,6635
|
|
Width
|
mm
|
1750,1950,1950
|
|
Height
|
mm
|
1700,1850,1950
|
Delivery:
The delivery depends on different machines with different configurations. In about 60 days.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
Warranty:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
Agents Wanted:
We have partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. Wherever you are from, we are looking forward to explore new market with you.
