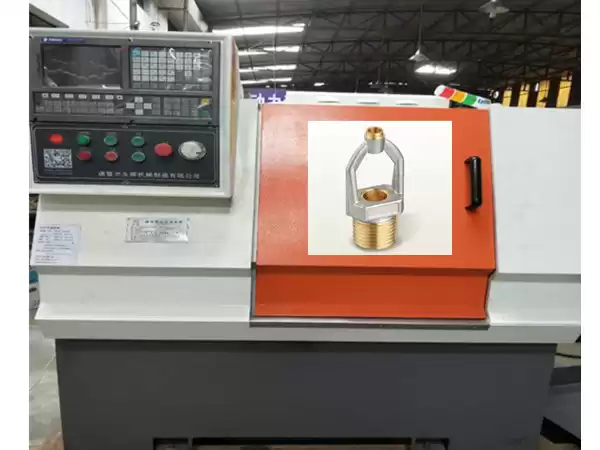

CNC Lathe Process Fire Sprinkler Blank
The equipment operator 1 person can control 16-20 equipment.
|
Name & Model No.
|
CNC
|
SHS-25PG
|
Note
|
|
The parameters of the equipment are as follows
|
|
Name
|
Unit
|
Specification
|
|
|
Spindle bore
|
mm
|
Ф25（fixture M32*1.5×90-110）
|
|
|
Spindle max. speed
|
r/min
|
3000-4000 4000-5000( selection）
|
|
|
Main shaft nose end form
|
|
A2-4
|
|
|
main shaft structure
|
|
Precision barrel spindle
|
|
|
operating system
|
|
KT : KT820Ti
|
|
|
|
Kahndi ：KND100Ti-1000Ti
|
|
|
X travel
|
mm
|
Ф600（one-sided300） HIWIN
|
|
|
Z travel
|
mm
|
180
|
|
|
C axis
|
mm
|
Adjustable
|
|
|
tool apron
|
mm
|
center height 45 (Length * width * height: 140*70*50）
|
|
|
lead screw
|
X axis
|
|
|
|
Z axis
|
|
|
|
C axis
|
Tetra-core positioning precision assembly 2A-3A (pretension structure
|
|
|
Wire rod bearing（NIN)
|
X axis
|
BST20*47
|
|
|
Z axis
|
BST20*47
|
|
|
C axis
|
principal axis（Adjustable ）
|
|
|
spindle motor
|
|
selective breeding ordinary motor 3.0KW
servo motor3.0KW
|
|
|
X Z Motor connection mode
|
|
Coupling
|
|
|
Size（Length * width * height）
|
mm*mm*mm
|
1388*1250*1480
|
|
|
Weight
|
|
1500KG
|
|
|
Main configuration of rear electric box
|
|
Direct check of each connection line
|
|
|
|
inverter ：invoee 3PH/380V 4.0KW
|
|
|
|
Three coherent Voltage Power Inverter ：GCJ-270-1 1500VA
|
|
|
|
servo drivers：SG-20A-X-Z
|
|
|
Model No.
|
Product
|
processes
|
Processing time / PCS
|
Note
|
|
25PG
|
Fire sprinkler
|
First procedure outer tooth G1/2
|
23 seconds* 9 hours=1400
|
4 pcs Tool
|
|
25PG
|
Fire sprinkler
|
Second procedure M5
|
22 seconds* 9 hours=1470
|
4 pcs Tool and 1 pcs screw tap
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
